Contact us to receive an offer.
| Manufacturer | Baljer & Zembrod |
|---|---|
| Model | Trolley Vehicle for handling, sorting, transporting and cutting round wood |
| Year | |
| Location | Poland
|

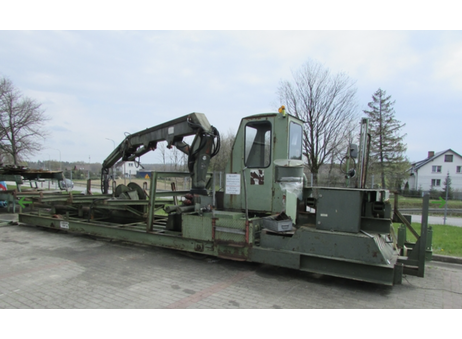

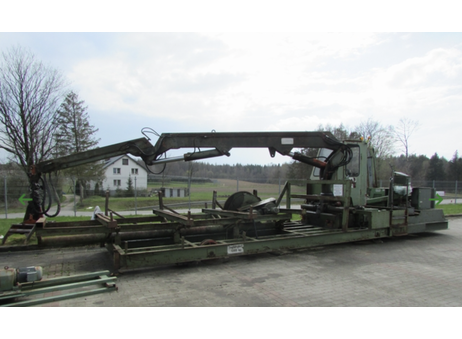

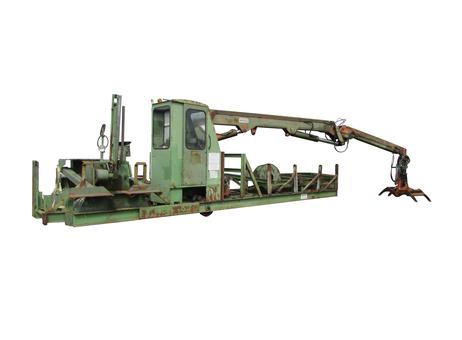

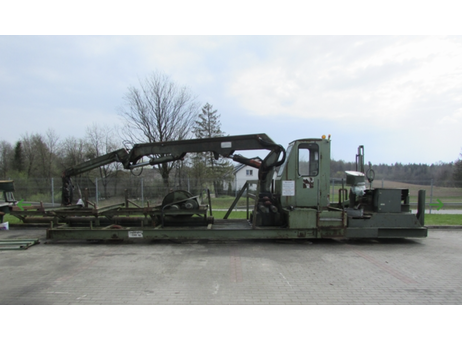

This Baljer & Zembrod Trolley Vehicle is designed for handling, sorting, transporting, and cutting round wood. It features a robust green-painted frame measuring 12,500 mm in length, 2,400 mm in width, and 2,400 mm in height, with a total weight of approximately 12,000 kg. The machine includes an operator cabin centrally positioned on the base frame, equipped with windows and a door for operator access and visibility.

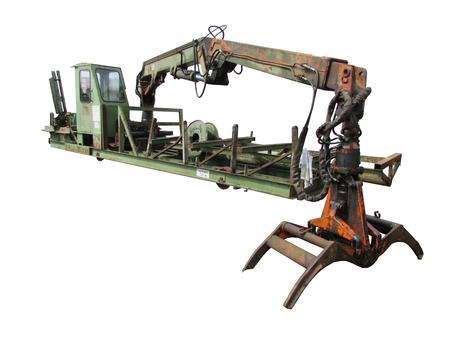

The vehicle is equipped with a long articulated arm featuring hydraulic cylinders and hoses, ending in a claw attachment designed for gripping logs. Hydraulic connections along the arm facilitate its movement and operation. The base frame includes metal side rails and a large spool or reel mounted centrally, which may be part of the cable winding system.
Technical parameters include the capability to handle logs with a maximum diameter of 1000 mm and a crane reach of up to 9200 mm. The crane operates with an angle of 225° and features a 360° rotatable head. Lifting capacities vary depending on reach, with 2560 kg at 2000 mm, 1680 kg at 7240 mm, and 1330 kg at 9200 mm. The dumper dimensions are 6000 x 2150 mm, equipped with double-sided hydraulic discharge.
Power specifications include an 11 kW pump motor and an 8.6 kW feed motor, with a feed speed of 90 m/min. The integrated HOLTEC FS 121 SAW system supports log length measurement, hydraulic guide stroke, manual and automatic operation modes, log lifting, and features an integrated sawdust extraction unit rated at 2.2 kW.
Visible signs of surface rust and paint wear are present on the arm, claw, and base frame components, indicating typical usage conditions. The machine is suitable for industrial wood processing applications requiring precise handling and cutting of round wood.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
- German production
- measurement of wood length
- automatic cutting cycle
TECHNICAL PARAMETERS:
- maximum log diameter 1000 mm
- maximum crane reach 9200 mm
- crane operating angle 225"
- 360" rotatable head
- lifting capacity:
2000 mm - 2560 kg
7240 mm - 1680 kg
9200 mm - 1330 kg
- dumper dimensions 6000x2150 mm
- dumper with double-sided hydraulic discharge
- pump motor power 11 kW
- feed motor power 8.6 kW
- feed speed 90 m/min
HOLTEC FS 121 SAW
- log length measurement
- working length 1000 mm
- hydraulic guide stroke
- manual and automatic operation mode
- log lifting
- integrated sawdust extraction 2.2 kW
- cable winding
drum Transport dimensions
12.5 x 2.4 x 2.4 m
weight 12,000 kg
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2015 |
| Offers online | 123 |
| Last activity | Oct. 22, 2026 |
- German production
- measurement of wood length
- automatic cutting cycle
TECHNICAL PARAMETERS:
- maximum log diameter 1000 mm
- maximum crane reach 9200 mm
- crane operating angle 225"
- 360" rotatable head
- lifting capacity:
2000 mm - 2560 kg
7240 mm - 1680 kg
9200 mm - 1330 kg
- dumper dimensions 6000x2150 mm
- dumper with double-sided hydraulic discharge
- pump motor power 11 kW
- feed motor power 8.6 kW
- feed speed 90 m/min
HOLTEC FS 121 SAW
- log length measurement
- working length 1000 mm
- hydraulic guide stroke
- manual and automatic operation mode
- log lifting
- integrated sawdust extraction 2.2 kW
- cable winding
drum Transport dimensions
12.5 x 2.4 x 2.4 m
weight 12,000 kg
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
This Baljer & Zembrod Trolley Vehicle is designed for handling, sorting, transporting, and cutting round wood. It features a robust green-painted frame measuring 12,500 mm in length, 2,400 mm in width, and 2,400 mm in height, with a total weight of approximately 12,000 kg. The machine includes an operator cabin centrally positioned on the base frame, equipped with windows and a door for operator access and visibility.
The vehicle is equipped with a long articulated arm featuring hydraulic cylinders and hoses, ending in a claw attachment designed for gripping logs. Hydraulic connections along the arm facilitate its movement and operation. The base frame includes metal side rails and a large spool or reel mounted centrally, which may be part of the cable winding system.
Technical parameters include the capability to handle logs with a maximum diameter of 1000 mm and a crane reach of up to 9200 mm. The crane operates with an angle of 225° and features a 360° rotatable head. Lifting capacities vary depending on reach, with 2560 kg at 2000 mm, 1680 kg at 7240 mm, and 1330 kg at 9200 mm. The dumper dimensions are 6000 x 2150 mm, equipped with double-sided hydraulic discharge.
Power specifications include an 11 kW pump motor and an 8.6 kW feed motor, with a feed speed of 90 m/min. The integrated HOLTEC FS 121 SAW system supports log length measurement, hydraulic guide stroke, manual and automatic operation modes, log lifting, and features an integrated sawdust extraction unit rated at 2.2 kW.
Visible signs of surface rust and paint wear are present on the arm, claw, and base frame components, indicating typical usage conditions. The machine is suitable for industrial wood processing applications requiring precise handling and cutting of round wood.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
