| Manufacturer | AVERCON |
|---|---|
| Model | Automatic robotic sorting cell |
| Year | 2021 |
| Location | Belgium
|
AVERCON Automatic Robotic Sorting Cell, manufactured in 2021. This processing cell is designed for installation between a boring cell and a carcass press. It collects parts for each kitchen, buffers them, and stacks them on pallets for assembly, helping organise parts order by order.

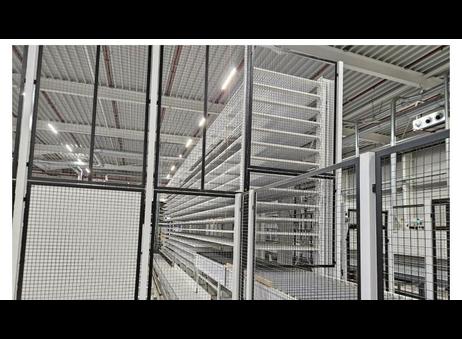

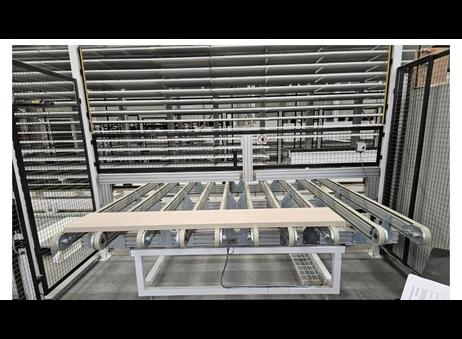

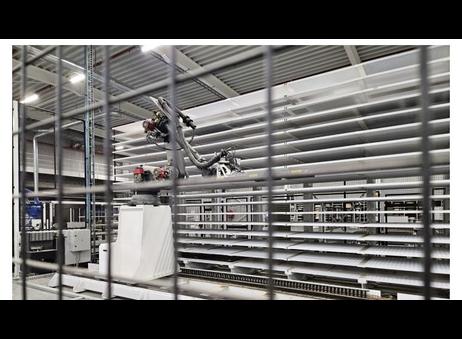

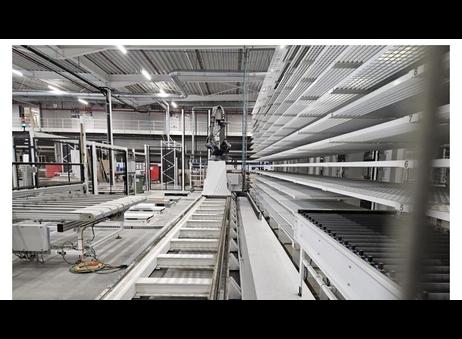

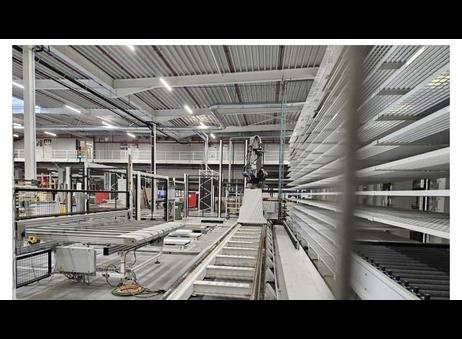

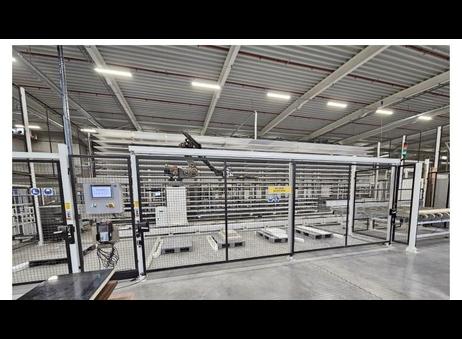

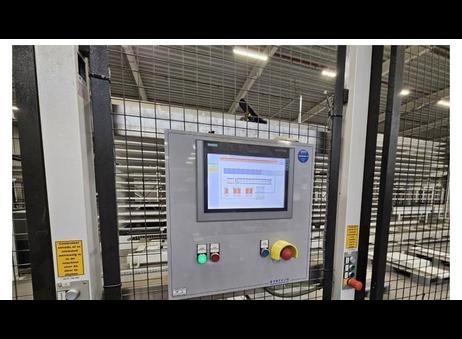

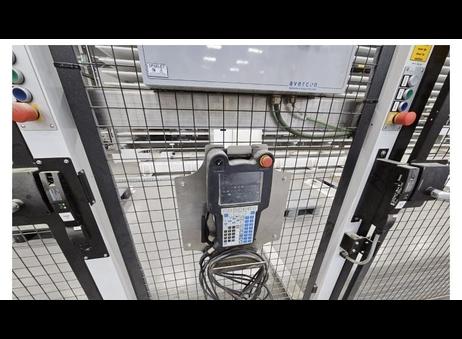

The system includes a Fanuc R-2000iC/100P robot with controller. The robot track is driven by a Siemens Sinamics S210 servo. Material handling is arranged around roller conveyors, a central handling assembly and multi-level storage racks. The cell has metal mesh safety fencing and guarded access gates. A touchscreen control panel, a separate control pendant with screen and keypad, and machine controls including emergency-stop buttons are also present.

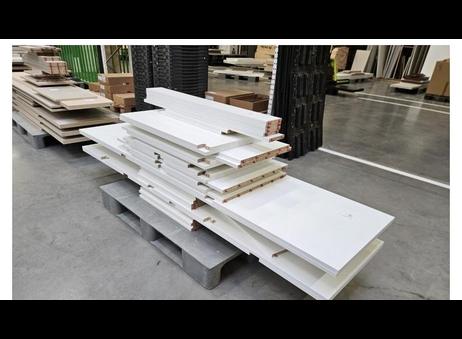

The sorting rack is approximately 15 m wide, 4.5 m high and 1.4 m deep. The stated buffer capacity is six kitchens, averaging about 115 parts per kitchen. Panel sizes stored in the rack are listed as 350–2500 mm long, 50–1000 mm wide and 18–25 mm thick. Panels on the output pallet, but not in the rack, can be up to 3000 × 1300 mm and up to 40 mm thick. Maximum panel weight is 42 kg, and the listed pallet size is 1200 × 800 mm. The listed capacity is 6.0 kg/h.
The machine’s listed overall dimensions are 1400 mm long, 15000 mm wide and 4500 mm high. This automated sorting and buffering cell is suited to kitchen and furniture production lines requiring part handling between CNC boring and carcass pressing.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
AVERCON
Fully automatic sorting and buffer cell installed between a boring cell and a carcass press. The cell collects all parts for each kitchen, then stacks them on pallets for assembly.
Technical data:
Robot: Fanuc R-2000iC/100P with controller, track driven by a Siemens Sinamics S210 servo
Sorting rack: approx. 15 m wide x 4.5 m high x 1.4 m deep,
buffer capacity for 6 kitchens (on average 115 parts per kitchen)
Panel sizes in the rack: length 350–2500 mm, width 50–1000 mm, thickness 18–25 mm
Panel sizes on the output pallet (not in the rack): up to 3000 x 1300 mm, thickness up to 40 mm
Max. panel weight: 42 kg
Pallet size: 1200 x 800 mm
Ideal for kitchen and furniture manufacturers who want to automate the step between CNC boring and carcass pressing: less handling, no searching for parts, and all parts arrive ready for assembly, order by order.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2019 |
| Offers online | 72 |
| Last activity | Oct. 29, 2026 |
AVERCON
Fully automatic sorting and buffer cell installed between a boring cell and a carcass press. The cell collects all parts for each kitchen, then stacks them on pallets for assembly.
Technical data:
Robot: Fanuc R-2000iC/100P with controller, track driven by a Siemens Sinamics S210 servo
Sorting rack: approx. 15 m wide x 4.5 m high x 1.4 m deep,
buffer capacity for 6 kitchens (on average 115 parts per kitchen)
Panel sizes in the rack: length 350–2500 mm, width 50–1000 mm, thickness 18–25 mm
Panel sizes on the output pallet (not in the rack): up to 3000 x 1300 mm, thickness up to 40 mm
Max. panel weight: 42 kg
Pallet size: 1200 x 800 mm
Ideal for kitchen and furniture manufacturers who want to automate the step between CNC boring and carcass pressing: less handling, no searching for parts, and all parts arrive ready for assembly, order by order.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
AVERCON Automatic Robotic Sorting Cell, manufactured in 2021. This processing cell is designed for installation between a boring cell and a carcass press. It collects parts for each kitchen, buffers them, and stacks them on pallets for assembly, helping organise parts order by order.
The system includes a Fanuc R-2000iC/100P robot with controller. The robot track is driven by a Siemens Sinamics S210 servo. Material handling is arranged around roller conveyors, a central handling assembly and multi-level storage racks. The cell has metal mesh safety fencing and guarded access gates. A touchscreen control panel, a separate control pendant with screen and keypad, and machine controls including emergency-stop buttons are also present.
The sorting rack is approximately 15 m wide, 4.5 m high and 1.4 m deep. The stated buffer capacity is six kitchens, averaging about 115 parts per kitchen. Panel sizes stored in the rack are listed as 350–2500 mm long, 50–1000 mm wide and 18–25 mm thick. Panels on the output pallet, but not in the rack, can be up to 3000 × 1300 mm and up to 40 mm thick. Maximum panel weight is 42 kg, and the listed pallet size is 1200 × 800 mm. The listed capacity is 6.0 kg/h.
The machine’s listed overall dimensions are 1400 mm long, 15000 mm wide and 4500 mm high. This automated sorting and buffering cell is suited to kitchen and furniture production lines requiring part handling between CNC boring and carcass pressing.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
