Contact us to receive an offer.
| Manufacturer | AUTOVAK |
|---|---|
| Model | TS400 |
| Year | 2022 |
| Location | Germany
|
| Category | Blister machines |
| Forming depth | 100 mm |
| Max foil width | 400 mm |
| Cycle/min | 12 |
| Engine Power | 3.5 kW |
| Length x width x height | 1000.0 × 715.0 × 450.0 |
| Weight | 150 kg |
| worked hours | 0 hours |
| hours under power | 0 hours |
| state | new |
| At local norms | --------- |
| status | |
| Last availability date | 02/03/2026 |
| Product id | P220609206 |
| Language |
AUTOVAK TS400 Блистер машина
Autovak TS400 Blistrový stroj
AUTOVAK TS400 Blister maskine
AUTOVAK TS400 Blister machine
Μηχάνημα blister AUTOVAK TS400
AUTOVAK TS400 Blister machine
Máquina de blister AUTOVAK TS400
Machine à blister AUTOVAK TS400
AUTOVAK TS400 Blister stroj
AUTOVAK TS400 Buborékfólia gép
Macchina per blister AUTOVAK TS400
AUTOVAK TS400 lizdinės plokštelės mašina
AUTOVAK TS400 Blistermachine
AUTOVAK TS400 Maszyna blistrowa
Máquina de blister AUTOVAK TS400
Mașină de blistere AUTOVAK TS400
AUTOVAK TS400 Блистерная машина
AUTOVAK TS400 Blister mašina
AUTOVAK TS400 Blistermaskin
AUTOVAK TS400 Blister makinası
|
The AUTOVAK TS400 is a stainless steel blister packaging machine designed primarily for heat sealing blister boxes. It features a robust construction using 304 stainless steel and aluminium alloy, ensuring durability and suitability for medical device packaging applications. The machine measures 1000 mm in length, 715 mm in width, and 450 mm in height, with an approximate weight of 150 kg excluding the mould. It operates on a 220 V single-phase power supply with a power rating of 3.5 kW.
This model supports a forming depth of up to 100 mm and can accommodate a maximum foil width of 400 mm. The sealing area measures 300 mm by 400 mm, allowing for efficient heat sealing of blister packs. The production speed reaches up to 12 cycles per minute, although actual throughput may vary depending on operator proficiency. The hot seal pressure is adjustable within a range of 300 to 1500 kg, providing flexibility for different packaging requirements.

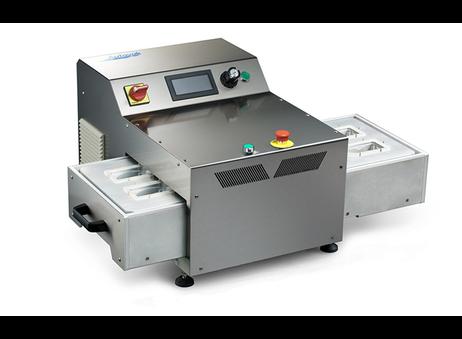

The machine is equipped with a control panel featuring a touchscreen display for easy operation. It includes multiple control buttons such as a red emergency stop button and a green start button, alongside a rotary knob and a red power switch, facilitating precise control during operation. Two transparent plastic trays are positioned on either side of the machine to hold blister packs securely during processing.
The AUTOVAK TS400 requires a compressed air supply with a pressure between 5 and 8 bar and an approximate consumption of 18 liters per minute. The machine appears clean and well-maintained, with no visible signs of damage or wear, indicating good overall condition.
Manufactured in 2022 by AUTOVAK, a company with over 20 years of experience in medical device packaging, this machine benefits from extensive research, development, and manufacturing expertise. AUTOVAK operates internationally with facilities in Suzhou, China, and sales offices in the United States, Germany, and Malaysia, offering reliable support and service.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
- Function: heat sealing of blister boxes.
- Main material of the machine: 304 stainless steel, aluminium alloy
- Dimension: 1000mm x 715mm x 450mm
- Weight: approx.150 kg (without mould)
- Power supply: 220 V 50 / 60 Hz single phase 3,5 KW
- Compressed air supply: pressure 5 bar - 8 bar, approx. 18 L / min
- Seal size: 300mm x 400mm
- Packing depth: up to 100mm
- Production speed: Up to 12 cycles per minute, depending on operator qualification
- Hot seal pressure: 300-1500kg adjustable
Autovak is an international company with research, development and manufacturing facilities in Suzhou, China, and sales and customer service offices in the United States, Germany and Malaysia. The company has over 20 years of experience in medical device packaging.
From OEM production for European packaging machine manufacturers to the production of self-developed machines and equipment with independent intellectual property rights and own brands, Autovak has accumulated a lot of know-how in the field of medical device packaging and online printing.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
