| Manufacturer | ATMSOLUTIONS |
|---|---|
| Model | ATMS MILL 1200 UŻYWANA |
| Year | 2021 |
| Location | Poland
|
The ATMSOLUTIONS ATMS MILL 1200 UŻYWANA is a vertical 5-axis machining center designed for precision and versatility in complex milling operations. Manufactured in 2021, this model features a robust construction with overall dimensions of 3870 mm in length, 3165 mm in width, and 2920 mm in height. The machine is equipped with a worktable measuring 1000 mm by 500 mm, capable of supporting loads up to 1200 kg. It offers an axis movement range of 800 mm along X, 500 mm along Y, and 497 mm along Z, facilitating extensive machining capabilities.
Powered by a 7.5 kW oil-cooled spindle motor, the spindle can reach speeds up to 10,000 rpm and utilizes a BT40 taper. The spindle center to column distance is 650 mm, with a distance from spindle to table adjustable between 165 and 665 mm. The machine employs high-quality components including Siemens servo drives and encoders, NSK bearings, and HIWIN ball screws and trapezoidal slides, ensuring smooth and accurate axis movements.
The tool magazine holds 24 tools with a maximum tool weight of 15 kg and a maximum tool length of 350 mm (excluding the rotary table). It features a diagnostic viewfinder for the tool change cycle and a magazine diameter of 720 mm. The machining center includes a tilt-turn table with a diameter of 250 mm, groove width of 12 mm, and hydraulic locking.
Additional features enhancing operation and maintenance include a full housing with sliding doors, three adjustable tool cooling nozzles with selective shut-off, workspace illumination, a chip conveyor with basket, automatic lubrication system, water flushing system, pneumatic and water guns, and a ventilated control cabinet. The operator panel is tilting and includes an accessory cabinet, while a handheld speed controller with six axes and three feed speed settings provides flexible manual control.

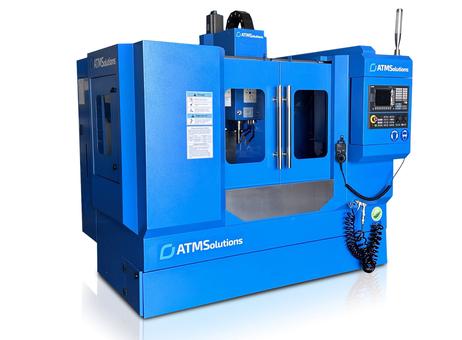

The machine is presented in a blue enclosure with dual front doors featuring windows, allowing visibility into the work area. The control panel with screen, buttons, and dials is mounted on the right side, and a handheld control pendant is attached with a coiled cable at the front. Warning and instruction labels are visible on the left door. The machine appears clean and well-maintained with no visible damage or wear, indicating good care and upkeep.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Servo drives : Siemens
Encoders : Siemens
Motor powers: X/Y/Z: 2.2kW/2.2Kw/3.5kW
5-axis machine (3+2)
Table size :1000x500mm
Load capacity : 1200kg
Axis movement range : X - 800/Y - 500/Z - 500
Trapezoidal slides: HIWIN
4-track guide systems
3 axes pulling screw
Bearings : NSK
Ball screw : HIWIN
Pneumatics : AirTAC
Spindle center to column distances: 650mm
Distance from spindle to table : 165-665
X/Y/Z axis speeds : 24/24/20 m. min
Max spindle speed: 10000 rpm
Spindle taper : BT40
Motor power: 7.5 kW
Oil-cooled spindle
Tool storage: 24 pieces
Magazine diameter: 720mm
Diagnostic viewfinder for tool change cycle
Max tool weight: 15kg
Max tool length: 350mm (without rotary table)
Full housing
Sliding door
Adjustable tool cooling nozzles: 3 pieces with selective shut-off
Workspace illumination
Hand-held speed controller: 6 axes with three feed speed settings
Chip conveyor with basket
Automatic lubrication system
Water gun
Pneumatic gun
Signal and alarm lamp
T-slot table 18x5
Tilt-turn table: table diameter: 250mm; groove width: 12mm; hydraulic table lock
Tilting operator panel
Work area illumination
Oil pump motor: 1.5kW
Ventilated control cabinet
Water flushing system for the working area
Operator panel with accessory cabinet
