Contact us to receive an offer.
| Manufacturer | ARSILAC |
|---|---|
| Model | 105 HL - 10,5 m3 |
| Year | |
| Location | France
|

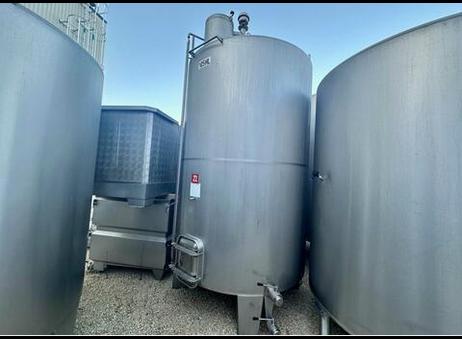

This ARSILAC model 105 HL tank is a vertical, closed cylindrical stainless steel vessel designed for industrial use. It has a total capacity of 10,500 liters (105 HL) and stands 4,000 mm tall with a diameter of 2,100 mm. The tank features a conical bottom supported by five sturdy stainless steel legs, each approximately 470 mm in height, elevating the tank off the ground for ease of access and cleaning.

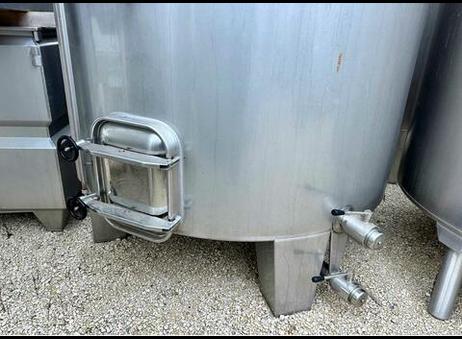

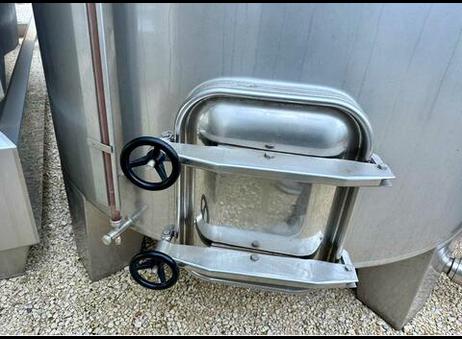

The tank's construction is fully stainless steel, offering durability and resistance to corrosion. It includes a manway access hatch located near the bottom of the tank, equipped with two black wheel handles for secure closure. This hatch facilitates internal inspection and maintenance. Additionally, there are multiple valves fitted near the bottom, including total ball valve drains and partial drain ball valves, with specific fittings such as Ø 50 and Ø 60 MÂCON plugs as per tank numbers 22 and 23.

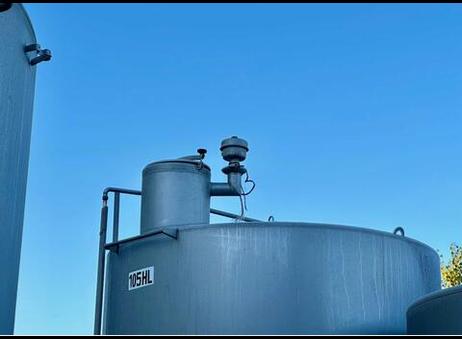

The tank's roof is equipped with an off-center front chimney with a diameter of 400 mm, providing venting capabilities. The tank also includes a ladder support bar, a level tube on a ruler for monitoring liquid levels, and a tasting tap. A rectangular door measuring 500 x 400 mm is positioned at the bottom of the shell for additional access.
Surface condition of the tank appears clean with minor scratches and some streaking marks, but no visible rust or significant damage, indicating good maintenance. The tank is designed for operation at atmospheric pressure and is suitable for products with a density of 1. It complies with CE standards and is sold with a six-month guarantee.
Overall, this ARSILAC 105 HL stainless steel tank offers a robust solution for storage and processing needs in industrial settings, with accessible features and solid construction.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
TECHNICAL FEATURES
- Closed cylindrical on feet
- Capacity : 105 HL
- Material : STAINLESS STEEL
- Bottom : conical on feet
- Tank no.: 23 and 22
ROOF
- 1 off-centre front chimney Ø 400 mm
VIROLE
- 1 ladder support bar
- 1 level tube on ruler
- 1 tasting tap
- 1 rectangular door 500/400 mm at bottom of shell
- 1 partial drain ball valve
* Tank N°23 : Ø 50 MÂCON with plug
* Tank N°22 : Ø 60 MÂCON with plug
BOTTOM
- 1 Total ball valve drain
* Tank N°23 : Ø 50 MÂCON with plug
* Tank N°22 : Ø 60 MÂCON with plug
- 5 stainless steel fee : height 470 mm
DIMENSIONS
- Diameter : 2100 mm
- Total height : 4000 mm
ANNEXES
- Tank for product density 1
- Operating conditions : atmospheric pressure
- 6-month guarantee
- Complies with CE standards
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
