Contact us to receive an offer.
| Manufacturer | ARSILAC |
|---|---|
| Model | 100 HL - 10 m3 |
| Year | |
| Location | France
|

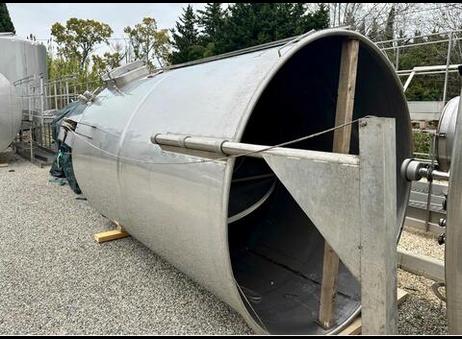

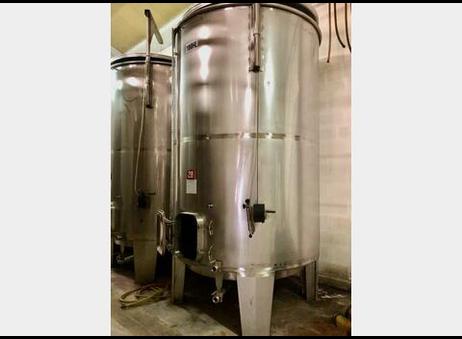

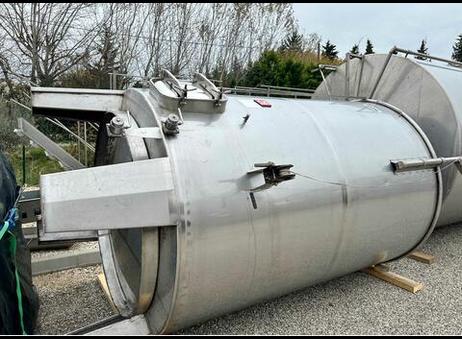

This ARSILAC model 100 HL stainless steel tank is designed for industrial applications requiring a robust and hygienic storage solution. It features a cylindrical shape supported on four stainless steel legs, providing stability and ease of access beneath the tank. The tank has a total height of 4700 mm and a diameter of approximately 2500 mm, with a ferrule height of 3060 mm, accommodating a capacity of 10,000 liters (100 HL).
Constructed entirely of stainless steel, the tank includes a conical bottom equipped with a MÂCON 50 full drain ball valve for efficient emptying. The roof consists of a floating stainless steel cap, which allows for slight movement and pressure variations. The tank is fitted with several functional components: a ladder support bar, a bracket, a tasting tap, and a rectangular door measuring 430×540 mm located at the bottom of the ferrule for easy access and inspection.
Additional features include a MÂCON 50 partial-drain ball valve and a level indicator with a tap and polycarbonate ruler tube to monitor the liquid level accurately. The tank stands on four stainless steel feet, each 700 mm in height, ensuring elevated positioning.
Inspection of the tank reveals a clean and well-maintained stainless steel surface with minor scuffs but no visible dents or rust. The large circular manway hatch with clamps provides secure sealing and convenient access for maintenance. Several pipe fittings and valves are mounted on the tank surface, including a valve or actuator near the hatch, enhancing operational control.

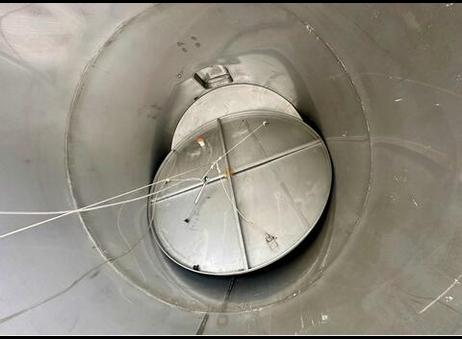

The interior is equipped with a large circular internal component supported by rods and wires, likely for structural support or instrumentation purposes, and appears clean and intact. This tank is designed for atmospheric pressure operation and is suitable for products with a density of 1. It complies with CE standards, underscoring its adherence to European safety and quality regulations.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
TECHNICAL FEATURES
- Cylindrical on legs
- Floating top
- Capacity : 100 HL
- Material : STAINLESS STEEL
- Bottom : conical on legs
- Roof : Floating cap
- Tank number : 27 et 28
ROOF
- 1 stainless steel floating cap
VIROLE
- 1 ladder support bar
- 1 bracket
- 1 tasting tap
- 1 rectangular door 430×540 mm at bottom of ferrule
- 1 MÂCON 50 partial-drain ball valve
- 1 level complete with tap and ruler (polycarbonate tube)
BOTTOM
- 1 MÂCON 50 ball valve, full drain
- 4 stainless steel feet 700 mm
DIMENSIONS
- Diameter : 2500 mm
- Ferrule height : 3060 mm
- Total height : 4700 mm
ANNEXES
- Tank for product density 1
- Operating conditions : atmospheric pressure
- 6-month guarantee
- Complies with CE standards
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
