Contact us to receive an offer.
| Manufacturer | ARGA FABES |
|---|---|
| Model | DUROMEL PCVM 300 T / |
| Year | 2000 |
| Location | Italy
|
The ARGA FABES DUROMEL PCVM 300 T is a compression press designed for molding applications involving elastomers and thermosets. Manufactured in 2000, this machine features a clamping force of 300 tons and operates at a pressure of 235 bar. The heated platen measures 700 mm in length and 500 mm in width, providing a substantial surface area for molding processes. The maximum mold opening is 620 mm, allowing accommodation of various mold sizes.
This press is equipped with bi-metal screws, enhancing its operational capabilities. The platen height from the floor is 1530 mm; however, a 400 mm platform with guards is recommended for safe operation. The machine includes upper and lower hot platens, each powered at 6 kW, with temperature settings adjustable between 50 and 250°C to suit different molding requirements.

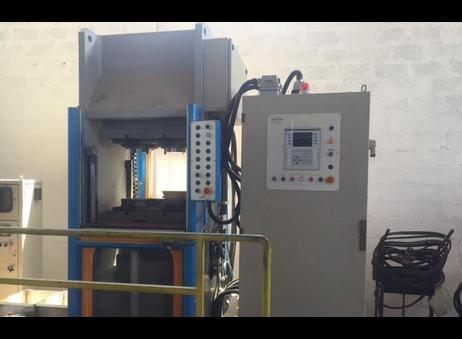

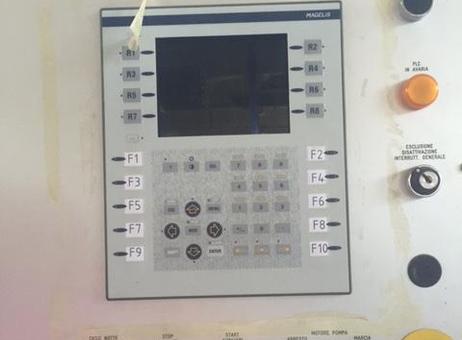

From the images, the machine is housed indoors and appears well-maintained with no visible damage or rust. It has a blue and gray frame with a control panel mounted on the right side. The control panel features a Magelis display and multiple function buttons, including STOP, START, and motor pump controls, which are intact despite some surface wear and tape residue. A yellow safety railing is installed in front of the machine, enhancing operator safety.

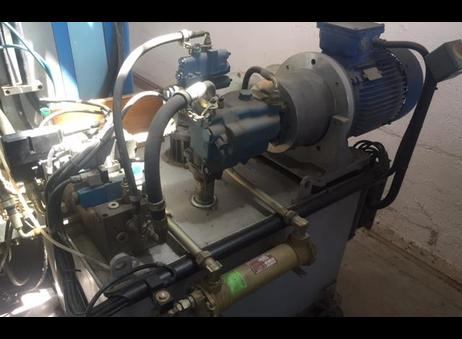

The hydraulic system includes a pump assembly with an electric motor and connected hoses and pipes, all appearing clean and in good condition without visible leaks. This equipment is supplied with a CE declaration of conformity, ensuring compliance with relevant safety and quality standards. Overall, this compression press combines robust mechanical specifications with accessible controls and safety features suitable for industrial molding operations.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
DUROMEL PCVM 300T-EC Compression press Tonnage: 300 Year: 2000 Heated platen size: 700 x 500 mm Max. mold opening: 620 mm Max. moving platen stroke: 500 mm Mold clamping force (adjustable): 300 - 3000 kN Operating pressure: 235 bar Compression speed at max. force (adjustable): 0 - 3.2 mm/s Upper hot platen power: 6 kW Lower hot platen power: 6 kW Hot platen temperature: 50 - 250°C Working platen height: 1530 mm from the floor (400 mm platform with guards recommended) Heating platens with melamine baby food dish molds. Compression molding of elastomers and thermosets. Equipped with CE declaration of conformity.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2007 |
| Offers online | 247 |
| Last activity | Oct. 30, 2026 |
DUROMEL PCVM 300T-EC Compression press Tonnage: 300 Year: 2000 Heated platen size: 700 x 500 mm Max. mold opening: 620 mm Max. moving platen stroke: 500 mm Mold clamping force (adjustable): 300 - 3000 kN Operating pressure: 235 bar Compression speed at max. force (adjustable): 0 - 3.2 mm/s Upper hot platen power: 6 kW Lower hot platen power: 6 kW Hot platen temperature: 50 - 250°C Working platen height: 1530 mm from the floor (400 mm platform with guards recommended) Heating platens with melamine baby food dish molds. Compression molding of elastomers and thermosets. Equipped with CE declaration of conformity.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
The ARGA FABES DUROMEL PCVM 300 T is a compression press designed for molding applications involving elastomers and thermosets. Manufactured in 2000, this machine features a clamping force of 300 tons and operates at a pressure of 235 bar. The heated platen measures 700 mm in length and 500 mm in width, providing a substantial surface area for molding processes. The maximum mold opening is 620 mm, allowing accommodation of various mold sizes.
This press is equipped with bi-metal screws, enhancing its operational capabilities. The platen height from the floor is 1530 mm; however, a 400 mm platform with guards is recommended for safe operation. The machine includes upper and lower hot platens, each powered at 6 kW, with temperature settings adjustable between 50 and 250°C to suit different molding requirements.
From the images, the machine is housed indoors and appears well-maintained with no visible damage or rust. It has a blue and gray frame with a control panel mounted on the right side. The control panel features a Magelis display and multiple function buttons, including STOP, START, and motor pump controls, which are intact despite some surface wear and tape residue. A yellow safety railing is installed in front of the machine, enhancing operator safety.
The hydraulic system includes a pump assembly with an electric motor and connected hoses and pipes, all appearing clean and in good condition without visible leaks. This equipment is supplied with a CE declaration of conformity, ensuring compliance with relevant safety and quality standards. Overall, this compression press combines robust mechanical specifications with accessible controls and safety features suitable for industrial molding operations.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
