Contact us to receive an offer.
| Manufacturer | Arburg |
|---|---|
| Model | Allrounder 270 D 500-210 |
| Year | 1986 |
| Location | Germany
|
This listing is for a used Arburg Allrounder 270 D 500-210 horizontal injection molding machine, manufactured in 1986. The machine features a clamping force of 50 tons (500 kN) and a screw diameter of 30 mm. It has a platen size of approximately 400 x 400 mm and a tie bar spacing of 550 mm. The maximum opening stroke of the press is 325 mm. The injection unit operates at an injection pressure of approximately 1150 bar and includes 4 heating zones. The total heating power is 5.56 kW. The machine is powered by a pump motor rated at 15 kW, with a total power consumption of 20.6 kW, running on a working voltage of 380V and 50Hz. The approximate weight of the machine is 1850 kg.

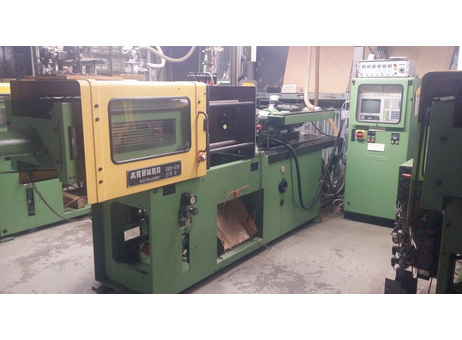

The machine is equipped with a control panel located on the right side, featuring a screen and buttons for operation. The injection unit includes a hopper mounted on top for feeding material. The molding area is enclosed with a yellow safety door that has a transparent window, enhancing operator safety. Multiple connected cables, hoses, and visible hydraulic or pneumatic lines are attached to the machine, indicating its operational complexity. An electrical panel with a warning symbol is also attached.
The machine appears to be in a clean indoor industrial environment, although the floor around it shows some wear. Please note that the system is currently not functional; specifically, the CPU card does not control the screen. This machine is therefore offered as a source for spare parts or for repair and refurbishment by experienced technicians.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
horizontal injection molding machine,
- used, defect
injection unit:
- Screw diameter: 30 mm
- Injection pressure approx.: 1150 bar
- Heating zones: 4
- Heating power: 5.56 kW
locking unit:
- Closing force: 500 kN
- Max. opening stroke: 325 mm
- Max. distance between plates: 550 mm
- Clamping plate size approx.: 400 x 400 mm
- Rail spacing: 270 x 270 mm
- Pump motor: 15 kW
- Total power: 20.6 kW
- Working voltage: 380V, 50Hz
- Approx. weight: 1,850 kg
System is not functional. CPU card
does not control the screen. (As a spare parts store)
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2019 |
| Offers online | 32 |
| Last activity | Oct. 29, 2026 |
horizontal injection molding machine,
- used, defect
injection unit:
- Screw diameter: 30 mm
- Injection pressure approx.: 1150 bar
- Heating zones: 4
- Heating power: 5.56 kW
locking unit:
- Closing force: 500 kN
- Max. opening stroke: 325 mm
- Max. distance between plates: 550 mm
- Clamping plate size approx.: 400 x 400 mm
- Rail spacing: 270 x 270 mm
- Pump motor: 15 kW
- Total power: 20.6 kW
- Working voltage: 380V, 50Hz
- Approx. weight: 1,850 kg
System is not functional. CPU card
does not control the screen. (As a spare parts store)
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
This listing is for a used Arburg Allrounder 270 D 500-210 horizontal injection molding machine, manufactured in 1986. The machine features a clamping force of 50 tons (500 kN) and a screw diameter of 30 mm. It has a platen size of approximately 400 x 400 mm and a tie bar spacing of 550 mm. The maximum opening stroke of the press is 325 mm. The injection unit operates at an injection pressure of approximately 1150 bar and includes 4 heating zones. The total heating power is 5.56 kW. The machine is powered by a pump motor rated at 15 kW, with a total power consumption of 20.6 kW, running on a working voltage of 380V and 50Hz. The approximate weight of the machine is 1850 kg.
The machine is equipped with a control panel located on the right side, featuring a screen and buttons for operation. The injection unit includes a hopper mounted on top for feeding material. The molding area is enclosed with a yellow safety door that has a transparent window, enhancing operator safety. Multiple connected cables, hoses, and visible hydraulic or pneumatic lines are attached to the machine, indicating its operational complexity. An electrical panel with a warning symbol is also attached.
The machine appears to be in a clean indoor industrial environment, although the floor around it shows some wear. Please note that the system is currently not functional; specifically, the CPU card does not control the screen. This machine is therefore offered as a source for spare parts or for repair and refurbishment by experienced technicians.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
