Contact us to receive an offer.
| Manufacturer | Arburg |
|---|---|
| Model | 470 C 2000-675 |
| Year | 1998 |
| Location | Italy
|
This Arburg 470 C 2000-675 injection moulding machine, manufactured in 1998, offers a maximum clamping force of 200 tons (2000 kN). It features a screw diameter of 50 mm, with injection screw diameter options ranging from 45 to 60 mm, and a maximum screw stroke of 180 mm. The machine supports a tie bar spacing of 470 mm both horizontally and vertically, providing ample space for mold installation.
The moving platen stroke measures 650 mm, accommodating a minimum mold thickness of 250 mm. Injection volume capacities vary with options of 286, 353, 427, and 508 cm³, while the maximum injection pressures range from 1440 to 2500 bar depending on the configuration.

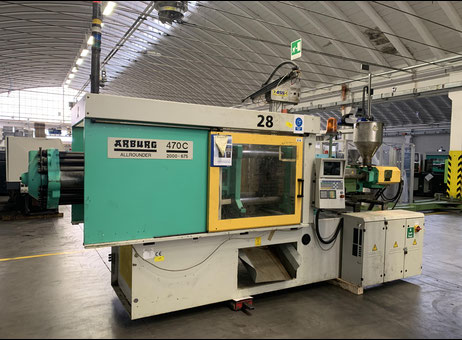

Equipped with a Euromap 12 robot interface, this machine allows for automation integration. It includes a material hopper mounted on the top right side for feeding raw materials. The control panel, located on the right side, features a screen and keypad for machine operation and monitoring.
The machine is enclosed with a safety glass window at the front, allowing for safe viewing of the mold area during operation. It weighs approximately 6630 kg and requires an oil fill of 260 liters. Power is supplied via a hydraulic pump rated at 30 kW, with total installed power of 45.8 kW.
The machine shows signs of use with some dirt and wear marks but appears to be in good condition overall. This model is suitable for various injection molding applications, offering flexibility with multiple screw sizes and injection capacities, combined with reliable Arburg engineering.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.

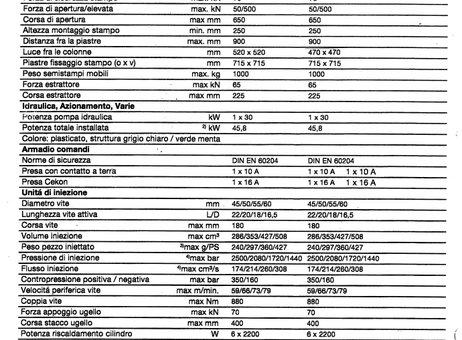

Data sheet
Brand: ARBURG
Model: 470 C 2000-675
Tonnage: 200
Year: 1998
Columns passage: 470 x 470
Screw diameter: 50
Min / Max mold thickness: 250 min
Euromap 12 Robot Interface: Yes
Euromap: 2000-675
Moving platen stroke: 650
