| Manufacturer | ARBURG |
|---|---|
| Model | 270U 250-170 (25T) |
| Year | 2007 |
| Location | Portugal
|
This ARBURG 270U 250-170 injection moulding machine, manufactured in 2007, is designed for precise and efficient plastic injection molding processes. It features a screw diameter of 15 mm, allowing an injection volume of 59 cm³ and a maximum injection weight of 54 grams in polystyrene (PS). The machine operates with an injection pressure of up to 2500 bar and has an injection ratio (L/D) of 24.
The clamping unit includes platens measuring 380 mm by 380 mm, with a tie bar spacing of 270 mm both horizontally and vertically. It provides a clamping force of 25 tons, ensuring secure mold closure during operation. The machine offers a moving platen opening stroke of 350 mm and a maximum distance between the moving and fixed platen of 475 mm, accommodating various mold thicknesses, with a minimum mold thickness of 200 mm. The ejection system delivers an ejector force of 20 kN and an ejection stroke of 100 mm.
The machine's dimensions are 3500 mm in length, 1200 mm in width, and 1800 mm in height, with a total weight of approximately 2000 kg.

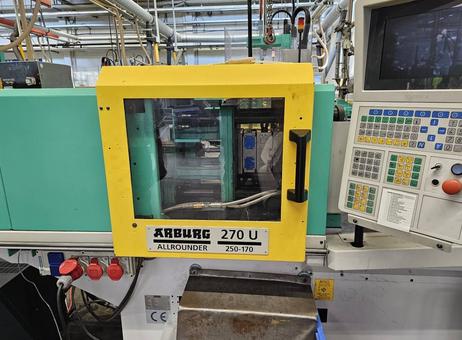

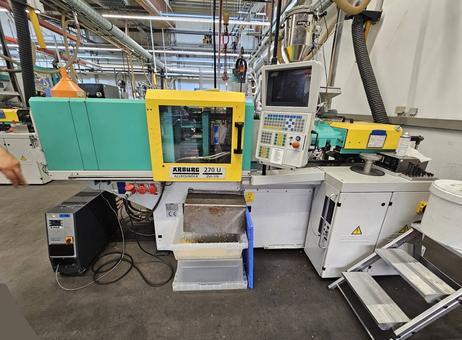

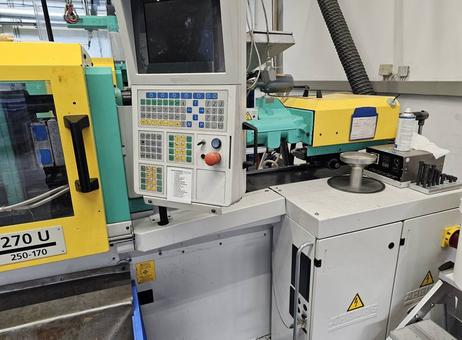

The injection moulding machine is housed in a yellow and green casing. It is equipped with a control panel featuring a screen and multiple buttons located on the right side, facilitating user operation and monitoring. Below the machine, there is a metal chute designed for collecting molded parts efficiently. The machine appears clean and well maintained, with only minor dirt visible on the floor around it. Black power cables and a black device are positioned on the floor to the left side of the machine, indicating the presence of necessary electrical connections and control units.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
CNC Control
CNC Control - Make: SELOGICA
Injection Unit
Screw Diameter: 15 mm
Injection Volume: 59 cm$^3$
Maximum Injection Weight (in PS): 54 g
Injection Pressure: 2500 bar
Injection Ratio (L/D): 24
Clamping Unit
Platen Dimension (Horizontal): 380 mm
Platen Dimension (Vertical): 380 mm
Distance Between Tie-bars (Horizontal): 270 mm
Distance Between Tie-bars (Vertical): 270 mm
Mold Thickness (Min): 200 mm
Minimum Mold Dimension: 200 mm
Clamping Force: 25 ton
Opening Force: 9.2 ton
Moving Platen Opening Stroke: 350 mm
Maximum Distance Between Moving and Fixed Platen: 475 mm
Ejector Force: 20 kN
Ejection Stroke: 100 mm
Dimensions and Weight
Dimension L (Length): 3.5 m
Dimension W (Width): 1.2 m
Dimension H (Height): 1.8 m
Weight: 2000 kg
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
When was this ARBURG 270U 250-170 (25T) manufactured?
This ARBURG 270U 250-170 (25T) injection moulding machine was manufactured in 2007.
Does this injection moulding machine operate horizontally?
This injection moulding machine operates only horizontally.
What is the condition of this ARBURG 270U 250-170 (25T)?
This ARBURG 270U 250-170 (25T) injection moulding machine is in good condition.
Is this equipment currently under power?
This equipment is not connected and is currently not under power.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Machinery dealer |
| Active since | 2020 |
| Offers online | 35 |
| Last activity | Oct. 30, 2026 |
