| Manufacturer | APV |
|---|---|
| Model | Uperizer + Gaulin MC 45-5TPSX |
| Year | 1979 |
| Location | Germany
|

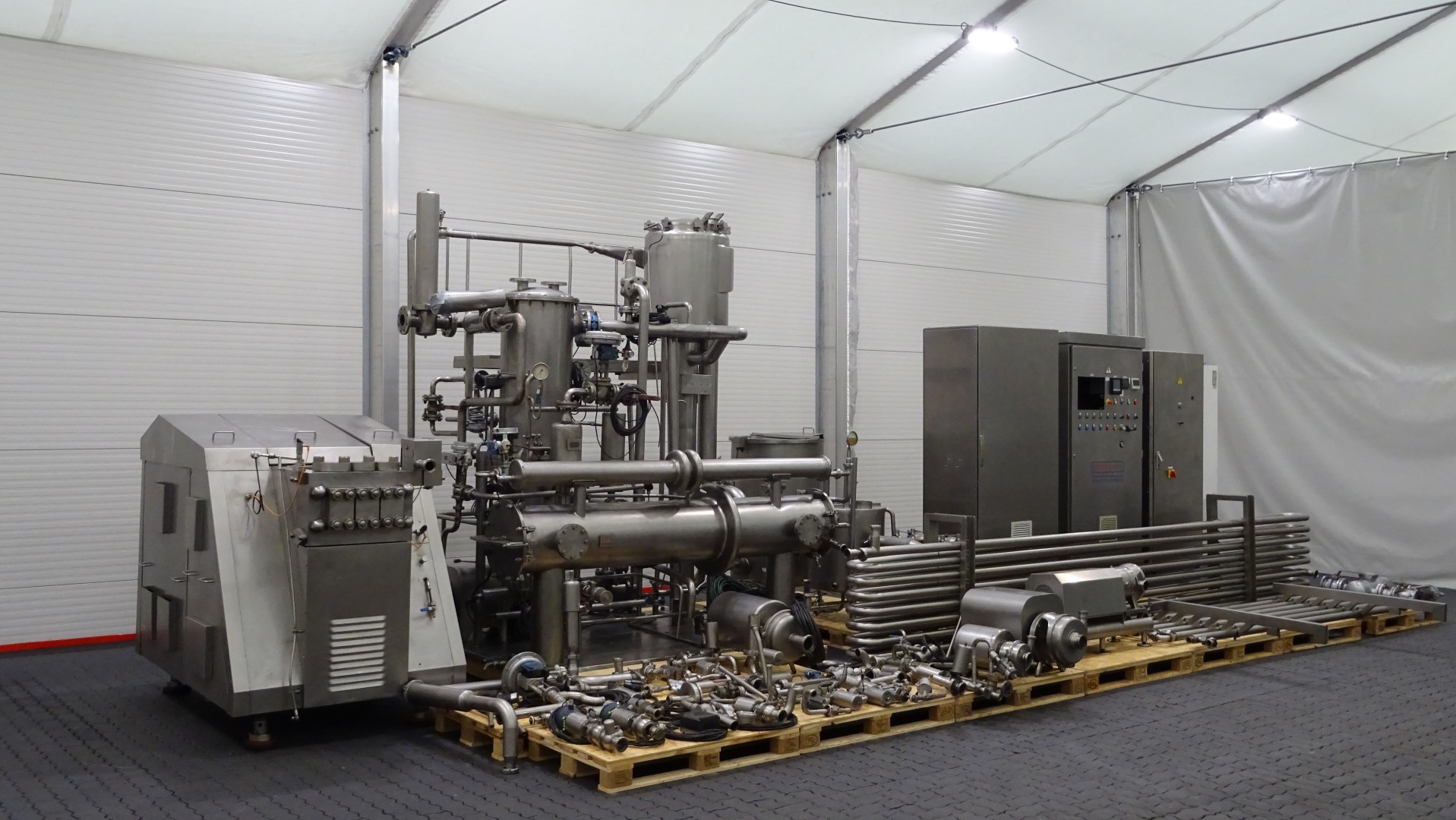

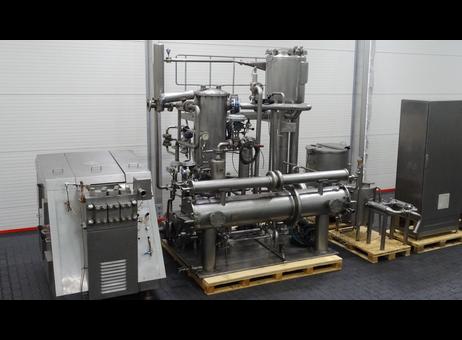

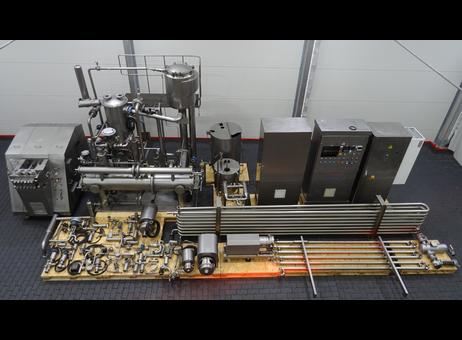

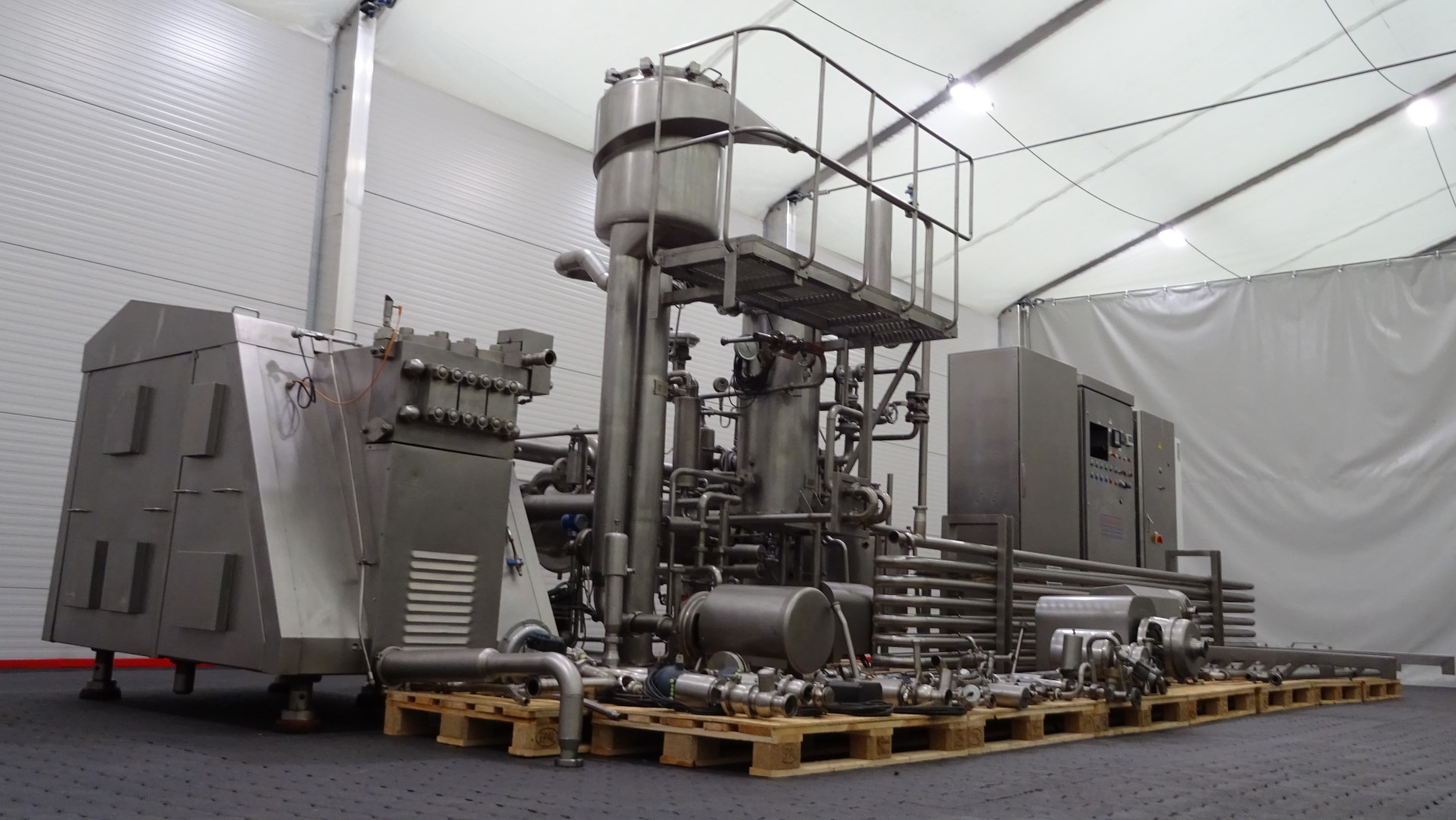

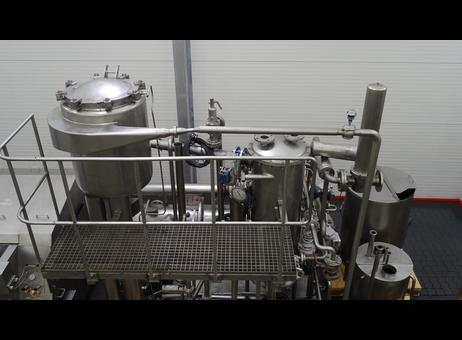

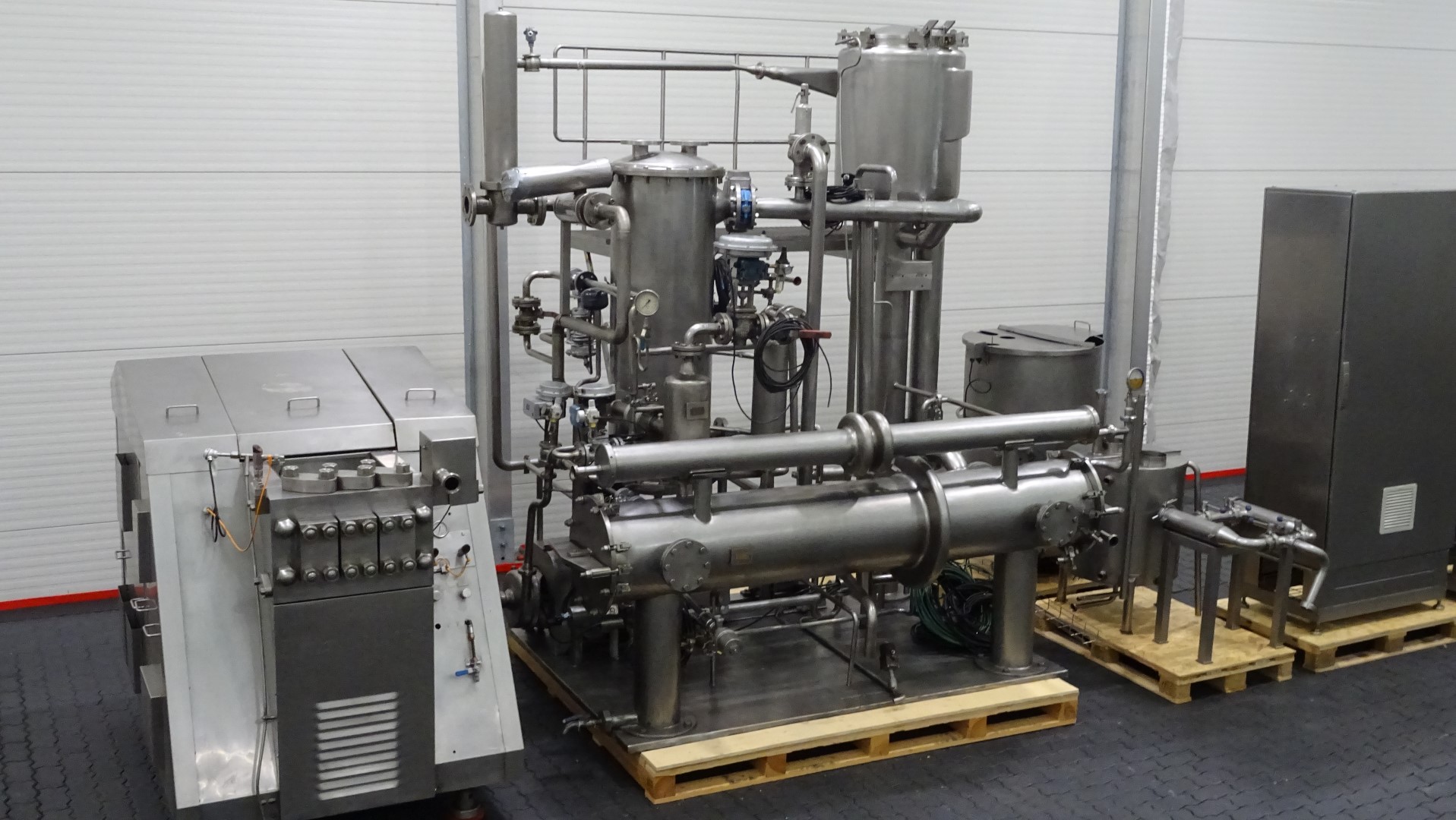

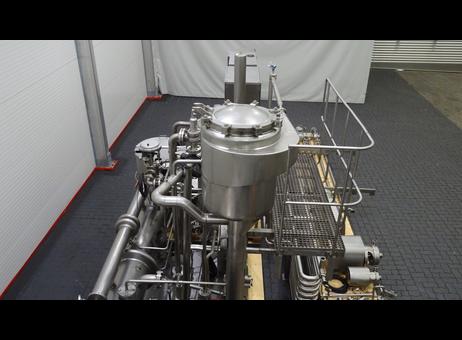

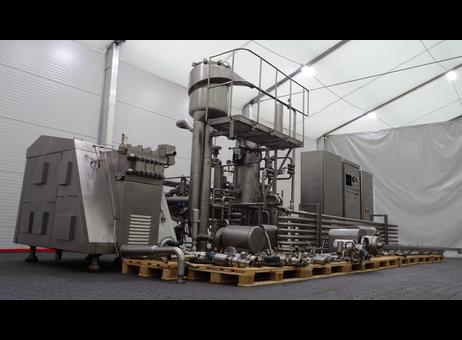

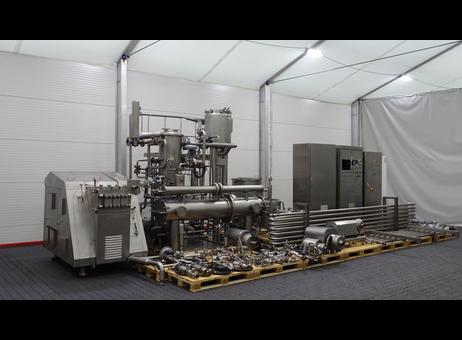

APV Uperizer direct steam injection (DSI) UHT processing plant with an APV Gaulin MC 45-5TPSX aseptic homogeniser. Manufactured in 1979, the system was previously used to sterilise milk and dairy products. Its stated processing output is 7,600 litres per hour, with a maximum processing temperature of 150°C. The stated overall dimensions are 10,000 mm long, 5,000 mm wide and 4,000 mm high.

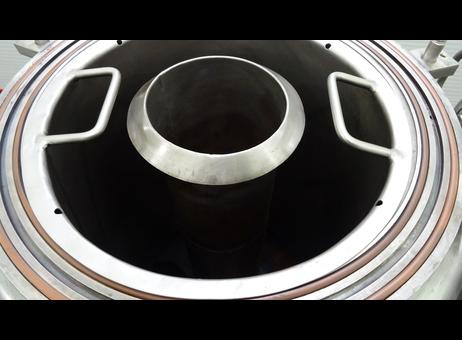

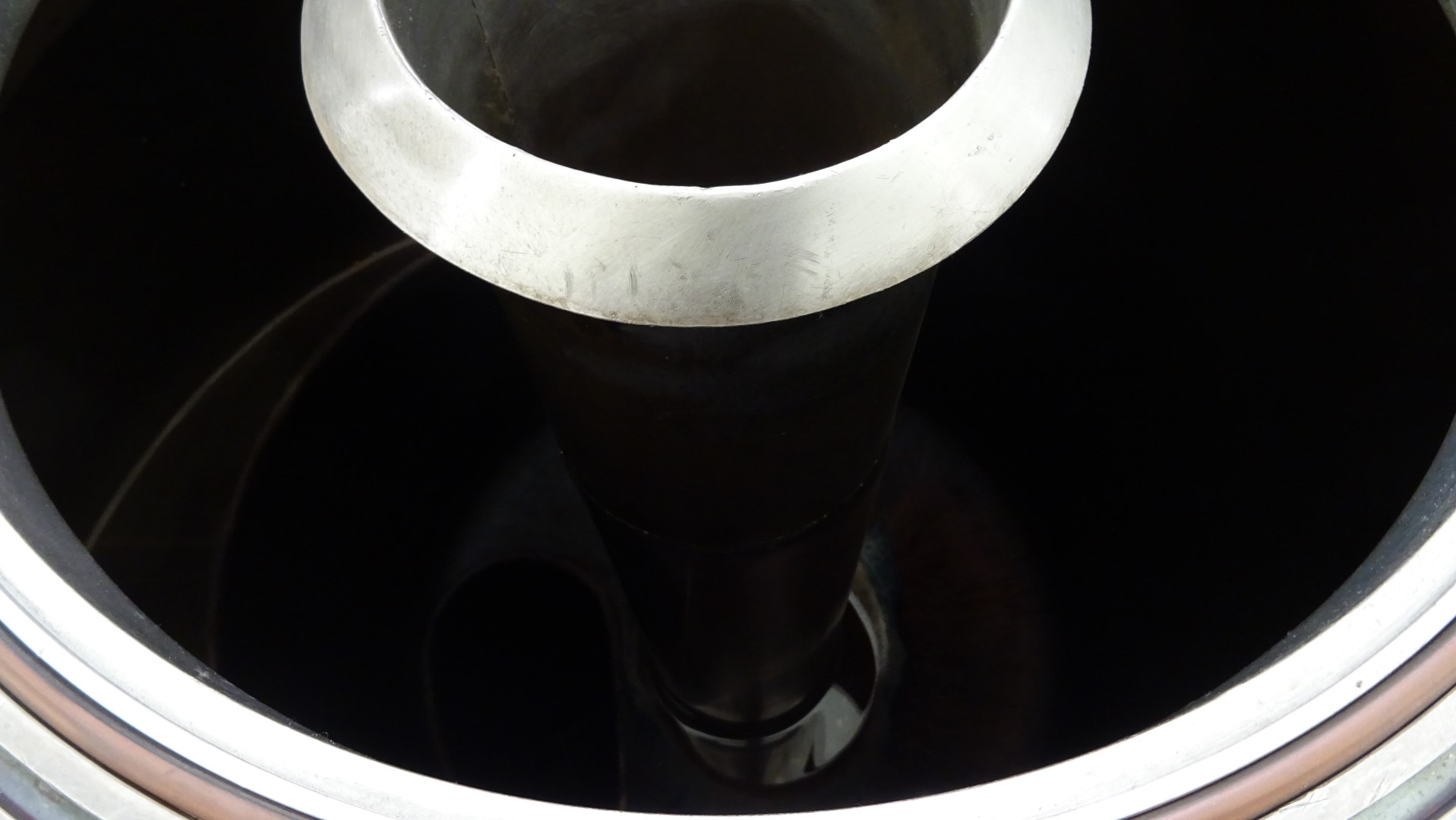

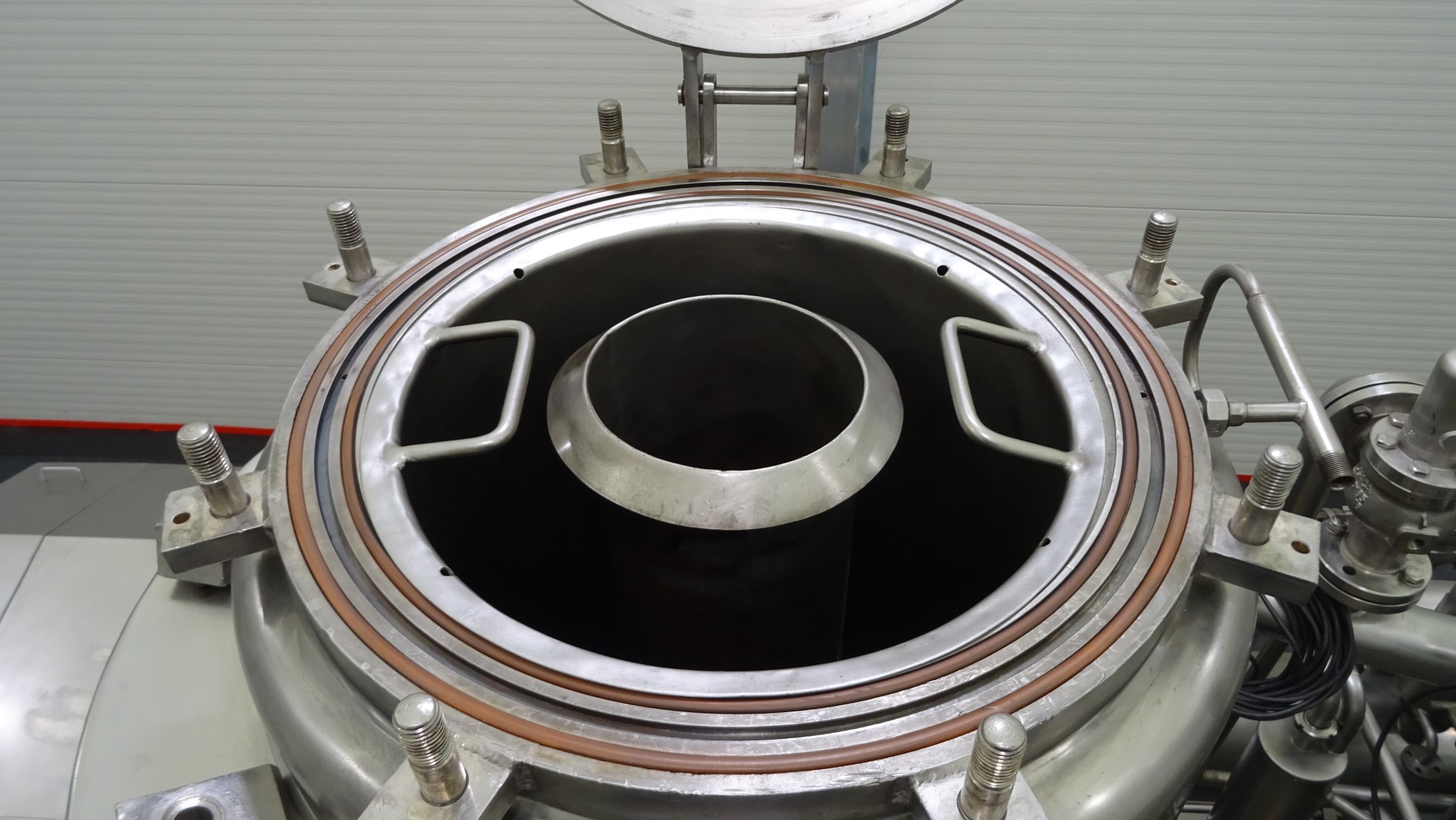

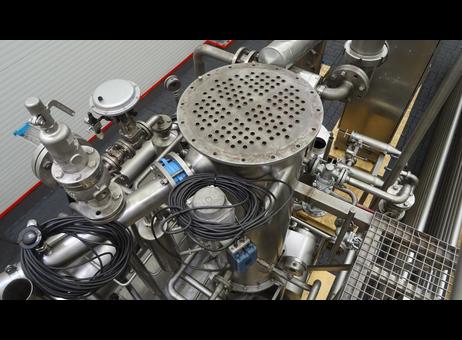

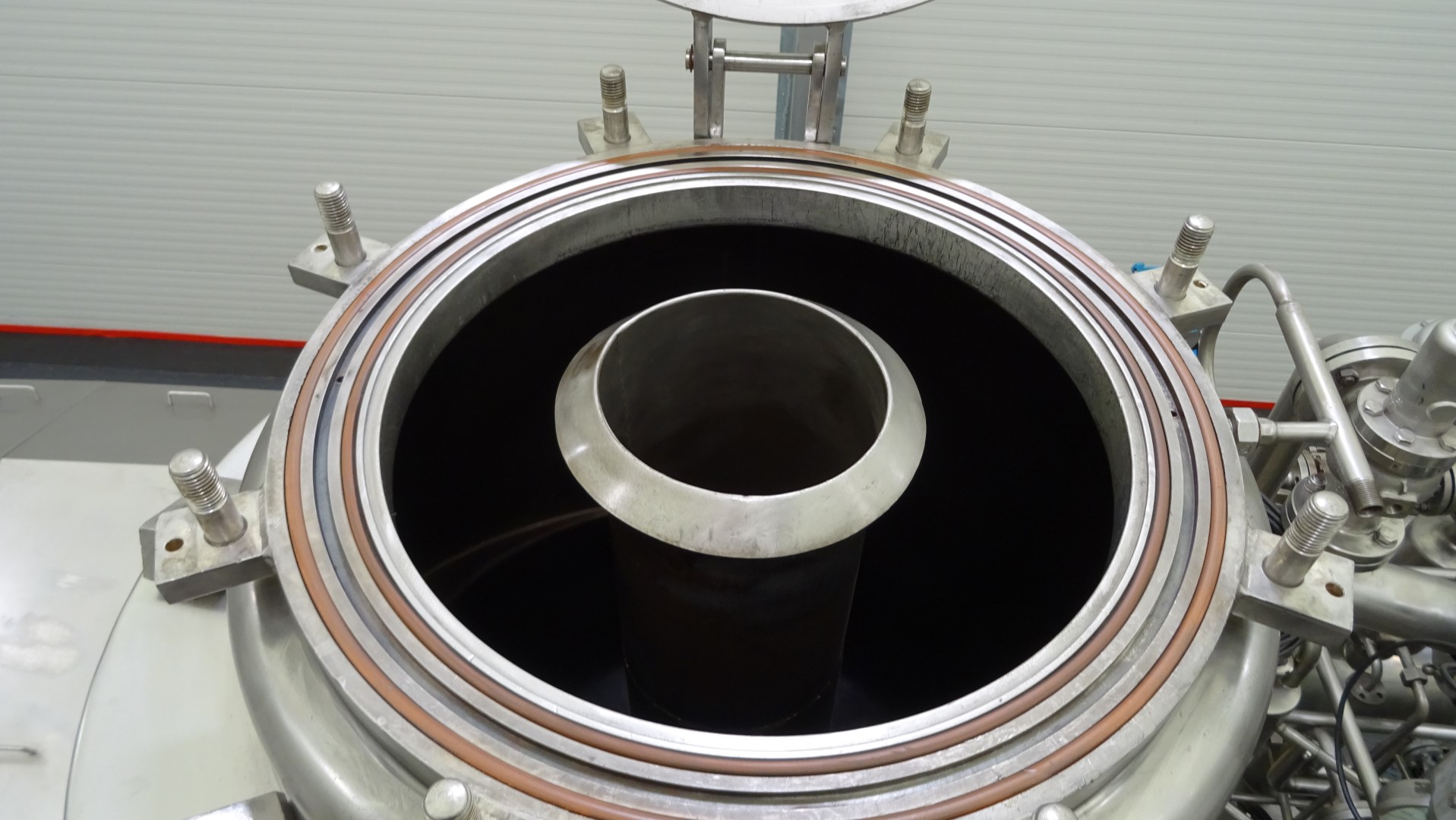

The plant uses direct steam injection to heat the product, followed by flash cooling in a vacuum vessel. A holding tube is included in the described process line, along with the aseptic homogeniser. The homogeniser is identified as an APV Gaulin MC 45-5TPSX.

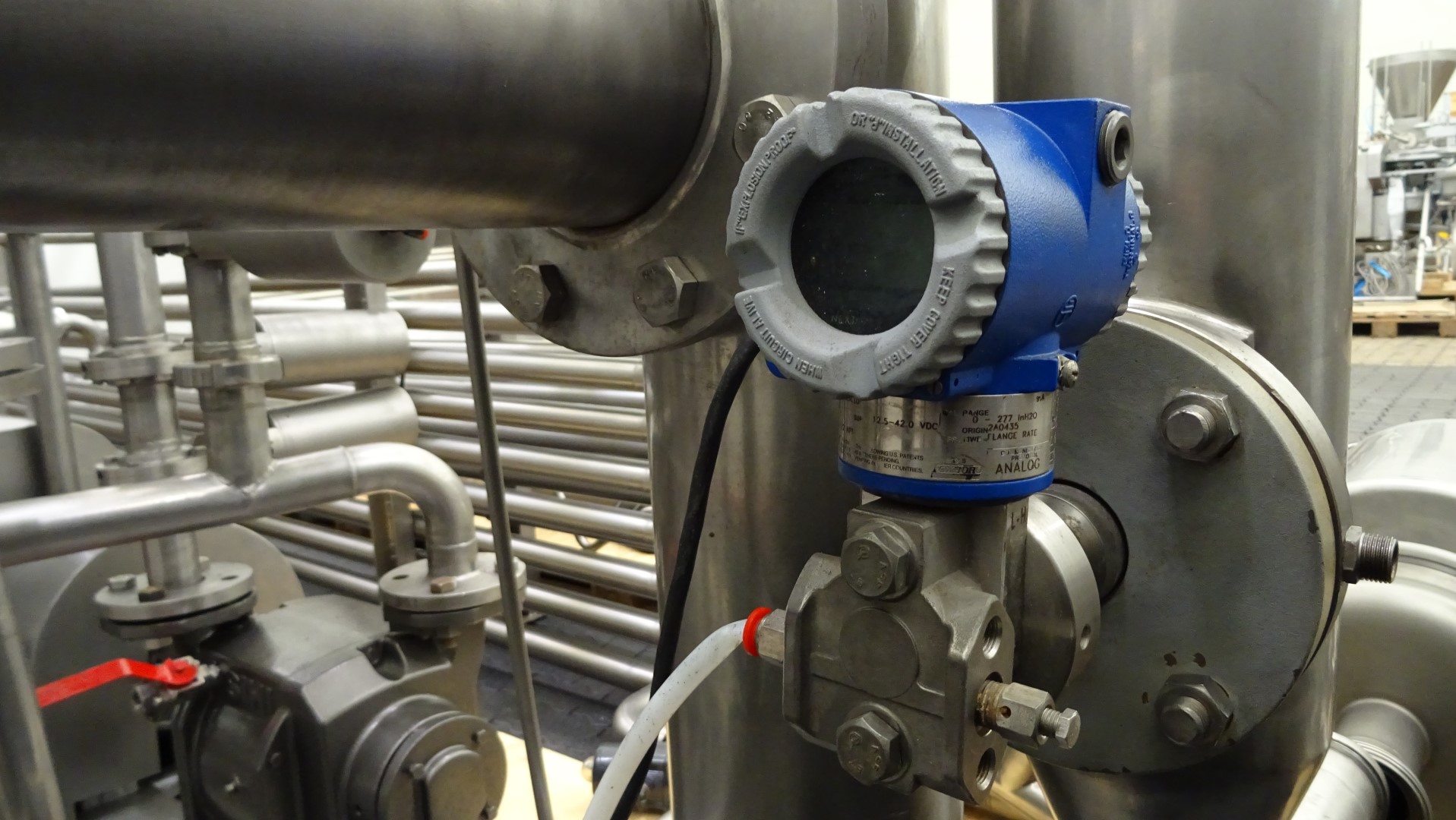

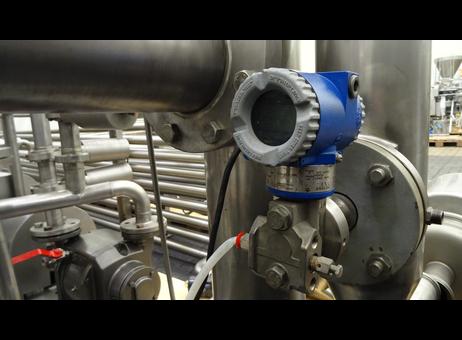

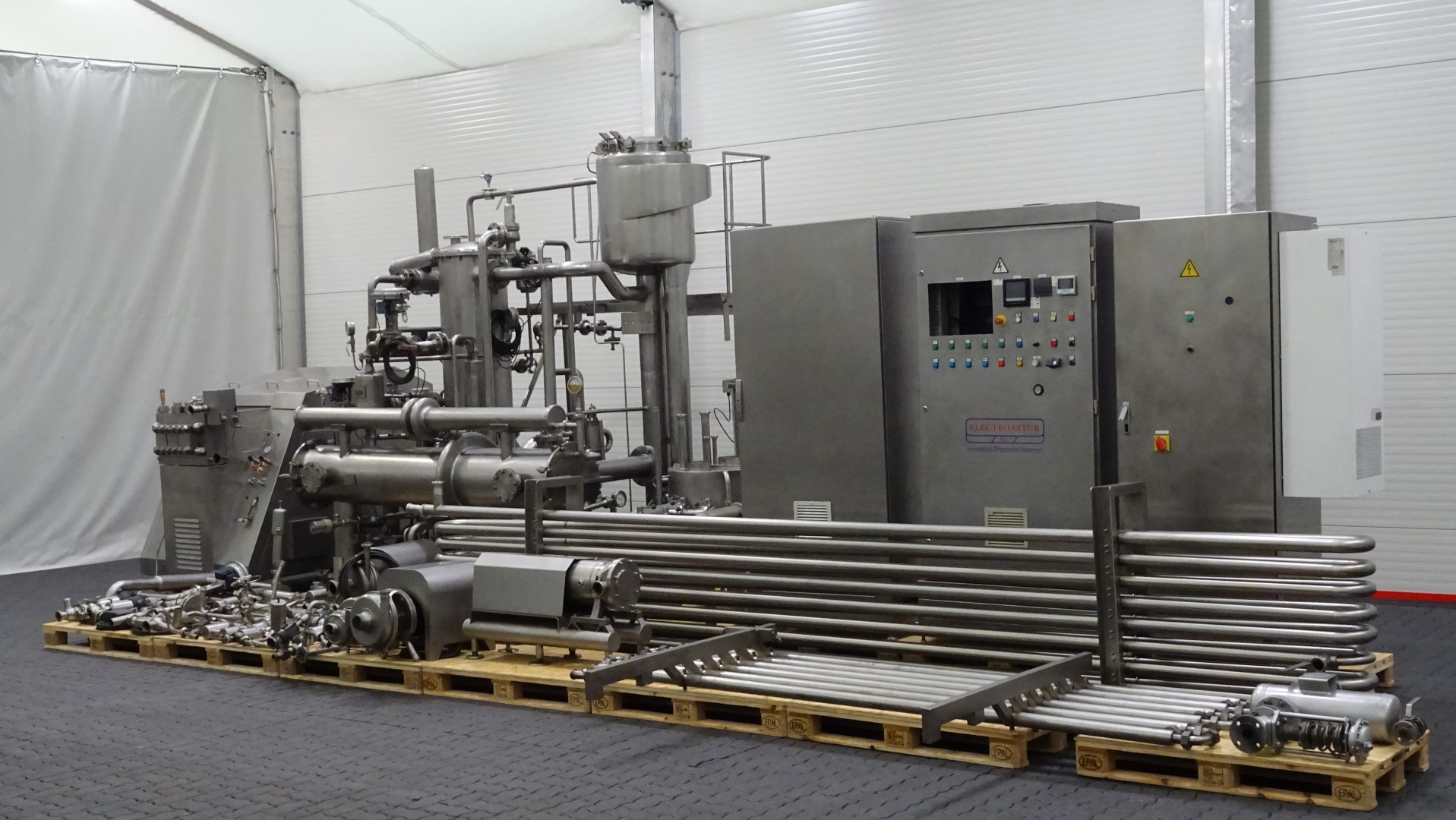

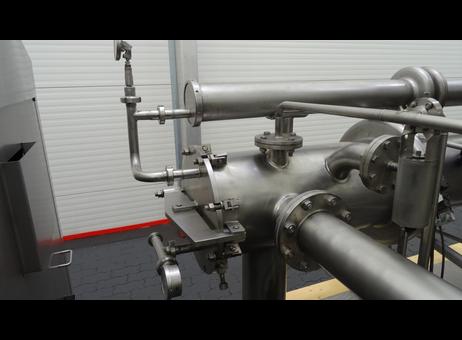

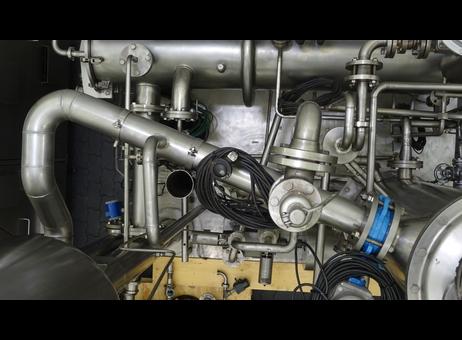

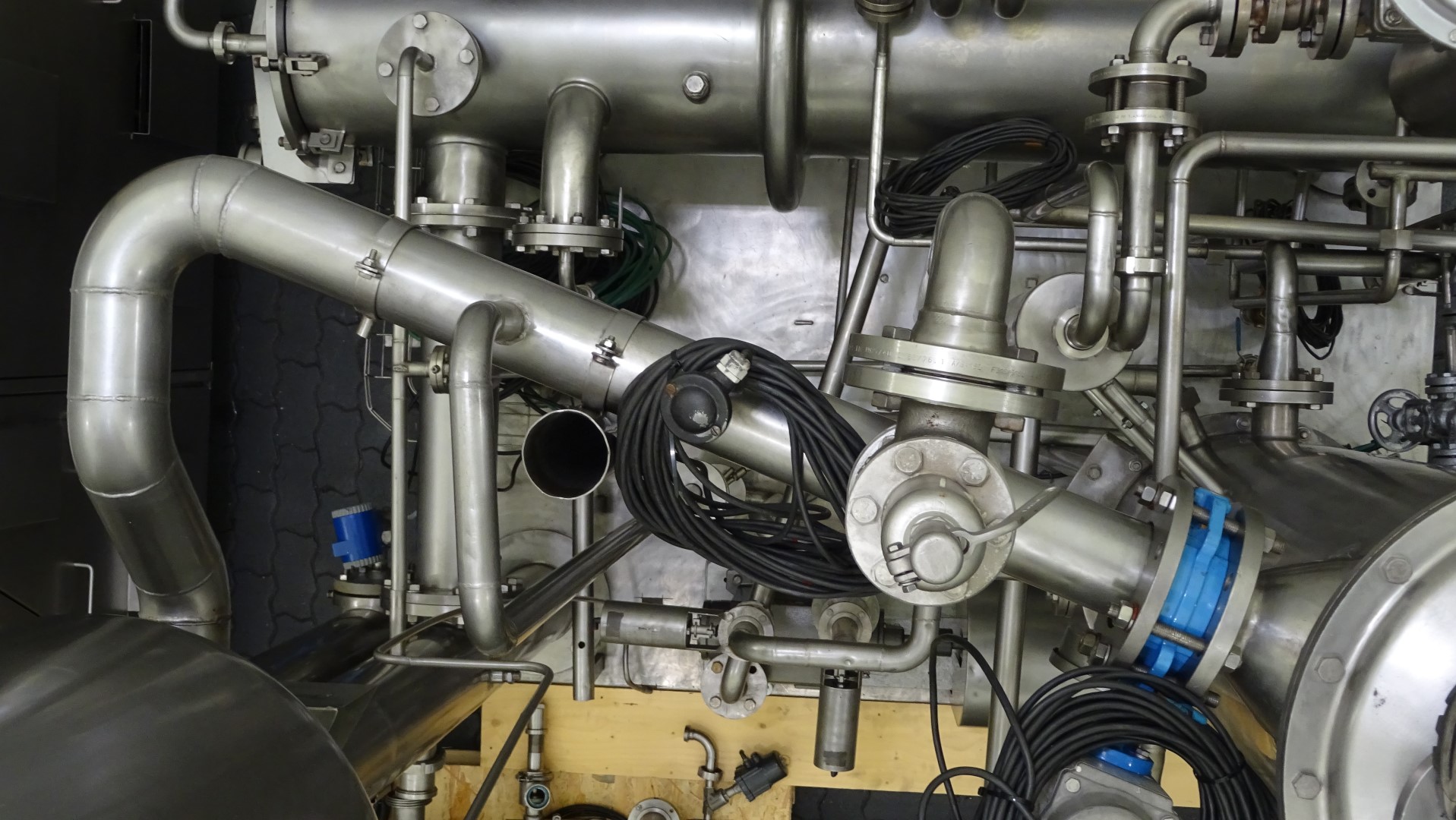

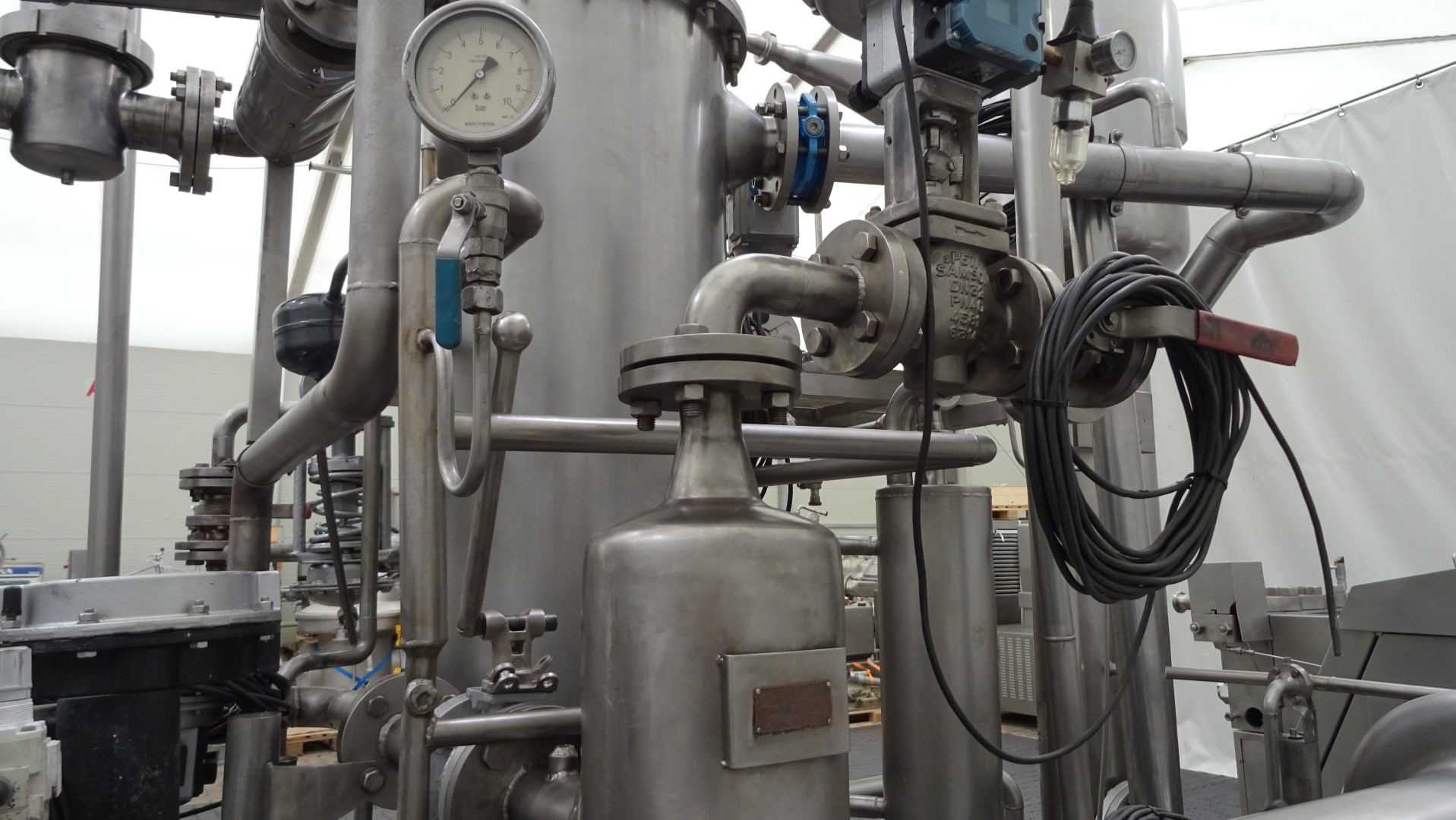

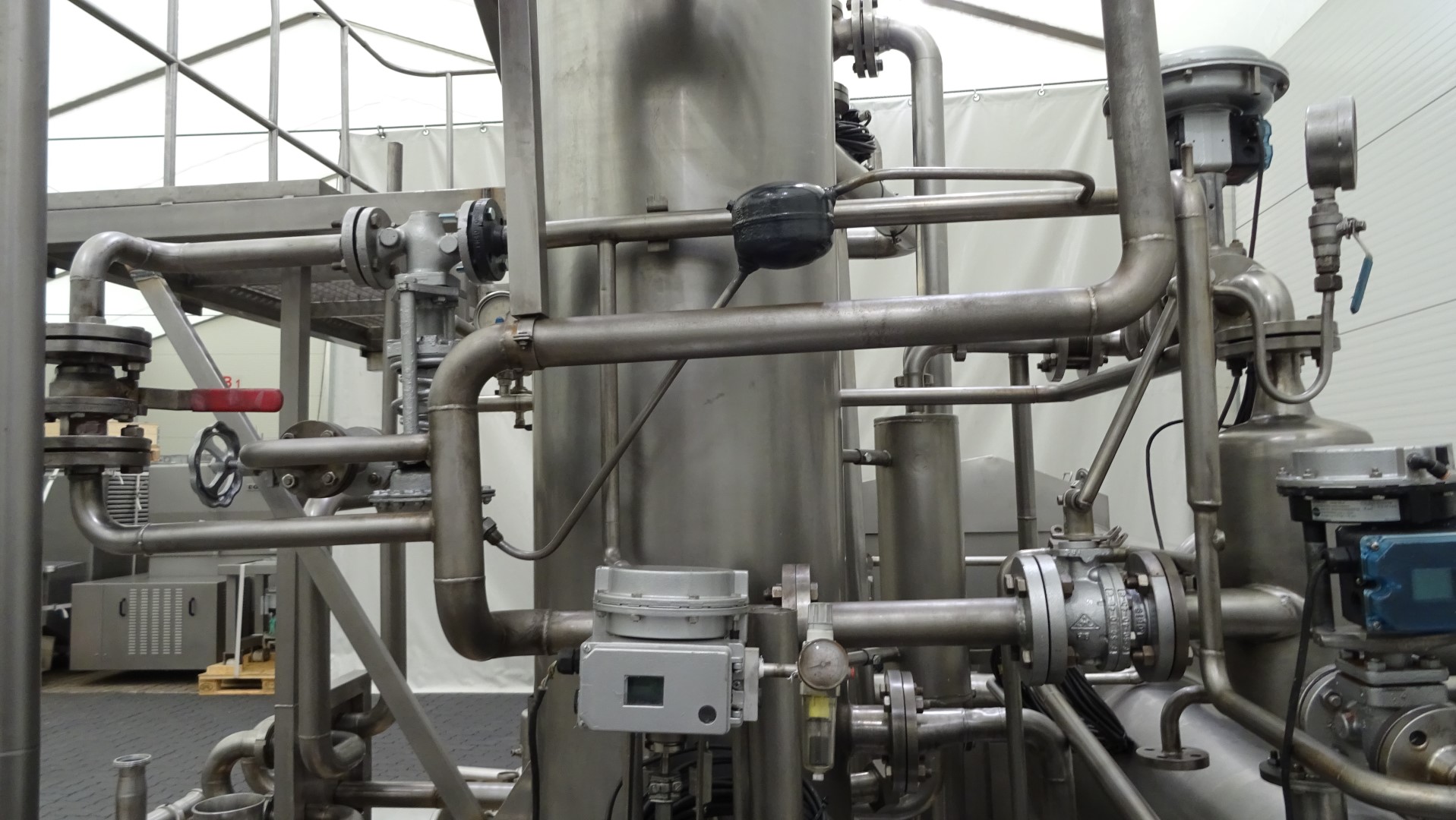

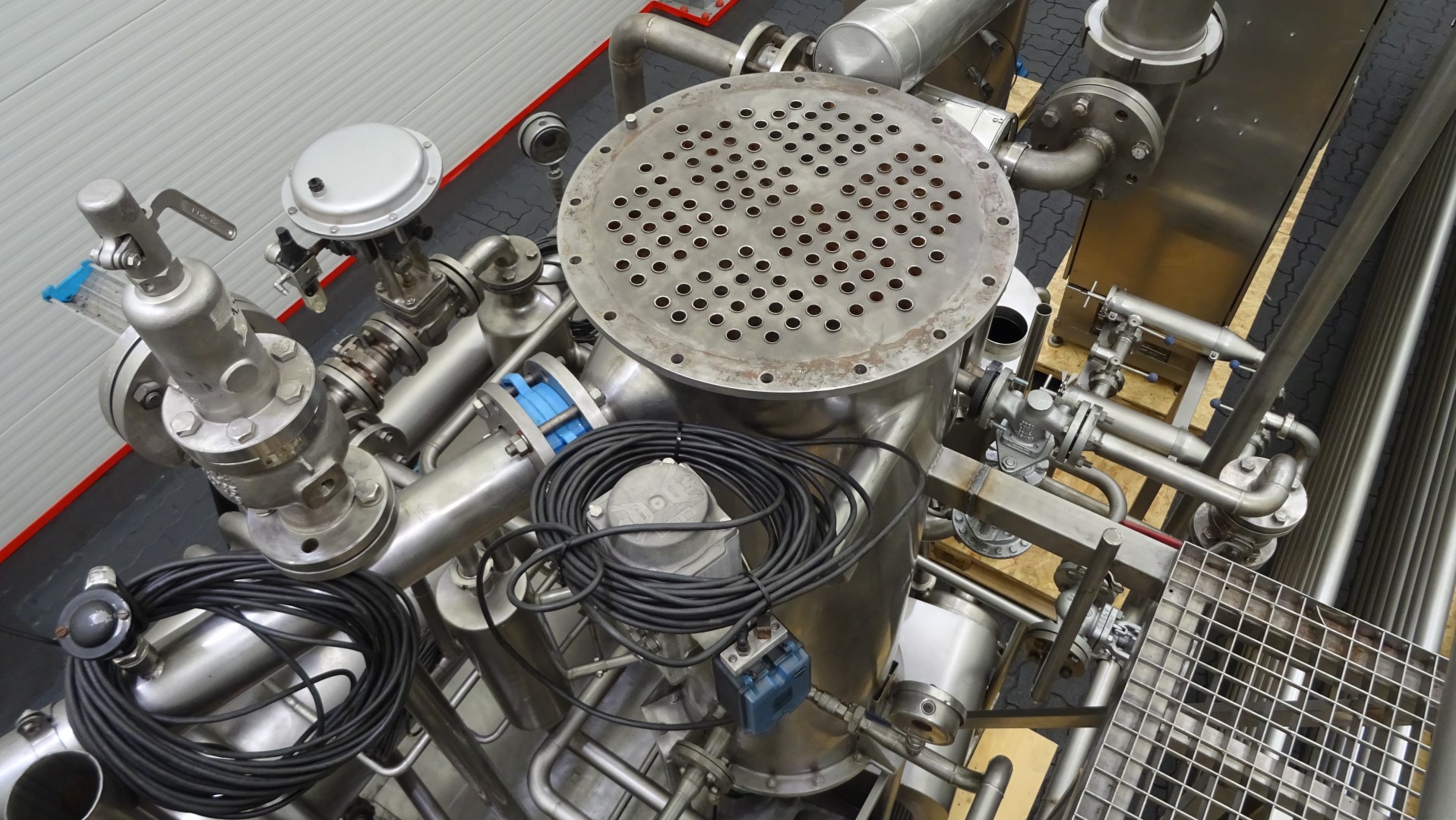

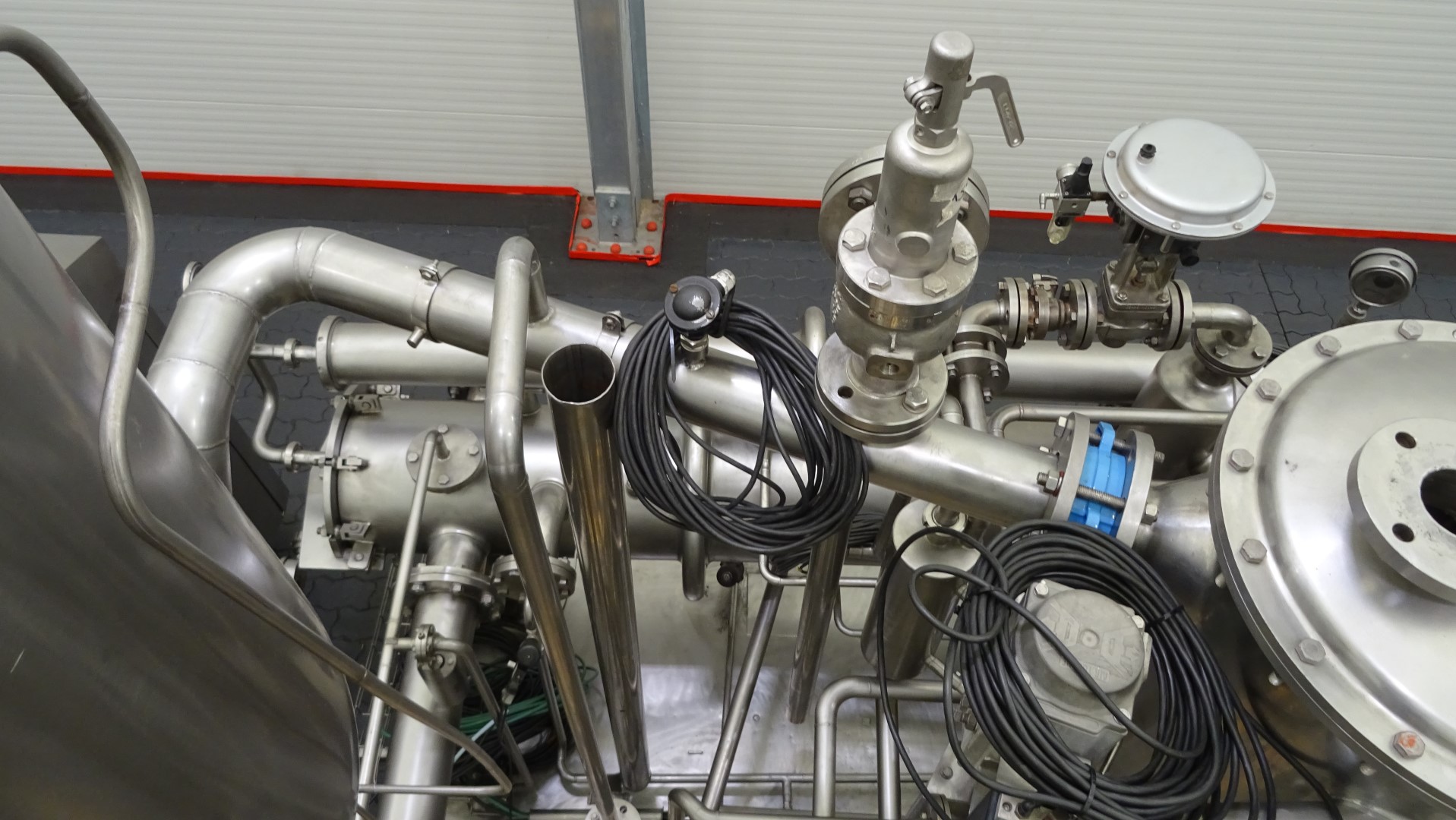

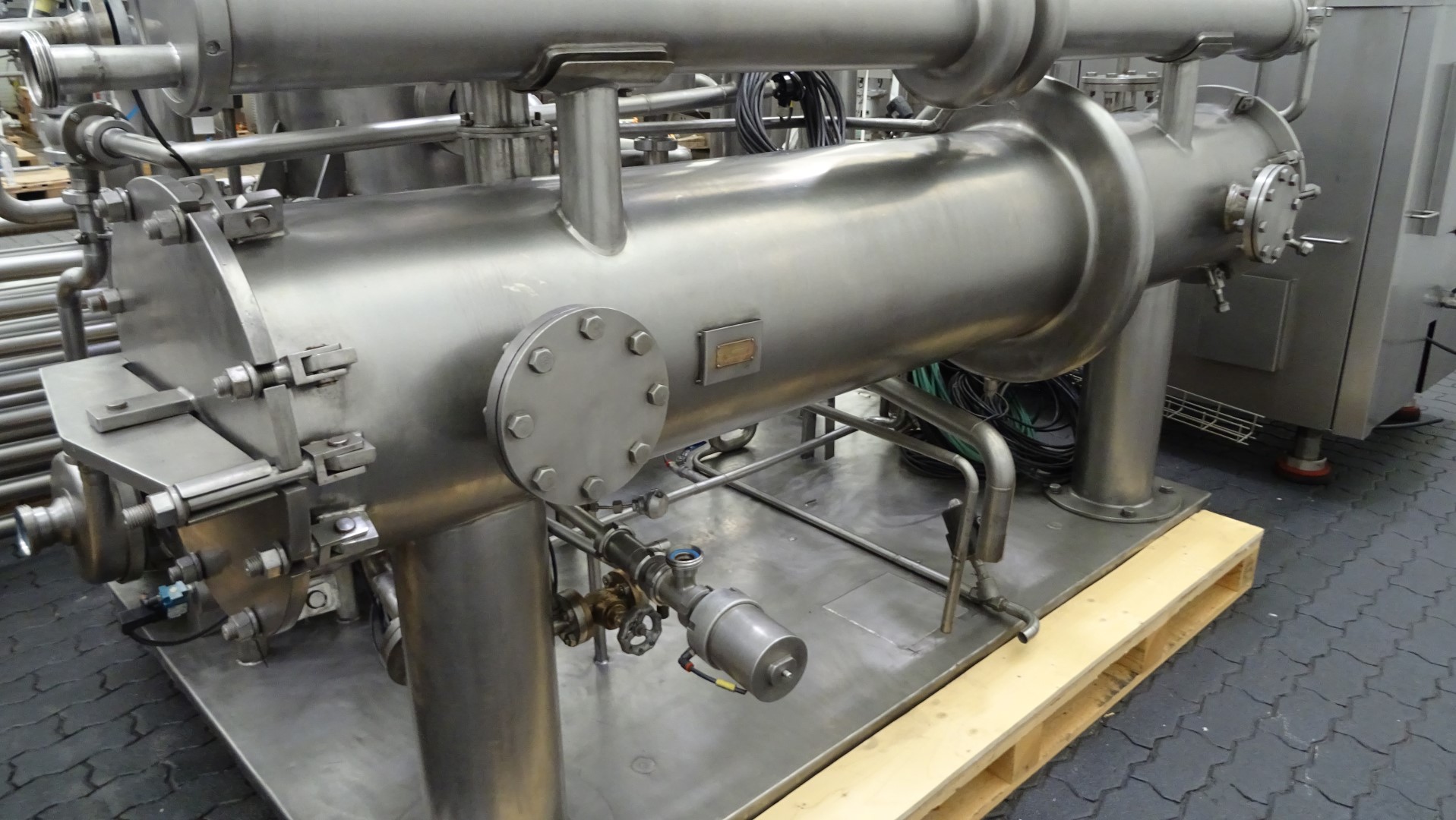

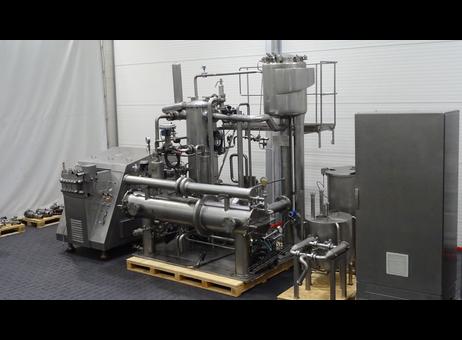

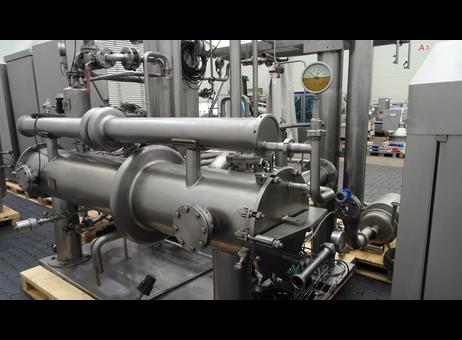

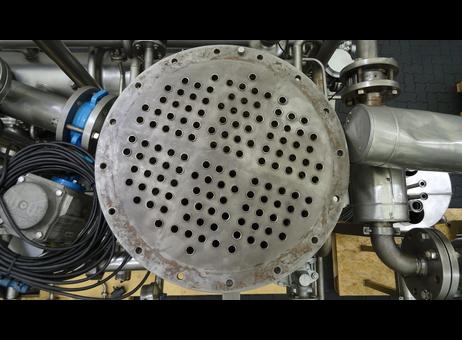

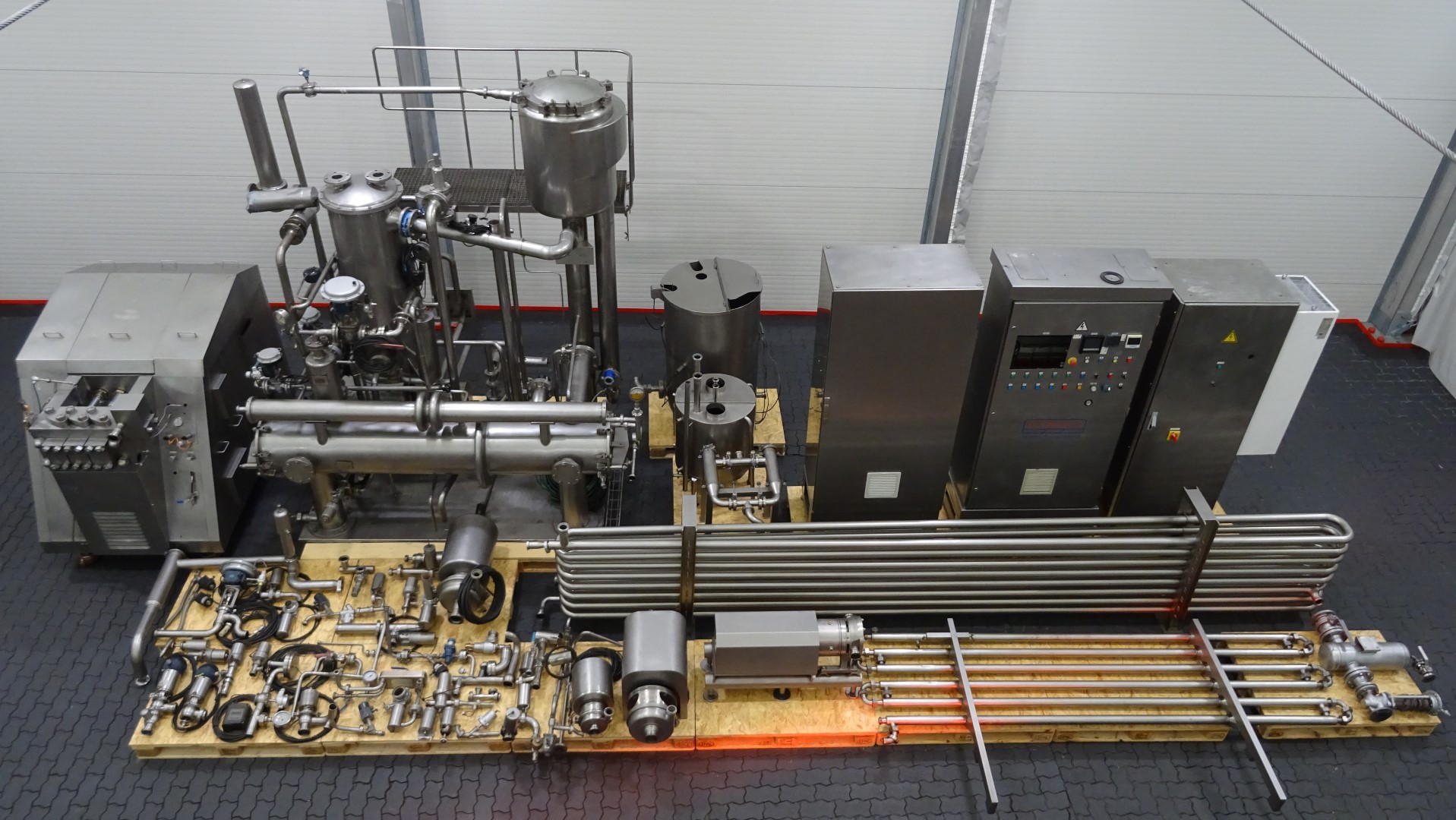

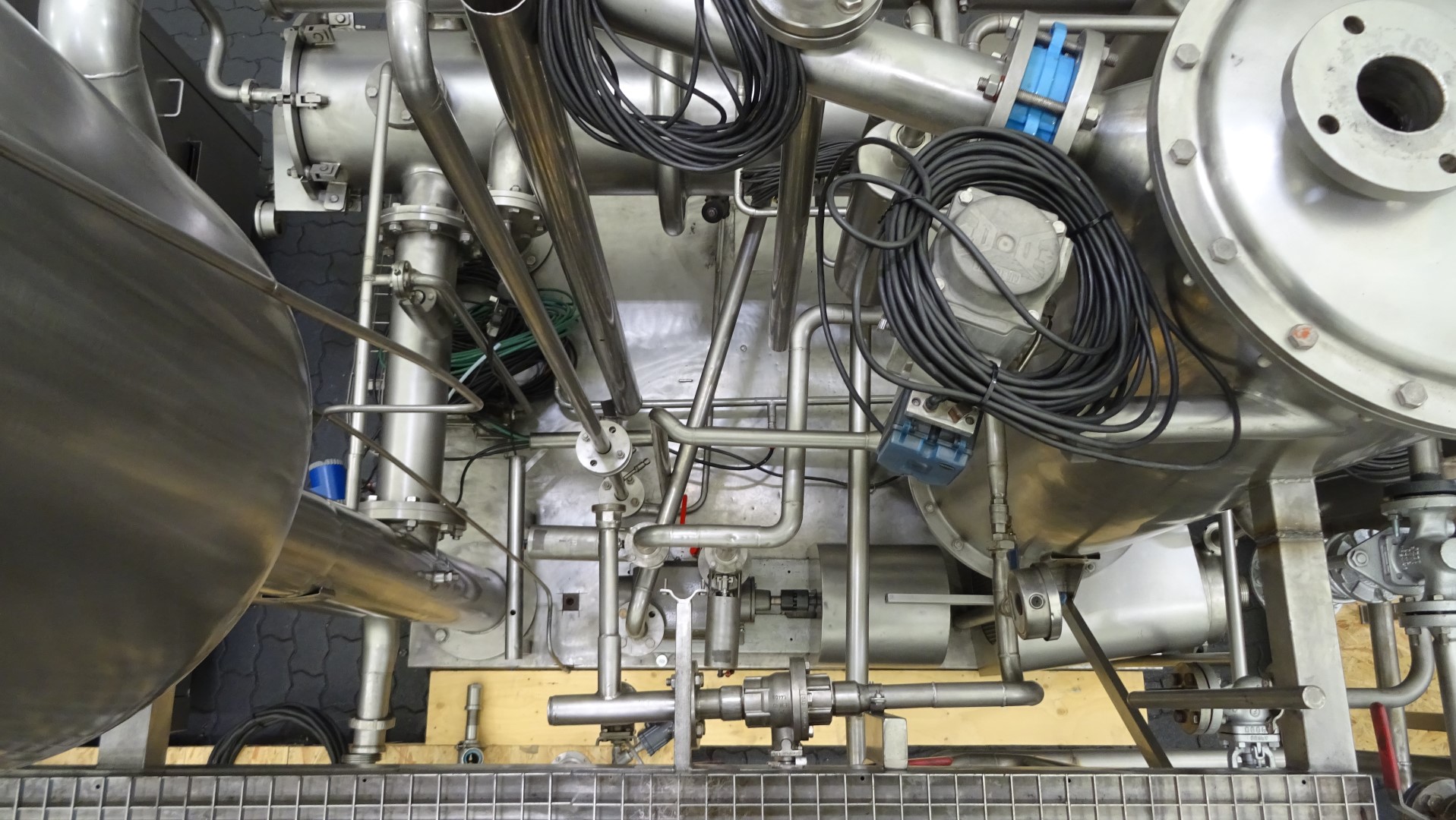

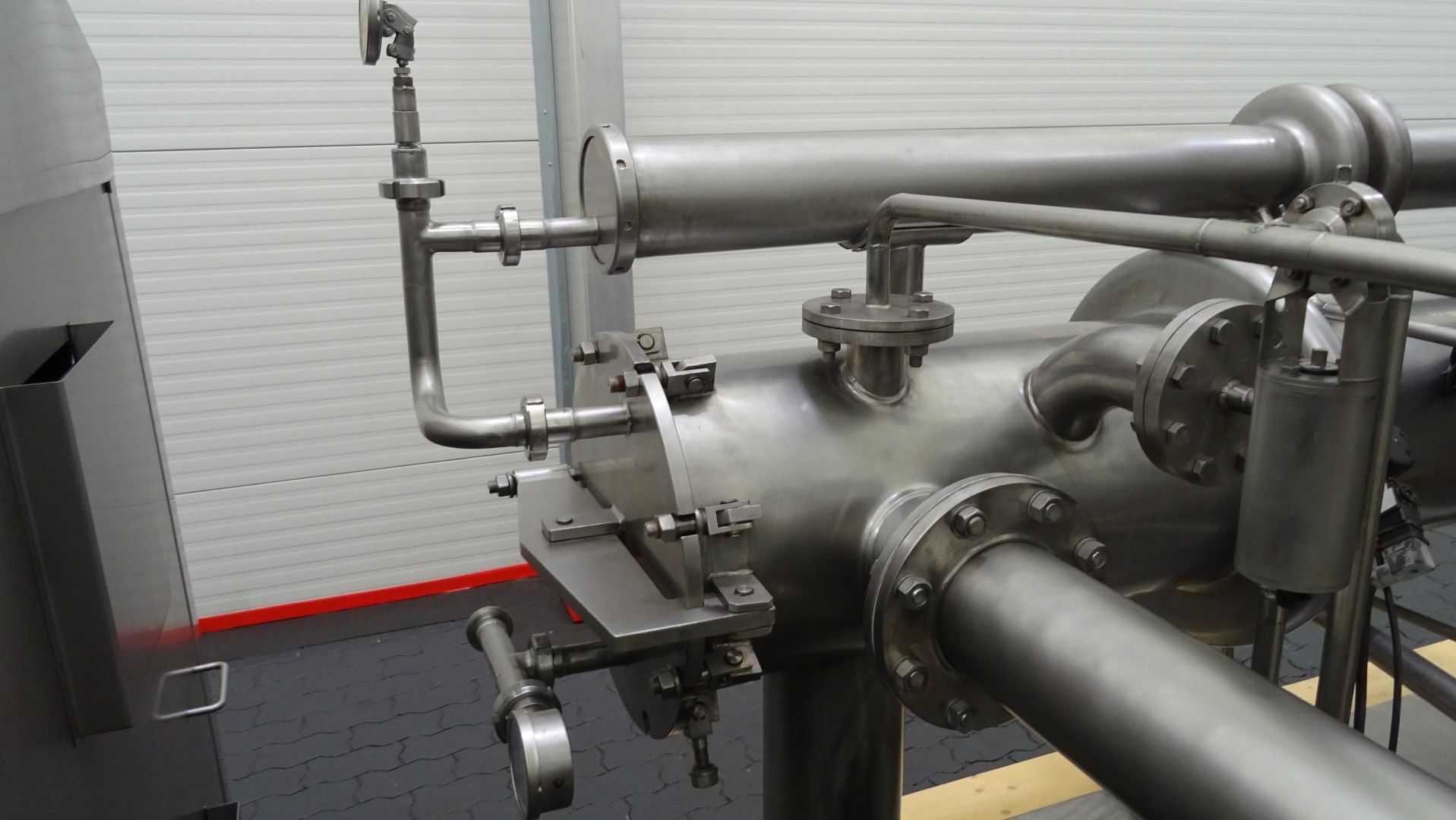

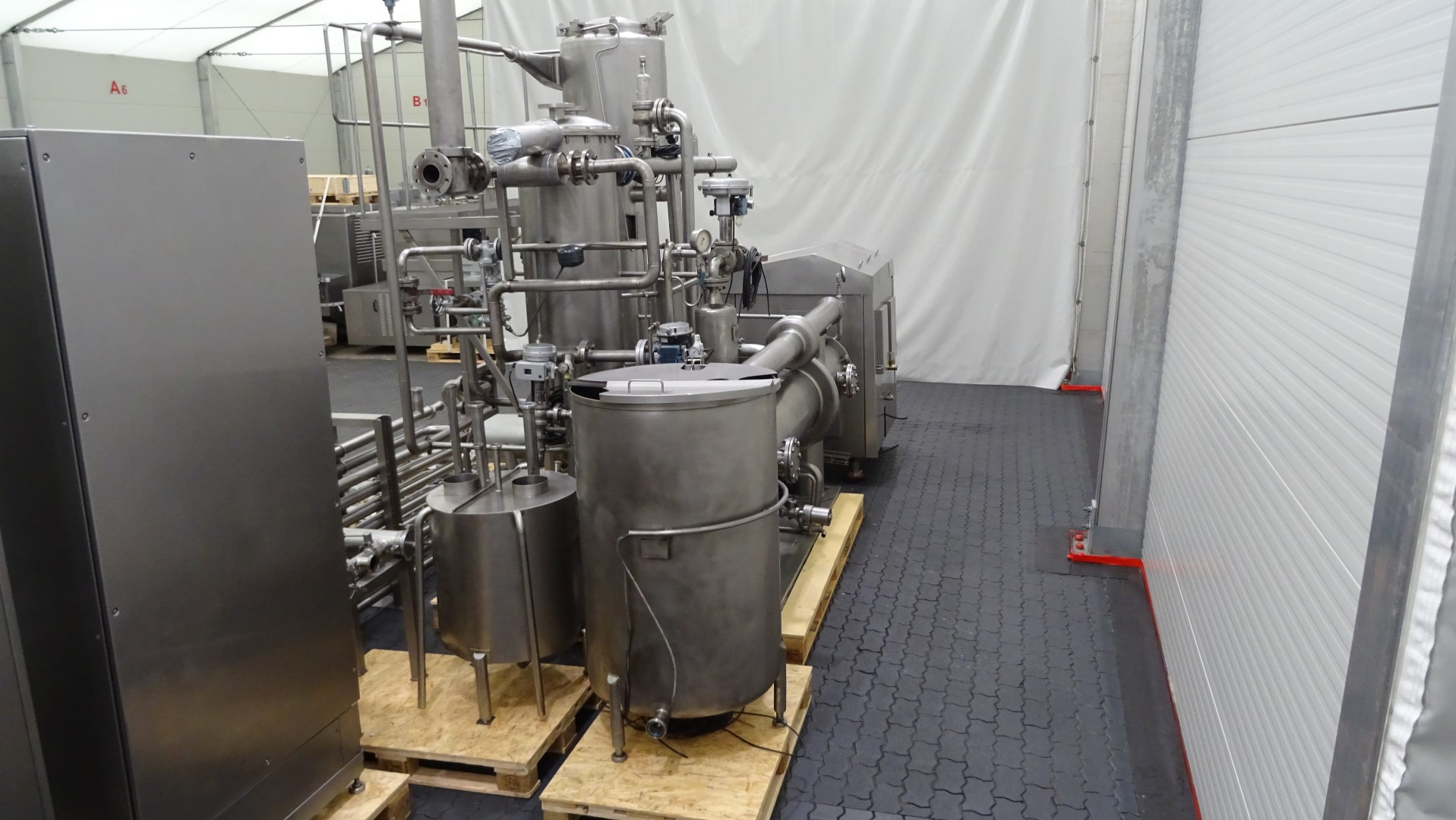

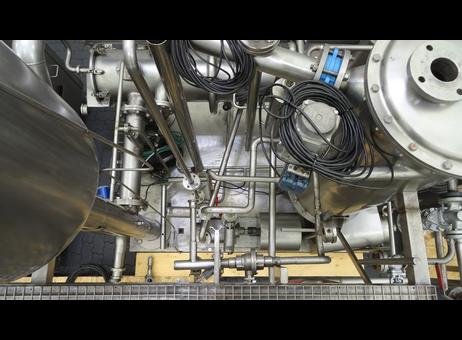

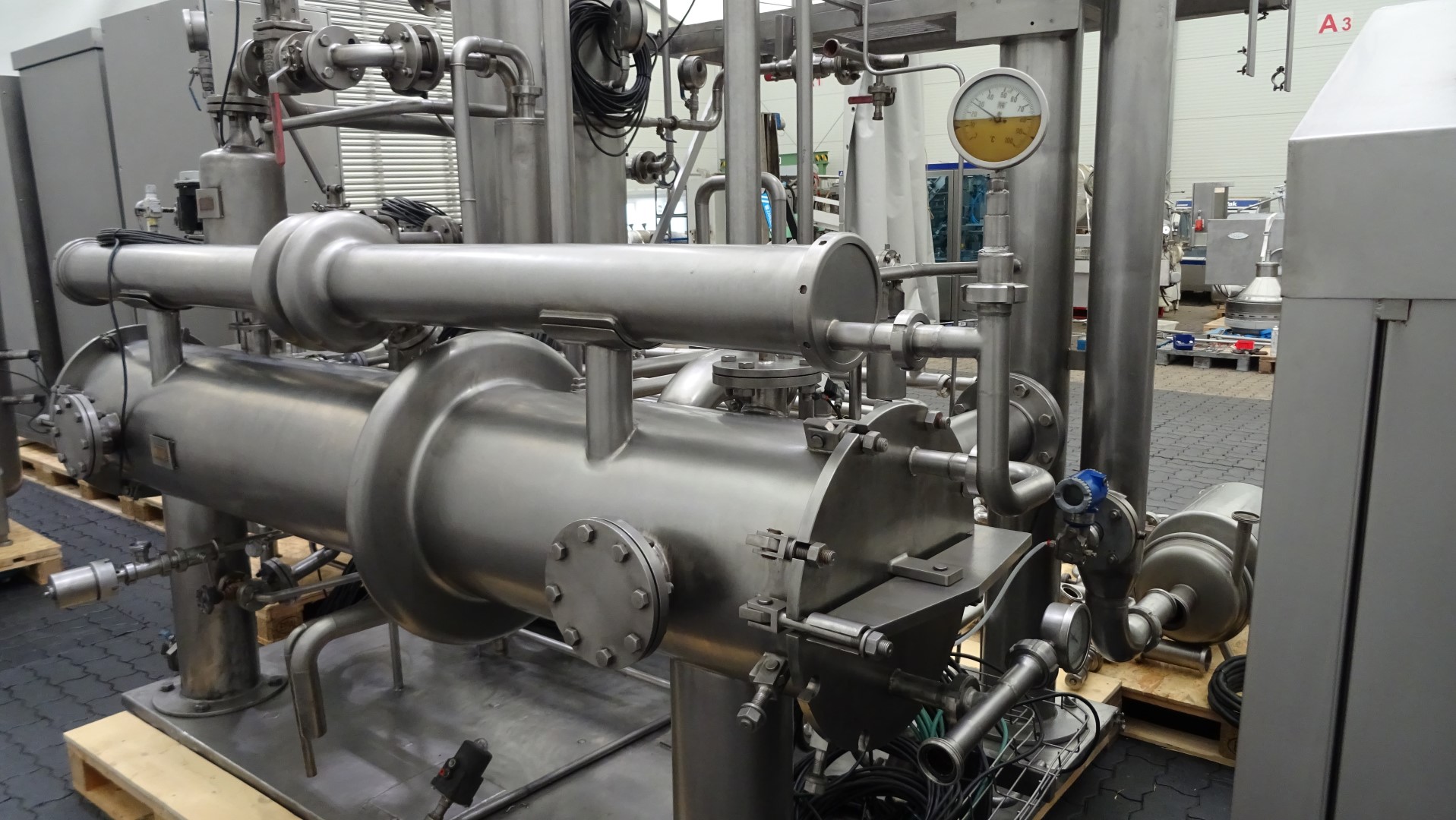

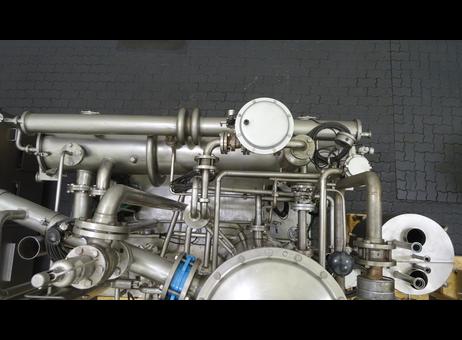

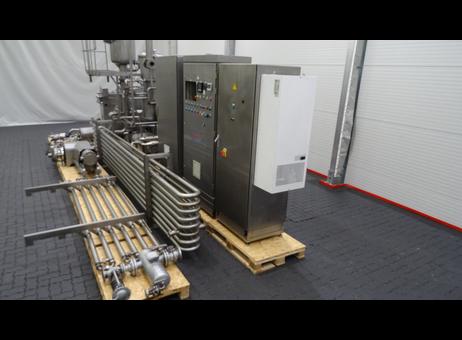

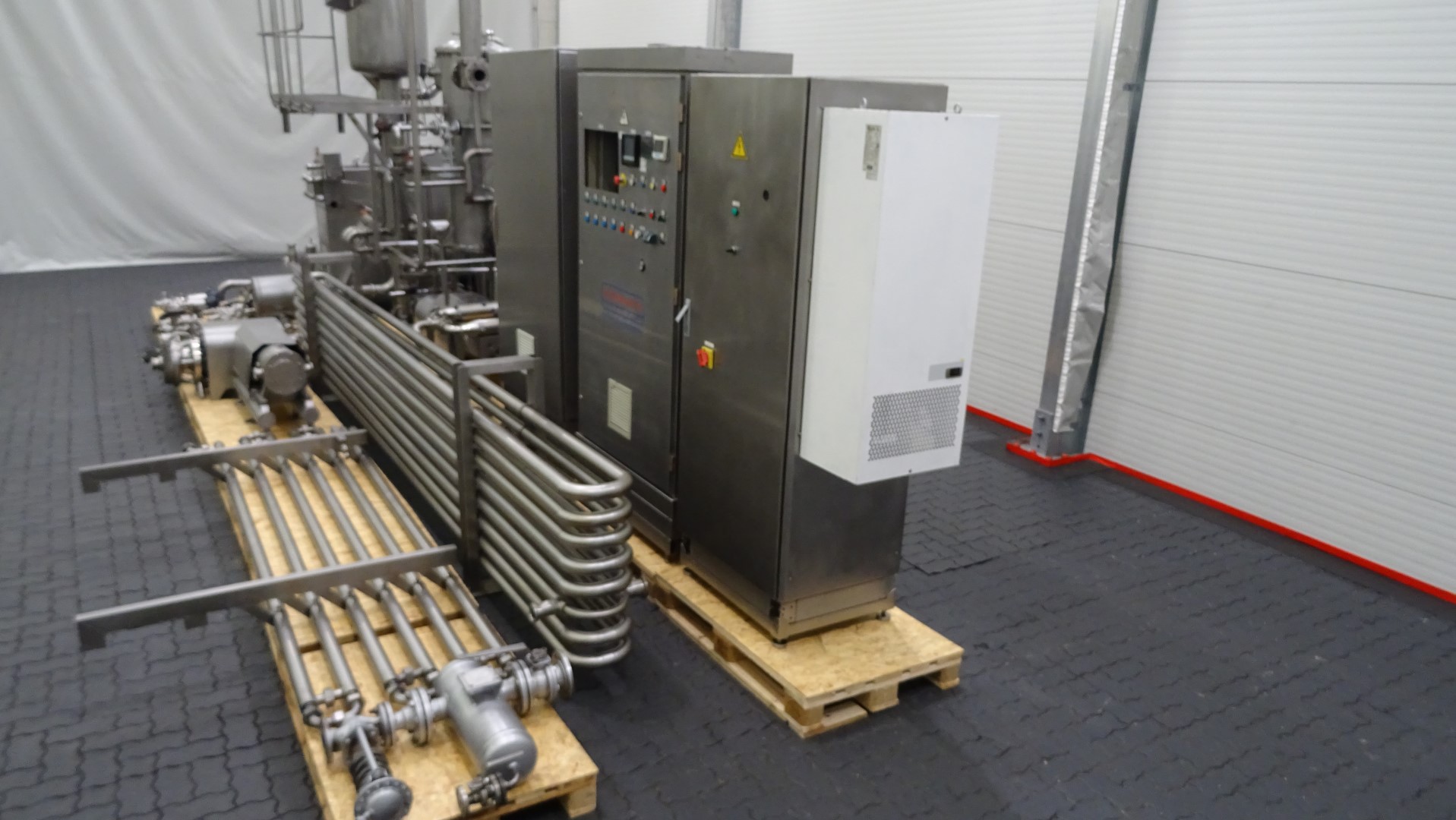

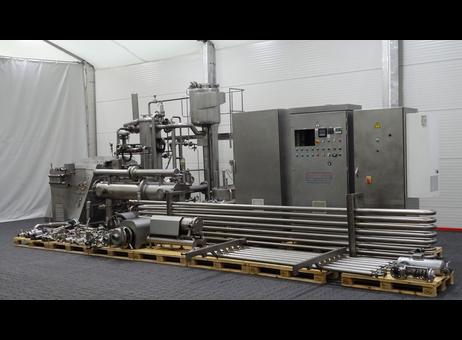

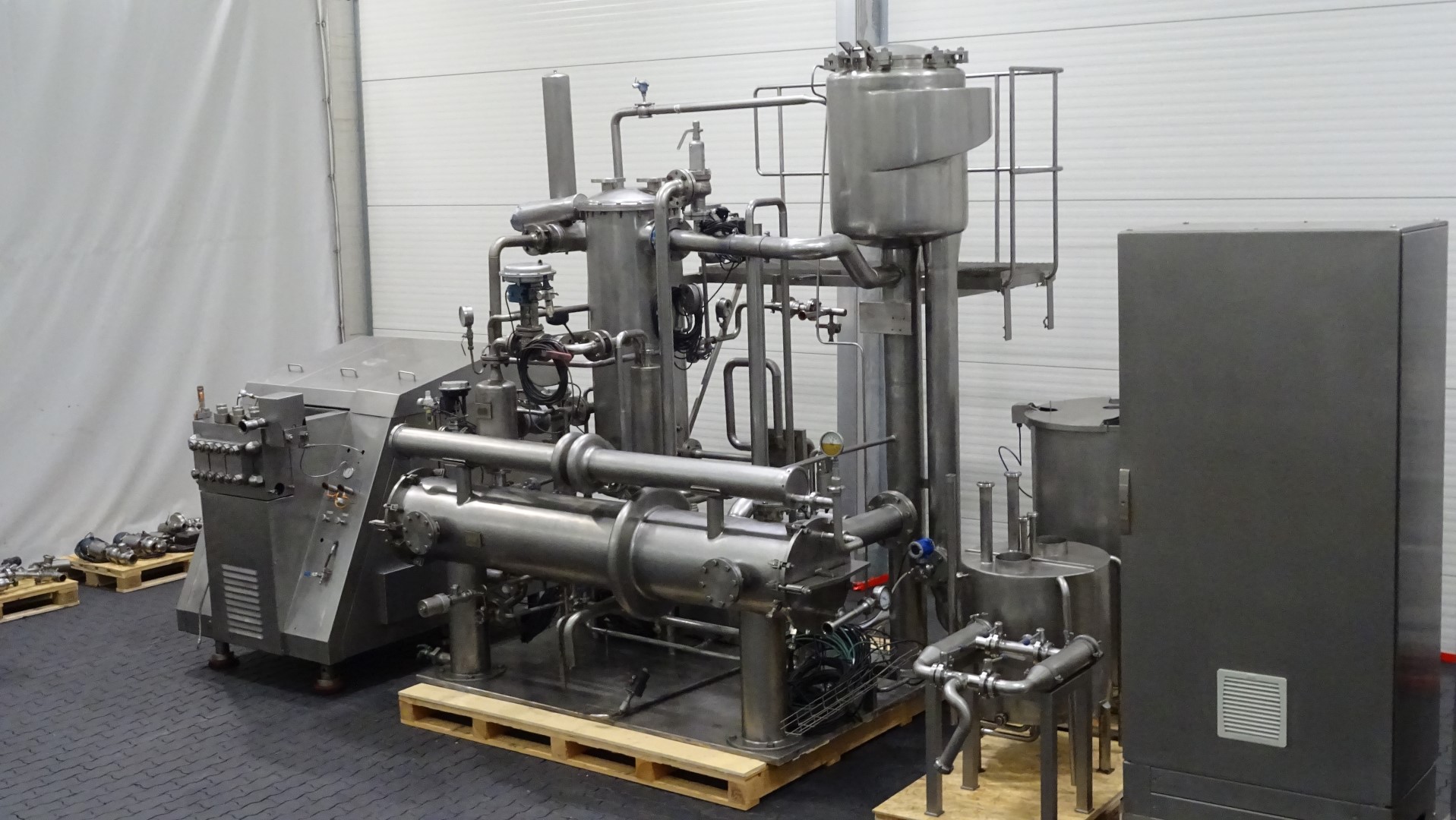

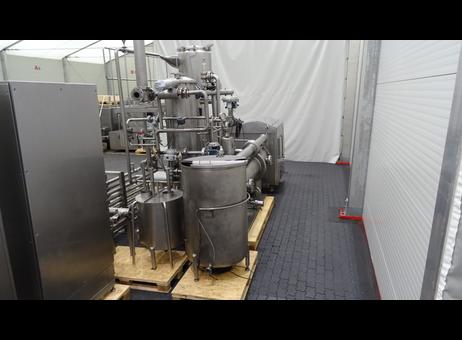

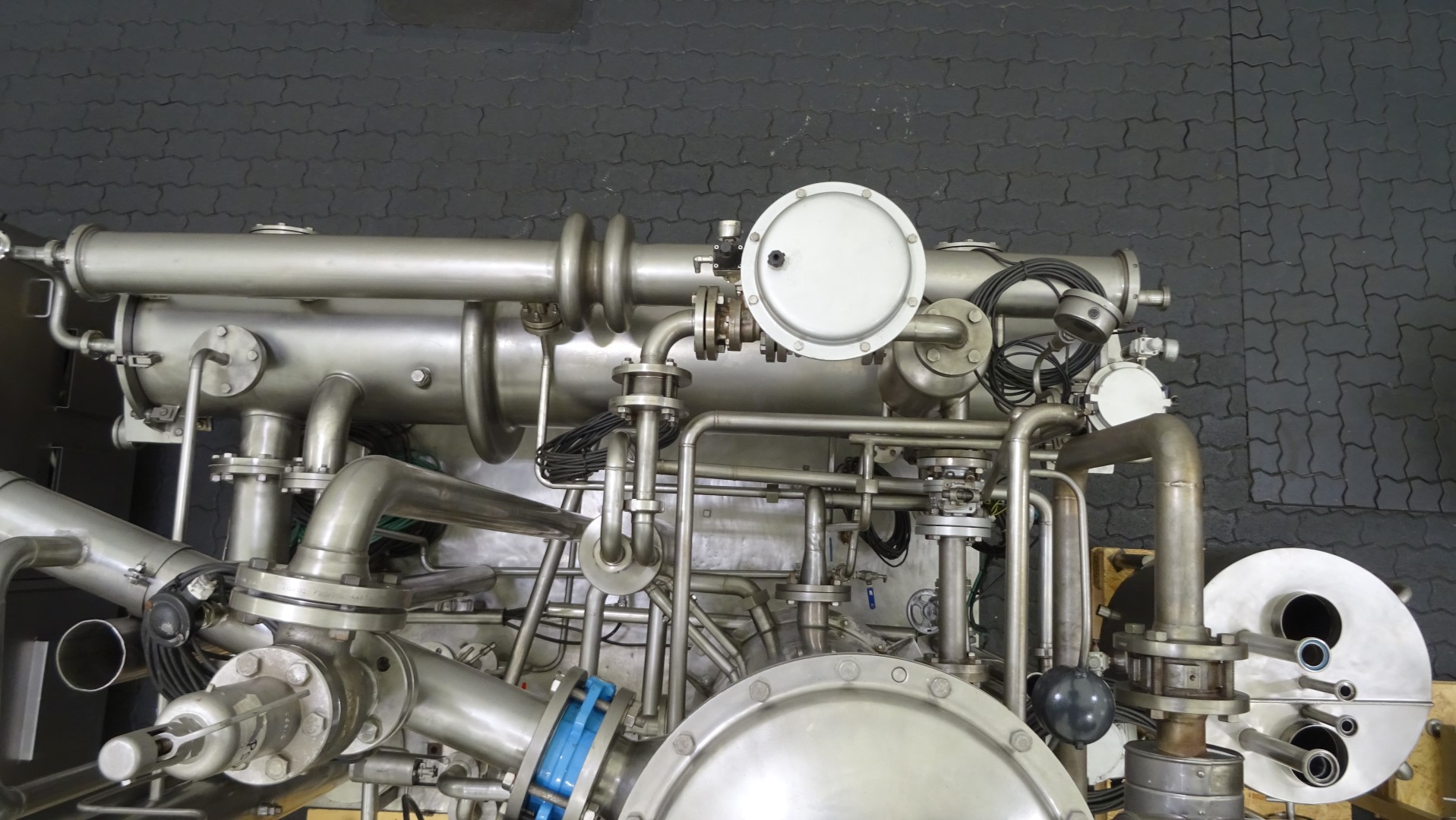

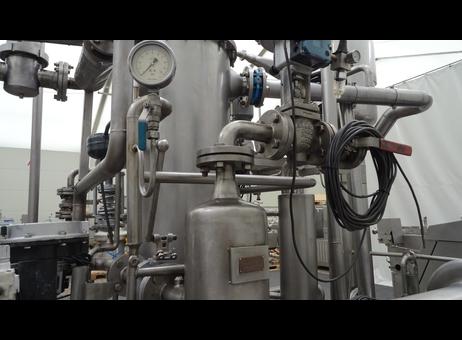

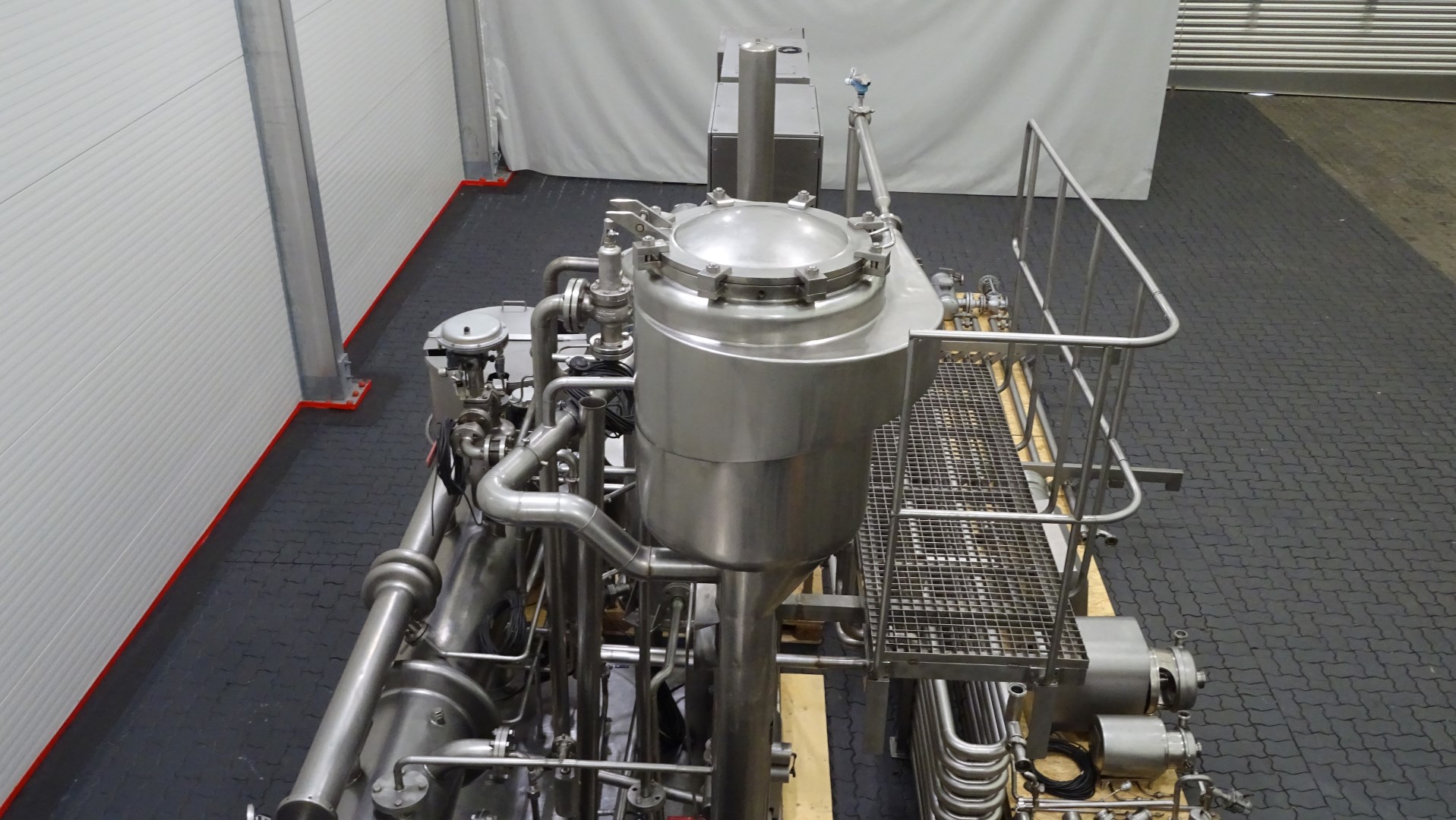

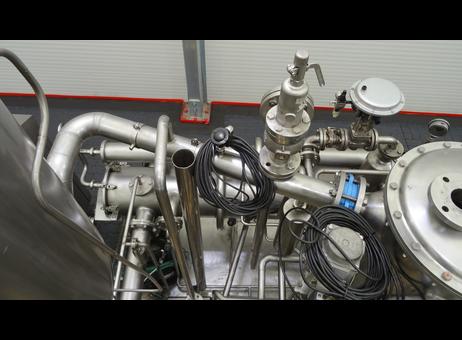

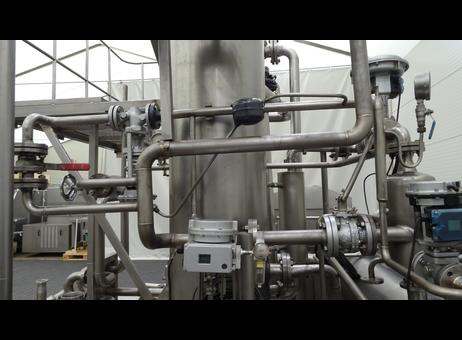

Equipment and components include process vessels, pumps, interconnected stainless-steel pipework, valves, gauges and instrumentation, a flash vessel, holding tube, steam control valves and flowmeters. The installation also includes a long bank of parallel tubular sections and a separate smaller tube assembly. Stainless-steel control cabinets are present, with display screens and push-button controls. The equipment and separate components are arranged on pallet bases; a raised platform with safety railings surrounds the upper portion of a vessel.
The Schneider touchscreen operation panel and several relays are excluded from the scope of supply. The installation’s condition and completeness should be verified before purchase. This APV system is offered as a direct UHT line for dairy processing applications.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
aseptic machines
uht lines
APV Direct Steam Injection (DSI) Uperizer UHT processing Plant with Aseptic Homogeniser, previously used for the sterilisation of milk and dairy products. The installation has a processing capacity of 7.600 litres per hour and is designed for high-temperature sterilisation at temperatures of up to 150°C.
The system utilises direct steam injection for rapid product heating, followed by flash cooling under vacuum to achieve the desired processing temperature. The line is equipped with an APV Gaulin MC 45-5TPSX aseptic homogeniser, ensuring efficient homogenisation under high pressure for consistent product quality.
In the Uperizer head, pure, culinary-grade steam is injected directly into the product flow under high pressure. This causes the temperature to rise almost instantaneously—within fractions of a second—to between 140 °C and 150 °C. The milk is then held at this temperature for a few seconds in a holding tube to eliminate all bacteria and heat-resistant spores. The hot product flows directly into a vacuum expansion chamber (the flash vessel). Due to the sudden drop in pressure, the product immediately cools down—via rapid evaporation—to its original temperature (approx. 75–80 °C). During this "flash" process, the exact amount of water that was previously added to the milk as steam evaporates. As a result, the concentration and composition of the product remain unchanged.
Main Equipment and Components:
- Product level tank.

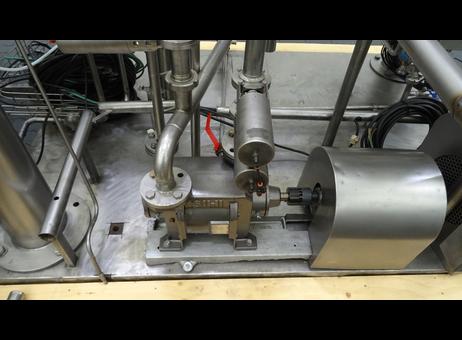

- Product and utility pumps, including:
- 2x APV Puma centrifugal pumps.
- 1x SPX 70/10 pump.
- 1x APV DW rotary lobe pump.
- 1x Inoxpa SE-20 pump.

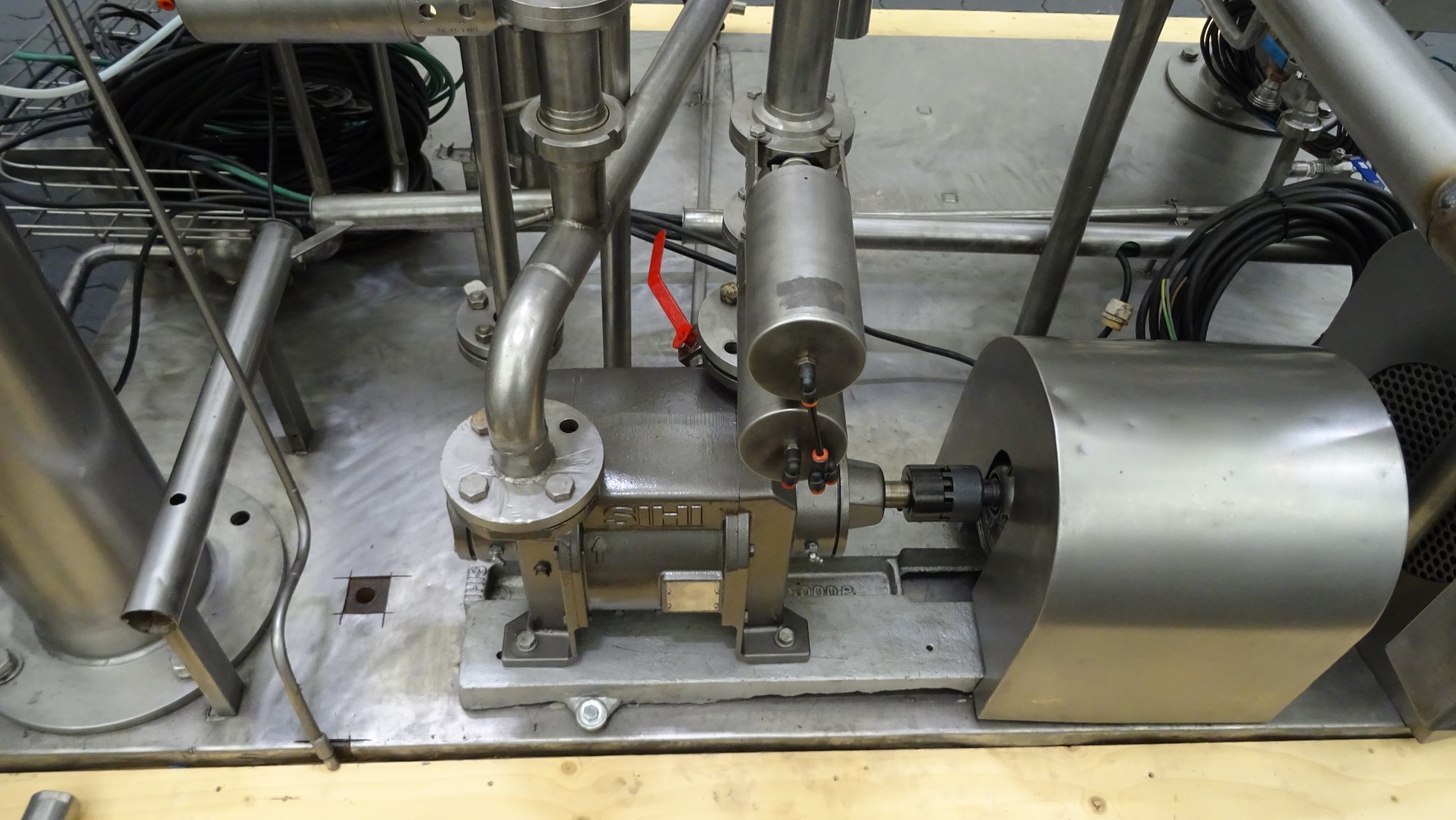

- 1x Sterling vacuum pump.
- Direct steam injection (DSI) heating unit.

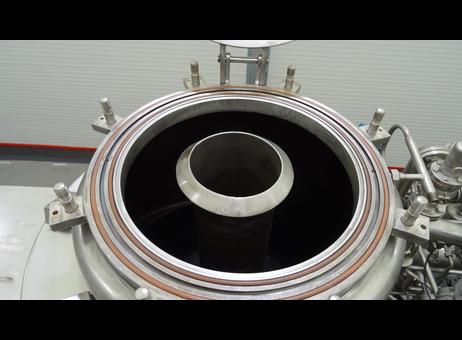

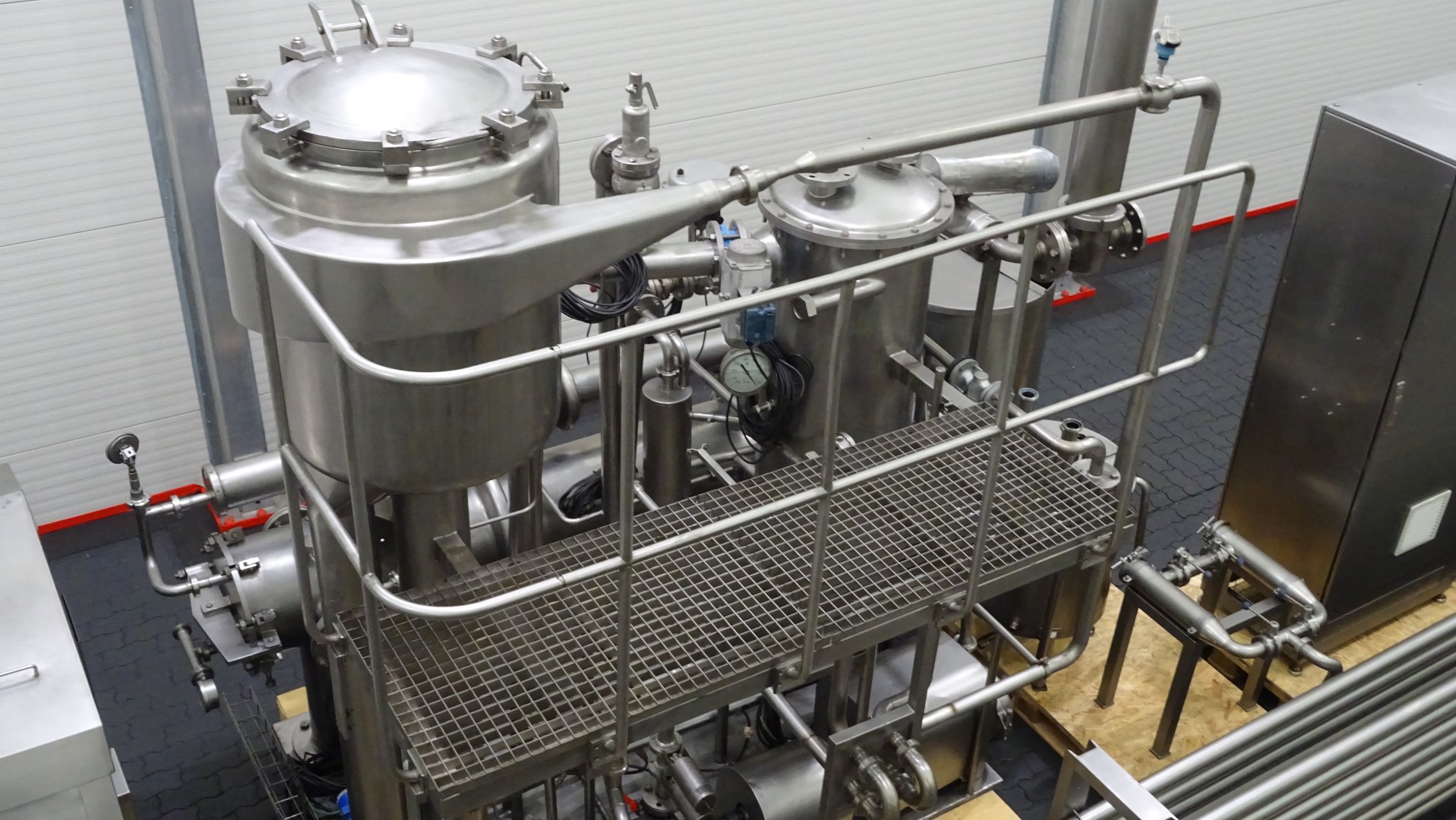

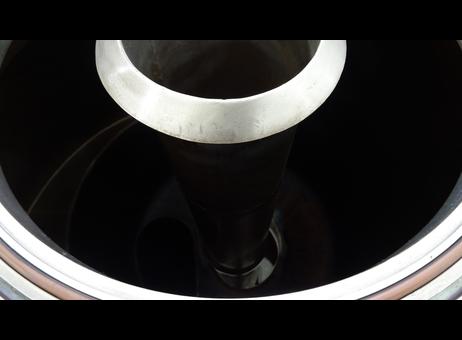

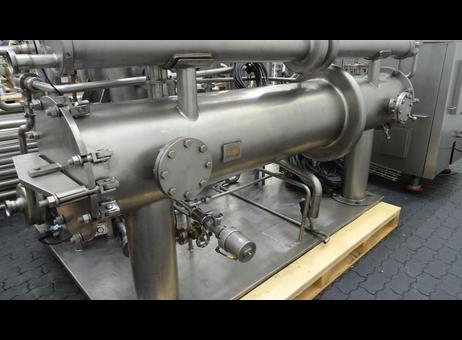

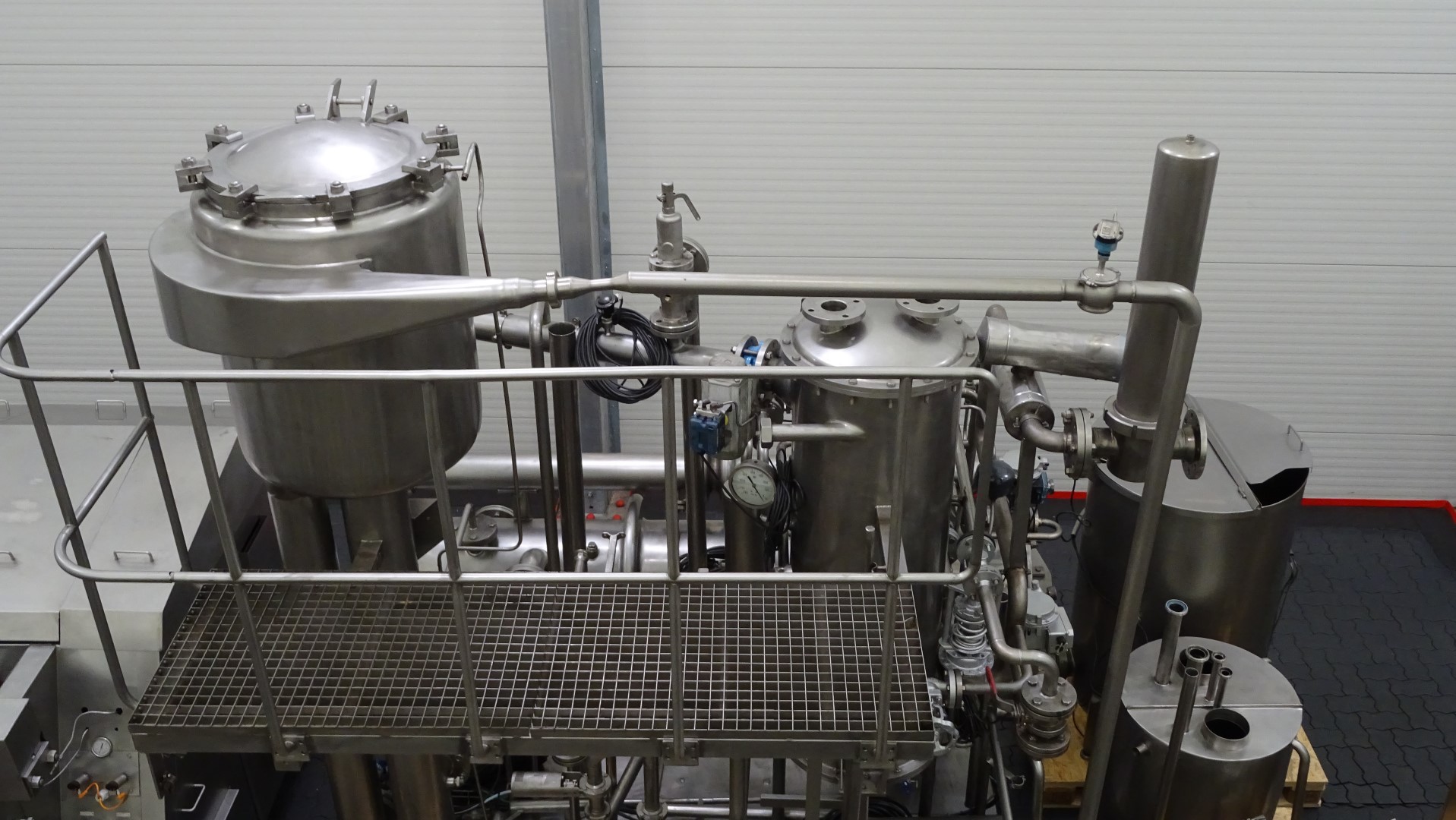

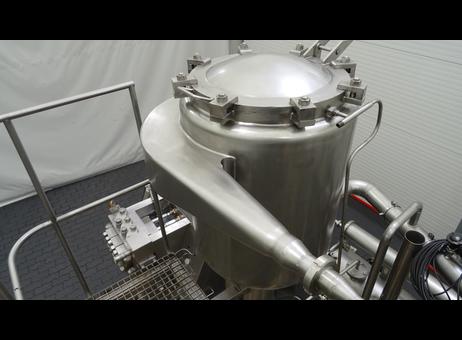

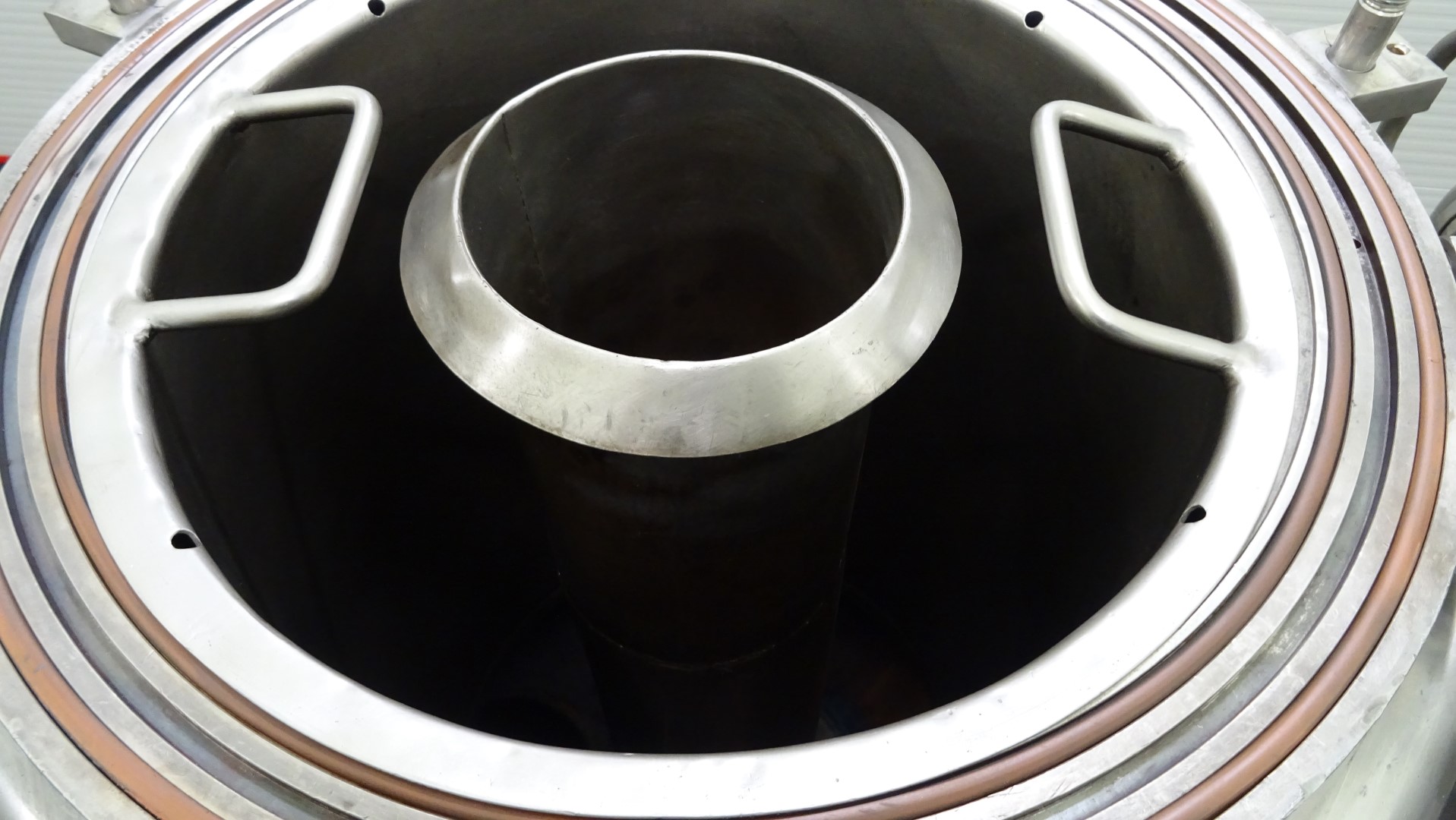

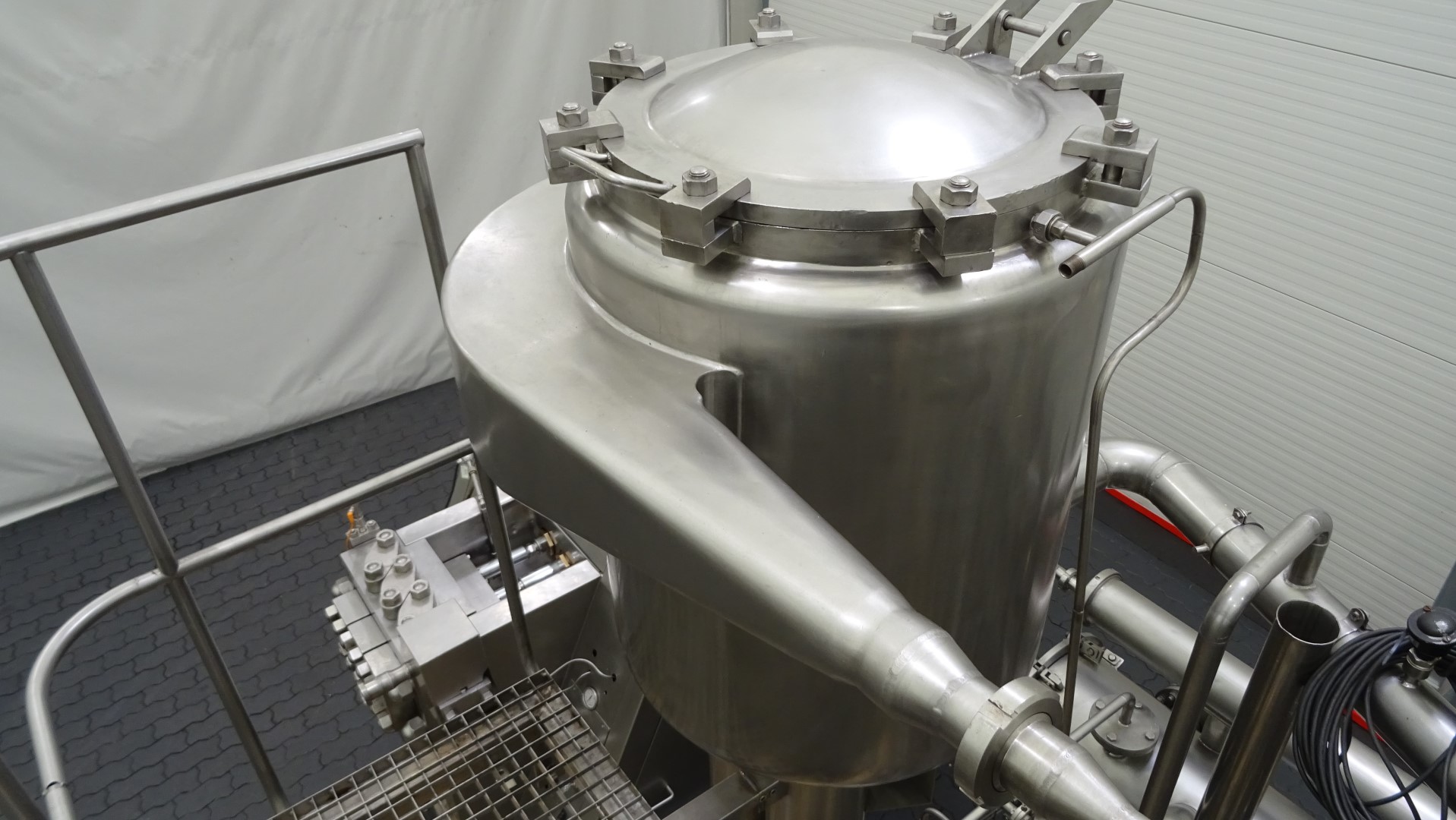

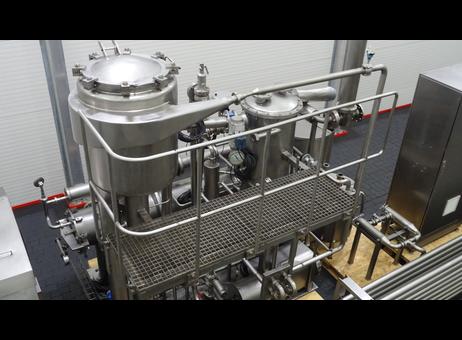

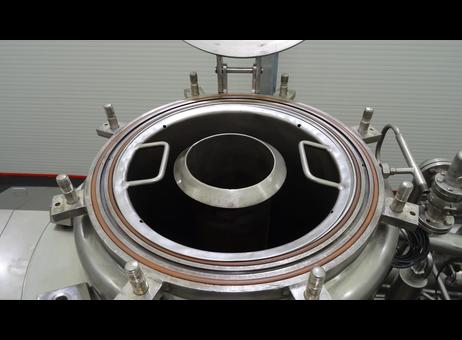

- Flash cooling tank.
- Product holding tube.

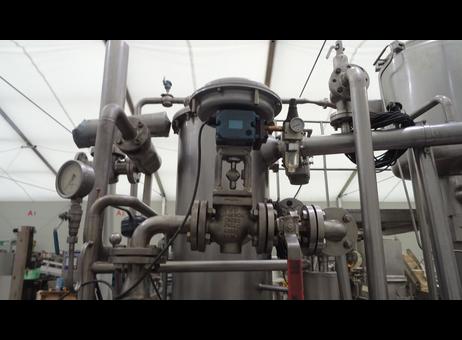

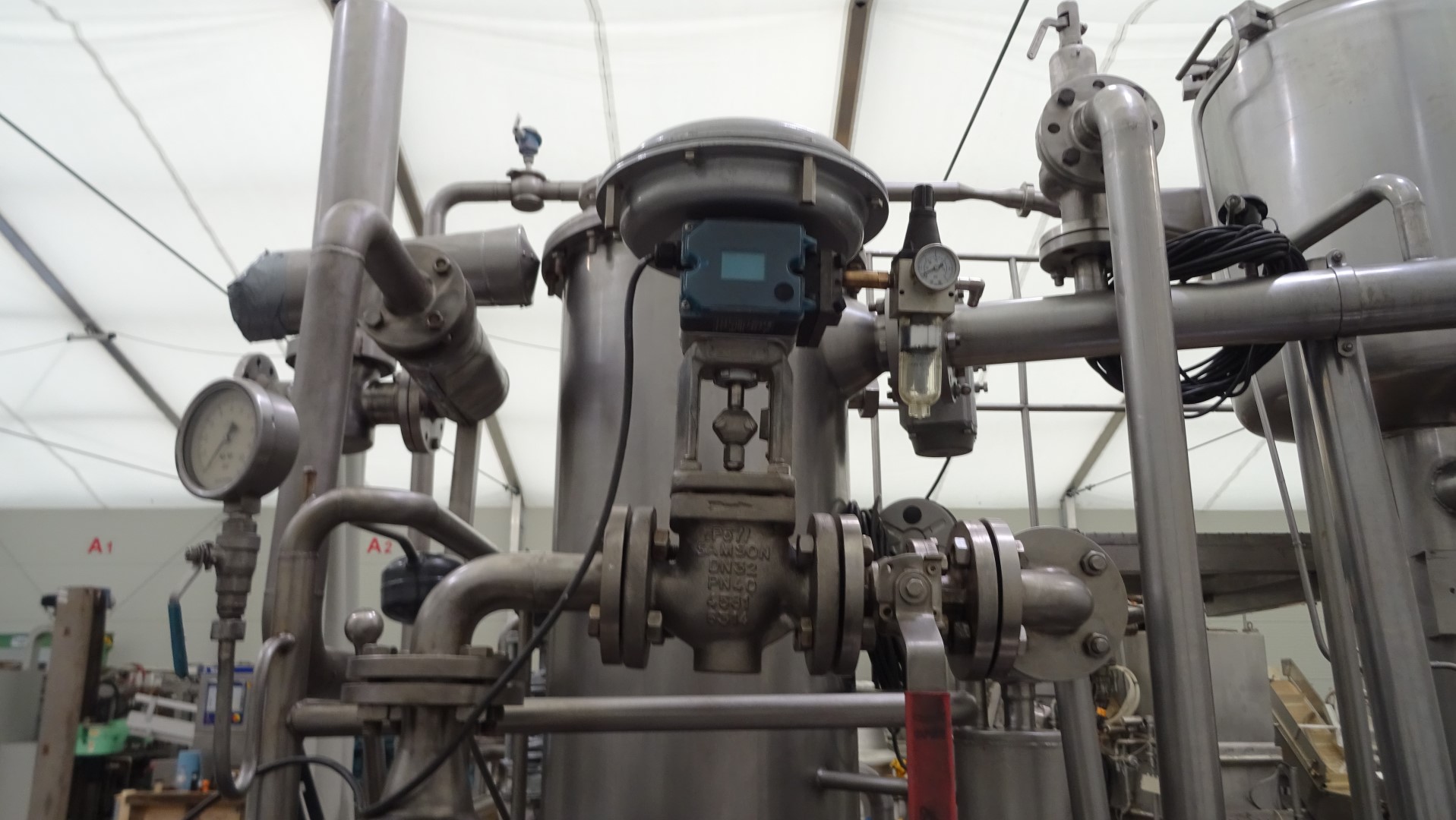

- Steam control valves.
- Product and utility valves.
- Flowmeters.
- Stainless steel control panel, equipped with Schneider frequency converters, a temperature recorder and motor group controls.
- Aseptic Homogeniser, Manufacturer: APV Gaulin, Model: MC 45-5TPSX, Type: Two-stage, hydraulically controlled aseptic homogeniser. Capacity: 7.600 litres/hour. Maximum homogenising pressure: 300 bar. Piston diameter: 54 mm. Motor power: 80 kW - 380 V - 50 Hz - 1.483 rpm - 142 A.
Additional Information:
- Previously used for the sterilisation of milk and dairy products.
- Maximum sterilisation temperature: 150°C.
- Schneider touchscreen operation panel and several relays are excluded from the scope of supply.
An interesting opportunity to acquire an established APV UHT processing system with direct steam injection and aseptic high-pressure homogenisation, suitable for industrial dairy processing applications, subject to inspection and verification of the installation's condition and completeness.
Type Of Machine: Direct UHT Line
Capacity: 7.600 liter per hour
Products: Milk
Temperature Range: 4 - 34 - 70 - 77 - 150 - 80 - 50 - 10 °C
Steam Consumption During Production: 1.140 kg/h
Holding Tube: Yes
Aseptic Homogeniser: Yes
Ground Surface: ± 10 x 5 x 4 meter
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
