| Manufacturer | ANAYAK |
|---|---|
| Model | VH 1800 |
| Year | 1998 |
| Location | Spain
|

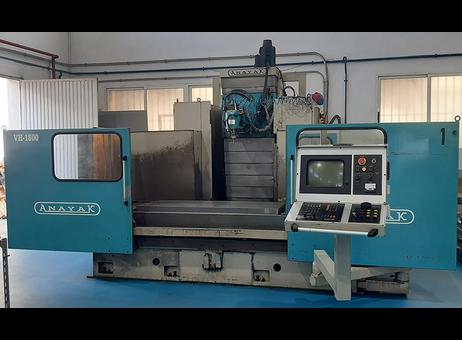

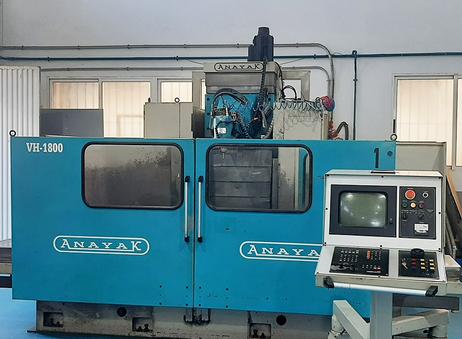

This listing is for an ANAYAK VH 1800 CNC bed type milling machine, manufactured in 1998. It features a HEIDENHAIN TNC 360 control system, with a control panel mounted on the right side of the machine. The control panel includes a screen along with multiple buttons and switches, allowing for precise operation.
The machine has a robust worktable measuring 1800 x 700 mm, equipped with 5 T-slots spaced 120 mm apart and 18 mm wide, suitable for securing various workpieces. The table supports a maximum load of 3000 kg, making it capable of handling heavy-duty milling tasks.
Travel distances are substantial, with a longitudinal (X axis) travel of 1600 mm, transverse (Y axis) travel of 920 mm, and vertical (Z axis) travel of approximately 899 mm. The spindle is designed for ISO 50 DIN 2028 tool taper and operates at speeds ranging from 60 to 2499 rpm. It is powered by a spindle motor with a rated power of 23 kW and features hydraulic tool clamping.
Feed rates include working feeds from 10 to 3000 mm/min and rapid feeds up to 10 m/min, providing versatility for various machining operations.

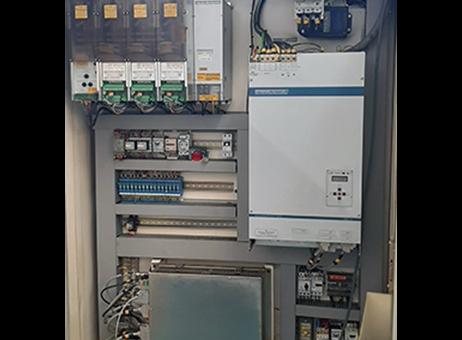

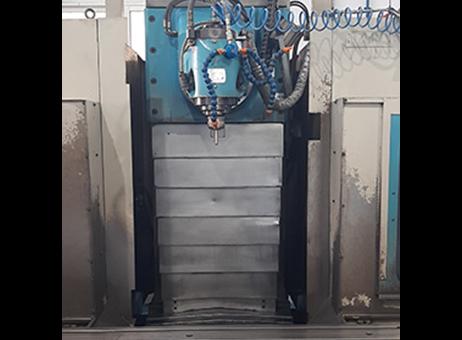

The machine weighs approximately 11,500 kg, reflecting its solid construction. The exterior shows some signs of wear and dirt marks, particularly around window edges and near the base, indicating typical usage. The spindle head and vertical axis column have some visible dirt or residue, and the electrical cabinet is organized and intact with no visible damage.
Overall, this ANAYAK VH 1800 CNC milling machine is a substantial and capable piece of equipment suitable for a range of industrial milling applications.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Brand: ANAYAK
Model: VH 1800
Year: 1998
Control: HEIDENHAIN TNC 360.
*Table
Size: 1800 x 700 mm.
T-slots: 5, spaced 120 mm apart and 18 mm wide.
Maximum table load: 3000 kg.
*Travel
Longitudinal: 1600 mm.
Transverse: 920 mm.
Vertical: 900 mm.
*Spindle
Tool taper: ISO 50 DIN 2028.
Speed: 60-2500 rpm.
Power: 22/23 kW.
Working feeds: 10–3000 mm/min.
Rapid feeds: 10 m/min.
Tool clamping: hydraulic.
*General data
Total machine weight: 11,500 kg.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
