Contact us to receive an offer.
| Manufacturer | ANAYAK |
|---|---|
| Model | VH-1800 |
| Year | 1999 |
| Location | Portugal
|

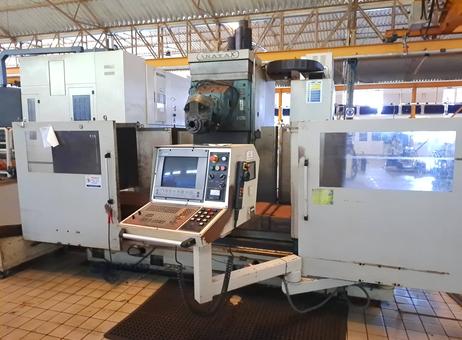

The ANAYAK VH-1800 is a CNC vertical machining center designed for precision milling operations. Manufactured in 1999 by Industrias Anayak S.A. in Spain, this machine features a robust construction with overall dimensions of 4136 mm in length, 2865 mm in width, and 3079 mm in height, and a total weight of approximately 12,000 kg.
This vertical machining center offers substantial working travel with an X-axis movement of 1600 mm, a Y-axis movement of 920 mm, and a Z-axis movement of 844 mm. The machine table can support a maximum load of 3000 kg, making it suitable for handling large and heavy workpieces.

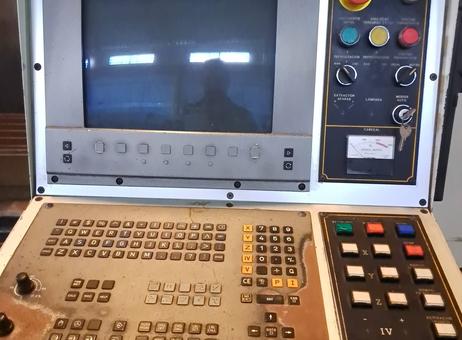

Equipped with a CNC control panel branded HEIDENHAIN, the control unit includes a screen, multiple buttons, switches, and an alphanumeric keyboard, allowing for comprehensive and precise machine operation. An emergency stop button is also present for safety purposes.

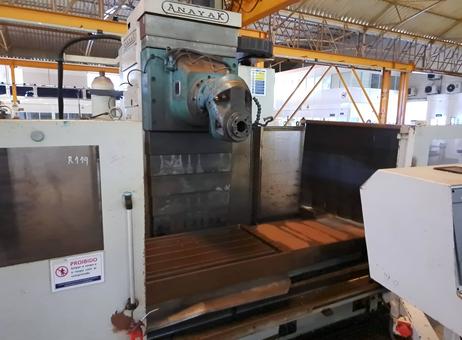

The machine features a spindle head located at the top center, with a mounting flange clearly visible, designed for various milling tasks. Protective sliding doors with windows are installed on either side of the machine to ensure operator safety while allowing visibility of the machining process. Warning signs regarding safety precautions, such as restrictions on the use of compressed air, are displayed on the doors.

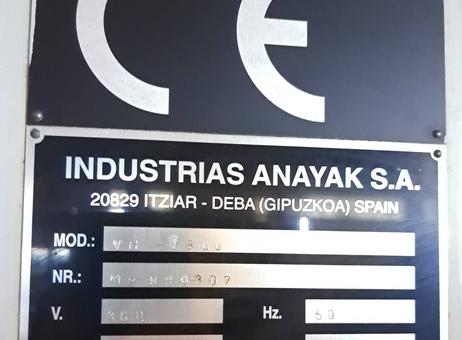

While the machine shows signs of wear and use consistent with its age, including some rust and dirt accumulation on the bed and control panel, it remains intact. The metal identification plate confirms electrical specifications of 380 V, 50 Hz, 80 Amps, and 30 kW power requirements.
Overall, the ANAYAK VH-1800 vertical machining center is a sizable, well-equipped machine suitable for demanding milling applications, offering substantial working envelope and load capacity.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
ANAYAK VH-1800 CNC vertical machining center.
Width dimensions: 4136 MM
Depth dimensions: 2865 MM
Height dimensions: 3079 MM
X axis movement: 1600 MM
Y axis movement: 920 MM
Z axis movement: 844 MM
Part weight: 3000 KG
Machine weight: 12000 KG
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2023 |
| Offers online | 161 |
| Last activity | Oct. 29, 2026 |
ANAYAK VH-1800 CNC vertical machining center.
Width dimensions: 4136 MM
Depth dimensions: 2865 MM
Height dimensions: 3079 MM
X axis movement: 1600 MM
Y axis movement: 920 MM
Z axis movement: 844 MM
Part weight: 3000 KG
Machine weight: 12000 KG
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
The ANAYAK VH-1800 is a CNC vertical machining center designed for precision milling operations. Manufactured in 1999 by Industrias Anayak S.A. in Spain, this machine features a robust construction with overall dimensions of 4136 mm in length, 2865 mm in width, and 3079 mm in height, and a total weight of approximately 12,000 kg.
This vertical machining center offers substantial working travel with an X-axis movement of 1600 mm, a Y-axis movement of 920 mm, and a Z-axis movement of 844 mm. The machine table can support a maximum load of 3000 kg, making it suitable for handling large and heavy workpieces.
Equipped with a CNC control panel branded HEIDENHAIN, the control unit includes a screen, multiple buttons, switches, and an alphanumeric keyboard, allowing for comprehensive and precise machine operation. An emergency stop button is also present for safety purposes.
The machine features a spindle head located at the top center, with a mounting flange clearly visible, designed for various milling tasks. Protective sliding doors with windows are installed on either side of the machine to ensure operator safety while allowing visibility of the machining process. Warning signs regarding safety precautions, such as restrictions on the use of compressed air, are displayed on the doors.
While the machine shows signs of wear and use consistent with its age, including some rust and dirt accumulation on the bed and control panel, it remains intact. The metal identification plate confirms electrical specifications of 380 V, 50 Hz, 80 Amps, and 30 kW power requirements.
Overall, the ANAYAK VH-1800 vertical machining center is a sizable, well-equipped machine suitable for demanding milling applications, offering substantial working envelope and load capacity.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Machinery dealer |
| Active since | 2023 |
| Offers online | 161 |
| Last activity | Oct. 29, 2026 |
