Contact us to receive an offer.
| Manufacturer | AMP |
|---|---|
| Model | SKIN-PACK 1000 x 1000 x 500 |
| Year | 2017 |
| Location | Italy
|
This AMP SKIN-PACK 1000 x 1000 x 500 blister machine, manufactured in 2017, is designed for industrial packaging applications. It features maximum overall dimensions of 3410 mm in length, 2680 mm in width, and 1950 mm in height when including side tables, and a reduced footprint of 1430 mm by 2680 mm by 1950 mm without side tables. The machine weighs approximately 720 kg.
The worktop measures 1000 mm by 1000 mm, allowing for molding dimensions of 100 mm by 100 mm with a forming depth of 100 mm. It supports a maximum object height of 400 mm and a maximum foil width of 100 mm. The machine operates on a 400 V three-phase power supply with neutral and earth, and has an engine power rating of 21 kW.
Pneumatic requirements include a supply pressure of 6 atm with an air consumption of 65 Nl/hour, recommending a minimum compressor capacity of 100 liters. The film reel height is 106 cm, and the heating elements can reach temperatures between 500 and 600 degrees Celsius. The recommended working environment should be at least 15 square meters with ambient temperatures between 5 and 30 degrees Celsius. Noise level during pump operation is approximately 63 dB.

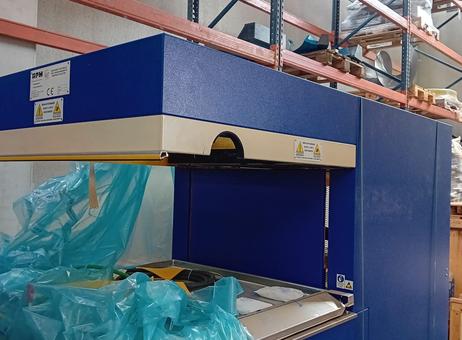

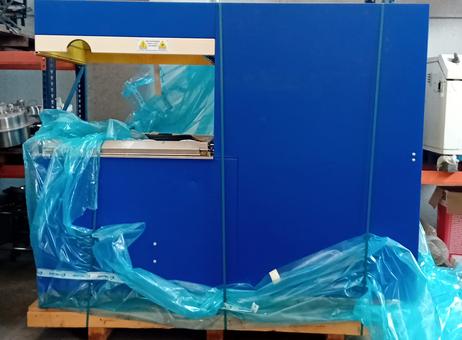

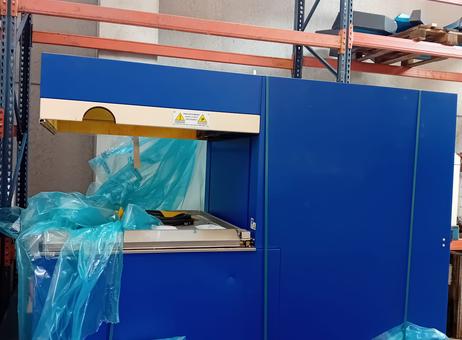

The machine has a robust industrial design with blue exterior panels and a white upper section. It is currently mounted on a wooden pallet, facilitating transport or storage. Warning labels are present on the upper section, indicating hazard areas to ensure operator safety. The machine is partially wrapped in blue protective plastic film, suggesting care in handling or storage.
Overall, this AMP SKIN-PACK machine offers substantial power and capacity for blister packaging needs, with detailed specifications supporting its industrial use.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
year 2017
Excellent condition, semi new (used only one year and very few times)
GENERAL CHARACTERISTICS OF THE MACHINE
1) Maximum overall dimensions WxDxH (cm)
with side tables: 341X268X195
without side tables: 143X268X195
2) Weight about 720 Kg
3) Worktop dimensions: 100X100 (cm)
4) Maximum object height: 40 cm
5) Power supply: 400 V TRIF. + N + T (IP 20B)
6) Electric absorption: P max 21 kw
I max ........... A (starting point)
I cycle …… A Pkwh = ……. cos = 1 h = 1 V = 400
I rest …… A (pump off)
Pkwh = …… .- cos = 1- h = 1 V = 400)
7) Pneumatic supply: 6 Atm
8) Air absorption: 65 NI / hour
9) Minimum recommended compressor: 100 liters
10) Film reel height: 106 cm
11) Maximum temperature developed by the resistances: 500 - 600 degrees C
12) Work environment: recommended area at least 15 square meters
temp. max exercise +30
temp. min exercise +05
13) Noise: 63 dB (pump on)
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Factory – small or medium company |
| Active since | 2022 |
| Offers online | 1 |
| Last activity | Sept. 17, 2026 |
year 2017
Excellent condition, semi new (used only one year and very few times)
GENERAL CHARACTERISTICS OF THE MACHINE
1) Maximum overall dimensions WxDxH (cm)
with side tables: 341X268X195
without side tables: 143X268X195
2) Weight about 720 Kg
3) Worktop dimensions: 100X100 (cm)
4) Maximum object height: 40 cm
5) Power supply: 400 V TRIF. + N + T (IP 20B)
6) Electric absorption: P max 21 kw
I max ........... A (starting point)
I cycle …… A Pkwh = ……. cos = 1 h = 1 V = 400
I rest …… A (pump off)
Pkwh = …… .- cos = 1- h = 1 V = 400)
7) Pneumatic supply: 6 Atm
8) Air absorption: 65 NI / hour
9) Minimum recommended compressor: 100 liters
10) Film reel height: 106 cm
11) Maximum temperature developed by the resistances: 500 - 600 degrees C
12) Work environment: recommended area at least 15 square meters
temp. max exercise +30
temp. min exercise +05
13) Noise: 63 dB (pump on)
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
This AMP SKIN-PACK 1000 x 1000 x 500 blister machine, manufactured in 2017, is designed for industrial packaging applications. It features maximum overall dimensions of 3410 mm in length, 2680 mm in width, and 1950 mm in height when including side tables, and a reduced footprint of 1430 mm by 2680 mm by 1950 mm without side tables. The machine weighs approximately 720 kg.
The worktop measures 1000 mm by 1000 mm, allowing for molding dimensions of 100 mm by 100 mm with a forming depth of 100 mm. It supports a maximum object height of 400 mm and a maximum foil width of 100 mm. The machine operates on a 400 V three-phase power supply with neutral and earth, and has an engine power rating of 21 kW.
Pneumatic requirements include a supply pressure of 6 atm with an air consumption of 65 Nl/hour, recommending a minimum compressor capacity of 100 liters. The film reel height is 106 cm, and the heating elements can reach temperatures between 500 and 600 degrees Celsius. The recommended working environment should be at least 15 square meters with ambient temperatures between 5 and 30 degrees Celsius. Noise level during pump operation is approximately 63 dB.
The machine has a robust industrial design with blue exterior panels and a white upper section. It is currently mounted on a wooden pallet, facilitating transport or storage. Warning labels are present on the upper section, indicating hazard areas to ensure operator safety. The machine is partially wrapped in blue protective plastic film, suggesting care in handling or storage.
Overall, this AMP SKIN-PACK machine offers substantial power and capacity for blister packaging needs, with detailed specifications supporting its industrial use.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Factory – small or medium company |
| Active since | 2022 |
| Offers online | 1 |
| Last activity | Sept. 17, 2026 |
