| Manufacturer | AMERICAN HOIST |
|---|---|
| Model | 9310 |
| Year | 1990 |
| Location | Italy
|
| Category | Handling - Bridge cranes |
| Load Capacity max | 200 T |
| Span | 42300 mm |
| Weight | 163000 kg |
| worked hours | |
| hours under power | |
| state | good |
| At local norms | --------- |
| status | |
| Last availability date | 22/10/2026 |
| Product id | P240702254 |
| Language |
Hoister AMERICAN HOIST 9310
Kladkostroj AMERICAN HOIST 9310
AMERICAN HOIST 9310 Hoister
AMERICAN HOIST 9310 Krän
Hoister AMERICAN HOIST 9310
AMERICAN HOIST 9310 Hoister
Puente grúa AMERICAN HOIST 9310
Pont roulant AMERICAN HOIST 9310
Hoister AMERICAN HOIST 9310
AMERICAN HOIST 9310 Emelő
Gru cingolata a braccio tralicciato, AMERICAN HOIST 9310 - 200 Ton - Totale Revisione
Keltuvas AMERICAN HOIST 9310
AMERICAN HOIST 9310 Hoister
Suwnica AMERICAN HOIST 9310
Guincho AMERICAN HOIST 9310
Hoister AMERICAN HOIST 9310
AMERICAN HOIST 9310 Подъёмный кран
Hoister AMERICAN HOIST 9310
AMERICAN HOIST 9310 Lyftare
Yük asansörü AMERICAN HOIST 9310
|

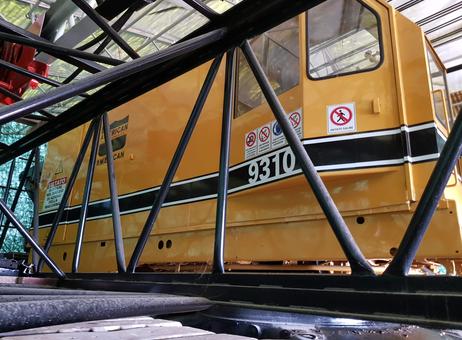

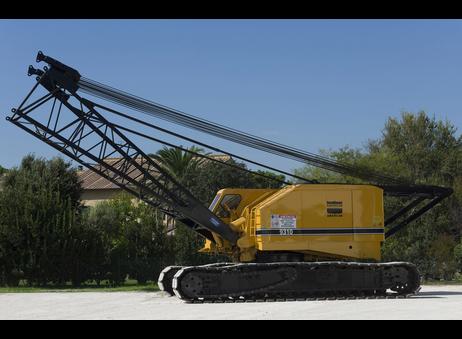

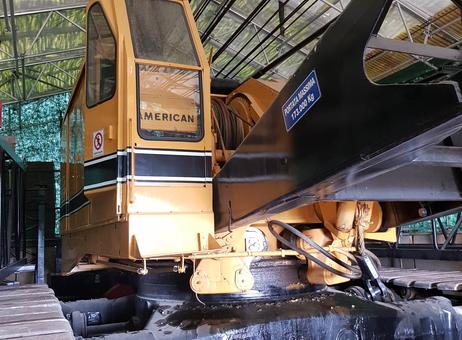

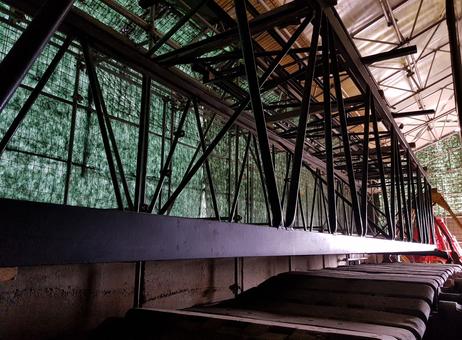

This listing is for an American Hoist model 9310 lattice boom crawler crane, manufactured in 1990. It has a maximum load capacity of 200 tons and a total weight of approximately 163,000 kg. The crane features a 42.30-meter angled boom, which includes a 9.15-meter base section, two intermediate sections from 12 meters, and a 4-pulley tapered tip starting at 9.15 meters.
The crane is powered by a Cummins NT 855 engine with 1,800 recorded engine hours. It is equipped with a Twin Disc converter and offers an option for increased boom length using angled profiles (type 77") extending from 33.55 meters to 45.75 meters by adding an additional 12.20-meter element. Additionally, it comes with a tubular steel boom (type 92H) with a total length of 46.30 meters, which provides a maximum capacity of 173 tons.

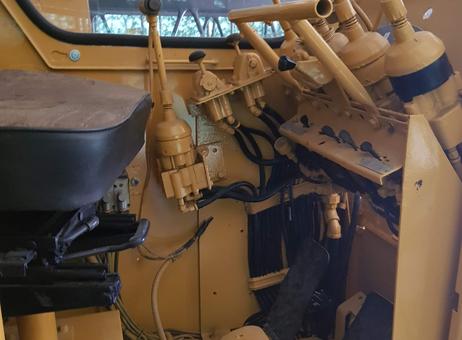

Additional features include a free pull-benna winch and a rope-pulling flag pull-benna. The hydraulic system is equipped with a 108-liter piston pump operating at 1,000 rpm, driven by an overhead drive shaft. The crane also has an air-controlled Hydrocontrol diverter accessible from the driver's seat, and piping assembled laterally to the boom via anchor brackets, including R9 piping.

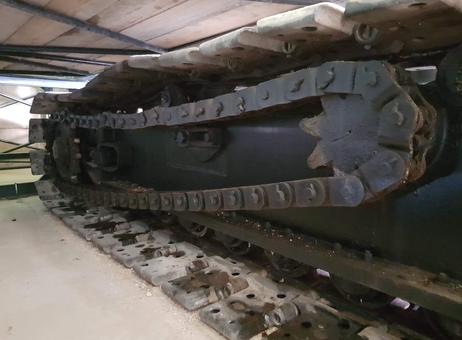

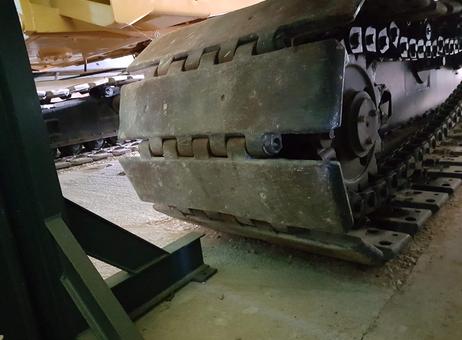

The track width of the crawler is 1.27 meters, contributing to its stability during operation. This crane is suitable for heavy lifting applications requiring a robust lattice boom crawler crane with versatile boom configurations and substantial lifting capacity.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Lattice boom crawler crane, AMERICAN HOIST 9310 - 200 Ton - Total Overhaul
- Maximum capacity: 200 Ton.
42.30 m angled boom consisting of:
- 9.15 m base
- No. 2 Intermediate from mt. 12
- 4-pulley tapered tip from mt. 9.15
CUMMINS NT 855 engine with 1,800 engine hours
- Twin Disc Converter
- With lattice boom increase in angled profiles (type 77") from 33.55 mt to 45.75 mt with addition of additional 12.20 mt element.
- Also equipped with tubular steel boom (type 92H) Total length 46.30mt.
- Maximum capacity with boom type 92H is 173Ton.
- Free pull-benna winch
- Rope-pulling flag pull-benna
- Hydraulic system with 108-liter / 1,000-rpm piston pump (overhead drive shaft)
- Air-controlled Hydrocontrol diverter from driver's seat
- Piping assembled laterally to boom via anchor brackets
- R9 piping
- Total weight Ton. 163
- Track width mt. 1.27
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
What is the capacity of this AMERICAN HOIST 9310?
This AMERICAN HOIST 9310 is a tracked crane with a capacity of 200 tons.
When was this crane last overhauled?
This AMERICAN HOIST 9310 crane underwent a complete overhaul.
What year was this AMERICAN HOIST 9310 manufactured?
This AMERICAN HOIST 9310 was manufactured in 1990.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
