Contact us to receive an offer.
| Manufacturer | AMADA |
|---|---|
| Model | TOGU EU |
| Year | 2006 |
| Location | Poland
|
The AMADA TOGU EU is a tool grinding machine manufactured in 2006, designed for precision grinding tasks typically required in sheet metal punch press tooling maintenance. This model features a grinding wheel with a diameter of 150 mm and supports a maximum tool diameter of 160 mm. The spindle motor operates at a speed of 3000 rpm, enabling efficient grinding operations. It offers a maximum feed rate of 600 mm/min and can grind to a maximum depth of 0.99 mm per cycle, suitable for detailed and accurate tool sharpening.
The machine is equipped with a digital control panel featuring several buttons and a red emergency stop button for safety. A safety light stack with green, yellow, and red indicator lights is mounted on top of the control panel, providing clear operational status signals. The AMADA TOGU EU appears to be a used machine, showing some dust and signs of wear on the control panel and body, which is typical for industrial equipment of its age.
This tool grinder is known for its automated grinding cycles and ease of operation, allowing users to load tools, input parameters, and start the process with minimal manual intervention. The machine includes features such as programmable re-grind amounts, automatic feed of the grinding wheel to prevent tool burn, automatic grinding wheel dress indication, and automatic coolant application to maintain tool quality and surface finish.
The machine is positioned indoors and is accompanied by a metal table and a stool, indicating a ready-to-use setup. Overall, the AMADA TOGU EU is a robust and reliable tool grinding solution for industrial applications requiring consistent and precise tool maintenance.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Tool grinding machine
Grinding Wheel (mm): Dia.150
Spindle Motor Speed (rpm): 3000
Max. Feed Rate (mm/min): 600
Max. Tool Diameter: 160 mm
Max. Grind Depth per Cycle: 0.99 mm
Used Amada Automatic Tool Grinder – Model TOGU-III for sale / Used sheet metal punch press tool grinder for sharpening punch press tooling
USED AMADA AUTOMATIC TOOL GRINDER
MODEL TOGU-III

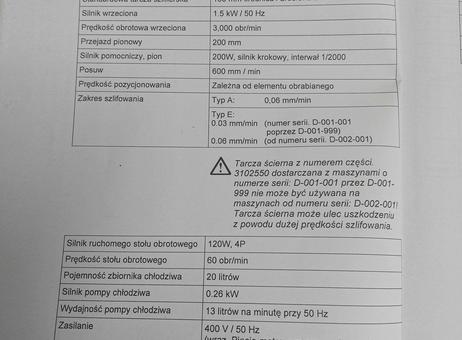

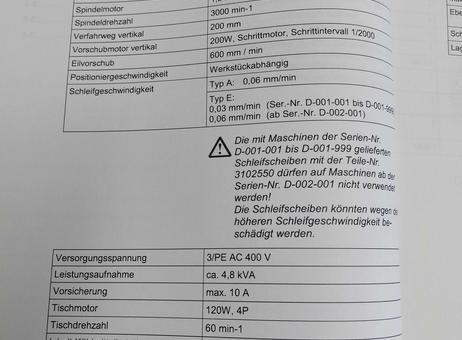

MACHINE SPECIFICATIONS
Model …………………………………. TOGU-III
Max. Diameter Tool Size ……………. 6.30
Max. Grinding ………………………… .039”
Main Axis Motor ……………………… 2 H.P. 2 P
Main Axis Rotation Speed ………….. 3000R.P.M. (60Hz)
Main Axis Travel ……………………… 9.45”
Main Axis Feed Motor ……………….. DC Servo Motor (0.05 H.P.)
Main Axis Feed Speed-High ………… 23.6 I.P.M
Main Axis Feed Speed-Middle ………. 2.36 I.P.M
Main Axis Feed Speed-Low …………. 0.002 I.P.M
Table Motor ……………………………. 0.134 H.P. 4P
Table Rotation Speed ………………… 72 R.P.M. (60Hz)
Cooling Water Pump Motor ………….. 0.08 H.P. 2P
Cooling Water Pump Flow …………… 0.9 CFM (60 Hz)
Machine Weight ……………………….. 1,058 lbs
Power Supply ………………………….. AC220V 3 Phase 2.5 kVA
(Transformer Used Outside 220v Area)
Air Supply ……………………………… 60 C.F.M
Grinding Wheel ……………………….. CBN 5.31
Benefits
Fully automated machine
Unmanned grinding cycle
Easy operation – load > input> start
Programmable re-grind amount
Automatic feed of wheel prevents tool burn
Automatic grinding wheel dress indication
Excellent surface finish
Unique safety locking system ensures operator safety
Visual operation/standby indication
Automatic coolant application prevents tool burn
High quality finish maintained by filtration of coolant liquid
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Factory – small or medium company |
| Active since | 2023 |
| Offers online | 2 |
| Last activity | Oct. 2, 2026 |
