Contact us to receive an offer.
| Manufacturer | AMADA |
|---|---|
| Model | HFBO 170-4100 |
| Year | 1994 |
| Location | Poland
|

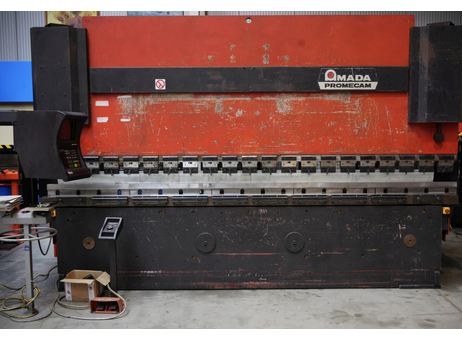

This listing is for an AMADA hydraulic press brake, model HFBO 170-4100, manufactured in 1994. This robust machine is designed for precise bending operations with a maximum bending length of 4100 mm and a distance between uprights of 3650 mm. It features a throat depth of 300 mm and a vertical stroke of 200 mm, capable of exerting a bending force of 170 tons. The press brake is equipped with a CNC Operateur OPEII control system, providing graphical interface and Polish language support on a 14-inch color TFT screen. The control panel manages eight axes: Y1, Y2, X1, X2, R1, R2, Z1, and Z2, and includes automatic table bending compensation for enhanced accuracy.

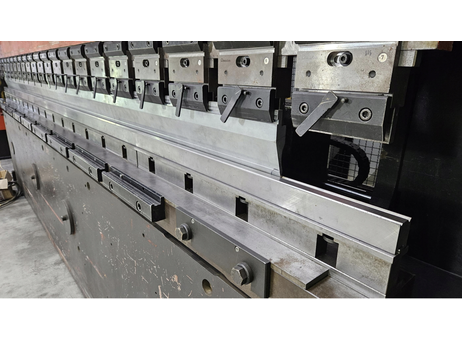

The machine weighs approximately 13,800 kg and is powered by a 13 kW engine. It comes with a complete set of AMADA standard segmented tools mounted on the upper and lower bending beam, secured with clamping levers and bolts. The tooling shows signs of use but remains in good condition without visible damage. The press brake's exterior has red and black paint with visible wear and scratches indicative of regular use, but no major damage is apparent.

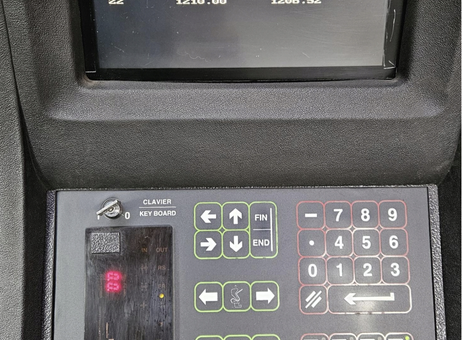

Additional features include a control panel mounted on the left side with a protective cover, a keypad with directional arrows, numeric keys, and function buttons, all showing minor wear but intact. A foot pedal control is located on the floor in front of the machine for operational convenience. The machine is supplied with full original documentation including the DTR, machine and control instructions, and occupational health and safety workplace instructions, all in Polish.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Hydraulic press brake: AMADA type HFBO 170-4100, year of manufacture: 1994, a very durable model from the best manufacturer of this type of machines.
Bending length: 4100 mm; Between columns: 3650 mm, Load: 300 mm, stroke 200 mm; Pressure: 170 t.
CNC Operateur OPEII controlled press, graphics, Polish language, 14" color TFT screen. Controlled axes -Y1-Y2-X1-X2-R1-R2-Z1-Z2 + automatic table bending compensation.
Machine weight 13.8 t. Drives 13 kW.
Tools - complete set, Amada standard segmented tools.
Full original DTR, machine and control instructions in Polish, OHS workplace instructions in Polish.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2012 |
| Offers online | 63 |
| Last activity | Oct. 27, 2026 |
Hydraulic press brake: AMADA type HFBO 170-4100, year of manufacture: 1994, a very durable model from the best manufacturer of this type of machines.
Bending length: 4100 mm; Between columns: 3650 mm, Load: 300 mm, stroke 200 mm; Pressure: 170 t.
CNC Operateur OPEII controlled press, graphics, Polish language, 14" color TFT screen. Controlled axes -Y1-Y2-X1-X2-R1-R2-Z1-Z2 + automatic table bending compensation.
Machine weight 13.8 t. Drives 13 kW.
Tools - complete set, Amada standard segmented tools.
Full original DTR, machine and control instructions in Polish, OHS workplace instructions in Polish.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
This listing is for an AMADA hydraulic press brake, model HFBO 170-4100, manufactured in 1994. This robust machine is designed for precise bending operations with a maximum bending length of 4100 mm and a distance between uprights of 3650 mm. It features a throat depth of 300 mm and a vertical stroke of 200 mm, capable of exerting a bending force of 170 tons. The press brake is equipped with a CNC Operateur OPEII control system, providing graphical interface and Polish language support on a 14-inch color TFT screen. The control panel manages eight axes: Y1, Y2, X1, X2, R1, R2, Z1, and Z2, and includes automatic table bending compensation for enhanced accuracy.
The machine weighs approximately 13,800 kg and is powered by a 13 kW engine. It comes with a complete set of AMADA standard segmented tools mounted on the upper and lower bending beam, secured with clamping levers and bolts. The tooling shows signs of use but remains in good condition without visible damage. The press brake's exterior has red and black paint with visible wear and scratches indicative of regular use, but no major damage is apparent.
Additional features include a control panel mounted on the left side with a protective cover, a keypad with directional arrows, numeric keys, and function buttons, all showing minor wear but intact. A foot pedal control is located on the floor in front of the machine for operational convenience. The machine is supplied with full original documentation including the DTR, machine and control instructions, and occupational health and safety workplace instructions, all in Polish.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Machinery dealer |
| Active since | 2012 |
| Offers online | 63 |
| Last activity | Oct. 27, 2026 |
