| Manufacturer | AMADA |
|---|---|
| Model | HA-400W |
| Year | 1997 |
| Location | USA
|

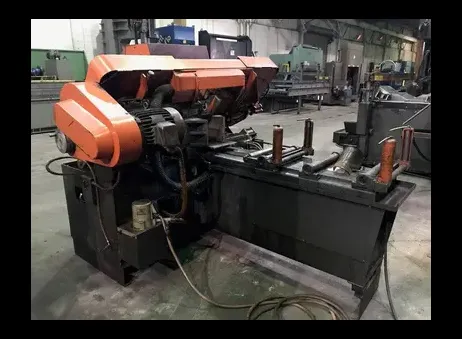

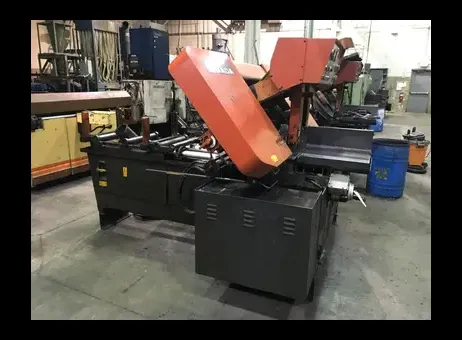

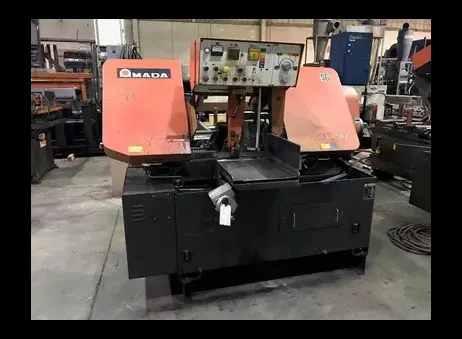

This listing features an AMADA automatic horizontal band saw, model HA-400W, manufactured in 1997. The machine is designed for metal cutting applications and offers a maximum cutting capacity of 406.4 mm (16 inches) for both round and square materials, with a square cutting capacity of 16" x 16". It utilizes a 381 mm long and 38.1 mm wide blade.
The band saw is powered by a 5.6 kW engine, driving the blade through a motor-pulley-gearbox system. The blade speed is infinitely variable, ranging from 50 to 295 feet per minute, controlled via a large dial on the control panel. Blade tension is maintained hydraulically.
Hydraulic components include a 2 H.P. hydraulic motor and a hydraulic clamp system to secure workpieces during cutting. The hydraulic tank capacity is 31.5 gallons. The feed system allows a maximum feed length of approximately 19.6 inches with 9 multi-index positions.
The coolant system operates with a 1/4 H.P. motor and uses flood coolant, supported by a 10.5-gallon tank.

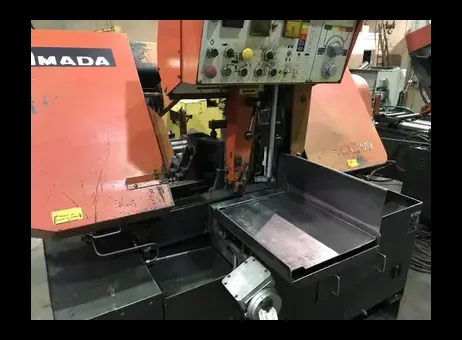

The machine dimensions are approximately 22860 mm (length) x 26924 mm (width) x 16002 mm (height), and it weighs about 4850 kg. The workpiece support table and clamp mechanism are visible and show signs of prior use, including surface wear and scratches on the orange protective covers and metal table surfaces.

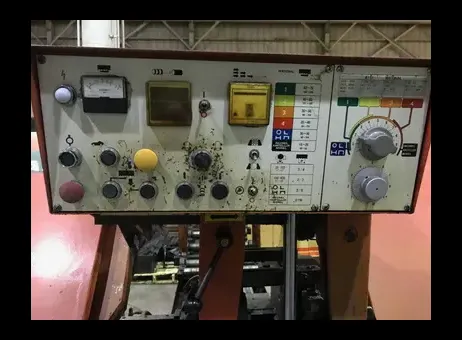

The control panel is centrally located above the cutting area and features multiple rotary knobs, buttons, analog meters, and color-coded labels for operational settings. It shows typical signs of wear but appears intact.
Additional features include a chip auger, piece counter, vertical rollers, blade break switch, out-of-stock switch, powered chip brush, and manual/automatic operation modes. The machine is equipped with a length setting hand wheel and mechanical length readout, amp meter, and vertical rollers for workpiece handling.
The overall condition reflects normal wear consistent with used industrial equipment. The machine is presented as-is, where-is, without claims regarding operational status.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Offer Title: AMADA AUTOMATIC HORIZONTAL BAND SAW, Model HA-400W, 16" x 16"
Manufacturer: Amada
Model: HA-400W
Year of Manufacture: 1997
Technical Condition: As-is, where-is
Cutting Capacity:
- Maximum cutting capacity 90 deg, round: 16"
- Maximum cutting capacity 90 deg, square: 16" x 16"
Blade Specifications:
- Blade dimensions: 15' x 1-1/2" x .050"
- Blade guides: Carbide
- Blade speeds: 50 - 295 FPM
- Number of speeds: Infinite
- Blade motor: 7.5 H.P.
- Blade drive type: Motor to pulley to gearbox
- Blade tension type: Hydraulic
Hydraulic System:
- Hydraulic motor: 2 H.P.
- Hydraulic tank capacity: 31.5 gallons
Coolant System:
- Coolant motor: 1/4 H.P.
- Coolant type: Flood
- Coolant tank capacity: 10.5 gallons
Feed Specifications:
- Maximum feed length: 19.6"
- Number of multi indexes: 9x
Table Specifications:
- Table height: 31.5"
- Maximum weight load: 5,511 lbs.
Vise Type:
- Vise type: Hydraulic
- Remnant length: 3"
Electrical Specifications:
- Voltage: 440 volt 3 phase
Dimensions and Weight:
- Dimensions: 90" x 106" x 63"
- Weight: 4,850 lbs.
Highlights:
- 1-1/2" blade
- 7.5 H.P. motor
- 50-295 FPM blade speed
- Chip auger
- 19.6" feed with 9x multi index
- Out of stock switch
- Piece counter
- Vertical rollers
Equipped With:
- Length set with hand wheel and mechanical length readout
- Amp meter
- 4 vertical rollers
- Wash down hose
- Blade break switch
- Out of stock switch
- Piece counter
- Powered screw type chip auger
- Fast approach of blade to cut area
- Powered chip brush
- Positive hydraulic down feed
- Manual/automatic mode
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
