| Manufacturer | Amada |
|---|---|
| Model | GSII 630 |
| Year | 2009 |
| Location | Russia
|
| Category | Cutting - CNC guillotine shears |
| Cutting length | 3050 mm |
| Max. cutting thickness | 6 mm |
| CNC | |
| Back gauge type | CNC |
| Sheet support | Yes |
| worked hours | |
| hours under power | |
| state | Not specified |
| At local norms | --------- |
| status | |
| Datasheet | Amada GSII 630 |
| Last availability date | 15/05/2026 |
| Product id | P251112284 |
| Language |
CNC ножици Amada GSII 630
Nůžky CNC Amada GSII 630
Amada GSII 630 CNC saks
Amada GSII 630 CNC Schere
Ψαλίδι CNC Amada GSII 630
Amada GSII 630 CNC shears
Cizallas CNC Amada GSII 630
Cisaille CNC Amada GSII 630
CNC škare Amada GSII 630
Amada GSII 630 CNC olló
Cesoia CNC Amada GSII 630
CNC žirklės Amada GSII 630
Amada GSII 630 CNC-scharen
Nożyce gilotynowe CNC Amada GSII 630
Tesouras CNC Amada GSII 630
foarfece CNC Amada GSII 630
Amada GSII 630 Ножницы с ЧПУ
CNC makaze Amada GSII 630
Amada GSII 630 CNC sax
CNC makasları Amada GSII 630
|
The Amada GSII 630 is a CNC-controlled guillotine shear designed for precise cutting of sheet metal. Manufactured in 2009, this model features a maximum cutting length of 3050 mm and can handle sheet thicknesses up to 6 mm for structural steel. It also supports cutting stainless steel up to 4 mm and aluminum up to 8 mm thickness. The machine is equipped with a CNC back gauge system, allowing programmable material feed and cutting lengths, enhancing accuracy and repeatability.
This shear includes blade gap and cutting angle adjustments, providing flexibility for various cutting requirements. It has four interchangeable working edges on the blades, which can extend blade life and reduce downtime. The stainless steel table supports are flat and fitted with support rollers, facilitating smooth handling of sheets during operation.

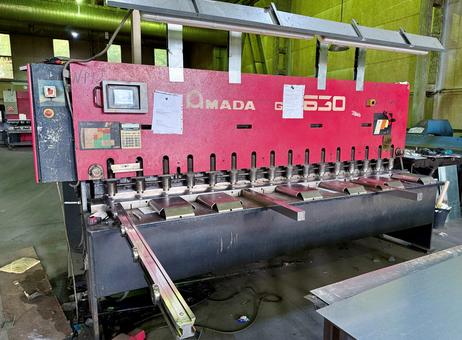

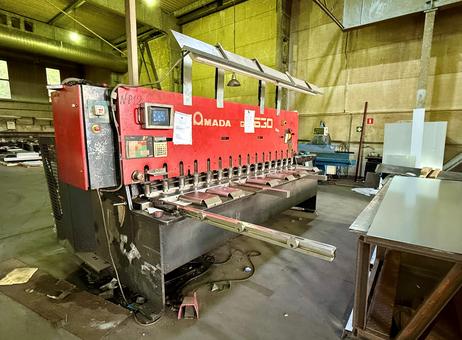

The control panel is located on the left side and features buttons, switches, and a small screen for operation control. Although some wear and scratches are visible on the control panel housing and other parts of the machine, it remains functional. An overhead light fixture is installed above the cutting area to illuminate the cutting line for better visibility.

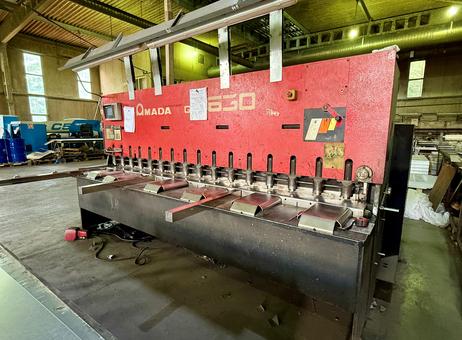

Additional accessories include a turntable and an unwinder, which aid in material handling and feeding. The machine bears the AMADA G-630 label on the front and upper panels, confirming its model identity. Overall, this Amada GSII 630 CNC shear is a robust machine suitable for various sheet metal cutting applications, with visible signs of use but complete with essential components and accessories for efficient operation.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Cutting force (kN) - 197
Cutting length (mm) - 3050
Stroke (mm) - 160
Max. sheet thickness (structural steel) (mm)- 6
Max. sheet thickness (stainless steel) (mm) - 4
Max. sheet thickness (aluminum) (mm) - 8
Blade gap adjustment
Cutting angle adjustment
CNC material feed
CNC with touch screen
Cutting line illumination
Programmable cutting length
4 interchangeable working edges
Stainless steel table supports are flat with support rollers.
The kit includes a turntable and unwinder.
Service by authorized dealer
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
