| Manufacturer | Amada |
|---|---|
| Model | EML 3610 NT |
| Year | 2007 |
| Location | Germany
|

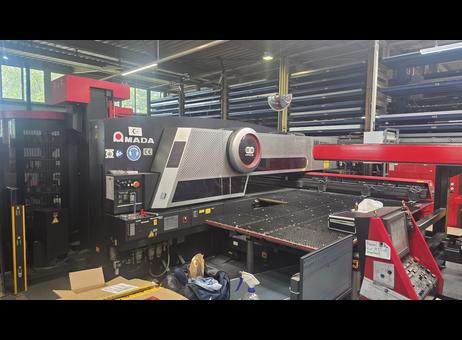

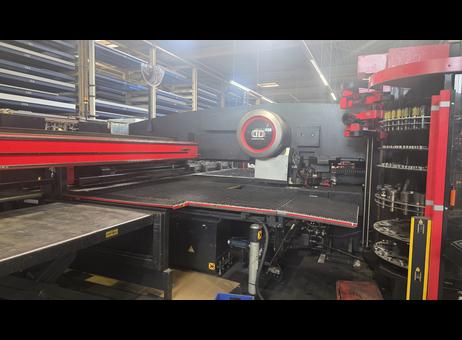

Amada EML 3610 NT — combined punching and laser cutting machine equipped with a FANUC AF4000E (4 kW) laser resonator.
Basic data:
- Year of manufacture: 12/2007
- Machine hours: approx. 123,000 / 70,000 / 27,000 hours
- Weight: 29 tons
Technical specifications:
- Control: AMNC‑F
- Punching force: 300 kN
- Movement area for punching (X x Y): 3050 x 1875 mm
- Movement area for laser operation (X x Y): 2550 x 1525 mm
- Movement area for combined operation (X x Y): 2500 x 1500 mm
- Movement area of laser axis (Z): 380 mm
- Maximum material thickness: 6 mm
- Maximum table load: 220 kg
- Movement speed X/Y: 100 / 80 m/min
- Simultaneous axis speed: 128 m/min
- Positioning accuracy: +/- 0.1 mm

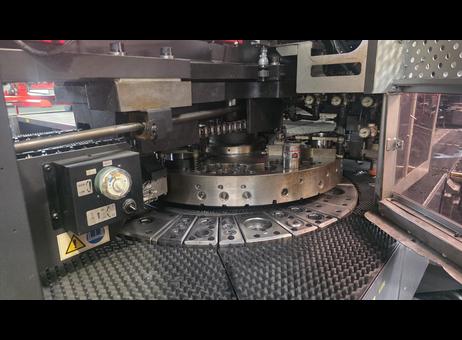

Tool head and turret:
- Number of turret stations: 45 (of which 4 are rotating)
- Turret rotation speed: 30 rpm
- Maximum punching strokes: 780/min

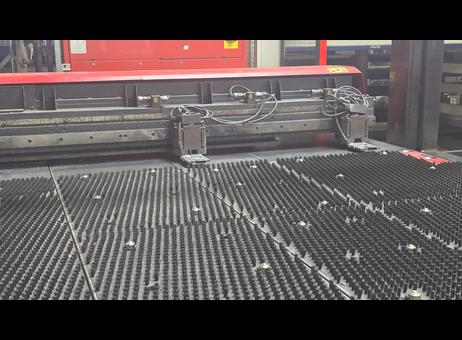

- Table design: brush table
- Part discharge: 400 x 1525 mm
- Frame: bridge construction
- Press drive: servo-electric
- Turret and table drives: AC servo motors
Laser part:
- Resonator: FANUC AF4000E
- Maximum laser power: 4000 W
- Laser gas consumption: 10 l/h
- Laser wavelength: 10.6 µm
- Beam divergence: < 2 mrad

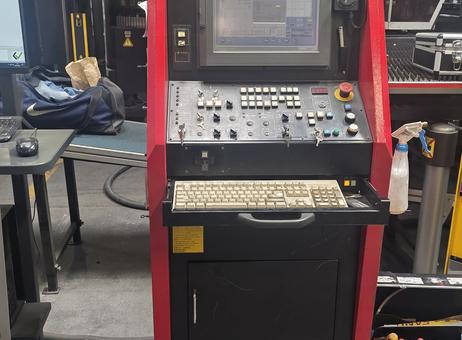

Control and interfaces:
- CNC type: AMNC‑F, 14" LCD screen
- Axis control: 7 (X/YP/YL/Z/T/C)
- Memory: 10 MB Flash ROM
- Storage devices: 3.5" hard disk, CD-ROM
- Interfaces: USB, RS‑232, Ethernet
Equipment and additional features:
- Part output
- Air Jet vacuum
- Barcode reader
- Wedge leveling elements
- Sheet metal deformation sensor
- "Punch- und Forming" function
- Built-in 4-way M8 threading unit
- Quick-change system for nozzles and lenses
- Automatic focusing system
- Automatic gas pressure regulation
- High-pressure cutting system (CleanCut)
- Aluminum cutting system (AluCut)
- Extraction system
- Cooling unit
Summary:
The Amada EML 3610 NT is a combined punching and laser cutting machine with detailed equipment and AMNC‑F control. All available technical parameters and attached equipment are included according to the provided information.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Amada EML 3610 NT 4kW
Year: 12/2007
Machine hours: about 123.000 / 70.000 / 27.000 h
Technical data:
Control: AMNC-F
Punch force: 300kN
Working area punch operation (XxY): 3050 x 1875 mm
Working area laser operation (XxY): 2550 x 1525 mm
Working area combined operation (XxY): 2500 x 1500 mm
Working area laser axis (Z): 380 mm
Max. material thickness: 6 mm
Max. table loading weight: 220 kg
Feed rate X/Y: 100 / 80 m/min
Simultaneous: 128 m/min
Positioning tolerance : +/- 0,1 mm
Number of stations in turret: 45
Thereof rotating stations: 4
Feed rate turret: 30 1/min
Max. number of hits: 780/min
Type of tables: brush tables
Part flap: 400 x 1525 mm
Machine frame: Bridge frame
Punching drive: servo-electric
Drives turret + table: AC servo motors
Machine weight: 29 to
Laser:
Resonator: FANUC AF4000E
Max. continuous laser power: 4000 W
Laser gas consumption: 10 l/h
Laser wave length: 10,6 µm
Beam divergence: < 2mrad
Control:
CNC type: AMNC-F
Screen: 14“ LCD
Number of controlled axis: 7 (X/YP/YL/Z/T/C)
Memory capacity: 10 MB Flash ROM
Data mediums: 3,5“ HD, CD-ROM
Interfaces: USB, RS 232, Ethernet
Equipement:
- Part flap
- Air Jet Vakuum
- Barcode reader
- Wedge leveling elements
- Sheet tilt up monitoring
- „Punch and forming“
- integrated 4 times tapping unit
- Nozzle and lense quick changing system
- Automatic focal system
- Automatic gas pressure adjustment
- High pressure cutting device (CleanCut)
- Aluminum cutting device (AluCut)
- Dust collector
- Chiller unit
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
