| Manufacturer | AMADA |
|---|---|
| Model | EM 2510NT |
| Year | 2005 |
| Location | Poland
|
The AMADA EM 2510NT is a 5-axis CNC turret punch press manufactured in 2005, designed for precision sheet metal punching. It features a maximum sheet size capacity of 1270 × 5000 mm and can handle mild steel sheets up to 3.2 mm in thickness. The machine supports a maximum sheet weight of 50 kg under standard feed speed conditions. Its punching force is rated at 200 kN, enabling efficient processing of various metal sheets.

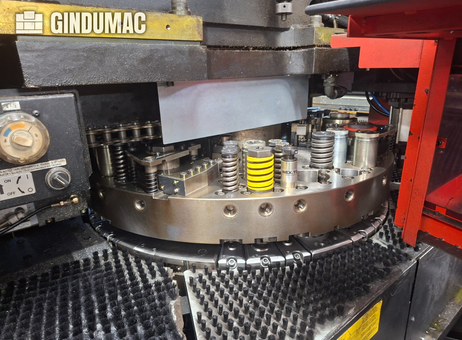

This model offers rapid traverse speeds of 100 m/min on the X-axis and 80 m/min on the Y-axis, facilitating quick positioning and high productivity. The turret holds up to 45 stations and rotates at speeds up to 30 rpm, allowing for versatile tooling options. Positioning accuracy is ±0.07 mm, ensuring high-quality and precise punching results.

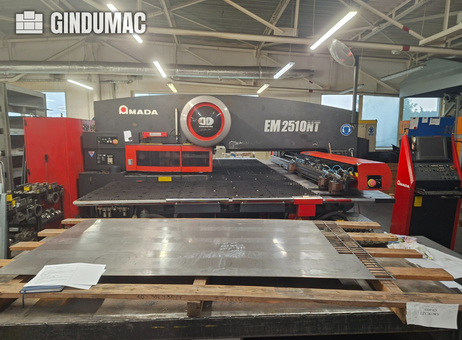

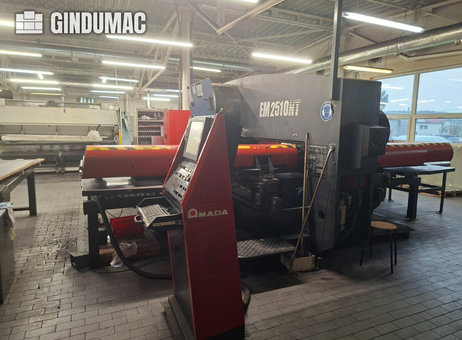

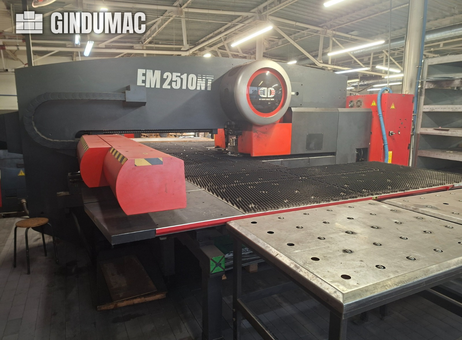

The machine dimensions are approximately 5526 mm in length, 5120 mm in width, and 2318 mm in height, with a total weight of about 18,000 kg. It includes a large flat working table with a grid surface for accurate sheet metal placement, as well as a control panel equipped with buttons and a display located on the left side of the machine for ease of operation.

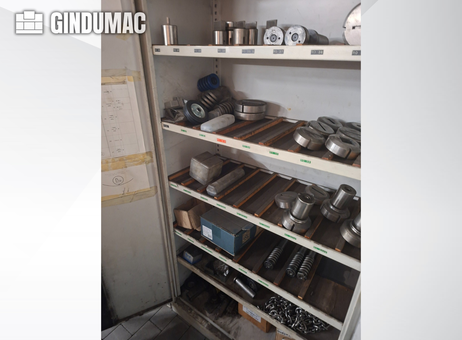

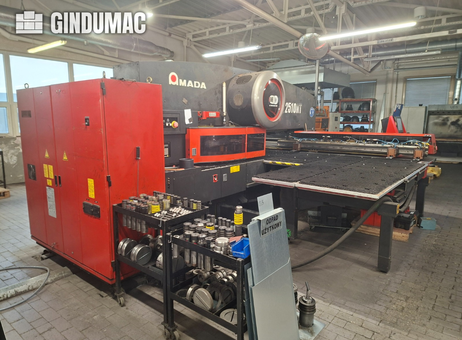

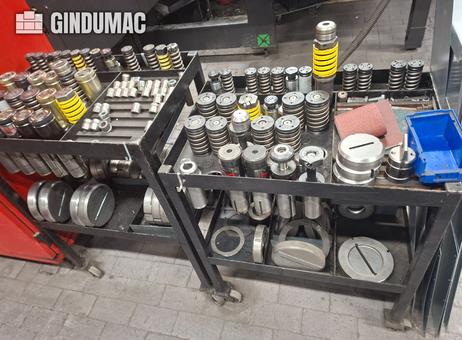

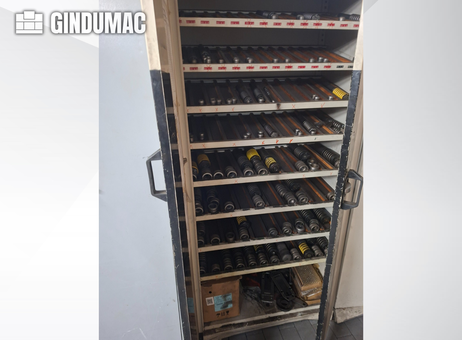

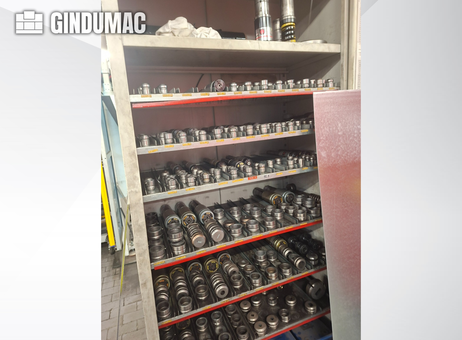

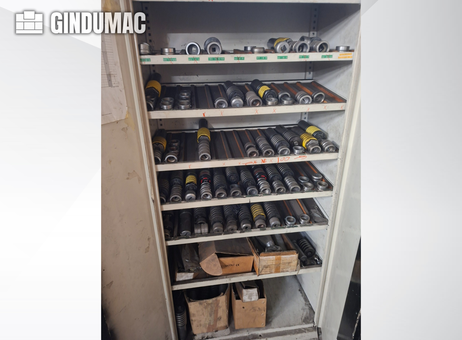

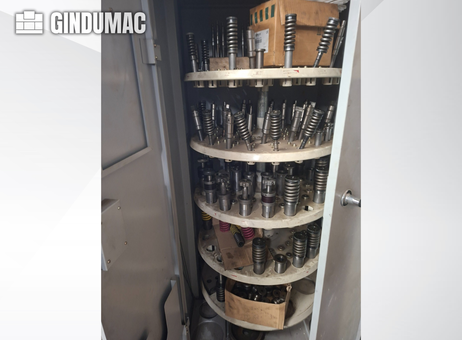

Additional visible features include tool storage racks with multiple punching tools and dies adjacent to the machine, four tool cabinets, and a red electrical cabinet on the left side. The machine and surrounding area appear clean and well maintained, with the machine showing minor surface wear but no visible damage. Sheet metal is stored on wooden pallets nearby, and a metal scrap container is also present.
The AMADA EM 2510NT is controlled via the AMNC-F (FANUC 180i-PB) control system. Technical documentation is available in scanned manual form. This machine represents a robust solution for those seeking reliable and precise CNC punching capabilities.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
This 5-axis AMADA EM 2510NT turret punch press was manufactured in 2005. It features a punching force of 200 kN, a turret capacity of 45 stations, and a maximum sheet size of 1270 × 5000 mm. The machine has a rapid traverse speed of 100 m/min on the X-axis and 80 m/min on the Y-axis. If you are looking to get high-quality punching capabilities, consider the AMADA EM 2510NT machine we have for sale. Contact us for further details.X-axis rapid traverse: 100 m/min
Y-axis rapid traverse: 80 m/min
Maximum sheet size: 1270 × 5000 mm
Maximum material thickness: 3.2 mm mild steel
Maximum sheet weight: 50 kg (feed speed F1) / 150 kg (feed speed F4)
Positioning accuracy: ±0.07 mm
Turret capacity: 45 stations
Turret rotation speed: 30 rpm
Punching force: 200 kN
Hits per minute – 1 mm pitch (5 mm stroke): 780 hits/min
Hits per minute – 25.4 mm pitch, X-axis: 500 hits/min
Hits per minute – 25.4 mm pitch, Y-axis: 330 hits/min
Maximum stroke length: 37 mm
Connected load: 27 kVA
Air consumption – machine: 250 l/min
Air consumption – Air Jet vacuum: 250 l/min
Operating air pressure: 5 bar
Tooling visible in the photos
4 tool cabinets
Technical documentation (manual scan)
Machine + included tooling package shown in the photos
Machine fully operational: Yes (replacement of one pneumatic hose required to eliminate a minor air leak)
Machine connected to power: Yes
Control Brand: AMADA
Control Model: AMNC-F (FANUC 180i-PB)
Machine Height: 2318 mm
Machine Length: 5526 mm
Machine Weight: 18000 kg
Max. Sheet Thickness: 3.2 mm
Number of Axes: 5
Punching Force: 200 Kn
Table Width: 5120 mm
X-axis Travel: 2500 mm
Y-axis Travel: 1270 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
