| Manufacturer | Alfa Laval |
|---|---|
| Model | MR-200S |
| Year | |
| Location | Germany
|

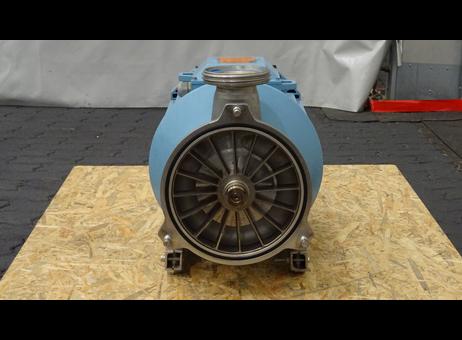

The Alfa Laval MR-200S is a sanitary self-priming liquid-ring pump designed for use in industries such as food processing, chemical, and pharmaceutical sectors where corrosion resistance is essential. The pump features all wetted parts—including the pump casing, casing cover, and impeller—constructed from acid-resistant stainless steel AISI 316, ensuring durability and compatibility with various products. The clamp screws and legs are made from stainless steel AISI 304, while the intermediate part consists of zinc-coated and lacquered cast iron, offering additional corrosion resistance.
This model is equipped with a 7.5 kW electric motor operating at 380/420 V, 50 Hz, and 1450 rpm, drawing 15.3 A of current. The impeller diameter measures 199 mm, and the pump connections on both the inlet and outlet are SMS 76 mm (3 inches) tri-clamp fittings, facilitating hygienic and secure connections.

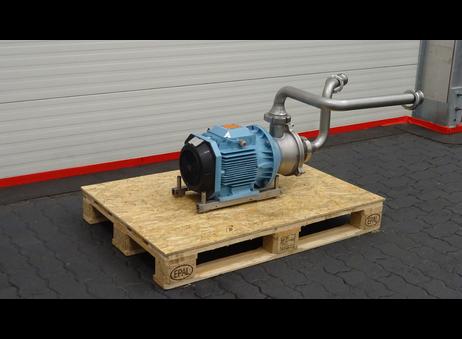

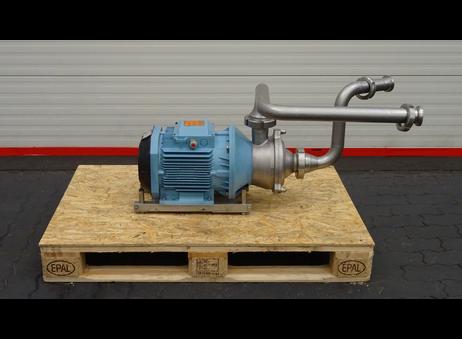

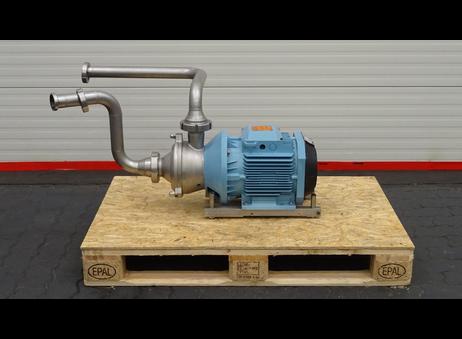

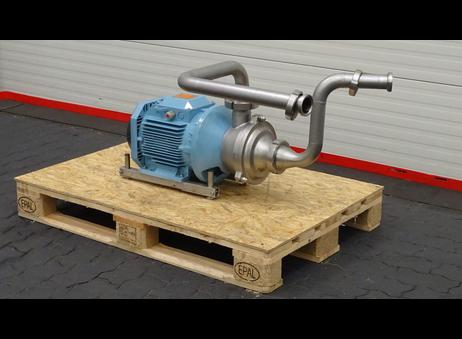

Based on Alfa Laval's performance data and the motor's specifications, the pump has a maximum capacity of approximately 48,000 liters per hour at 0 bar pressure. The pump and motor assembly are mounted on a wooden pallet, with stainless steel piping featuring tri-clamp fittings attached. The unit appears clean and in good physical condition, with no visible signs of damage, indicating it has been maintained properly.
This pump is suitable for applications requiring reliable, sanitary handling of liquids where acid resistance and hygienic design are critical. Please note that no information regarding the year of manufacture or operational testing status is provided.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
The Alfa Laval MR-200 Sanitary Self Priming Liquid-ring Pump is a pump specially designed for food, chemical, pharmaceutical and other industries where acid-resistant steel is resistant to the products to be pumped. All products wetted parts, i.e. pump casing, casing cover and impeller are made of acid-resistant steel AlSl 316. Clamp screws and legs are made of stainless steel AlSl 304. lntermediate part is in cast iron which is zinc coated and laquered making it highly corrosion resistant. Motor: 7,5 kW - 380/420 V - 50 Hz - 1.450 rpm - 15,3 A. Impeller diameter: 199 mm. Connections on the inlet / outlet: SMS 76 mm (3''). Current maximum capacity (based on the available Alfa Laval performance curves and the current motor): 48.000 ltr/h @ 0 Bar.
Type Of Machine: Sanitary Self Priming Liquid-ring Pump
Diameter Of The Impellor: 199 mm
Motor: 7,5 kW - 380/420 V - 50 Hz - 1.450 rpm - 15,3 A
Current Maximum Capacity: 48.000 ltr/h @ 0 Bar
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2021 |
| Offers online | 167 |
| Last activity | Oct. 27, 2026 |
Hamburg Machinery is a leading player in the machinery manufacturing sector, based in Germany. With a rich heritage and a commitment to innovation, the company specializes in providing high-quality machinery solutions tailored to meet the diverse needs of various industries. Their extensive product range includes cutting-edge equipment designed for efficiency, reliability, and performance, ensuring that clients can achieve their operational goals with ease. At Hamburg Machinery, customer satisfaction is at the forefront of their mission. The company prides itself on its ability to deliver customized solutions that not only enhance productivity but also drive cost-effectiveness for businesses. Their team of experienced professionals works closely with clients to understand their unique requirements, providing expert guidance and support throughout the entire process. In addition to manufacturing, Hamburg Machinery is dedicated to sustainability and environmental responsibility. They continuously strive to implement eco-friendly practices in their operations, ensuring that their products contribute to a greener future. With a strong focus on research and development, the company is constantly evolving, integrating the latest technologies to stay ahead in a competitive market. Whether you are looking for advanced machinery for manufacturing, construction, or other industrial applications, Hamburg Machinery stands out as a trusted partner. Their commitment to quality, innovation, and customer service makes them a preferred choice for businesses seeking reliable machinery solutions.
The Alfa Laval MR-200 Sanitary Self Priming Liquid-ring Pump is a pump specially designed for food, chemical, pharmaceutical and other industries where acid-resistant steel is resistant to the products to be pumped. All products wetted parts, i.e. pump casing, casing cover and impeller are made of acid-resistant steel AlSl 316. Clamp screws and legs are made of stainless steel AlSl 304. lntermediate part is in cast iron which is zinc coated and laquered making it highly corrosion resistant. Motor: 7,5 kW - 380/420 V - 50 Hz - 1.450 rpm - 15,3 A. Impeller diameter: 199 mm. Connections on the inlet / outlet: SMS 76 mm (3''). Current maximum capacity (based on the available Alfa Laval performance curves and the current motor): 48.000 ltr/h @ 0 Bar.
Type Of Machine: Sanitary Self Priming Liquid-ring Pump
Diameter Of The Impellor: 199 mm
Motor: 7,5 kW - 380/420 V - 50 Hz - 1.450 rpm - 15,3 A
Current Maximum Capacity: 48.000 ltr/h @ 0 Bar
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
The Alfa Laval MR-200S is a sanitary self-priming liquid-ring pump designed for use in industries such as food processing, chemical, and pharmaceutical sectors where corrosion resistance is essential. The pump features all wetted parts—including the pump casing, casing cover, and impeller—constructed from acid-resistant stainless steel AISI 316, ensuring durability and compatibility with various products. The clamp screws and legs are made from stainless steel AISI 304, while the intermediate part consists of zinc-coated and lacquered cast iron, offering additional corrosion resistance.
This model is equipped with a 7.5 kW electric motor operating at 380/420 V, 50 Hz, and 1450 rpm, drawing 15.3 A of current. The impeller diameter measures 199 mm, and the pump connections on both the inlet and outlet are SMS 76 mm (3 inches) tri-clamp fittings, facilitating hygienic and secure connections.
Based on Alfa Laval's performance data and the motor's specifications, the pump has a maximum capacity of approximately 48,000 liters per hour at 0 bar pressure. The pump and motor assembly are mounted on a wooden pallet, with stainless steel piping featuring tri-clamp fittings attached. The unit appears clean and in good physical condition, with no visible signs of damage, indicating it has been maintained properly.
This pump is suitable for applications requiring reliable, sanitary handling of liquids where acid resistance and hygienic design are critical. Please note that no information regarding the year of manufacture or operational testing status is provided.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
