| Manufacturer | Acra |
|---|---|
| Model | AM5V |
| Year | |
| Location | USA
|
| Category | Milling - Universal milling machines |
| Spindle taper | |
| Overhauled | no |
| worked hours | |
| hours under power | |
| state | as-is, where-is |
| At local norms | --------- |
| status | |
| Last availability date | 23/10/2026 |
| Product id | P2606091469 |
| Language |
Вертикална фреза Acra HD AM5V
Svislá frézka Acra HD AM5V
Acra HD AM5V vertikal fræsemaskine
Vertikale Fräsmaschine Acra HD AM5V
Κατακόρυφος φρεζαριστικός μηχανισμός Acra HD AM5V
Acra HD AM5V Vertical Milling Machine
Fresadora vertical Acra HD AM5V
Fraiseuse verticale Acra HD AM5V
Vertikalni glodalica Acra HD AM5V
Acra HD AM5V függőleges esztergagép
Fresatrice verticale Acra HD AM5V
Acra HD AM5V vertikalus frezavimo staklės
Acra HD AM5V verticale freesmachine
Pionowa frezarka Acra HD AM5V
Fresadora vertical Acra HD AM5V
Freză verticală Acra HD AM5V
Вертикальный фрезерный станок Acra HD AM5V
Вертикална фреза Acra HD AM5V
Acra HD AM5V vertikal fräsmaskin
Acra HD AM5V Dikey Freze Tezgahı
|
This is a vertical milling machine designed for turning and milling operations, featuring robust construction and precise control systems. It is equipped with a Sony 3-axis Digital Readout (DRO) system, which enhances accuracy during machining processes. The machine includes an automatic lubrication system to ensure smooth operation and reduce maintenance needs.
Power feed is provided by Servo 150 units on both the X and Y axes, allowing for controlled and consistent movement. Additionally, an integrated knee feed mechanism is present, contributing to precise vertical adjustments.
The machine's structural components include hardened and ground square ways, which provide durability and accuracy in guiding the table and knee movements.
Key specifications include a table size measuring 12-1/2 inches by 58 inches, with table travels of 15-1/2 inches in the X-axis and 42 inches in the Y-axis. The knee travel is 16 inches, allowing for considerable vertical movement.
The main motor delivers 5 horsepower and operates on 220/440 volts with a three-phase power supply. The spindle taper is CAT40, supporting a range of tooling options. Spindle speeds vary from 50 to 420 RPM in the low range and 420 to 3750 RPM in the high range, accommodating different machining requirements.
Quill feeds are available at increments of 0.0032, 0.0017, and 0.0053 inches, providing fine control over the feed rate.
The overall machine dimensions are approximately 6 feet by 6 feet by 7 feet, and it weighs around 4,000 pounds, indicating a substantial and stable piece of equipment suitable for various industrial milling applications.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
turning/milling
vertical mills
Equipped with:

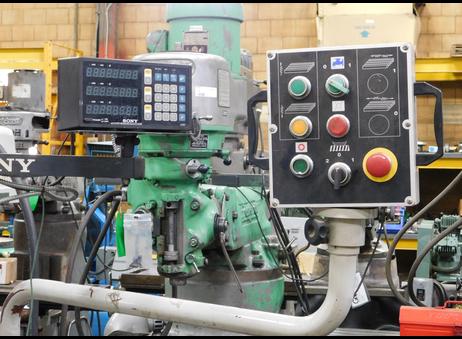

Sony 3 axis DRO
Automatic lubrication
Servo 150 power feed to X and Y
Integrated knee feed
Hardened and ground square ways

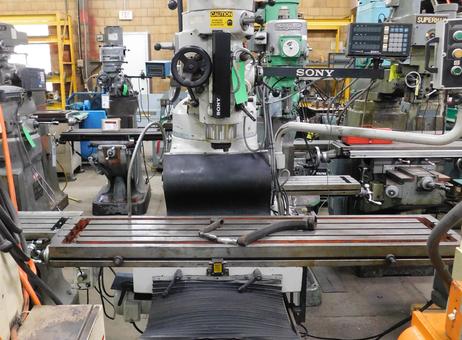

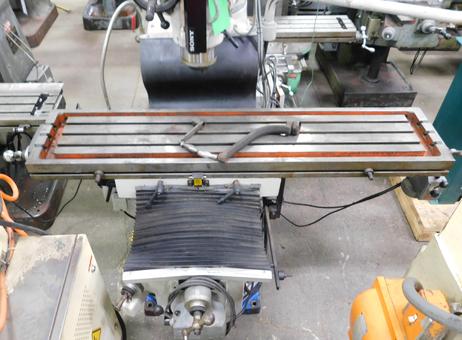

Table Size: 12-1/2" x 58"
Table Travels: 15-1/2" x 42"
Knee Travel: 16"
Main Motor: 5 HP, 220/440V, 3 PH
Spindle Taper: CAT40

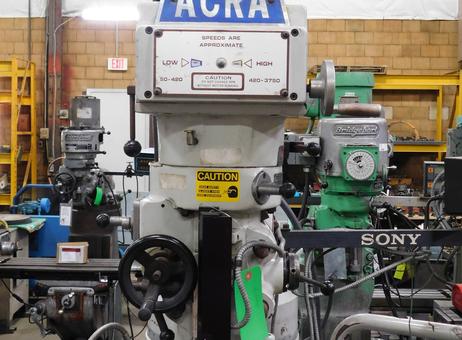

Spindle Speeds: 50-420/420-3750 RPM
Quill Feeds: 0.0032, 0.0017, 0.0053
Machine Dimensions: 6' x 6' x 7'
Machine Weight: 4,000 LBS
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2011 |
| Offers online | 109 |
| Last activity | Oct. 15, 2026 |
