Contact us to receive an offer.
| Manufacturer | ACIERA |
|---|---|
| Model | F5 |
| Year | |
| Location | Poland
|
The ACIERA F5 universal milling machine is designed for versatile milling and drilling operations, suitable for both unit and serial production. It features a vertically, transversely, and longitudinally sliding table, allowing a broad range of machining tasks such as face milling, groove milling, cavity milling, drilling, reaming, and channel milling. The machine also offers the capability to mount the cutter in the horizontal plane after removing the milling head.
The working table measures 800 x 300 mm and is equipped with six T-slots (12 mm wide, spaced 50 mm apart) for secure workpiece mounting. The table travels 800 mm along the X-axis, 450 mm along the Y-axis, and 250 mm along the Z-axis. It supports a table feed speed range of 10 to 600 mm/min, with accelerated feed rates up to 1500 mm/min on all axes.
The spindle has an ISO 40 taper, with a spindle advance of 60 mm and a speed range from 50 to 3400 rpm, powered by a 2.2 kW motor. The spindle is adjustable, with a rotation angle of 70°, a distance of 360 mm from the table, and an axis distance from the column ranging between 80 and 330 mm. The machine operates on a 400 V power supply.
This milling machine measures 1520 mm in length, 1320 mm in width, and 1745 mm in height, with a total weight of 1300 kg. It is mounted on a wooden pallet for transport.

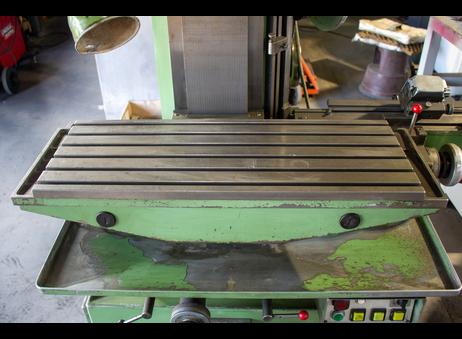

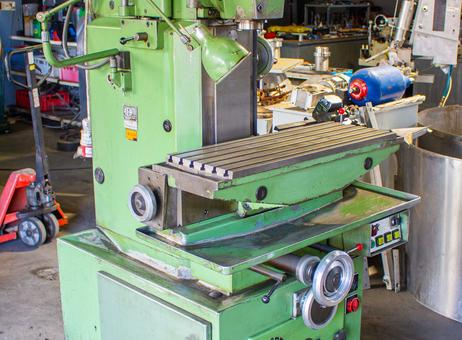

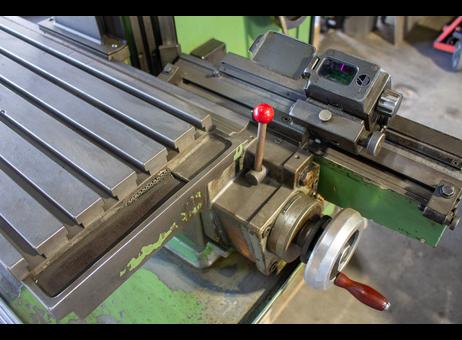

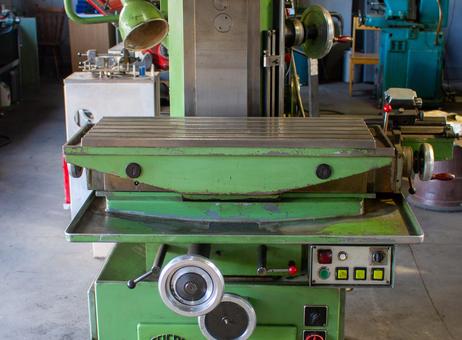

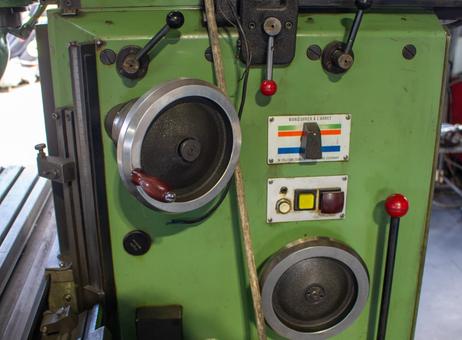

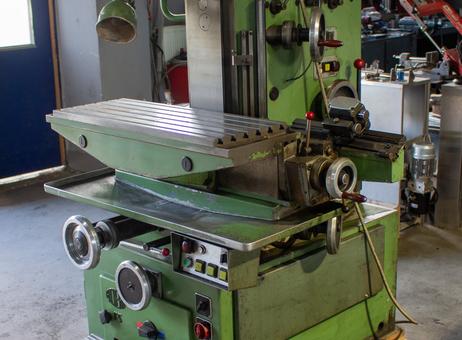

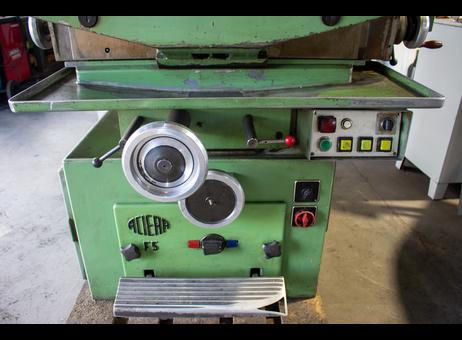

Key components visible include a horizontal milling table with T-slots, handwheels for precise table and spindle adjustments located on the front and side, and an adjustable lamp attached to the milling head for work illumination. The machine exhibits signs of wear and paint chipping but appears structurally intact. Standard equipment includes three arbors (40/32/22 mm), two supports, a cooling system, and lighting.
This machine is suitable for various milling and drilling applications requiring precision and versatility.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Milling is a type of machining in which a rotary motion is performed by a tool and the workpiece is advanced longitudinally or transversely. On milling machines we can perform such operations as face milling, groove milling, cavity milling, drilling, reaming, channel milling.
The milling machine with vertically, transversely and longitudinally sliding table is designed for a wide range of milling and drilling operations on materials for unit and serial production.
The milling machine, after removing the milling head, has the ability to mount the cutter in the horizontal plane.

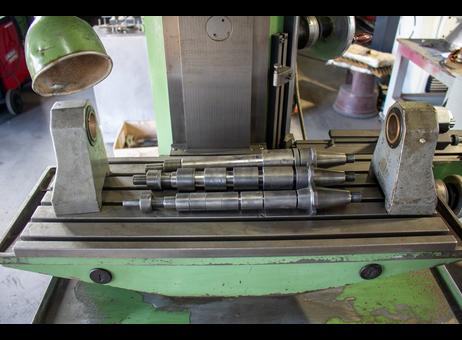

Standard equipment: 3 arbors 40 / 32 / 22 mm, 2 supports, cooling system, lighting.
It is possible to obtain a certificate of approval (declaration of conformity).
TECHNICAL DATA
Manufacturer ACIERA
Model F5
Accuracy 0.02 mm
Dimension of working table 800 x 300 mm
Number, width and distance of T-slots in the table 6 x 12 x 50 mm
Transverse travel of the table (X) 800 mm
Longitudinal travel of the table (Y) 450 mm
Vertical travel of the table (Z) 250 mm
Range of table feed speed in X, Y, Z axes 10 - 600 mm/min
Accelerated feed rate for axes X, Y, Z 1500 mm/min
Spindle taper ISO 40
Spindle advance 60 mm
Spindle speed 50 - 3400 rpm
Distance of the spindle from the table 360 mm
Spindle axis distance from column 80 - 330 mm
Spindle rotation angle 70°
Spindle motor power 2.2 kW
Power supply 400 V
Machine width 1320 mm
Machine depth 1520 mm
Height of machine 1745 mm
Weight 1300 kg
Very good condition
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2017 |
| Offers online | 14 |
| Last activity | Oct. 21, 2026 |
Milling is a type of machining in which a rotary motion is performed by a tool and the workpiece is advanced longitudinally or transversely. On milling machines we can perform such operations as face milling, groove milling, cavity milling, drilling, reaming, channel milling.
The milling machine with vertically, transversely and longitudinally sliding table is designed for a wide range of milling and drilling operations on materials for unit and serial production.
The milling machine, after removing the milling head, has the ability to mount the cutter in the horizontal plane.
Standard equipment: 3 arbors 40 / 32 / 22 mm, 2 supports, cooling system, lighting.
It is possible to obtain a certificate of approval (declaration of conformity).
TECHNICAL DATA
Manufacturer ACIERA
Model F5
Accuracy 0.02 mm
Dimension of working table 800 x 300 mm
Number, width and distance of T-slots in the table 6 x 12 x 50 mm
Transverse travel of the table (X) 800 mm
Longitudinal travel of the table (Y) 450 mm
Vertical travel of the table (Z) 250 mm
Range of table feed speed in X, Y, Z axes 10 - 600 mm/min
Accelerated feed rate for axes X, Y, Z 1500 mm/min
Spindle taper ISO 40
Spindle advance 60 mm
Spindle speed 50 - 3400 rpm
Distance of the spindle from the table 360 mm
Spindle axis distance from column 80 - 330 mm
Spindle rotation angle 70°
Spindle motor power 2.2 kW
Power supply 400 V
Machine width 1320 mm
Machine depth 1520 mm
Height of machine 1745 mm
Weight 1300 kg
Very good condition
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
The ACIERA F5 universal milling machine is designed for versatile milling and drilling operations, suitable for both unit and serial production. It features a vertically, transversely, and longitudinally sliding table, allowing a broad range of machining tasks such as face milling, groove milling, cavity milling, drilling, reaming, and channel milling. The machine also offers the capability to mount the cutter in the horizontal plane after removing the milling head.
The working table measures 800 x 300 mm and is equipped with six T-slots (12 mm wide, spaced 50 mm apart) for secure workpiece mounting. The table travels 800 mm along the X-axis, 450 mm along the Y-axis, and 250 mm along the Z-axis. It supports a table feed speed range of 10 to 600 mm/min, with accelerated feed rates up to 1500 mm/min on all axes.
The spindle has an ISO 40 taper, with a spindle advance of 60 mm and a speed range from 50 to 3400 rpm, powered by a 2.2 kW motor. The spindle is adjustable, with a rotation angle of 70°, a distance of 360 mm from the table, and an axis distance from the column ranging between 80 and 330 mm. The machine operates on a 400 V power supply.
This milling machine measures 1520 mm in length, 1320 mm in width, and 1745 mm in height, with a total weight of 1300 kg. It is mounted on a wooden pallet for transport.
Key components visible include a horizontal milling table with T-slots, handwheels for precise table and spindle adjustments located on the front and side, and an adjustable lamp attached to the milling head for work illumination. The machine exhibits signs of wear and paint chipping but appears structurally intact. Standard equipment includes three arbors (40/32/22 mm), two supports, a cooling system, and lighting.
This machine is suitable for various milling and drilling applications requiring precision and versatility.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
