| Manufacturer | ACASI |
|---|---|
| Model | ROP1-VIB |
| Year | |
| Location | Canada
|

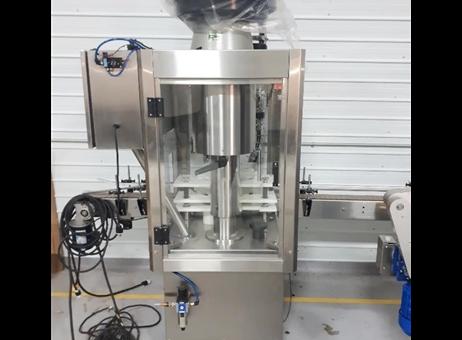

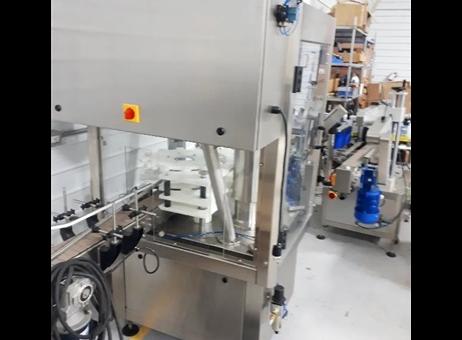

One (1) Preowned ACASI Model ROP1-VIB single-head ROPP bottle capper with vibratory feeder. This unit is described as never used in production and is set up for square canola oil bottles with 28 mm metal caps. Price includes one set of change parts (star wheel, outer guide and cap delivery).
Key features:
- Acasi ROPP capping head model VA90, manufactured in 304 stainless steel with hardened forming discs.
- Designed to place and form metal caps on a range of containers/enclosures.
- Set up for 7 inch to 14 inch tall containers (complete height adjustment and bottle setting guide for changeovers). Special configurations available on request.

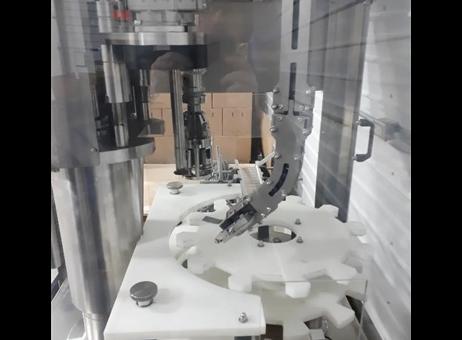

- Container handling with either a 12-pocket or 6-pocket center star wheel: maximum bottle diameter with 12-pocket star wheel is 4.25 in; with 6-pocket star wheel is 8.00 in.
- Center cam manufactured from a special cam-rated plastic material.
- Automatic start/stop based on presence or absence of containers.
- Jamming clutches with electric signal for shutdown on product jamming.
- 2 HP AC motor with frequency drive speed control; gear-driven transmission to avoid timing loss.
- Heavy-duty 304 stainless steel welded frame and stainless steel electric enclosure. Machine enclosure includes polycarbonate windows and safety switches.
- Shafts in a range from 1/4 in to 2.5 in, manufactured in 304 stainless steel.
- Tool-less changeovers for star wheels and most change parts.
Cap chute and feeder:
- Cap chute contact parts in stainless steel and includes a cap demand sensor to start/stop the feeder; parts are pin-guided to facilitate quick changeovers.
- Vibratory cap feeder with aluminum casting and polyurethane liner to minimize cap marking/scratching; 24-inch diameter feeding disc and ramp assembly.
- Mechanical rejection of bad caps with minimum air usage; cap-by-demand control via photoelectric sensor; bowl tooled for one cap model; adjustable vibration and speed control.
- Sorter mounted on the machine (no independent height adjustment required). Includes filter/regulator and flow controls on all air hoses.
Electrical and pneumatic requirements:
- 220 Volts, 60 Hz, 10 Amps
- 5 CFM @ 80 psi
Included: one set of change parts (star wheel, outer guide and cap delivery).
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
One (1) Preowned ACASI Model ROP1-VIB single head ROPP bottle capper with vibratory feeder. This capper is designed to place and form metal caps on a wide range of containers/enclosures. Never used in production. Set to cap square Canola oil bottles, with 28mm cap.
Capper features:
Machine designed to place and form metal caps on a wide range of containers – enclosures.
Price includes one set of change parts (star wheel, outer guide and cap delivery).
Acasi ROPP capping head model VA90, manufactured in 304 stainless steel and hardened forming discs.
Bottle will pick up cap and the container will be indexed into position.
Fully adjustable from 7 inch to 14 inch high containers. (Special configurations available on request).
Maximum bottle diameter with 12 pocket star wheel: 4.25 in
Maximum bottle diameter with 6 pocket star wheel: 8.00 in
Center CAM manufactured in special cam rated plastic material.
Automatic start and stop with presence or absence of containers.
12 or 6 pocket center star wheel for container handling (Depends on the size of the container).
Jamming clutches with electric signal for shutdown on product jamming (This prevents major damage to parts and minimizes possible spills).
2 Hp Ac motor with frequency drive speed control
Stainless steel electric enclosure.
Heavy duty 304 Stainless steel welded frame.
Stainless steel enclosure with polycarbonate windows and safety switches.
All shafts from ¼ to 2.5 inches manufactured in 304 stainless steel.
Gear driven transmission machine to avoid timing loss.
Complete height adjustment with bottle setting guide for quick changeovers.
Tool less changeovers for star wheels and most change parts.
Cap chute features:
All contact parts in stainless steel.
Designed and tested for each cap to avoid jamming.
Includes cap demand sensor to start and stop the cap feeder.
Quick change over, since parts are pin guided so no tweaking is required.
Vibratory cap feeder features:
Aluminum casting with polyurethane liner to minimizes cap marking-scratching
24 inch diameter feeding disc - ramp assembly.
Bad caps rejected mechanically, minimum air usage.
Cap by demand controlled by photoelectric sensor.
Bowl tooled for one model cap.
Adjustable vibration and speed control
Heavy duty extra heavy base for better vibration transmission.
Sorter mounted on machine, no need for independent height adjustment.
Includes filter pressure regulator.
Flow controls on all air hoses.
Electric and pneumatic requirements:
220 Volts, 60Hz, 10 Amps.
5 CFM @ 80psi
