Contact us to receive an offer.
| Manufacturer | ABB - CARAT |
|---|---|
| Model | IRC5 / IRB 2400/16 M2004 |
| Year | 2006 |
| Location | Germany
|
This flexible milling cell features a 6-axis industrial robot manufactured by ABB - CARAT, model IRC5 / IRB 2400/16 M2004, produced in 2006. The system includes a robotic milling setup with an interchangeable rotary table offering two workstations, designed as a compact milling cell. The robot has a payload capacity of 16 kg and weighs approximately 380 kg, while the entire milling cell weighs around 4000 kg.
The control system is an ABB IRC5 equipped with a Tech-In panel, facilitating precise operation. The high-frequency milling spindle is a PERSKE type KRS 35.3-2, delivering 1.2 kW power with speeds ranging from 17,400 to 23,200 rpm, and is equipped with a collet chuck for tool holding.
The rotary indexing table, likely manufactured by WEISS, features motorized rotation with a fixed indexing step of 180°, providing two stations with partition walls and clamping surfaces for fixtures. This design allows parallel loading of new workpieces on one side of the table during milling cycles, improving productivity. Safety is addressed with a front protective grille and light barriers to monitor the rotary table's movement.
The milling cell includes two table options: one with an aluminum tabletop measuring 500 x 500 mm and another with a Pertinax tabletop measuring 600 x 600 mm. The system operates on a 400 VAC, 50 Hz mains connection.

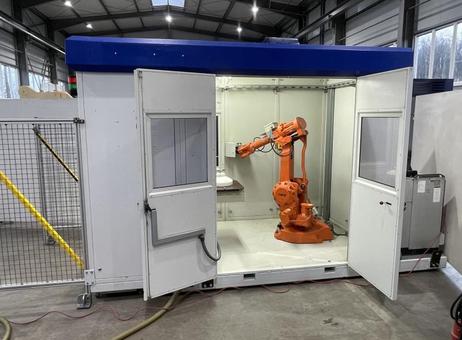

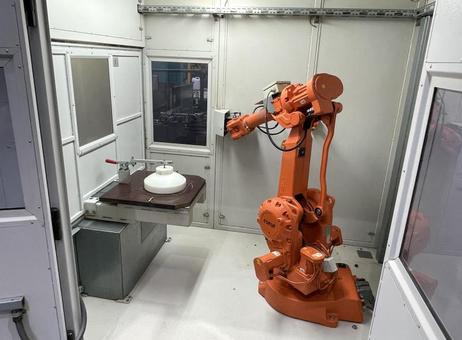

Physically, the cell measures approximately 500 cm in length, 190 cm in width, and 252 cm in height. The length can be reduced to 400 cm without the front protective grilles. The robotic arm is housed within a white enclosure with metal walls and a small window, appearing clean and well-maintained with multiple articulated joints and visible cables. A workpiece or fixture is positioned on a platform next to the robotic arm.
This milling cell was previously used for machining aluminum sheets and deep-drawn aluminum parts, handling tasks such as edge machining, milling of breakouts, and drilling holes. It is also suitable for machining plastics or similar materials.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Flexible milling cell with 6-axis industrial robot ABB - CARAT type IRC5 / IRB 2400 M2004
Robotic milling system with interchangeable rotary table with 2 workstations, robotic cell
Year of manufacture 2006
6-axis industrial robot ABB type IRB 2400/16 M2000

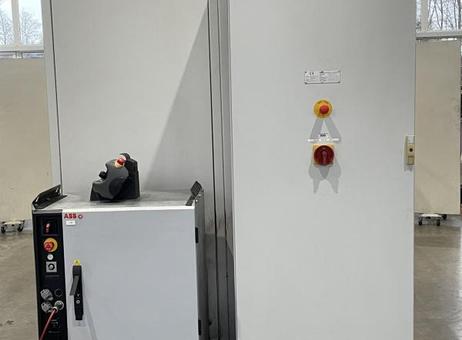

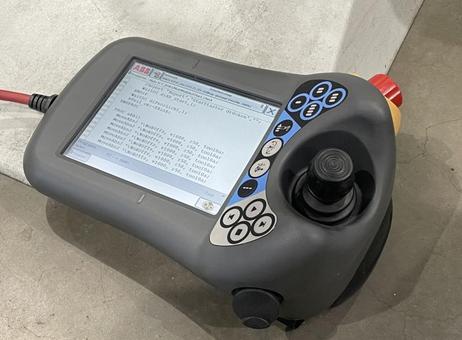

Control ABB type IRC5 with Tech-In panel
HF milling spindle PERSKE type KRS 35.3-2, power 1.2 kW, speed 17400 to 23200 rpm.
Robot handling weight: 16 kg
Weight of robot only: 380 kg
Table size (table 1) with aluminum tabletop 500 x 500 mm
Table size (table 2) with Pertinax table top 600 x 600 mm
Mains connection: 400 VAC, 50 Hz
- High-frequency spindle equipped with collet chuck
- The entire system is designed as a compact milling cell with interchangeable table.

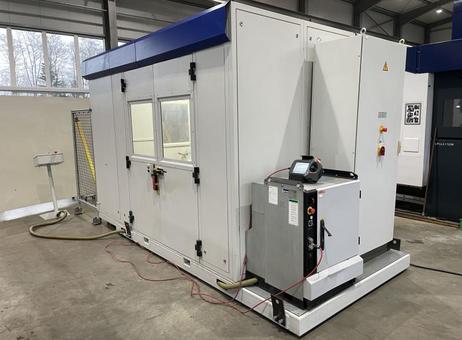

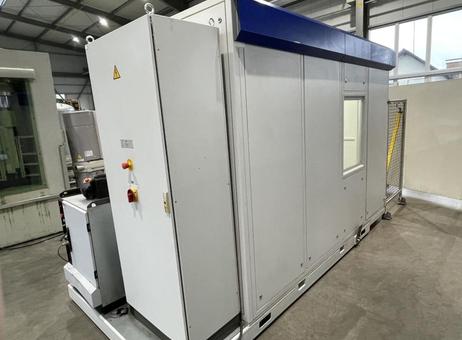

- Control cabinet and robot control cabinet are compact and firmly mounted on the milling cell
- Motorized rotary indexing table (presumably manufactured by WEISS) with fixed indexing step = 2 stations = 180°
- Rotary table, rotation angle 180°, with partition wall and two clamping surfaces for fixtures
- Parallel to the milling cycle, one side of the rotary table can be loaded with new workpieces

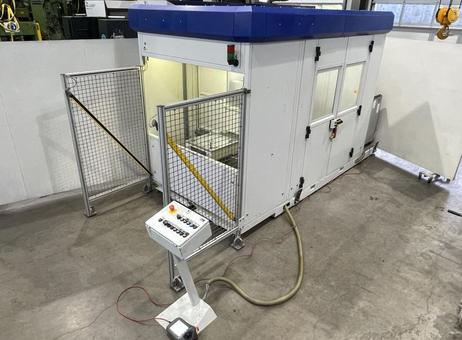

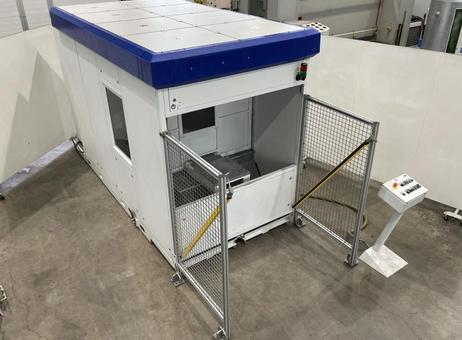

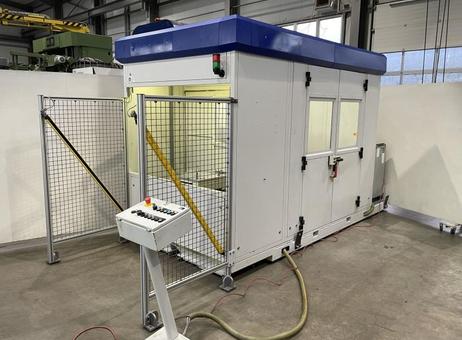

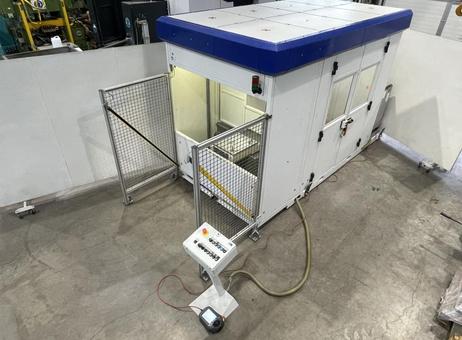

- Front protective grille with light barriers for monitoring when rotating the 180° rotary table
Space requirements: Length 500 cm x width 190 cm x height 252 cm
Length with front protective grilles 500 cm
Length without front protective grilles 400 cm
Weight of the milling cell approx. 4000 kg
Very good condition
The milling cell was used as a machining center for milling aluminum sheets and ALU deep-drawn parts.
Edge machining, milling of breakouts, drill holes, etc.
Also suitable for plastic machining or similar.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
