115,000 €
Make an offerContact us to receive an offer.
| Working width | 700 mm |
| Working length | 3080 mm |
| ------------------- | |
| worked hours | |
| hours under power | |
| state | good |
| At local norms | --------- |
| status | in production |
| Last availability date | 24/02/2026 |

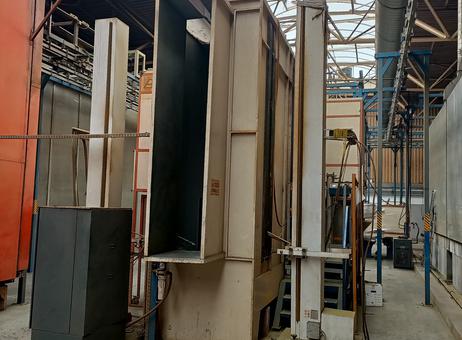

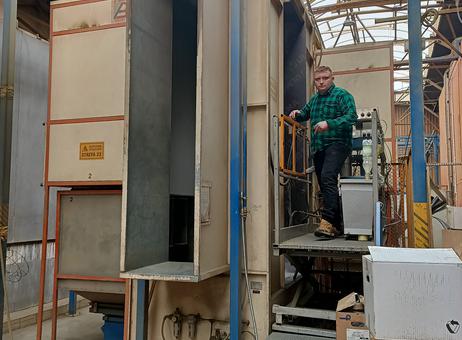

This listing offers a comprehensive powder paint shop equipped with a full range of industrial painting and drying equipment. The main painting booth is manufactured by A-Bispo, model 1.20 / 38, featuring a working width of 700 mm and a working length of 3080 mm. The booth includes two painting stations with a filter working area of 160 m². The painting window dimensions are 700 mm wide by 3080 mm high, and the inlet port measures 600 mm in width and 2900 mm in height. The booth is supported by a fan with a capacity of 10,000 m³/h and a compressor capable of 1500 Pa, powered by a 7.5 kW engine.
The system also includes a suspended conveyor designed for the A-Bispo TYP 659 powder coating plant. The conveyor can handle a permissible load of 100 kg per running meter, with a permissible traverse load of 350 kg. The traverse length is 3200 mm, accommodating parts up to 6000 mm in length and a maximum transverse dimension of 400x2700 mm.

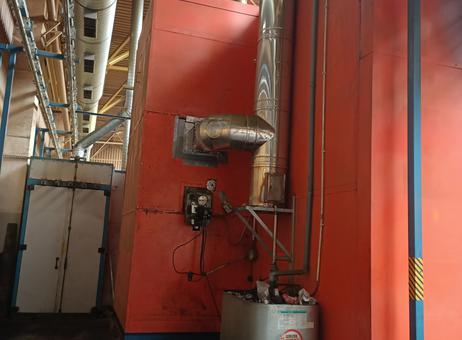

Additional equipment includes an oil dryer model ADAL SO 29, featuring an inlet port of 780 mm width and 2700 mm height. It operates with an oil burner type EL 02B161D, offering heating power between 60 and 190 kW. The circulation fan has a capacity of 12,800 m³/h, driven by a 7.5 kW engine.

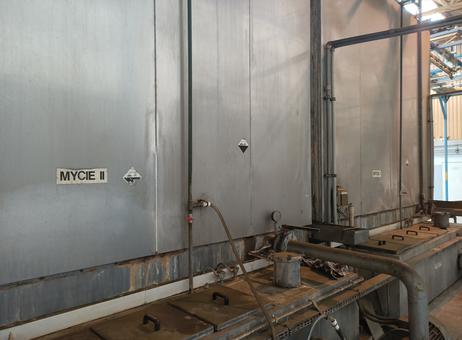

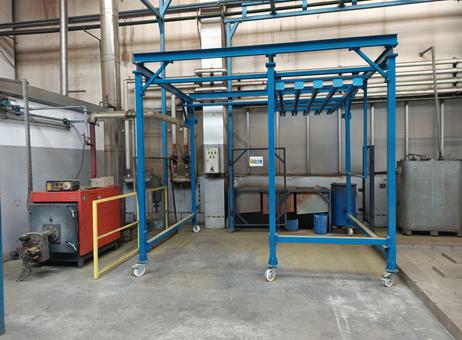

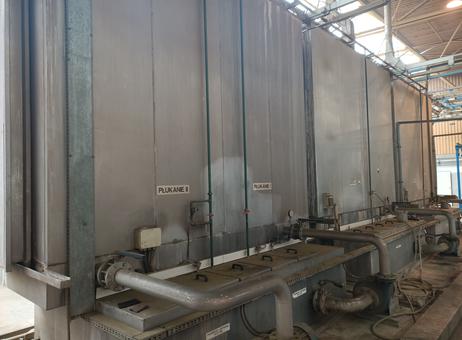

The melting chamber is equipped with a fumes-air exchanger and an oil burner type EL 03B30 1DV. Its inlet port measures 1900 mm wide and 2700 mm high, with a length of 6200 mm. The oil washer has an inlet port 600 mm wide and 2700 mm high, with a length of 10,800 mm. It includes a boiler for heating water in washing tubs, powered by a Unit-P VEIII burner with a capacity of 24.1 l/h.

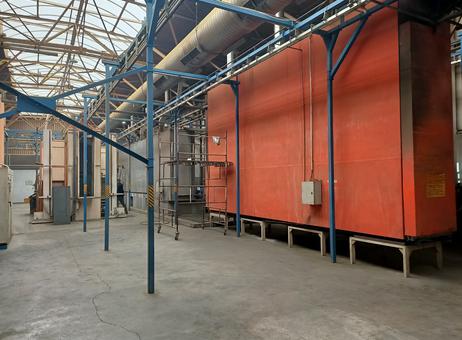

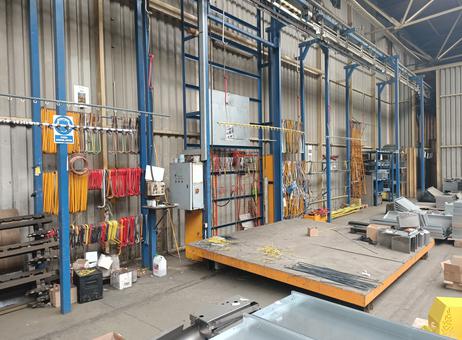

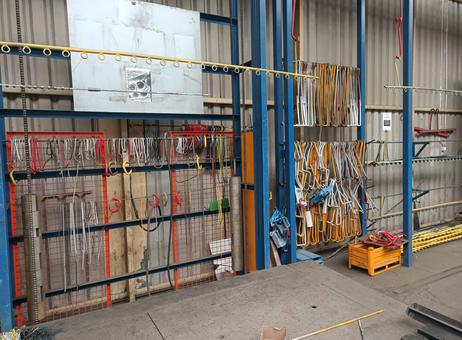

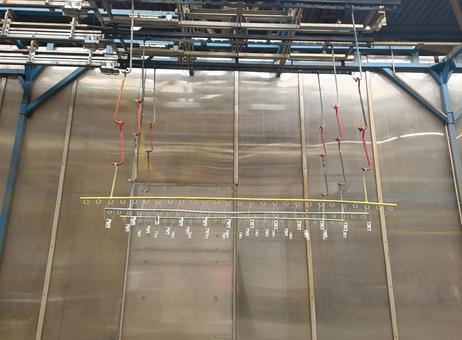

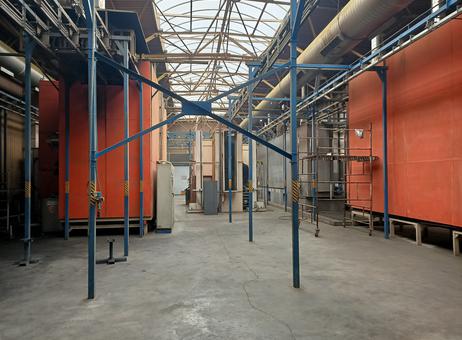

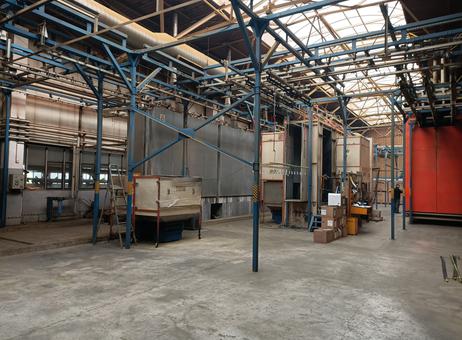

The facility features an industrial indoor environment with metal walls and concrete flooring. The spray booths have a robust metal framework with ventilation ducts overhead. A conveyor or overhead rail system is installed for moving items through the booths. Various hanging hooks and holders are organized on metal racks, likely for holding parts during painting, and appear well-maintained and organized by color and size. Ladders and maintenance equipment are placed near the booths. The floor is generally clean with some cracks but no visible debris. This setup is suitable for a high-capacity powder coating operation requiring comprehensive equipment for painting, drying, and part handling.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
We have a large powder paint shop for sale - complete with full equipment.
TECHNICAL DATA:
Anti-corrosion protection line
Dimensions
Length - 48,000
Width 21320
Painting booth A- Bispo TYPE 1.20 / 38
Year of production - 2001
Line of painting stations -2
The working area of the filters - 160 m2
Painting window dimensions:
Width -700 mm
Height - 3080 mm
Inlet port dimensions -
Width - 600mm
Height - 2900mm
Fan capacity: 10000 m3 / h
Fan compressor max. 1500 Pa
7.5 kW engine power
Suspended conveyor for the A- Bispo TYP 659 powder coating plant
The permissible load of the conveyor - 100 kg / rm
Permissible traverse load - 350 kg
The length of the traverse - 3200mm
Max detail length - 6000 mm
Maximum transverse dimensions of the detail 400x2700mm
Oil dryer ADAL SO 29
Year of production - 2001
Dimensions of the inlet port:
Width - 780mm
Height - 2700
Exchanger type - fumes - air
Oil burner - type EL 02B161D
Burner heating power - 60-190 kW
Circulation fan:
Fan capacity 12800 m3 / h
7.5 kW engine power
Melting chamber
Exchanger type - fumes - air
Oil burner - type EL 03B30 1DV
Dimensions of the inlet port:
Width - 1900mm
Height - 2700mm
Length - 6200mm
Oil washer
Dimensions of the inlet port:
Width - 600mm
Height - 2700mm
Length - 10800mm
Equipped with a boiler for heating water in washing tubs, with the Unit-P VEIII - $ burner, with a capacity of 24.1 l / h
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
