Contact us to receive an offer.
| Manufacturer | - |
|---|---|
| Model | - |
| Year | |
| Location | France
|

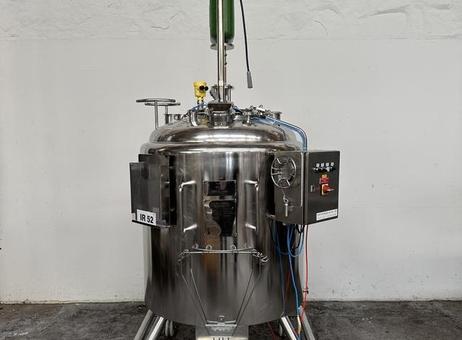

This stainless steel vertical tank features a cylindrical body supported by conical legs, designed for industrial applications requiring reliable storage and mixing. It has an internal diameter of 945 mm and overall dimensions of 1400 mm in length, 1300 mm in width, and 2650 mm in height. The tank offers a total volume capacity of 689 liters, with a working capacity of approximately 560 liters.

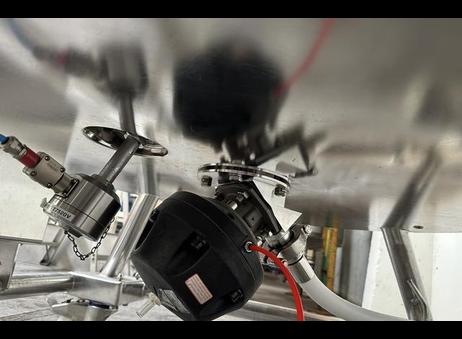

The vessel is equipped with a double jacket insulated with rock wool to maintain temperature control, rated for a maximum pressure of 2.5 bar and vacuum conditions. The double jacket itself is also rated for 2.5 bar pressure. The tank includes a dished bottom fitted with a GEMU valve for efficient discharge.

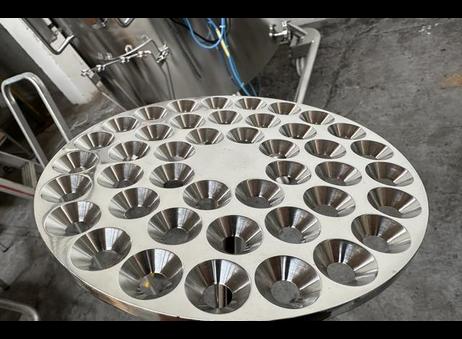

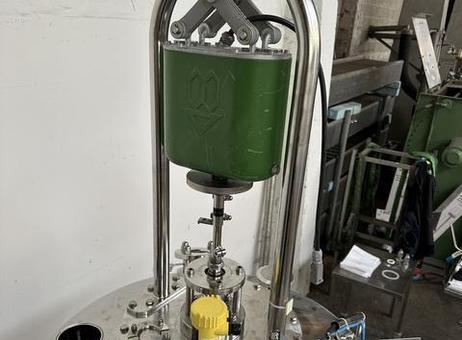

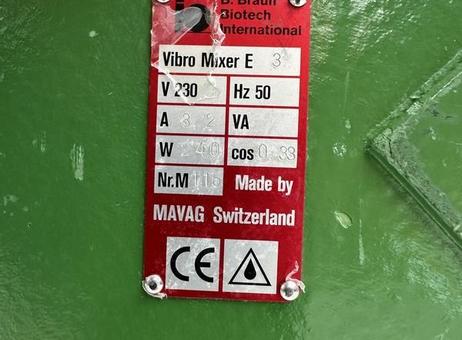

For agitation, the tank features a MAVAG Vibro Mixer E3 vibratory mixer mounted on a stainless steel frame above the tank lid. The mixer is powered electrically with specifications of 230V, 50Hz, 8.2A, and 40W. The mixer plate has a diameter of 200 mm and contains conical bores to facilitate mixing.

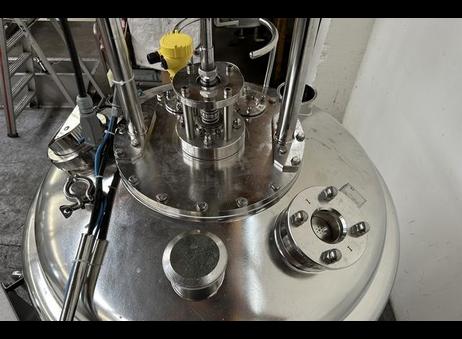

The top of the tank includes a circular bolted lid with multiple fittings and sensors, including a yellow sensor likely used for pressure or temperature measurement. Attached pipes and valves are made of stainless steel, and a pressure gauge is present to monitor internal conditions.

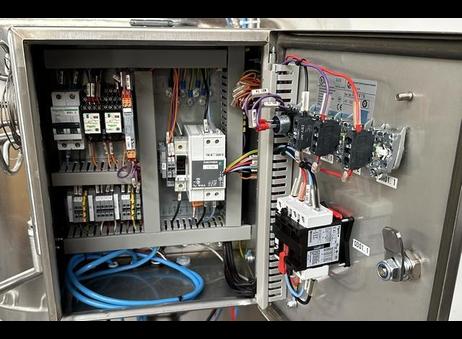

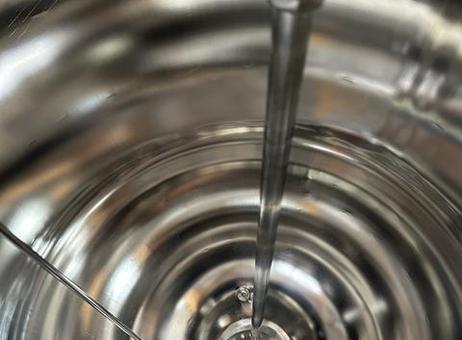

The tank has a viewing window or hatch on the front side with a latch mechanism for easy access. Electrical wiring connects the mixer and sensors, ensuring integrated operation. The interior is constructed from polished stainless steel, maintaining a clean surface with no visible corrosion.
The overall condition of the tank is well-maintained, with no visible rust or damage on the surface or components, and minor smudges on the lid. This equipment is suitable for processes requiring controlled heating and mixing within a pressure-rated stainless steel vessel.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Stock : 1
Tank Ø int. 945 mm
Total volume : 689 liters
Working capacity 560 litres
Double jacket and insulation (rockwool)

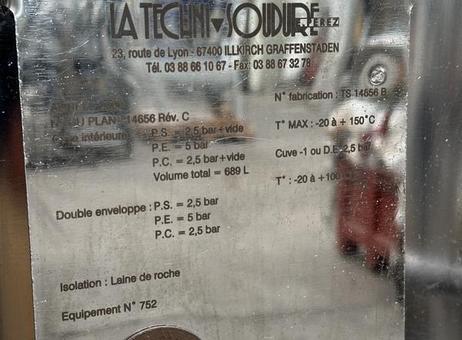

Vessel : PS =2,5 bar and vacuum
Double jacket : PS =2,5 bar
Dished bottom with GEMU valve
MAVAG VIBRO MIXER E3 vibratory mixer
Ø 200 mm Mixer plate with conical bores
Overall dimensions : 1400 x 1300 x H. 2650 mm
Caractéristiques :
Agitée : Oui
Position : Verticale
Quality : Inox
Réchauffage : Oui
Volume : 500 à 999 L
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2012 |
| Offers online | 167 |
| Last activity | Oct. 27, 2026 |
