| Manufacturer | - |
|---|---|
| Model | 300 kg/h |
| Year | 2023 |
| Location | Canada
|

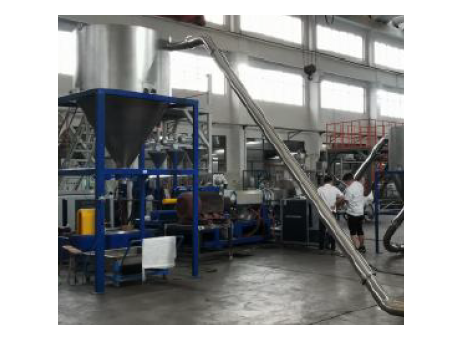

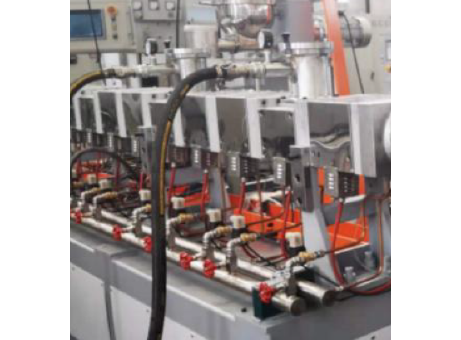

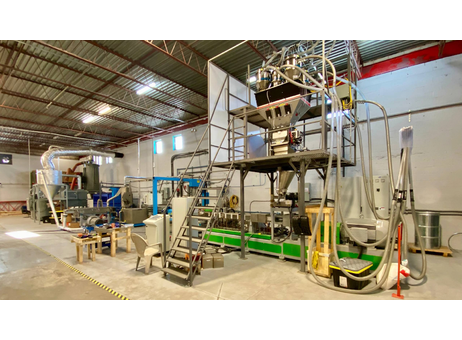

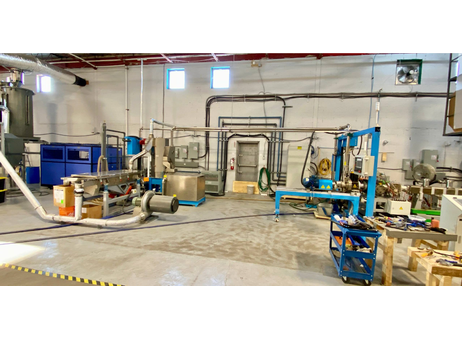

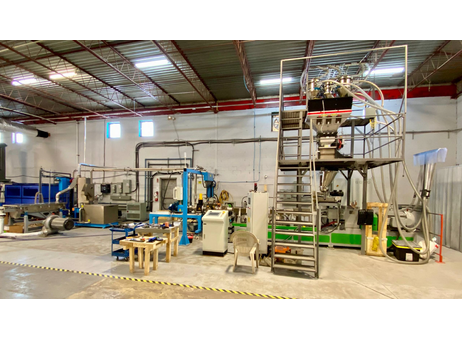

Compounding/Reactive Extrusion Line of 65mm extruder with underwater pelletizing unit
300 kg/hr capacity
Model 2023 , Used-Like new, in a great condition

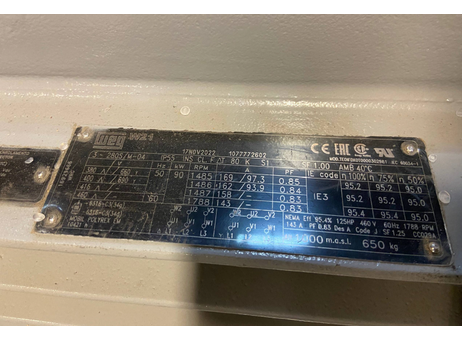

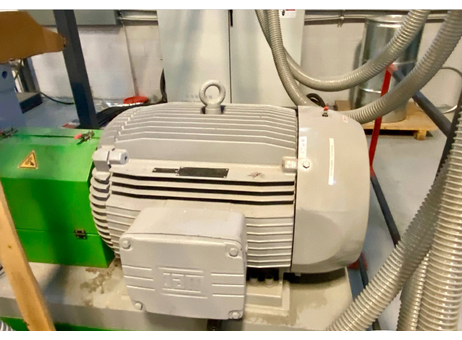

AC Motor power: 90KW
Motor brand: WEG Brand
Inverter brand: Schneider
Year : 2023
Barely used, almost new

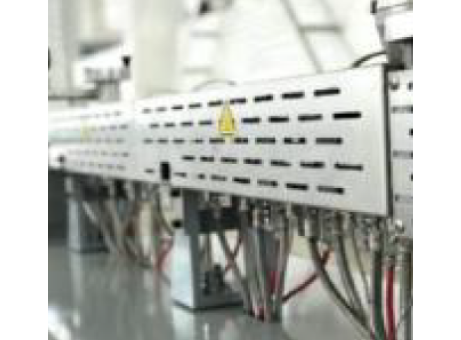

Base frame and covering
- Bended and welded frame with steel plate and profile
- Stainless steel cover with heat-resistance
- Appearance color: Xinda standard color machine
Vacuum system
1 vacuum pump with 2 vacuum systems:
- Vacuum pump: Water recycling type
- Motor power: 3kW
- Analog vacuum indicator
- Stainless piping and the degree of vacuum adjustment manually. Assembly outside the base frame
- Vacuum degassing is located at 8th and 10th barrel section

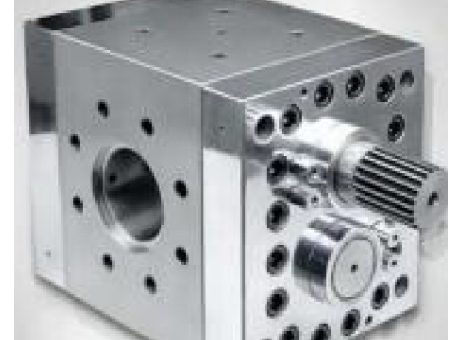

Melt pump
When the melt pump is used in series with single screw or twin-screw extruder, the benefits of the whole production line can be significantly increased, the melt pressure and output can be stable in productionm and the required pressure can be provided for the subsequent pelletizing process.
- Controlled by Schneider invertor
- Speed: 10-60 rpm (adjustable speed)
- Driving power: 11kW
- Heating method: electric heating, 4kW
- Sealing method: lubricating material is discharged
- Cooling method: water cooling at the shaft end
- Pump body material: high temperature alloy steel gear material: M2
- Equipped with 2 connector, 1 for using melt pump, 1 for using screen changer only after removing the melt pump

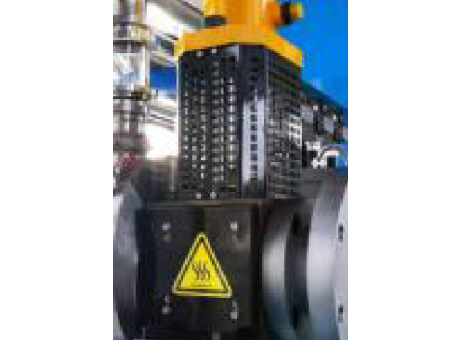

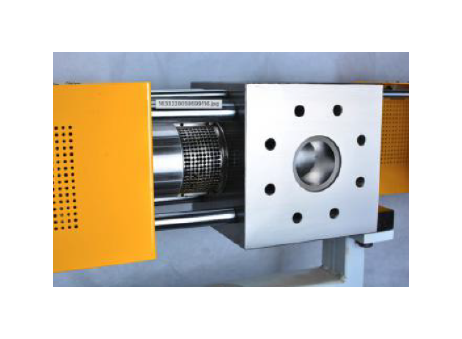

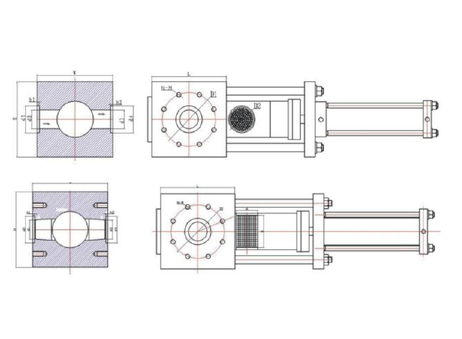

Screen changer
- Single column double piston filtering by hydraulic driving
- Filter diameter: 154 mm
- Working pressure: <35Mpa
- Heating power: 7,5kW
- Including: screen changer body, oil cylinder and heater
- Hydraulic station: 2,2kW motor, hydraulic pump station, standard oil pipe
PLC control system
- SIEMENS PLC SIMATIC S7-1200 and with WEINVIEW touch screen
- The work flow, the running data, feeding information, etc. can be observed on this screen
- Safety design: overloading of main extruder's motor
- Lubricating oil pressure alarming
- Melt pressure alarming
- Melt temperature protection
- All the voltage and frequency: 460V-3Ph-60Hz
Interlock set:
- Interlock between main extruder starting and cooling fan
- Interlock between main extruder starting and lubicating oil pump
- Interlock between main extruder starting and feeder

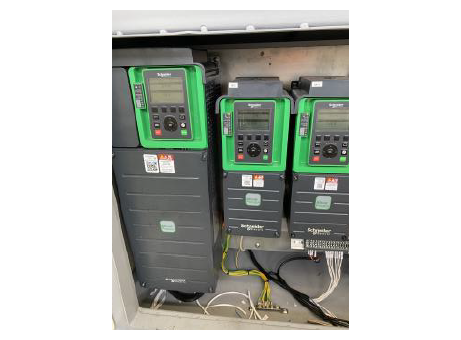

Inverters
- Schneider brand
- Main machine inverter
- Main feeder inverter
- Melt pump inverter
- Pelletizer inverter
- All the voltage and frequency: 460V-3Ph-60Hz

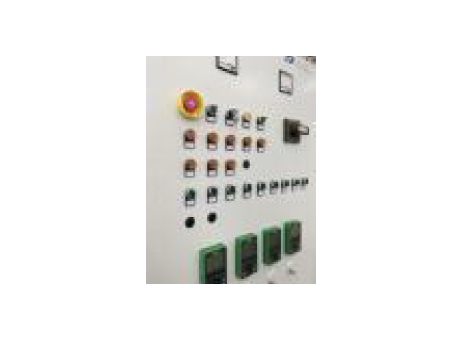

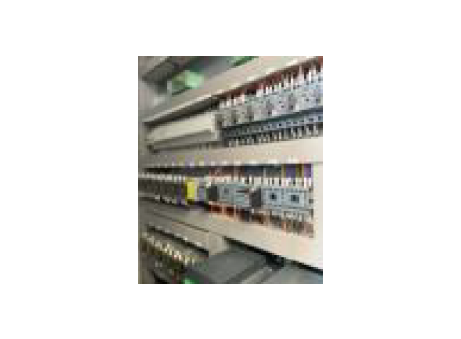

Control cabinet
- Adopt the famous brand for low pressure camponents such as Siemens, Schneider, ODE, etc.
- CE certified
- All the electric system should meet the CSA standard or UL/CE/CCC.
- High voltage electrical cables be protected by Corrugated PVC coated liquid tight flexible metal conduit
- All the voltage and frequency: 460V-3Ph-60Hz
Under water pelletizing unit
Year : 2023
Barely used, almost new
Diverter valve
- 1 piece of temperature sensor PT100, on divert valve

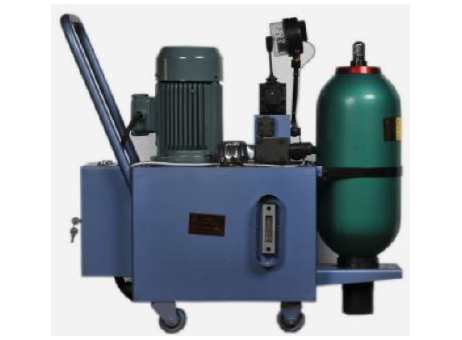

- 1 piece of hydraulic station, 3kW, solenoid valve to control the divert valve
- Melt pressure sensor, 0-350 bar, equipped before divert valve
- Oil cylinder RH80, stroke 60 mm, bulb diameter 36 mm
- Located on a movable T-type frame
- Hydraulic station controls pressure automatically, with 6,3L accumulator
Pelletizer
- Under water pelletizer, Siemens motor 5,5kW, model PA95, max speed 2840/m
- 1 piece of thermocoupled PT100, adapted on the die plate
- 1 set of 6-blade cutting shelf
- Control system with HMI on the steel frame
- ABB inverter, Omron PLC control
- Control panel is located in Centrol control room, the buyer prepares the power cable, signal cable y Ruiyun, and Ruiyun provides list of cables needed
- Power supply by the buyer
Water pipe system
- Pipe diameter: 76 mm, stainless steel 304
- Pipe lenght: 16 m
- 3 pieces of pneumatic ball valves, to control processing water
- 1 piece of air filter
- Inlet and outlet pipes supplied by the buyer

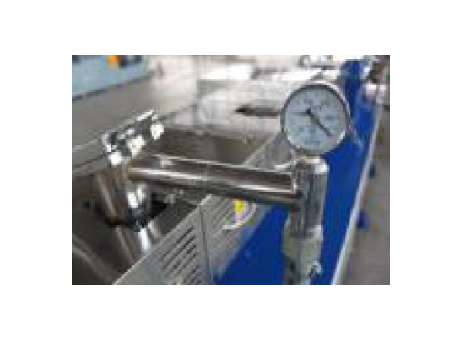

- 1 piece of on-line water pressure measurement indicator
- 1 piece of on-line water temperature measurement indicator
- All pipes are connected by quick flanges, some key places are with coupling connection
Water system
- Water tank, model WT-10, 0,8 m3, with filtration for power
- Processing water can be heated, 24kW, temperature is well controlled for cutting requirement, to make sure of cutting efficiency and performance
- Water temperature is controlled by PT100 temperature sensor
- Water tank is equipped with auto-fill function
- Water pump, 30 m3/h flow volume, the flow speed can be adjusted by manual ball valve

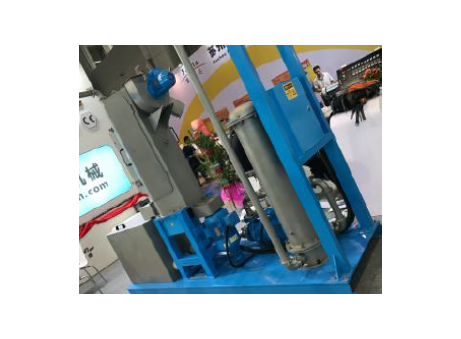

Spin dryer
- Spin dryer is with air exhausting system, better drying efficiency
- Siemens motor 5,5kW, ABB inverter, located aside
- Easy to maintain, electricity save
- Noise, less than 60dB
- Wire joint box: quick open type, safe and reliable
Vibration sieve
- Used to separate the irregular granules. Meantime help the granules further be cooled and dried
- With rubber stand and the bottom
- Pellet size: around 3 mm
Final silo
- 1000 liter
- Stainless steel 304
- With air blower and pipe
- Power for air blower: 0,75kW

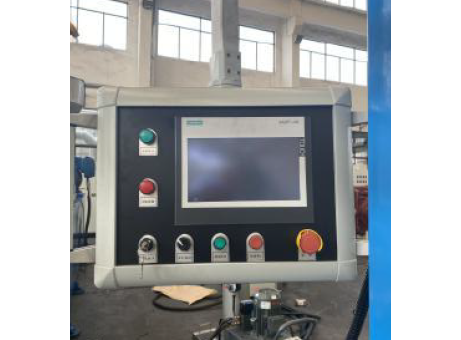

Controlling system
- 460V-3Ph-60Hz
- Individual control panel

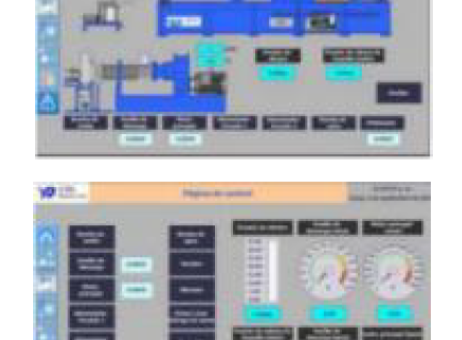

- HMI touch screen, 10,4", control and display: temperature, pressure, cutting speed, amper, etc.
- The whole process is controlled by Siemens PLC
- 2 options: manual control and auto control
- Working prcess / program can be installed and modified, to ensure quick start
- Pelletizing motor: Siemens
- Main electric components: Siemens, Schneider
- Motors are IE4 high efficiency

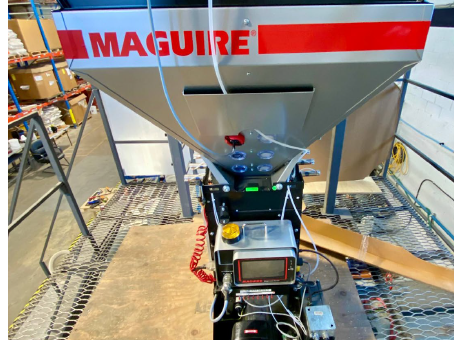

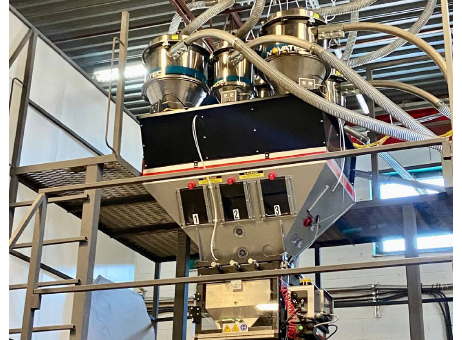

Maguire 6 component blender and vacuum system
Year 2023
Barely used, almost new
WSB-960T weigh scale blender
Up to 2,000 lb/h (recipe dependent)
6 components
9,000 g weight pan
6 stationary hoppers with (6) 2" x 3" horizontal slide gates
Standard 4088 controller with Ethernet and USB ports
12 component software
Self-correcting, fully gravimetric batch blending
Air gun 80 psi required
115/1/60Hz controlled operation standard
VRB-8D vacuum regenerative blower pump (Year 2023)
with disconnect, 575/3/60 operation/24 VDC control
Standard: 8,5HP/6,3kW motor
Dual stage pump
2,0" OD conveying line
CDC-2 ST cyclone dust collector, 2,0" OD line
Vacuum receiver, X-tra, 76 lb (1 unit)
Vacuum receiver, X-tra, 38 lb, hinged lid with EFV 2,00" line, 24VDC (3 units)
Vacuum receiver, X-tra, 19 lb, hinged lid with EFV 2,00" line, 24VDC (3 units)
4088 touch screen controller, 110V, for new WSB blenders

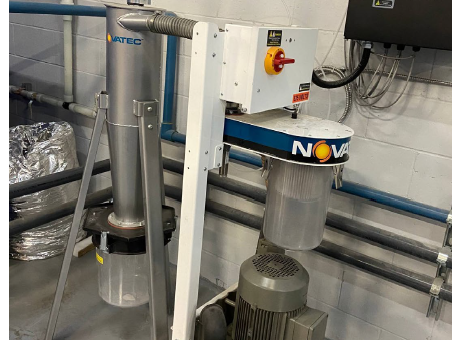

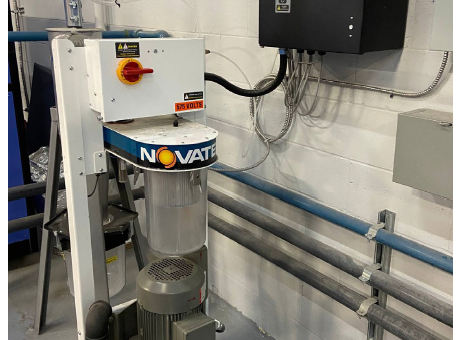

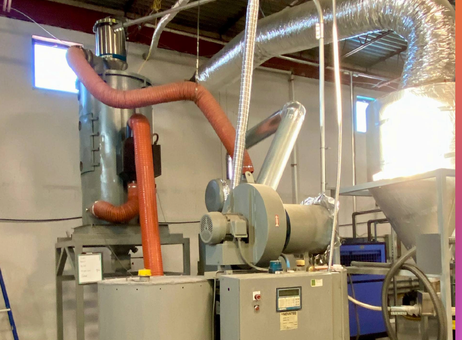

Desiccant dryer
Novatec MPC 750
Used - Fully refurbished with new desiccants

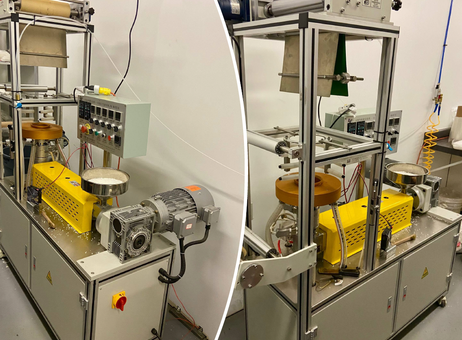

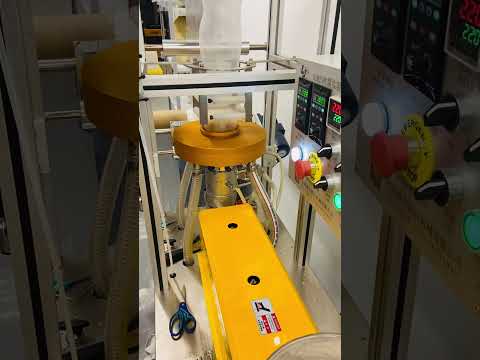

Lab scale monolayer Blown film line
Electric resource: 380V-3Ph-50Hz
Extruder motor power: 2200W
Extruder screw diameter: 25 mm
Screw L/D ratio: 30:1
Screw speed: 10-50 rpm
Traction motor power: 40W
Winding motor power: 40W
Film width: 75-125 mm
Speed: 1,0-5,0 m/min
Speed ajust: AC control

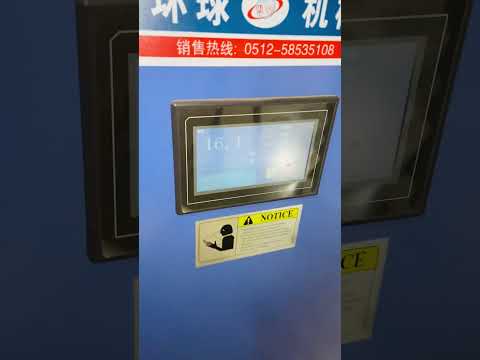

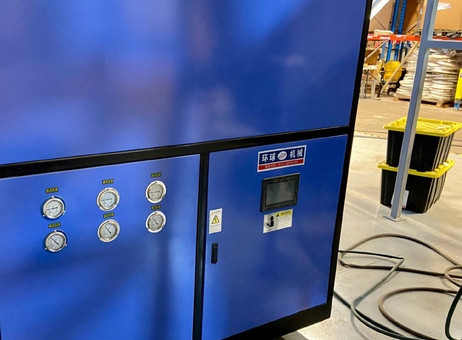

Industrial chiller
SML 13 F
Year 2023
Barely used, almost new
Temperature controlling range: 5-35°C
Refrigeration capacity: 100000 Kcal/h
Compressor power: 40 HP
Tank capacity: 1000 L
Pump power: 5,5kW
Ambient temperature: no more than 50°C
Refrigerant: R407C
Protective device: Thermal relay, high and low pressure gauges, water level, water flow rate and overcurrent protection
Weight: 1200 kg
Power supply: 460V-3Ph-60Hz
Overall dimension: 2350 x 1650 x 1900 mm (length x width x height)

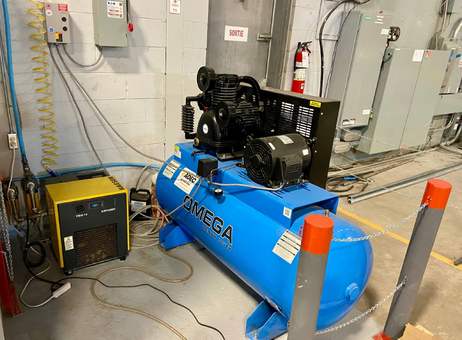

Compressor and dryer
Year 2023
Barely used, almost new
Omega heavy duty industrial series compressor
Electricity and power: 10 HP / 575V / 3 ph
Capacity: 35,3 cfm @ 125 psi
Tank: 120 gallon horizontal
Kaeser Kryosec refrigerated dryer
42 cfm capacity: 42 cfm @ 100 psi
Voltage: 115/1/60
Dimensions: 19" x 21" x 22"
Weight: 73 lbs
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
What size is the extruder on this compounding/reactive extrusion line?
This compounding/reactive extrusion line features a 65mm extruder.
Does this equipment come with an underwater pelletizing unit?
This equipment includes an underwater pelletizing unit.
What year was this machine manufactured?
This machine was manufactured in the year 2023.
