| Manufacturer | Yasda |
|---|---|
| Model | YBM-900N |
| Year | 2001 |
| Location | Netherlands
|

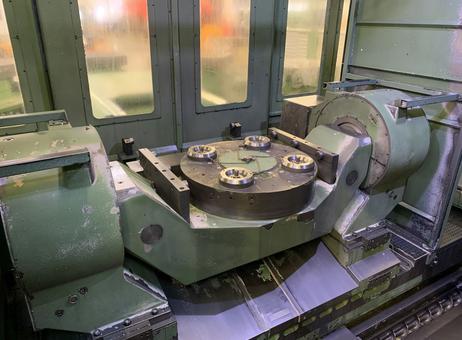

The Yasda YBM-900N is a high-precision continuous 5-axis horizontal machining center designed for complex and accurate machining tasks. Manufactured in 2001, this machine features a tilting bed type of axis configuration, allowing for versatile machining angles with the A-axis table tilt ranging from +20 to -110 degrees and a B-axis travel of 360 degrees. The machine has a substantial footprint with a length of 13,200 mm and a width of 7,600 mm.

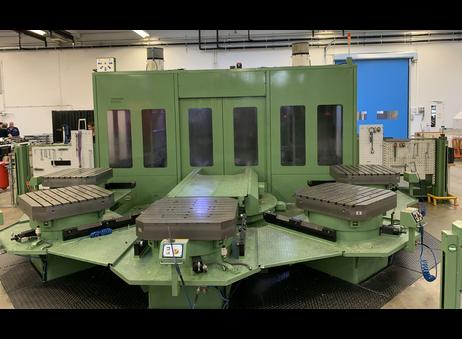

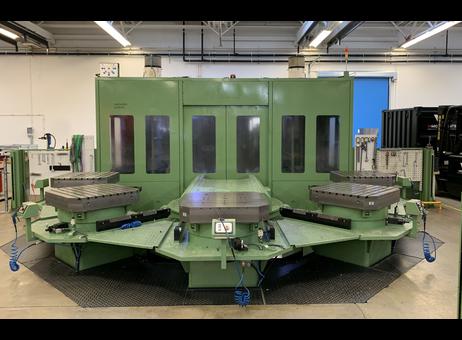

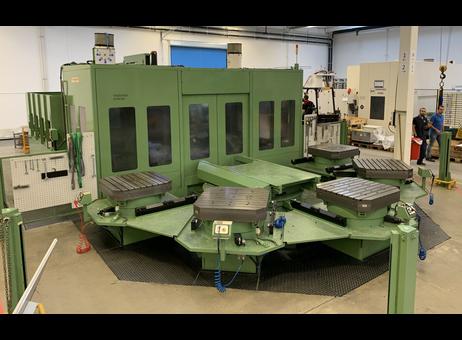

The working envelope includes X, Y, and Z-axis travels of 1,800 mm each, providing ample space for large workpieces. The machine's table measures 1,000 mm by 1,000 mm and can support a maximum part weight of up to 2,000 kg. It is equipped with five pallets arranged in a circular fashion around the central machining area, each featuring T-slots for secure workpiece mounting. This pallet system facilitates efficient production with quick changeovers.

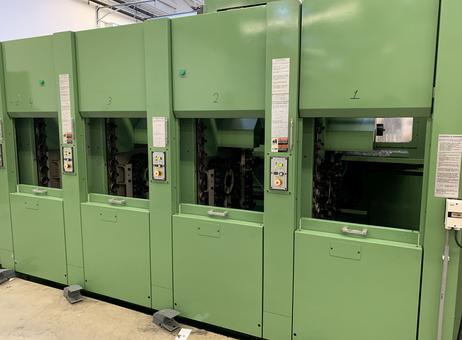

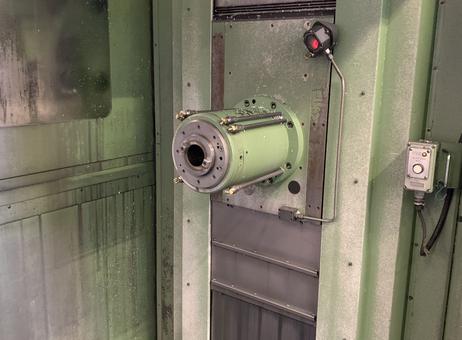

The spindle is capable of speeds up to 10,000 rpm and uses a DIN 69871/50A taper, suitable for a wide range of machining operations. A tool store capacity of 240 pockets allows for extensive tooling options, enhancing the machine's versatility.

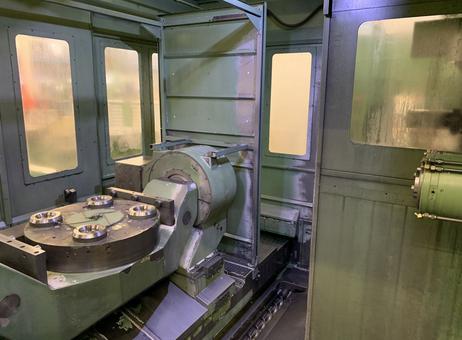

The enclosure includes multiple vertical windows for viewing the machining process, contributing to operational safety and monitoring. Additionally, blue coiled air hoses are attached near several worktables, likely for cleaning or tool cooling purposes.
Overall, the Yasda YBM-900N is a robust and versatile 5-axis machining center suitable for precision manufacturing environments requiring multi-axis capabilities and efficient pallet handling.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
CNC Precision Horizontal 5-axis Machining Centre

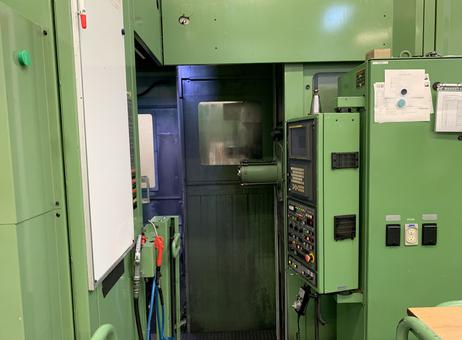

CNC Control: Fanuc 160i-MA
Table size 1000 x 1000 mm
Table load 2000 kg
Number of pallets 5
Max. workpiece diameter x height 1400x1200 mm
Movement X-Y-Z-Axis: 1800 mm
A-Axis (table tilt) +20 / -110
B-Axis travel 360°
Spindle taper DIN 69871/50A
Spindle speed 10.000 R/Min
Tool store capacity 240
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2009 |
| Offers online | 27 |
| Last activity | Oct. 26, 2026 |
CNC Precision Horizontal 5-axis Machining Centre
CNC Control: Fanuc 160i-MA
Table size 1000 x 1000 mm
Table load 2000 kg
Number of pallets 5
Max. workpiece diameter x height 1400x1200 mm
Movement X-Y-Z-Axis: 1800 mm
A-Axis (table tilt) +20 / -110
B-Axis travel 360°
Spindle taper DIN 69871/50A
Spindle speed 10.000 R/Min
Tool store capacity 240
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
The Yasda YBM-900N is a high-precision continuous 5-axis horizontal machining center designed for complex and accurate machining tasks. Manufactured in 2001, this machine features a tilting bed type of axis configuration, allowing for versatile machining angles with the A-axis table tilt ranging from +20 to -110 degrees and a B-axis travel of 360 degrees. The machine has a substantial footprint with a length of 13,200 mm and a width of 7,600 mm.
The working envelope includes X, Y, and Z-axis travels of 1,800 mm each, providing ample space for large workpieces. The machine's table measures 1,000 mm by 1,000 mm and can support a maximum part weight of up to 2,000 kg. It is equipped with five pallets arranged in a circular fashion around the central machining area, each featuring T-slots for secure workpiece mounting. This pallet system facilitates efficient production with quick changeovers.
The spindle is capable of speeds up to 10,000 rpm and uses a DIN 69871/50A taper, suitable for a wide range of machining operations. A tool store capacity of 240 pockets allows for extensive tooling options, enhancing the machine's versatility.
The enclosure includes multiple vertical windows for viewing the machining process, contributing to operational safety and monitoring. Additionally, blue coiled air hoses are attached near several worktables, likely for cleaning or tool cooling purposes.
Overall, the Yasda YBM-900N is a robust and versatile 5-axis machining center suitable for precision manufacturing environments requiring multi-axis capabilities and efficient pallet handling.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
