| Manufacturer | WMW Wildau |
|---|---|
| Model | UBR 32 x 2500-7/16 |
| Year | 1969 |
| Location | Germany
|
This is a WMW Wildau UBR 32 x 2500-7/16 leveling and straightening machine, manufactured in 1969. It is designed for processing metal sheets with a maximum length of 2500 mm and a maximum thickness of up to 39 mm, depending on the material grade. Specifically, it can handle sheet thicknesses up to 32 mm for St 50 steel, and up to 39 mm for St 34 steel, with a minimum sheet thickness of 8 mm for St 50 steel.
The machine features seven straightening rollers, five of which are driven, with a diameter of 290 mm for the straightening rolls and 345 mm for the input and output rollers. Additionally, it includes 13 support rollers with a diameter of 288 mm. The upper beam has a stroke of 120 mm, allowing for precise adjustment during the straightening process. The straightening feed rate is 16 meters per minute.
The main drive of the machine is rated at 90 kW, with a total weight of approximately 79,000 kg (79 tons), indicating a robust industrial-grade construction suitable for heavy-duty applications.

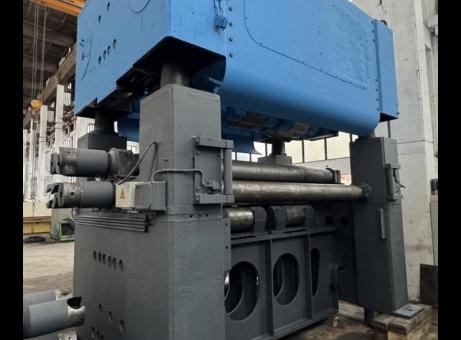

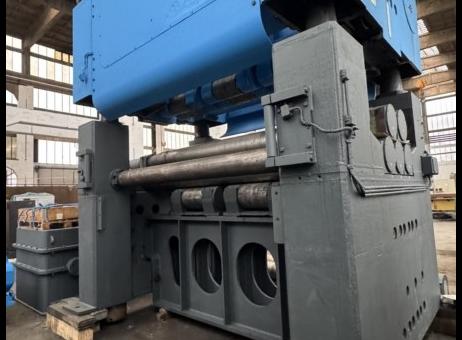

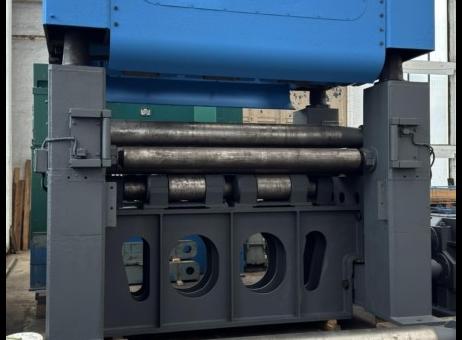

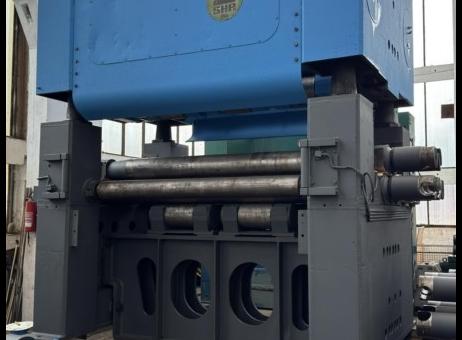

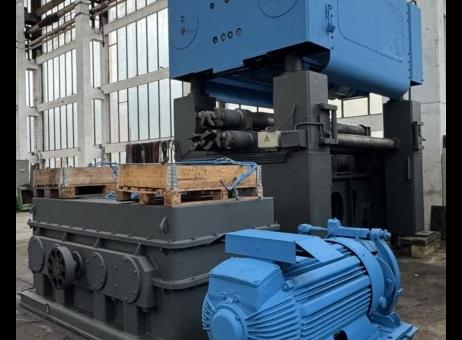

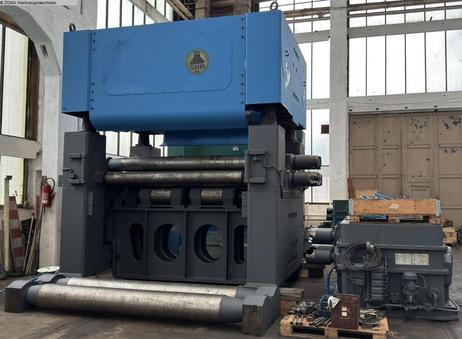

Visually, the machine has large cylindrical rollers and is equipped with hydraulic or electric motors and cylinders mounted on the sides, facilitating its operation. The machine's physical condition appears well-maintained, with no visible rust or damage. It rests on wooden blocks used as supports beneath the base, suggesting stable positioning during storage or transport.
This leveling and straightening machine is suitable for heavy industrial use where precise flattening and straightening of thick metal sheets are required. Its substantial weight and size reflect its capability to handle demanding metalworking tasks.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
plate width 2500 mm
sheet thickness - max. 32 mm
sheet thickness - max. 39 mm
sheet thickness - min. 8 mm
bale length 2700 mm
number of straightening 7 Rollers
number driven straightening rollers 5 Stk
straightening roll diameter 290 mm
diameter of input / output straightening rollers 345 mm
number of support rollers 13 Stk
diameter of support rollers 288 mm
stroke of upper beam 120 mm
straightening feed 16 m/min
rated power of main drive 90 kW
138 kw
weight 79 t
- max. sheet thickness( St 50): 32 mm
- max. sheet thickness( St 34): 39 mm
- min. sheet thickness( St 50): 8 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2020 |
| Offers online | 114 |
| Last activity | Oct. 29, 2026 |
ZOMA Werkzeugmaschinen is your trusted partner in premium used machine tools, proudly based in Germany and serving clients worldwide for over 30 years. With deep industry know-how and a commitment to quality, ZOMA specializes in sourcing, refurbishing, and delivering high-performance CNC machines, lathes, milling and drilling equipment, presses, and sheet metal machinery that meet the demands of modern manufacturing.
At the core of ZOMA’s success is a customer-first approach: every machine is thoroughly tested and ready for immediate use, ensuring reliability and productivity from day one. With a large on-site inventory and spacious showroom, clients can explore and select from a wide range of machines tailored to their needs.
But ZOMA offers more than just machines. They deliver complete solutions, including expert consultation, logistics, dismantling, packaging, and reinstallation services. Whether you’re looking to upgrade your production line, find a cost-effective solution, or sell surplus equipment, ZOMA provides fast, fair, and professional support.
plate width 2500 mm
sheet thickness - max. 32 mm
sheet thickness - max. 39 mm
sheet thickness - min. 8 mm
bale length 2700 mm
number of straightening 7 Rollers
number driven straightening rollers 5 Stk
straightening roll diameter 290 mm
diameter of input / output straightening rollers 345 mm
number of support rollers 13 Stk
diameter of support rollers 288 mm
stroke of upper beam 120 mm
straightening feed 16 m/min
rated power of main drive 90 kW
138 kw
weight 79 t
- max. sheet thickness( St 50): 32 mm
- max. sheet thickness( St 34): 39 mm
- min. sheet thickness( St 50): 8 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
This is a WMW Wildau UBR 32 x 2500-7/16 leveling and straightening machine, manufactured in 1969. It is designed for processing metal sheets with a maximum length of 2500 mm and a maximum thickness of up to 39 mm, depending on the material grade. Specifically, it can handle sheet thicknesses up to 32 mm for St 50 steel, and up to 39 mm for St 34 steel, with a minimum sheet thickness of 8 mm for St 50 steel.
The machine features seven straightening rollers, five of which are driven, with a diameter of 290 mm for the straightening rolls and 345 mm for the input and output rollers. Additionally, it includes 13 support rollers with a diameter of 288 mm. The upper beam has a stroke of 120 mm, allowing for precise adjustment during the straightening process. The straightening feed rate is 16 meters per minute.
The main drive of the machine is rated at 90 kW, with a total weight of approximately 79,000 kg (79 tons), indicating a robust industrial-grade construction suitable for heavy-duty applications.
Visually, the machine has large cylindrical rollers and is equipped with hydraulic or electric motors and cylinders mounted on the sides, facilitating its operation. The machine's physical condition appears well-maintained, with no visible rust or damage. It rests on wooden blocks used as supports beneath the base, suggesting stable positioning during storage or transport.
This leveling and straightening machine is suitable for heavy industrial use where precise flattening and straightening of thick metal sheets are required. Its substantial weight and size reflect its capability to handle demanding metalworking tasks.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
