| Manufacturer | WMW |
|---|---|
| Model | BK50 AI |
| Year | |
| Location | Germany
|
| Category | Drilling - Column drilling machines |
| Drilling Ø | 50 mm |
| Table length | 770 mm |
| Table width | 640 mm |
| Spindle speed | 1400 rpm |
| Spindle taper | MK5 |
| Arm length | 355 mm |
| Weight | 1700 kg |
| worked hours | |
| hours under power | |
| state | as-is, where-is |
| At local norms | --------- |
| status | |
| Last availability date | 17/10/2026 |
| Product id | P260320074 |
| Language |
Колонна пробивна машина WMW BK50 AI
Sloupová vrtačka WMW BK50 AI
WMW BK50 AI Søjleboremaskine
WMW BK50 AI Säulenbohrmaschine
Δράπανο στήλης WMW BK50 AI
WMW BK50 AI Column drilling machine
Taladro de columna WMW BK50 AI
Perceuse à colonne WMW BK50 AI
Stupna bušilica WMW BK50 AI
WMW BK50 AI Oszlopos fúrógép
Trapano a colonna WMW BK50 AI
WMW BK50 AI Koloninė gręžimo staklė
WMW BK50 AI Kolomboormachine
Wiertarka kolumnowa WMW BK50 AI
Furadeira de coluna WMW BK50 AI
Mașină de găurit cu coloană WMW BK50 AI
WMW BK50 AI Сверлильный станок колонного типа
Stubna bušilica WMW BK50 AI
WMW BK50 AI Pelarborrmaskin
Kolonlu matkap tezgâhı WMW BK50 AI
|

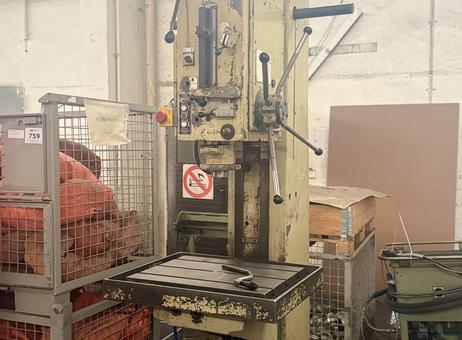

This used WMW BK50 AI column drilling machine is designed for precise and robust drilling operations, particularly suitable for steel with a maximum drilling diameter of 50 mm. The machine features a spindle speed range from 32 to 1,400 rpm, allowing for versatile machining applications. It has a reach (arm length) of 355 mm, providing adequate access to various workpieces.
The work table measures 770 x 640 mm and includes T-slots for secure clamping of workpieces, with a clamping surface of 630 x 550 mm. The base plate dimensions are 490 x 530 mm. The machine’s spindle chuck is of type MK5.

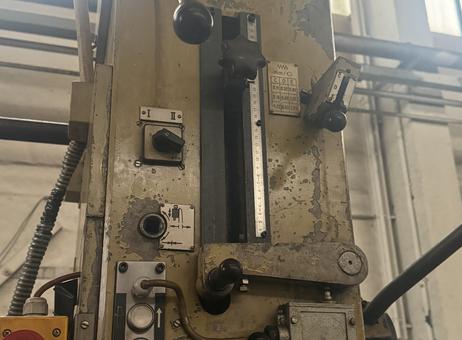

The column drill press is powered by a large electric motor mounted atop the column, with electrical specifications of 380 V operating voltage, 220 V control voltage, 7.8 kW power, and 50 Hz frequency. The control panel is equipped with various buttons and switches, including an emergency stop button, as well as speed and feed rate adjustment levers with visible scales for precise control. An indicator scale and mechanical components for spindle feed are also present.
The machine weighs approximately 1.7 tons, indicating a solid and stable construction. The manufacturer plate identifies the machine as produced by VEB Werkzeugmaschinenkombinat Fritz Heckert-Werk Saalfeld in the former East Germany.
The machine shows signs of wear and paint chipping consistent with extended use, particularly on the control panel and surrounding areas. A metal block fixture is positioned on the base plate below the work table. Handwritten text on the control panel indicates an oil filling point.
Overall, this WMW BK50 AI column drilling machine offers a well-equipped setup with essential features suitable for industrial drilling tasks, while its used condition reflects normal operational wear.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Used column drill press
Manufacturer: WMW Saalfeld
Model: BK50 AI
Drilling capacity in steel: 50 mm
Reach: 355 mm
Spindle chuck: MK5
Speed: 32–1,400 rpm
Table size: 770 x 640 mm
Clamping surface: 630 x 550 mm
Base plate: 490 x 530 mm
Machine weight: 1.7 t
