| Manufacturer | W.F. WELLS |
|---|---|
| Model | W-10-1 |
| Year | 1995 |
| Location | USA
|
This listing is for a W.F. Wells band saw, model W-10-1, manufactured in 1995. The saw is designed for metal cutting applications and has a maximum cutting capacity of 254 mm (10 inches) at both 90° and 45° angles. It features a blade length of approximately 28,194 mm and a blade width of 25.4 mm. The machine is powered by a 5.0 kW electric motor.
The band saw measures 2463.8 mm in length, 1244.6 mm in width, and 1651.0 mm in height, with a total weight of 1400 kg. It is equipped with manual blade tension and manual vise for securing the workpiece. The saw includes a positive hydraulic downfeed system and an adjustable head up limit to control the cutting operation. Flood coolant capability is also present to assist in cooling and lubricating the blade during cutting.

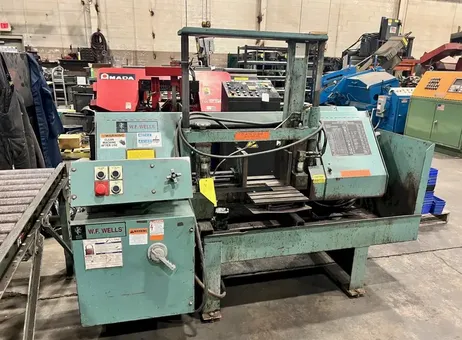

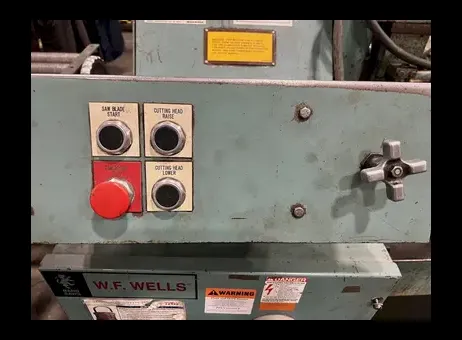

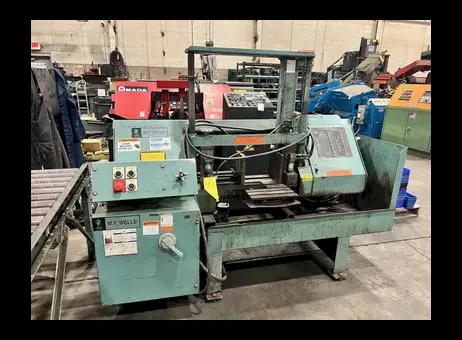

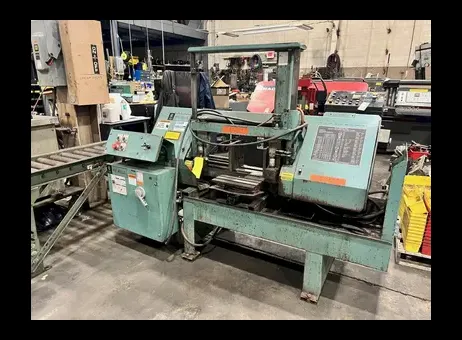

The machine has a greenish body with a control panel located on the left side, which includes multiple buttons and switches for operation, as well as a large red emergency stop button. The control panel shows signs of wear and some dirt accumulation, consistent with regular use. Hydraulic or pneumatic lines are connected to the cutting mechanism, and hydraulic cylinders are visible near the cutting area, likely used for clamping or blade tension.

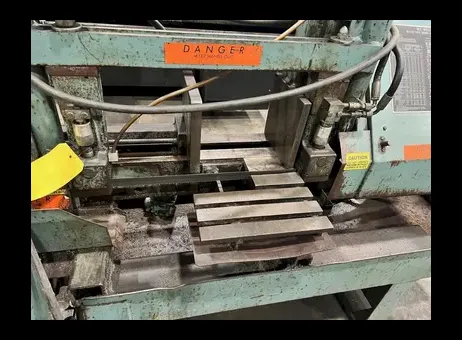

The cutting area includes a protective guard and clamping mechanism with visible clamping jaws and blade guides. There are warning labels present, including a "DANGER KEEP HANDS CLEAR" sign on the guard bar and caution labels advising not to operate the machine without guards in place. The cutting area shows signs of use, including metal debris and wear marks.

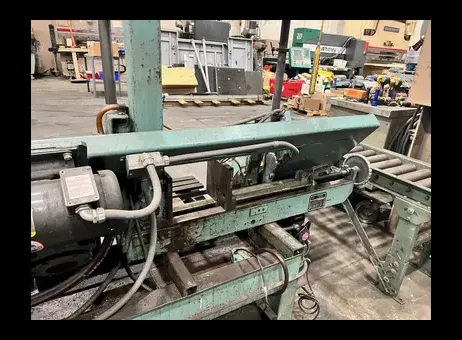

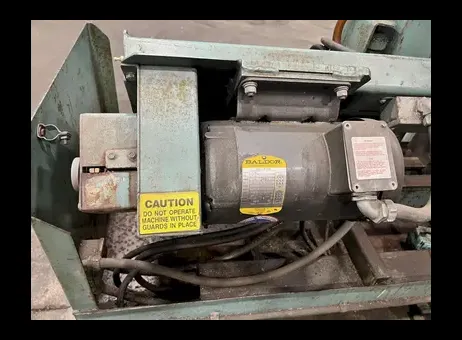

The machine surface exhibits moderate wear, with scratches, paint chipping, dirt, and some rust spots visible on metal parts. A roller conveyor is attached to the machine for material handling and feeding. The electric motor is labeled "BALDOR" and shows signs of rust and dirt accumulation.
This band saw is offered as-is, where-is, reflecting its current condition with visible signs of use and wear. It is suitable for buyers looking for a heavy-duty metal cutting band saw with hydraulic features and flood coolant capability.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Brand: W.F. Wells
Model: W-10-1
Year of Manufacture: 1995
Technical Condition: As-is, where-is
Capacity @ 90 degrees: 10" H x 17" W
Capacity @ 45 degrees: 10" H x 7-1/2" W
Blade Size: 1" x .035" x 11'10"
Blade Speeds: 60 - 425 FPM
Saw Feed: Variable, hydraulic
Sawing Force: 30 - 120 lbs.
Blade Guides: Carbide
Band Wheel Size: 14-1/2"
Blade Motor: 5 H.P.
Coolant Capacity: 15 gallons
Work Height: 26"
Saw Weight Capacity: 5,000 lbs.
Voltage: 220 / 440 volt, 3 phase
Dimensions: 97" x 49" x 65"
Weight: 1,400 lbs.
Equipped With:
- Manual blade tension
- Manual vise
- Positive hydraulic downfeed
- Adjustable head up limit
- Flood coolant
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
