| Manufacturer | Weeke |
|---|---|
| Model | OPTIMAT BP 120 |
| Year | 2001 |
| Location | Latvia
|

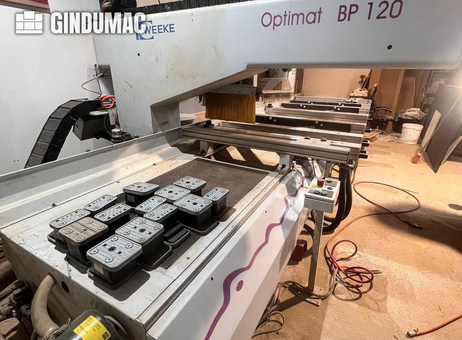

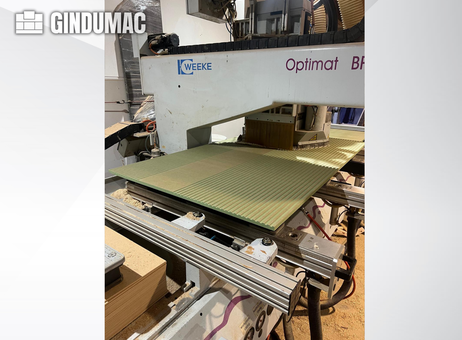

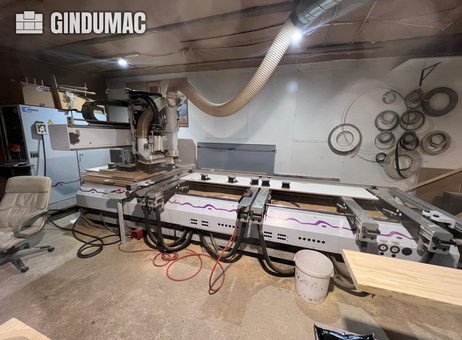

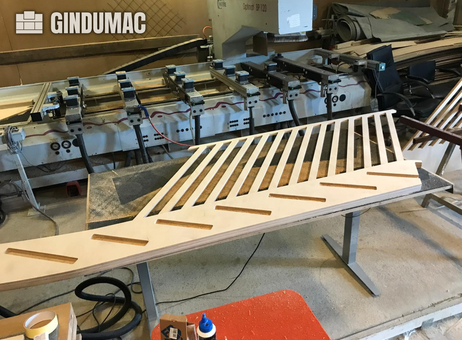

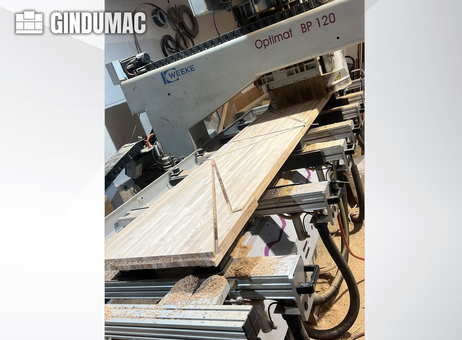

Manufacturer and model: Weeke OPTIMAT BP 120 (manufactured 2001). This is a CNC machining center configured for wood processing with three controlled axes. Motion travel: X = 2800 mm, Y = 1252 mm, Z = 200 mm. Control/software: HOMAG WOODWOP 4.0 is listed as the CNC software.
Spindle and tooling: One main spindle with HSK-F63 tool holder and a maximum spindle speed of 24,000 rpm. The machine is equipped with an automatic tool changer and a tool magazine capacity of 8 positions.
Drilling and cutting equipment: The configuration includes multiple drilling spindles—21 vertical drilling spindles, 4 horizontal X-direction drilling spindles and 2 horizontal Y-direction drilling spindles—and a grooving saw arranged in the X direction.
Table and workholding: The machine uses a console / pod & rail table arrangement with a table length of 3260 mm and six consoles. Material clamping is by vacuum clamping and a vacuum system is indicated.

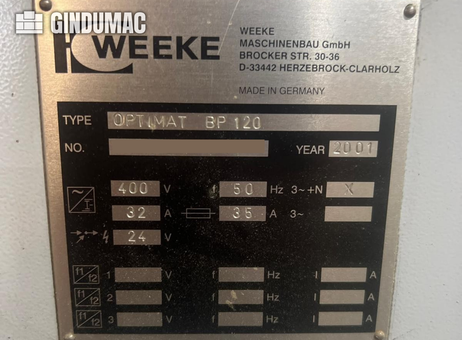

Electrical: 400 V, 50 Hz, three-phase + N; rated current 32 A; control/auxiliary voltage 24 V; fuse rating 35 A.
Summary and intended use: The Weeke OPTIMAT BP 120 is specified for panel and furniture component machining where a combination of drilling, routing and grooving operations are required. Its HSK-F63 spindle, high maximum spindle speed and multi-spindle drilling banks make it suitable for production environments that require flexible tooling and multi-operation capability. For additional technical documentation, consumables, options, or questions about availability and condition, please request further details.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
This 3-axis Weeke OPTIMAT BP 120 was manufactured in 2001. It features a working area of 2800 mm in the X direction, 1252 mm in the Y direction, and 200 mm in the Z direction. The machine includes an automatic tool changer with an 8-position tool magazine and a maximum spindle speed of 24,000 rpm. If you are looking to get high-quality CNC wood machining capabilities, consider the Weeke OPTIMAT BP 120 machine we have for sale. Contact us for further details.CNC software: HOMAG WOODWOP 4.0
Electrical: 400 V, 50 Hz, 3~ + N; rated current 32 A; control/aux voltage 24 V; fuse rating 35 A
Automatic tool changer: Yes; tool magazine capacity: 8 positions
Table: Console / Pod & Rail; table length 3260 mm; number of consoles: 6
Main spindle: quantity 1; tool holder HSK-F63
Drilling spindles: vertical 21; horizontal (X) 4; horizontal (Y) 2
Grooving saw: X direction
Material clamping: Vacuum clamping; vacuum system: Yes
Number of Axes: 3
Spindle Speed: 24000 RPM
X-axis Travel: 2800 mm
Y-axis Travel: 1252 mm
Z-axis Travel: 200 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2019 |
| Offers online | 2090 |
| Last activity | Oct. 29, 2026 |
GINDUMAC GmbH is a dynamic German company specializing in the global trade of used industrial machinery. Our international team of more than 30 employees supports manufacturers worldwide in buying and selling high-quality used equipment across sectors such as metalworking, sheet metal, plastics, woodworking, and automation.
Through a data-driven, digital approach, the company delivers accurate machine valuations, professional inspections, and end-to-end transaction management — ensuring a transparent, secure, and efficient sales process for both buyers and sellers.
This 3-axis Weeke OPTIMAT BP 120 was manufactured in 2001. It features a working area of 2800 mm in the X direction, 1252 mm in the Y direction, and 200 mm in the Z direction. The machine includes an automatic tool changer with an 8-position tool magazine and a maximum spindle speed of 24,000 rpm. If you are looking to get high-quality CNC wood machining capabilities, consider the Weeke OPTIMAT BP 120 machine we have for sale. Contact us for further details.CNC software: HOMAG WOODWOP 4.0
Electrical: 400 V, 50 Hz, 3~ + N; rated current 32 A; control/aux voltage 24 V; fuse rating 35 A
Automatic tool changer: Yes; tool magazine capacity: 8 positions
Table: Console / Pod & Rail; table length 3260 mm; number of consoles: 6
Main spindle: quantity 1; tool holder HSK-F63
Drilling spindles: vertical 21; horizontal (X) 4; horizontal (Y) 2
Grooving saw: X direction
Material clamping: Vacuum clamping; vacuum system: Yes
Number of Axes: 3
Spindle Speed: 24000 RPM
X-axis Travel: 2800 mm
Y-axis Travel: 1252 mm
Z-axis Travel: 200 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
Manufacturer and model: Weeke OPTIMAT BP 120 (manufactured 2001). This is a CNC machining center configured for wood processing with three controlled axes. Motion travel: X = 2800 mm, Y = 1252 mm, Z = 200 mm. Control/software: HOMAG WOODWOP 4.0 is listed as the CNC software.
Spindle and tooling: One main spindle with HSK-F63 tool holder and a maximum spindle speed of 24,000 rpm. The machine is equipped with an automatic tool changer and a tool magazine capacity of 8 positions.
Drilling and cutting equipment: The configuration includes multiple drilling spindles—21 vertical drilling spindles, 4 horizontal X-direction drilling spindles and 2 horizontal Y-direction drilling spindles—and a grooving saw arranged in the X direction.
Table and workholding: The machine uses a console / pod & rail table arrangement with a table length of 3260 mm and six consoles. Material clamping is by vacuum clamping and a vacuum system is indicated.
Electrical: 400 V, 50 Hz, three-phase + N; rated current 32 A; control/auxiliary voltage 24 V; fuse rating 35 A.
Summary and intended use: The Weeke OPTIMAT BP 120 is specified for panel and furniture component machining where a combination of drilling, routing and grooving operations are required. Its HSK-F63 spindle, high maximum spindle speed and multi-spindle drilling banks make it suitable for production environments that require flexible tooling and multi-operation capability. For additional technical documentation, consumables, options, or questions about availability and condition, please request further details.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
