| Manufacturer | Waldner |
|---|---|
| Model | Dosomat 20 |
| Year | 2017 |
| Location | Germany
|

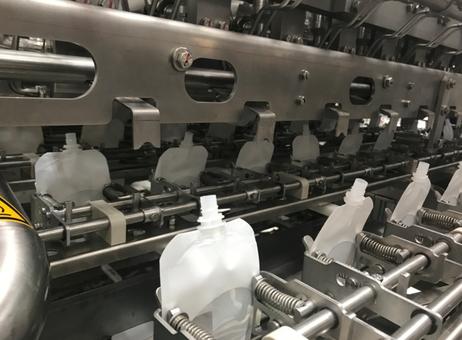

The Waldner Dosomat 20 is an inline filler machine manufactured in 2017, designed specifically for filling premade pouches with spouts. This model features 10 filling heads and is capable of handling up to 40 cycles per minute, which translates to a maximum output of approximately 400 pouches per minute, depending on the application. It is suitable for pouches with spout inner diameters of 8 mm, where the spout is assembled and welded into the premade pouch prior to filling.
The machine accommodates three different pouch sizes: Pouch A (84 mm width, 109 mm height, 40 mm gusset opening, 90 grams capacity), Pouch B (84 mm width, 120 mm height, 40 mm gusset opening, 99 grams capacity), and Pouch C (84 mm width, 140 mm height, 40 mm gusset opening, 113 grams capacity). The fill capacity is electronically infinitely adjustable to suit product consistency and available headspace within the pouch. It supports hot filling at temperatures up to approximately 90° C.
Closure is achieved using a single size screw cap that fits the spout. Each lane can hold up to 300 pouches in the pouch magazine. The machine includes a vacuum pouch denester and multiple safety checks such as 'no pouch no fill' and 'no pouch no seal' to prevent errors. It automatically stops after five consecutive missing pouches.
Additional features include an inkjet coder, barcode scanner, and a vision inspection system. Pouch opening is performed using vacuum cups, and pouch opening is verified by inserting a checking cone with sensors; if the pouch is not properly opened, filling and sealing are halted. A reject conveyor is present to discharge defective or unopened pouches.
Spouts are fed from a bulk hopper to an unscrambler, then separated and oriented on a 10-lane vertical shaft before being inserted into the pouches by a servo-controlled gripper unit. The first sealing of the pouch happens simultaneously with spout insertion.
Sealing occurs in two stations using hot seal heads with adjustable temperature, pressure, and time parameters. A water-cooled sealing tool ensures rapid solidification of the seal. A rapid vacuum leak test (under 0.8 seconds) verifies seal integrity, and leaking pouches are rejected and discharged via the reject conveyor.

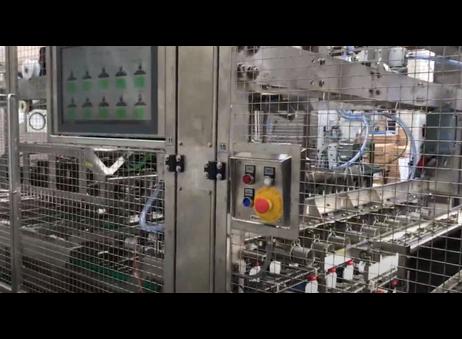

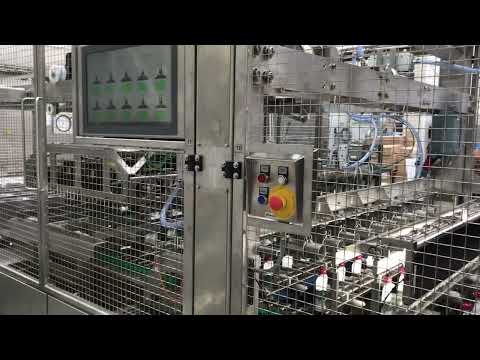

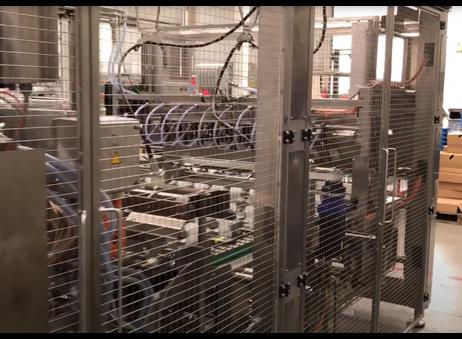

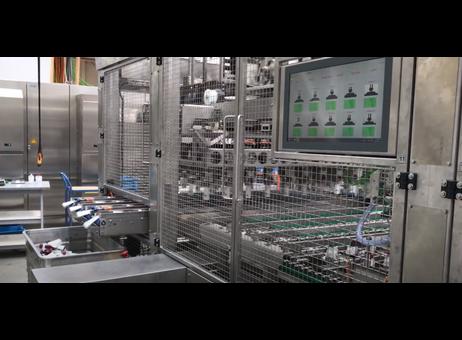

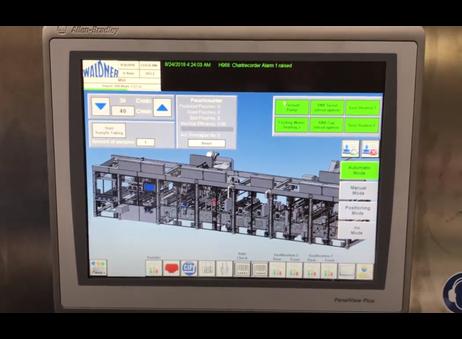

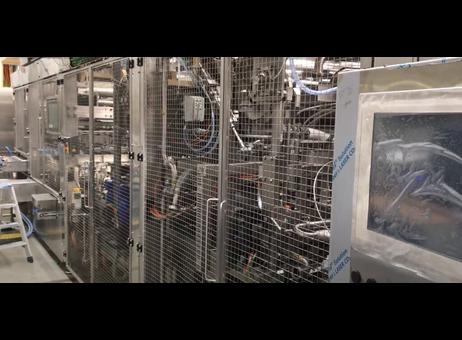

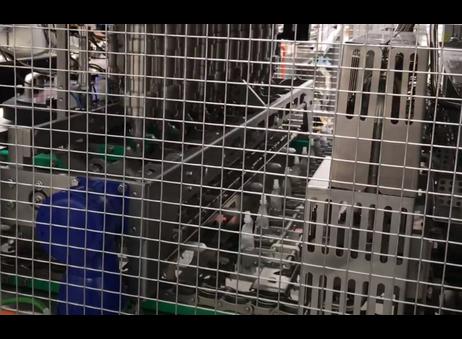

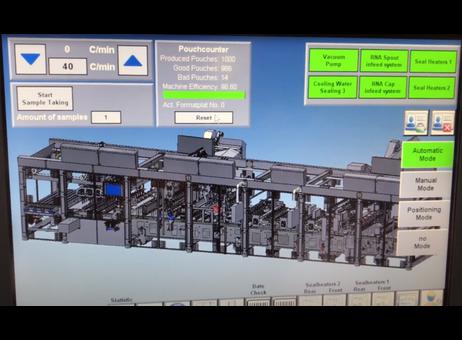

The machine is enclosed within a metal safety cage. It includes a control panel with an emergency stop button and other control buttons, as well as a touchscreen display for monitoring machine status and settings. A conveyor belt is visible inside the machine for pouch transport.
This Waldner Dosomat 20 is a comprehensive solution for efficient and precise filling and sealing of spouted pouches with integrated quality control and safety features.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Never Used Waldner Dosomat 20 inline filler with 10 heads

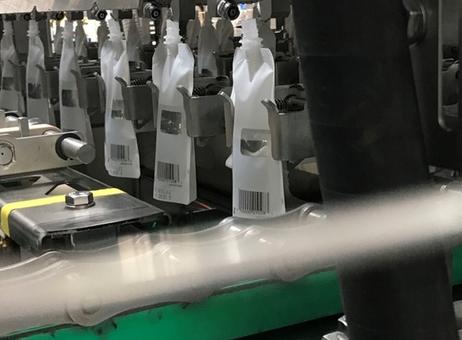

Premade pouch with spout. Spout inner diameter: 8 mm assembling and welding of spout into the premade pouch done on the DOSOMAT prior to filling
Up 40 cycles per minute/400 pouches per minute depending on the application
10 lanes
Pouch A dimensions:
Width: 84 mm
Height: 109 mm
Gusset Opening: 40 mm
Capacity: 90 grams
Pouch B dimensions:
Width: 84 mm
Height: 120 mm
Gusset Opening: 40 mm
Capacity: 99 grams
Pouch C dimensions:
Width: 84 mm
Height: 140 mm
Gusset Opening: 40 mm
Capacity: 113 grams
Fill capacity: electronically infinitely adjustable, depending on product consistency and head space in the pouch
Hot fill, approximately 90° C
Closure: Screw cap, 1 size, fitting on the spout used.
Pouch magazine: up to 300 pouches per lane
Vacuum pouch denester
Pouch check:
No pouch no fill
No pouch no seal
automatic stop after 5 consecutive missing pouches
Inkjet coder
Barcode scanner
Vision inspection system

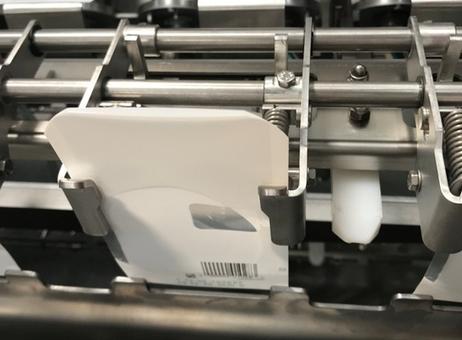

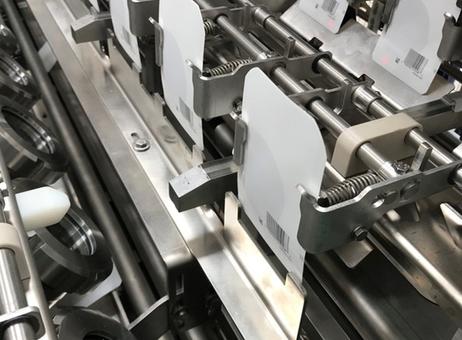

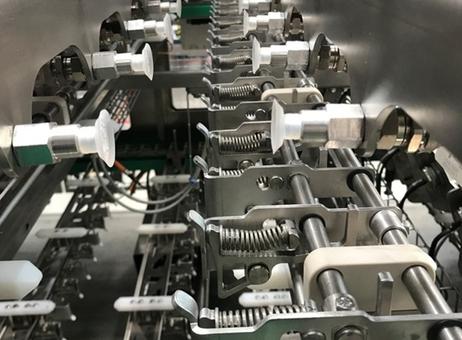

Pouch opening: vacuum cups
Pouch Open Check: Performed by inserting a checking cone with sensors into the open pouches. If not open, no filling or sealing will take place

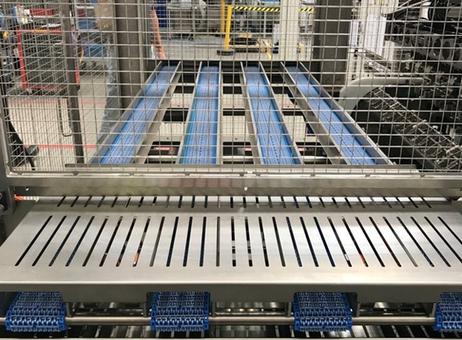

Reject conveyor: Discharges bad pouches or unopened pouches

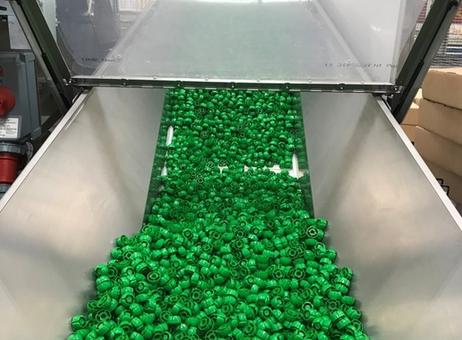

Spout Infeed: Using a bulk hopper, spouts are fed to the unscrambler.

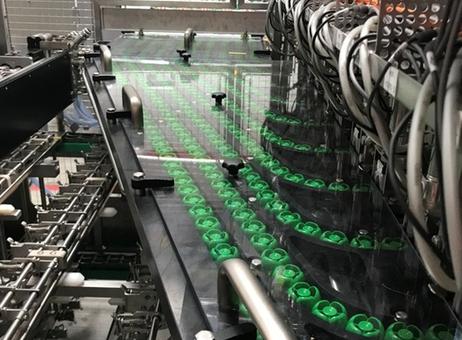

Spout Unscrambling: Separated and oriented spouts are fed to a 10-lane vertical shaft to be inserted into the pouches
Spout Emptying Function: Extra spouts can be emptied out of the system at a color change
Spout Insert: The spouts are taken out of the vertical drop shaft by a servo-controlled gripper unit and inserted into the pouches. There, at the same time the first sealing of the pouch is executed.
Sealing:
Sealing Station 1: 10 sealing stations weld the spouts to the pouches using hot seal heads with adjustable parameters (temperature, pressure & time)
Sealing Station 2: Similar to SS1 and required to achieve proper sealing
Seal Weld Cooling Station: Water cooled sealing tools ensure quick solidification of the seal between spouts and pouch
Vacuum Leak Test: Rapid vacuum leak (less than 0.8 second) ensures seal integrity. Leaking pouches are rejected
Reject Conveyor: Pouches that are registered as “reject” are discharged from the machine
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
When was this Waldner 10 Lane Pouch Filler manufactured?
This Waldner 10 Lane Premade Pouch Filler With Spout Inserter And Capper was manufactured in 2017.
Has this equipment passed a Factory Acceptance Test?
This equipment has undergone a Factory Acceptance Test but was never installed.
Has this Waldner machine been used before?
This Waldner machine has never been used.
What features are included with this equipment?
This equipment includes an Ink-jet coder, Barcode scanner, and Vision inspection system as part of the built-in features.
Was this machine ever placed in production?
There was nothing wrong with the machine as it was factory tested, but it was never placed in production.
Who currently owns the machine?
The seller confirmed that the unit is currently owned by a client in Germany.

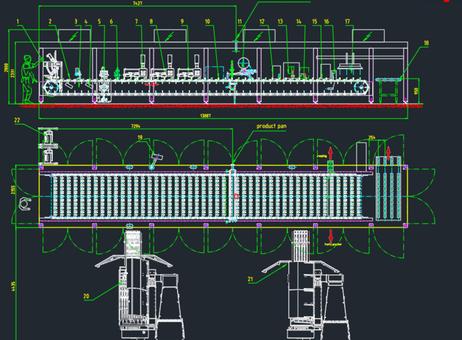

Are the measurements of the unit available?
A PDF with the measurements of the unit has been provided.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
