Untroma STBF 4-30 Belt conveyor

Top seller

Price on request

Make an offer

- Secured payment for the purchase
- Dedicated compliance check of the seller
- Logistics and customs support if applicable
- After-sale follow up if needed

Manufacturer	Untroma
Model	STBF 4-30
Year	2020
Location	Germany

Your dedicated contact

Jérémie R.

Details
About this seller

Specifications

Category	Handling - Belt conveyors
Length x width x height	2880.0 × 1050.0 × 2500.0
worked hours
hours under power
state	as-is, where-is
At local norms	---------
status
Last availability date	29/10/2026
Product id	P261029031
Language	Лентов транспортьор Untroma STBF 4-30 Pásový dopravník Untroma STBF 4-30 Untroma STBF 4-30 Båndtransportør Untroma STBF 4-30 Bandförderer Ταινιόδρομος Untroma STBF 4-30 Untroma STBF 4-30 Belt conveyor Cinta transportadora Untroma STBF 4-30 Convoyeur à bande Untroma STBF 4-30 Trakačni transporter Untroma STBF 4-30 Untroma STBF 4-30 Szalagszállító Trasportatore a nastro Untroma STBF 4-30 Untroma STBF 4-30 Juostinis transporteris Untroma STBF 4-30 Bandtransporteur Przenośnik taśmowy Untroma STBF 4-30 Transportador de correia Untroma STBF 4-30 Transportor cu bandă Untroma STBF 4-30 Untroma STBF 4-30 Ленточный конвейер Trakasti transporter Untroma STBF 4-30 Untroma STBF 4-30 Bandtransportör Bantlı konveyör Untroma STBF 4-30

Automatic description (AI-Generated)

## Untroma STBF 4-30 Incline Conveyor

The Untroma STBF 4-30 is an inclined cleated-belt conveyor for moving products from a feed point to an elevated discharge. Manufactured in 2020, it has a stainless-steel construction and a blue PVC belt with transverse cleats. The belt is described as food-grade, and a variable-frequency drive is specified for adjusting its speed.

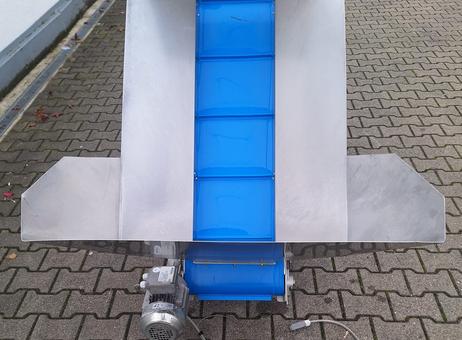

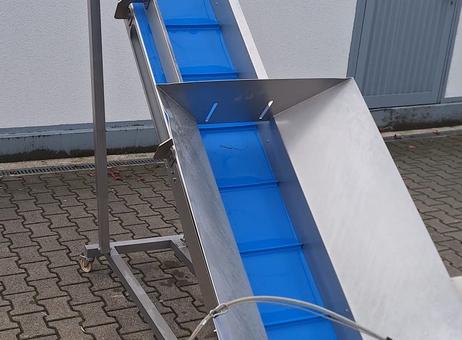

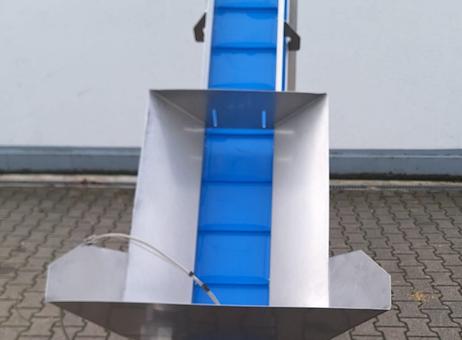

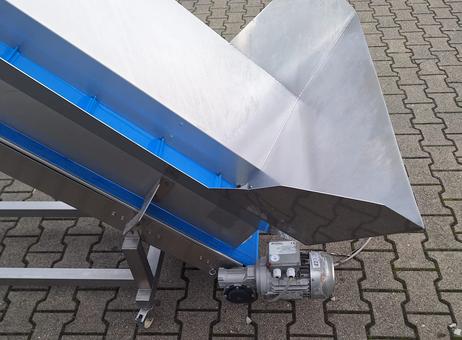

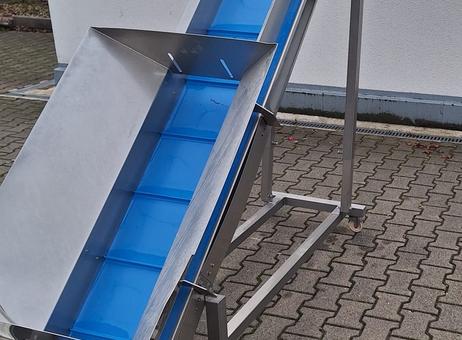

A large stainless-steel feed hopper is fitted at the lower end, where product enters the conveyor. The hopper has flared side panels around the belt inlet, and stainless-steel side guards guide material as it travels upwards. An electric motor and gearbox are mounted beneath the lower end of the belt. The conveyor is supported by a tubular frame fitted with caster wheels for movement around the work area.

The listing states that a new replacement belt is included. Operating instructions in German and a replacement-belt specification are also included. Light scuffing and marks are present on some visible belt and hopper surfaces; the condition of the machine has not otherwise been specified.

### Technical data
- Manufacturer: Untroma
- Model: STBF 4-30
- Year of manufacture: 2020
- Overall dimensions (L × W × H): 2,880 × 1,050 × 2,500 mm
- Conveyor type: Incline conveyor with cleated belt
- Belt: Blue PVC with transverse cleats
- Construction: Stainless steel
- Drive: Electric motor and gearbox; variable-frequency controlled

### Included
- Untroma STBF 4-30 incline conveyor
- Feed hopper
- New replacement belt
- German operating instructions
- Replacement-belt specification

The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.

Seller's description

transport and cleaning systems
conveyor belt

Untroma STBF 4-30 Incline Conveyor Belt – Discharge Height 2,420 mm – Stainless Steel – Year of Manufacture 2020

Incline conveyor with a blue, food-grade cleated belt, large feed hopper and variable-frequency drive

---------------------------------------------------------------

🏭 Machine description

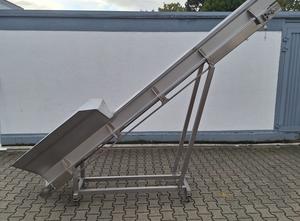

The Untroma STBF 4-30 is a stainless-steel incline conveyor with a blue, food-grade PVC cleated belt. It gently conveys bulk materials and piece goods from a large feed hopper to a discharge height of 2,420 mm.

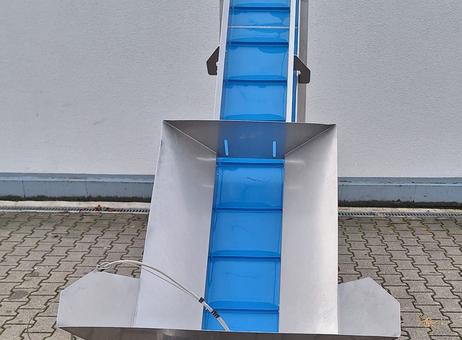

The hopper (1,110 x 1,050 x 500 mm) receives the product at a feed height of 750 mm, while the cross cleats carry it upwards along a conveying length of 3,400 mm. The usable belt width is 305 mm. The conveyor is driven by a 0.75 kW variable-frequency geared motor (3-phase, 230 V).

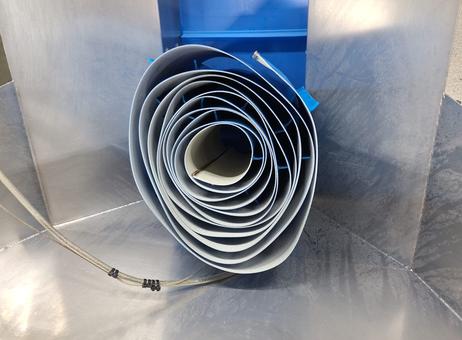

The belt was manufactured in 2020 (nameplate) and was used in dried fruit processing. The electrical system has been tested in accordance with DIN VDE. A new replacement belt is included; additional belts are specified and can be reordered. .

- Feeding combination weighers and multihead weighers
- Feeding flow-pack and packaging machines
- Feeding dosing units, mixers and dryers

---------------------------------------------------------------

⚙️ Technical data

- Manufacturer: Untroma
- Type: STBF 4-30
-
- Year of manufacture: 2020
- Dimensions (L x W x H): 2,880 x 1,050 x 2,500 mm
- Conveying length: 3,400 mm
- Usable belt width: 305 mm
- Feed height: 750 mm
- Cleat height: approx. 20 mm,
- Discharge height: 2,420 mm
- Feed hopper (L x W x H): 1,110 x 1,050 x 500 mm
- Belt: PVC, food-grade, blue, with cross cleats
- Drive power: 0.75 kW, variable-frequency controlled
- Electrical connection: 3-phase, 230 V

---------------------------------------------------------------

🔧 Features & benefits

✔ Stainless-steel construction with side product guides ✔ Large stainless-steel feed hopper ✔ Food-grade PVC cleated belt ✔ Infinitely adjustable belt speed ✔ Electrical system tested in accordance with DIN VDE ✔ New replacement belt included

---------------------------------------------------------------

📌 Typical applications

- Dried fruit, nuts and snacks
- Vegetables, herbs and frozen products
- Confectionery and baked goods
- Contract packaging and small-scale manufacturers

---------------------------------------------------------------

📦 Scope of delivery

- 1 x Untroma STBF 4-30 incline conveyor with blue cleated belt
- Stainless-steel feed hopper
- 1 x new replacement belt
- Operating instructions (German)
- Replacement belt specification

The Untroma STBF 4-30 is an incline conveyor, also known as an elevating belt conveyor, inclined conveyor, cleated belt conveyor or elevator. It transports products on a belt with cross cleats from a feed height of 750 mm to a discharge height of 2,420 mm, typically to feed multihead weighers, flow-pack machines, dosing units, mixers or dryers. It is suitable for free-flowing and piece-form food products such as dried fruit, nuts, snacks, vegetables, herbs, frozen products and confectionery. With its stainless-steel frame, large feed hopper and food-grade belt, it is ideal for food manufacturers, contract packers, small-scale producers and fruit processors looking to automate the feeding of a weighing or packaging line.

Manufacturer: Untroma
Type: STBF 4-30

Year of manufacture: 2020
Machine type: Incline conveyor with cleated belt
Dimensions L X W X H: 2,880 x 1,050 x 2,500 mm
Conveying length: 3,400 mm
Usable belt width: 305 mm
Belt width: approx. 400 mm
Feed height: 750 mm
Discharge height: 2,420 mm
Feed hopper L X W X H: 1,110 x 1,050 x 500 mm

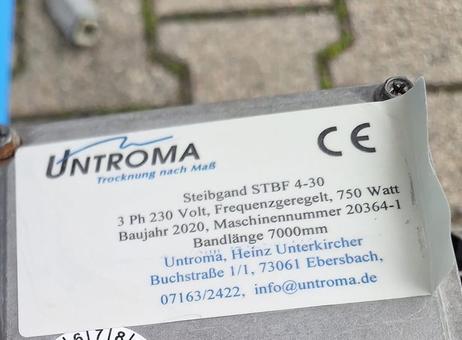

Endless belt length: 7,000 mm according to nameplate

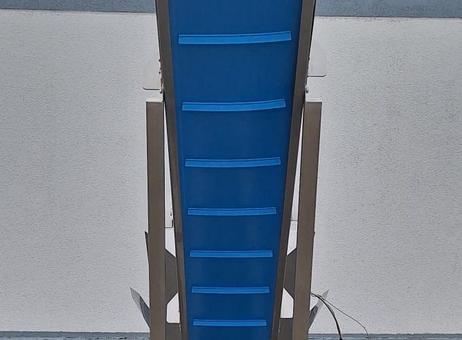

Cleats: PVC cross profiles T20, approx. 250 mm pitch
Replacement belt: 1 x new, included
Belt: PVC, food-grade, blue, with cross cleats
Construction: Stainless steel
Drive power: 0.75 kW
Speed: variable-frequency controlled
Electrical connection: 3-phase, 230 V
Plug connection: Harting Han 3A, 3+PE
Electrical inspection: tested in accordance with DIN VDE (inspection sticker)
