Contact us to receive an offer.
| Manufacturer | UBE |
|---|---|
| Model | 2750 MT |
| Year | 2017 |
| Location | Germany
|
| Category | Miscellaneous presses and forging machines |
| worked hours | |
| hours under power | |
| state | as-is, where-is |
| At local norms | --------- |
| status | |
| Datasheet | UBE 2750 MT |
| Last availability date | 26/10/2026 |
| Product id | P261014240 |
| Language |
Екструзионна преса UBE 2750 MT
Extruzní lis UBE 2750 MT
UBE 2750 MT ekstruderingspresse
Extrusionspresse UBE 2750 MT
Πρέσα εξώθησης UBE 2750 MT
UBE 2750 MT Extrusion Press
Prensa de extrusión UBE 2750 MT
Presse d'extrusion UBE 2750 MT
UBE 2750 MT preša za ekstruziju
UBE 2750 MT extrudáló prés
Pressa per estrusione UBE 2750 MT
UBE 2750 MT ekstruzijos presas
UBE 2750 MT extrusiepers
Prasa wytłaczająca UBE 2750 MT
Prensa de extrusão UBE 2750 MT
Presă de extrudare UBE 2750 MT
Экструзионный пресс UBE 2750 MT
UBE 2750 MT ekstruziona presa
UBE 2750 MT extruderingspress
UBE 2750 MT Ekstrüzyon Presi
|

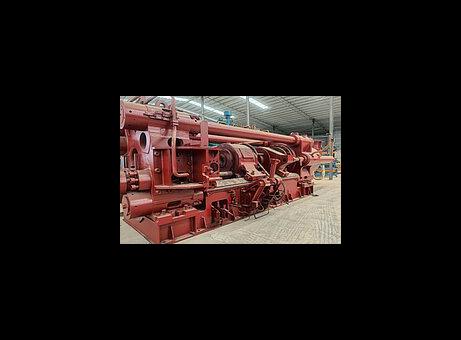

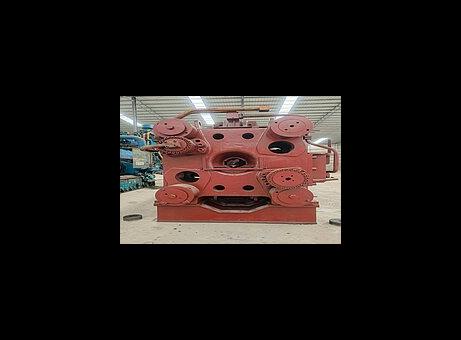

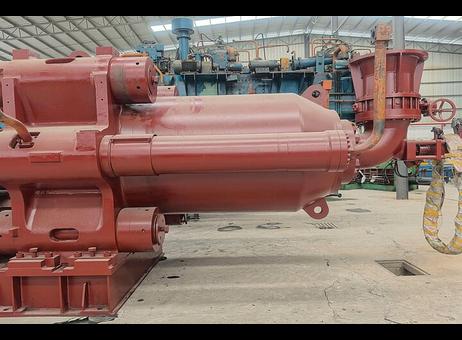

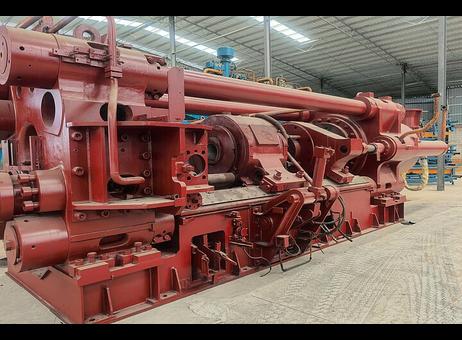

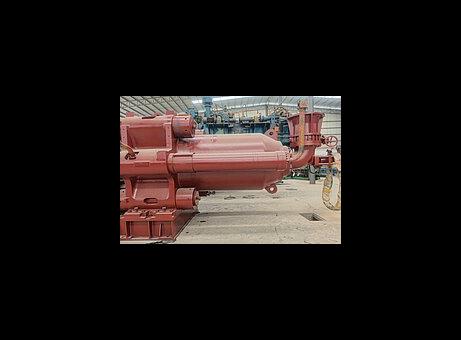

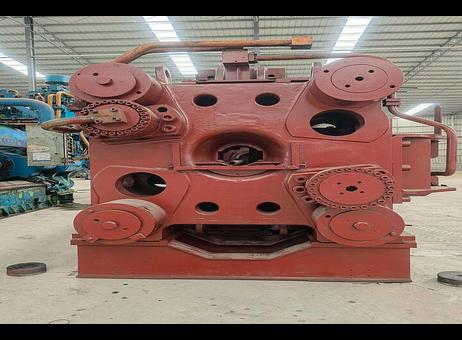

Qty. 1 second-hand UBE horizontal hydraulic extrusion press for 10-inch billets. The press is listed with a force of 2,750 MT. It was built in 2017 and is reported as stopped in 2025.
Billet size: Ø254 mm (10 inches) × 1,000 mm length. Press-out speed is specified as 20 mm/sec. The empty-carriage forward cycle is listed as 20 seconds, and the theoretical output cycle time as 160 seconds.
Hydraulic cylinder specifications:
- Main engine cylinder: 2,470 T at 230 kgf/cm²
- Auxiliary cylinder: 330 T at 230 kgf/cm²
- Shengding drum opening: 164 T at 120 kgf/cm²
- Shengding cylinder: 153 T at 120 kg/cm²
- Shearing hydraulic cylinder: 47 T at 150 kgf/cm²
- Mold oil cylinder: 20 T at 100 kgf/cm²
- Fuel supply cylinder: 6.3 T at 80 kgf/cm²
Listed dimensions include a Ø1,170 mm host cylinder; two Ø300 mm auxiliary cylinders; two Ø280 mm Shengding auxiliary cylinders; one Ø200 mm shearing cylinder; one Ø160 mm mold cylinder; and two Ø100 mm feed cylinders. The front bumper thickness is 800 mm, main cylinder wall thickness is 950 mm, cross-wall thickness is 400 mm, and tension column diameter is Ø310 mm. The outlet opening measures 340 × 290 mm, and the mold base measures 460 × 430 mm. Main ram (plunger) diameter is listed as 1,170 mm.
The hydraulic system is described as having new oil circuits and valve plates. It includes three Kawasaki 500 L variable pumps, three main motors rated at 150 kW each, and one additional 37 kW motor paired with a Tokyo Keiki vane pump (200/125).
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Qty. 1 Second-hand Extrusion Press - 10" billet
Mfc.: UBE, Force: 2750 MT, type: Horizontal, Oil hydr.
Built: 2017, Stopped: 2025
Billet size: Ø 254 (10") × 1000 mm Length
Speed press go out: 20 ㎜/sec
Empty vehicle forward one cycle: 20 sec Output-theoretical cycle time: 160 sec
Specification:
1. Engine Cylinder Pressure: 2470 T, 230 ㎏f/cm 2. Auxiliary Cylinder: 330 T, 230 ㎏f/cm
3. Shengding Drum: Opening size 164 T, 120 ㎏f/㎝ Shengding Cylinder:153 T 120 kg/cm
4. Shearing Hydraulic Cylinder: 47 T, 150 ㎏f/㎝ 5. Mold oil cylinder: 20 T, 100 ㎏f/㎝
6. Fuel Supply Cylinder: 6.3 T, 80 ㎏f/㎝
Dimensions:
1. host crock: Ø1170 ㎜ 2. Auxiliary Cylinder: Ø300 ㎜ × 2 pieces
3. Sheng Auxiliary Cylinder: Ø280 ㎜ × 2 pieces 4. Shearing Cylinder: Ø200 ㎜ *1 piece
5. Mold Cylinder: Ø160 ㎜ *1 piece 6. Feed Cylinder: Ø100 ㎜ × 2 pieces
7. Front bumper thickness: 800 ㎜ 8. Master cylinder wall thickness: 950 ㎜
9. Cross-wall thickness : 400 ㎜ 10. Tension Column Diameter: Ø310 ㎜
11. Outlet opening size: 340 × 290 mm 12. Mold base diameter: 460 × 430 mm
13. Main ram (plunger) diameter: 1170 mm
Hydraulic System Brand-new oil circuits and brand-new valve plates
The main oil pump is a Kawasaki 500 L variable pump, with 3 units installed.
Main motors: three units, 150 kW each
Additional motor: one 37 kW motor, paired with one Tokyo Keiki vane pump (200/125)
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
