Contact us to receive an offer.
| Manufacturer | Trumpf |
|---|---|
| Model | TruLaser 3040 |
| Year | 2007 |
| Location | Germany
|
Overview
This listing describes a CO2 laser cutting system with a TLF 3200 turbo laser unit and a 3,200 W rated laser power. The machine has recorded operating hours of 50,921 h for the laser and 21,717 h for the beam. It is specified for a laser working area of 4,000 x 2,000 x 115 mm and rated cutting thicknesses of up to 20 mm for mild steel, 12 mm for stainless steel, and 8 mm for aluminum.
Key machine data
- Laser power: 3200 watts

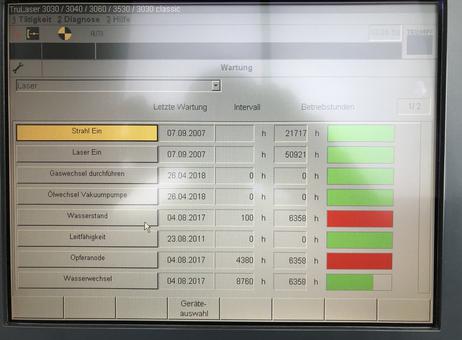

- Operating hours (laser on): 50,921 h
- Operating hours (beam on): 21,717 h
- Working area (laser operation): 4,000 x 2,000 x 115 mm
- Max cutting thickness: mild steel 20 mm; stainless steel 12 mm; aluminum 8 mm
- Machine footprint dimensions: length 11,600 mm; width 5,300 mm; height 2,200 mm
- Machine weight: 16,000 kg
- Total connection value: 73 kVA
Standard equipment and functional features
- Closed machine frame with integrated CO2 laser unit (TLF 3200 turbo) with cooling unit and logbook function
- Automatic pallet changer with longitudinal conveyor belt for small parts and waste handling
- Maintenance-free three-phase servomotor drives
- Cutting head quick-change device and laser cutting head with 3.75" / 7.5" lens options
- DIAS III capacitive height control and AutoLas Plus automatic focal position adjustment
- Programmable cutting gas pressure setting and laser power control
- Position laser diode, HI-LAS high pressure cutting, SprintLas for fast editing, and ContourLas for small hole processing
- PMS plasma sensors, automatic sheet metal outer edge detection, programmable power cycles, and Microweld
- Oil spray device for processing of thick sheet metal, automatic switch-off, workroom lighting, and integrated machine data acquisition (MDE)
Control and software
- Sinumerik 840D open control (PC-based) with TFT color screen, online help, diagnostic functions, maintenance logbook, technology data and teleservice capability
- Interfaces include BNC/RJ45 and a 3.5" floppy disk drive
- Workshop programming: ToPs 100 lite
Safety and extraction
- Multi-beam photocells, fully encapsulated and ventilated steel guide, surveillance system, multi-chamber suction and compact dust extractor, and protective cabin
Notes
All specifications and equipment listed are taken from the provided product information. No additional condition claims (e.g., tested, refurbished, or under warranty) are made beyond the recorded operating hours and the listed features.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Operating hours laser on 50921 h
Operating hours beam on 21717 h
Laser power 3200 watts
Working area laser operation 4000 x 2000 x 115 mm
Max mild steel 20mm
Max. stainless steel 12 mm
Max aluminum 8mm
Length 11600mm
Width 5300mm
Height 2200mm
Weight machine 16000 kg
Total connection value 73 kVA
standard equipment
- Closed machine frame with integrated laser unit
- Laser unit: CO2 laser TLF 3200 turbo, cooling unit, logbook function
- Automatic pallet changer with longitudinal conveyor belt for small parts/waste
- Drives: Maintenance-free three-phase servomotors
- Cutting head quick-change device
- Laser cutting head with 3.75 / 7.5" lens
- DIAS III capacitive height control
- Programmable cutting gas pressure setting
- AutoLas Plus automatic focal position adjustment
- Laser power control
- Position laser diode
- HI-LAS high pressure cutting
- Fast editing with SprintLas
- ContourLas for making small holes
- PMS plasma sensors
- Automatic sheet metal outer edge detection
- Programmable power cycles
- Microweld
- Oil spray device for safe processing of thick sheet metal
- Automatic switch-off
- Workroom lighting
- Integrated machine data acquisition MDE
Control Sinumerik 840D:
- Open control based on PC
- easy handling
- Online help
- Diagnostic functions
- Maintenance logbook
- Technology data
- Teleservice
- 3.5" floppy disk drive
- TFT color screen
- BNC/RJ45 network connector
Programming:
Workshop programming ToPs 100 lite
Security:
- Multi-beam photocells
- Steel guide fully encapsulated and ventilated
- Surveillance system
- Multi-chamber suction and compact dust extractor
- Protective cabin
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
