| Manufacturer | TRIMILL |
|---|---|
| Model | Depomill CUT 2012 |
| Year | 2006 |
| Location | Czech Republic
|

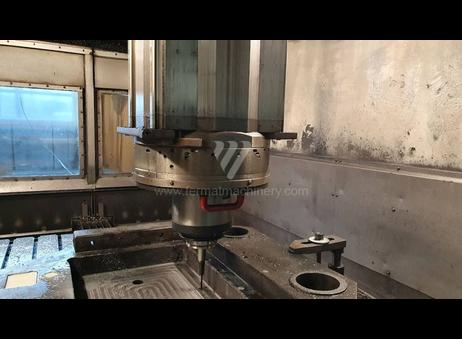

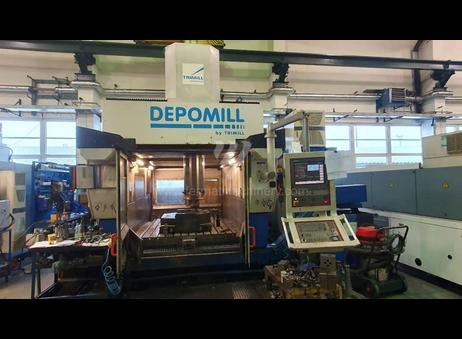

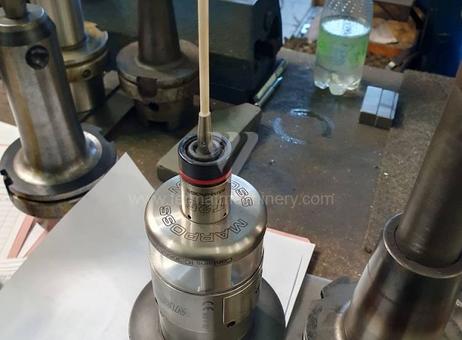

The machine is in good technical condition; testing under power is possible. Accessories: workpiece probe, high-frequency universal spindle IMT 8 kW / 30,000 rpm. Note: New spindle installed in 2024. The TRIMILL Depomill CUT 2012 vertical machining center represents a high-performance solution for precise 5-axis milling of large and complex workpieces. Equipped with a modern Heidenhain control system and efficient through-spindle cooling, this machine is an ideal choice for demanding tool shops and mold making, where high surface quality and machining dynamics are prioritized. The robust gantry-type construction ensures excellent stability and precision even during long-term professional operation.
Technical parameters:

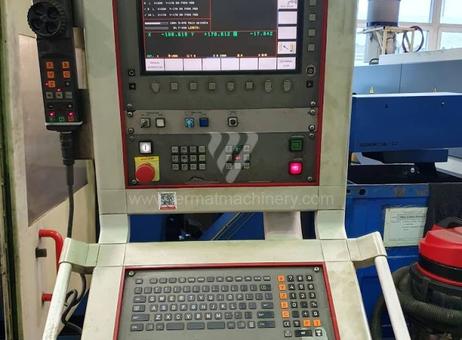

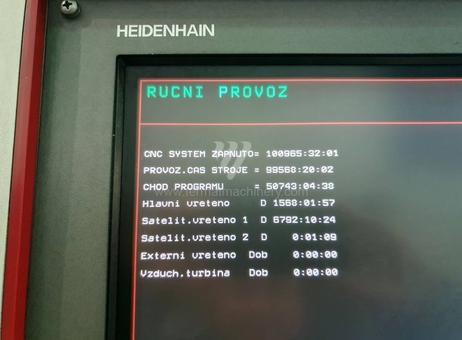

- Control system Heidenhain: TNC 530

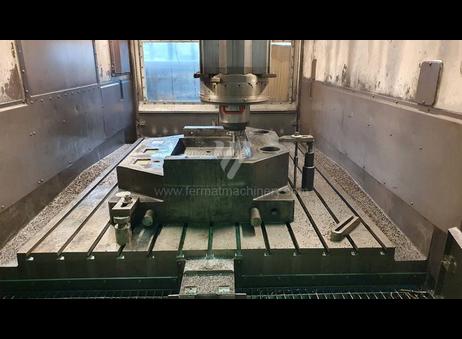

- Clamping area of table: 2300 x 1600 mm
- Travel X-axis: 2300 mm
- Travel Y-axis: 1200 mm
- Travel Z-axis: 800 mm
- Spindle speed: 30 - 12000 /min.
- Number of driven axes: 5
- Cooling through spindle: YES
- Pressure of cooling: 20 bar
- Spindle taper: HSK 100 .
- Max. torque of spindle: 200 Nm
- Tool magazine: YES
- Number of positions in magazine: 10
- Axis C: ±185 °
- Axis B: + 60/-90 °
- Rapid feed: 30 m/min
- Machine weight: 23000 kg
- Machine dimensions l x w x h: 4800 x 4750 x 4660 mm
Technical parameters:
- Řídící systém Heidenhain: TNC 530
- Upínací plocha stolu: 2300 x 1600 mm
- Pojezd osy X: 2300 mm
- Pojezd osy Y: 1200 mm
- Pojezd osy Z: 800 mm
- Otáčky vřetene: 30 - 12000 /min.
- Počet řízených os: 5
- Chlazení středem: ano
- Tlak chlazení středem: 20 bar
- Upínací kužel vřetena: HSK 100 .
- Max. kroutící moment vřetene: 200 Nm
- Zásobník nástrojů: ano
- Počet pozic v zásobníku nástrojů: 10
- Osa C: ±185 °
- Osa B: + 60/-90 °
- Rychloposuv: 30 m/min
- Hmotnost stroje: 23000 kg
- Rozměry d x š x v: 4800 x 4750 x 4660 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
