| Manufacturer | TACCHELLA |
|---|---|
| Model | 618 UM |
| Year | |
| Location | Italy
|
This Tacchella model 618 UM cylindrical grinding machine is designed for both external and internal grinding tasks. It features a maximum grinding length of 600 mm and a grinding diameter capacity of up to 360 mm, suitable for a variety of workpieces. The machine supports a maximum workpiece weight of 250 kg, allowing it to handle moderately heavy components.
The grinding wheel head is powered by a 1.5 kW spindle motor, with a maximum wheel speed of 1450 rpm, enabling efficient grinding operations. The machine includes an internal spindle, confirming its capability for internal grinding tasks. The travel table offers a range of 4 to 600 mm with adjustable travel speeds between 0.1 and 5 mm/min, allowing precise control over the grinding process.
Additional features include a workpiece head with a spindle power of 1.1 kW and rotational speeds adjustable continuously from 16 to 500 rpm, providing flexibility for different grinding requirements. The machine's inclination can be adjusted from 0 to 90 degrees, and it is equipped with MK4 cones on both the workpiece head and tailstock quill, with the tailstock quill diameter measuring 35 mm.
The drive system is hydraulic, enhancing operational stability and control. Accessories supplied include a mandrel for interior grinding, supporting its internal grinding capabilities.

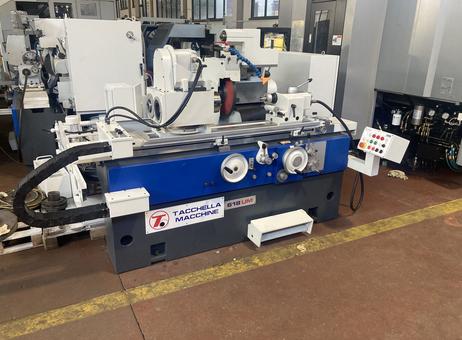

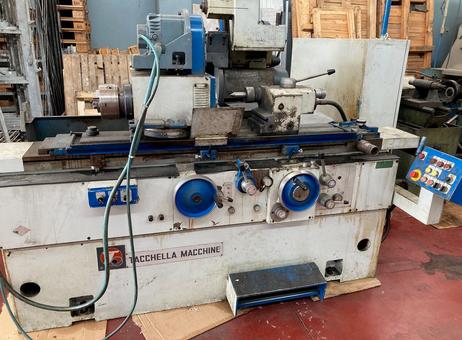

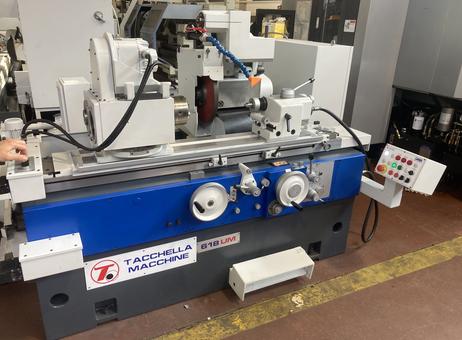

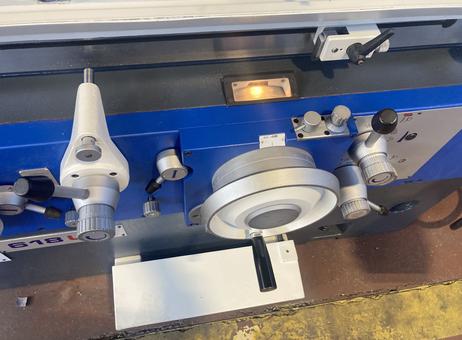

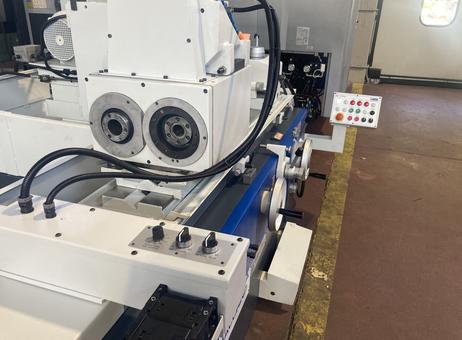

The machine exhibits a blue and white paint finish with visible signs of wear and rust, indicating prior use. It includes a control panel on the right side with multiple buttons and switches for operational control, two large blue hand wheels along with several smaller adjustment knobs on the front for precise manual adjustments, and a grinding wheel mounted on the left side, partially covered by a protective guard. The Tacchella brand label is visible on the front lower part of the machine, confirming its manufacturer.
This cylindrical grinding machine is suitable for industrial applications requiring versatile grinding capabilities, combining external and internal grinding functions with adjustable parameters for various workpieces.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Capacity: 360X600 mm
Working range Distance tips: 600 mm
Center height: 180 mm
Max. grinding diameter: 360 mm
Travel table: 4-600 mm
Travel speed: 0.1/5 mm/min
Max. workpiece weight: 250 kg
Grinding wheel head External spindle power: 5.5 Kw
External grinding wheel rotation speed: 1235/1450 Rpm
Internal spindle power: 1.5 Kw
Left grinding wheel Wheel band thickness: 80 mm
Max grinding wheel diameter: 500 mm
Bore diameter: 127 mm
Workpiece head Spindle power: 1.1 Kw
Rotational speed: 16/500 rpm
Speed adjustment : CONTINUOUS
Inclination: 0/90 °
Cone: MK4
Tailstock quill diameter: 35 mm
Cone: MK4
Drive: HYDRAULIC
Accessories supplied: MANDINE FOR INTERIOR
Closed bezels: YES
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
