Contact us to receive an offer.
| Manufacturer | TACCHELLA |
|---|---|
| Model | 4 AM |
| Year | |
| Location | Italy
|

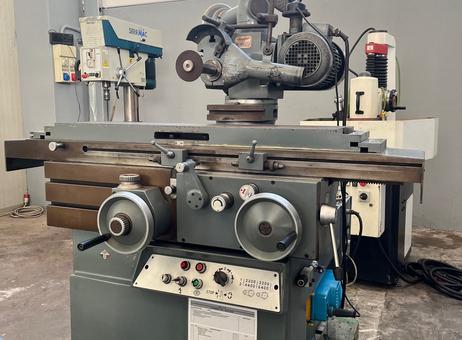

The Tacchella 4 AM is a universal grinding sharpener designed for precise manual operation with hydraulic longitudinal movement. It features a robust table with a length of 900 mm and a width of 130 mm, capable of rotating 360°, allowing versatile positioning of workpieces. The machine offers a maximum longitudinal travel of 400 mm, cross travel of 200 mm, and vertical displacement of the grinding wheel head up to 250 mm, accommodating various grinding tasks.

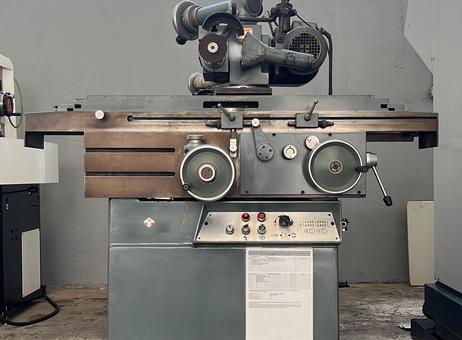

Equipped with a grinding wheel of 200 mm diameter, the machine includes a protective cover for enhanced safety during operation. The grinding wheel head also has an oscillation range of 20°, enabling more complex grinding profiles. Two large handwheels with control knobs and dials are mounted on the front panel, providing precise manual control over the grinding process.

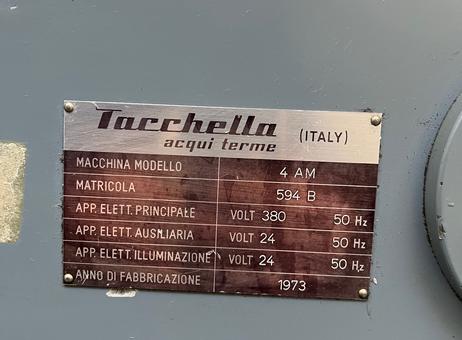

An adjustable lamp is attached above the grinding wheel to illuminate the work area, improving visibility and accuracy. The machine's electrical panel, located on the left side, includes an emergency stop button and various electrical switches for safety and control. A warning label indicates the machine operates at a main electric voltage of 380V.
The Tacchella 4 AM grinding machine is mounted on a wooden pallet for ease of transport. It shows signs of use with minor paint wear, some chipping, and small rust spots, but overall remains in good condition. Power cables and plugs are coiled neatly beside the machine base. Manufactured in Italy, this model offers reliable performance for sharpening and grinding applications requiring manual precision and hydraulic assistance.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
grinders
UNIVERSAL GRINDING SHARPENER WITH MANUAL CONTROLS AND HYDRAULIC LONGITUDINAL MOVEMENT 4 AM
Maximum Diameter on Tips: 250 mm
Longitudinal Stroke of the Table: 400 mm
Vertical Displacement of the Grinding Wheel Head: 250 mm
Cross Displacement of the Grinding Wheel Head: 200 mm
Maximum Diameter of Mounted Wheel: 200 mm
Table Length: 900 mm
Table Width: 130 mm
Table Orientation: 360 °
Oscillation of the Grinding Wheel Head: 20°
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Consultant / Intermediary |
| Active since | 2018 |
| Offers online | 31 |
| Last activity | Oct. 26, 2026 |
grinders
UNIVERSAL GRINDING SHARPENER WITH MANUAL CONTROLS AND HYDRAULIC LONGITUDINAL MOVEMENT 4 AM
Maximum Diameter on Tips: 250 mm
Longitudinal Stroke of the Table: 400 mm
Vertical Displacement of the Grinding Wheel Head: 250 mm
Cross Displacement of the Grinding Wheel Head: 200 mm
Maximum Diameter of Mounted Wheel: 200 mm
Table Length: 900 mm
Table Width: 130 mm
Table Orientation: 360 °
Oscillation of the Grinding Wheel Head: 20°
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
The Tacchella 4 AM is a universal grinding sharpener designed for precise manual operation with hydraulic longitudinal movement. It features a robust table with a length of 900 mm and a width of 130 mm, capable of rotating 360°, allowing versatile positioning of workpieces. The machine offers a maximum longitudinal travel of 400 mm, cross travel of 200 mm, and vertical displacement of the grinding wheel head up to 250 mm, accommodating various grinding tasks.
Equipped with a grinding wheel of 200 mm diameter, the machine includes a protective cover for enhanced safety during operation. The grinding wheel head also has an oscillation range of 20°, enabling more complex grinding profiles. Two large handwheels with control knobs and dials are mounted on the front panel, providing precise manual control over the grinding process.
An adjustable lamp is attached above the grinding wheel to illuminate the work area, improving visibility and accuracy. The machine's electrical panel, located on the left side, includes an emergency stop button and various electrical switches for safety and control. A warning label indicates the machine operates at a main electric voltage of 380V.
The Tacchella 4 AM grinding machine is mounted on a wooden pallet for ease of transport. It shows signs of use with minor paint wear, some chipping, and small rust spots, but overall remains in good condition. Power cables and plugs are coiled neatly beside the machine base. Manufactured in Italy, this model offers reliable performance for sharpening and grinding applications requiring manual precision and hydraulic assistance.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Consultant / Intermediary |
| Active since | 2018 |
| Offers online | 31 |
| Last activity | Oct. 26, 2026 |
