| Manufacturer | Tacchella |
|---|---|
| Model | 1018 UA |
| Year | |
| Location | Italy
|
This Tacchella 1018 UA cylindrical grinding machine is designed for external and internal grinding tasks with a maximum grinding length of 1000 mm and a grinding diameter capacity of up to 360 mm. The machine features a spindle motor power of 5.5 kW, enabling efficient grinding operations, and a maximum wheel speed of 1450 rpm. The grinding wheel band thickness is 120 mm, with a maximum grinding wheel diameter of 450 mm and a hole diameter of 127 mm, accommodating various wheel sizes.
The machine's table offers a translation speed range from 0.1 to 5 mm/min, supporting precise control during grinding. It can handle workpieces up to 250 kg in weight, with an inclination range of 0 to 7 degrees to facilitate different grinding angles. The transversal automatic feed includes an automatic return plunger, enhancing operational efficiency.
The workholder head rotates at speeds between 28 and 550 rpm and can be inclined up to 90 degrees, providing versatility for different grinding requirements. The tailstock drive can be operated manually or hydraulically, allowing adaptability depending on the operator's preference or task demands.
Additional features include the availability of use and maintenance manuals as well as electrical diagrams, supporting ease of operation and servicing. The machine is currently available and visible in stock.

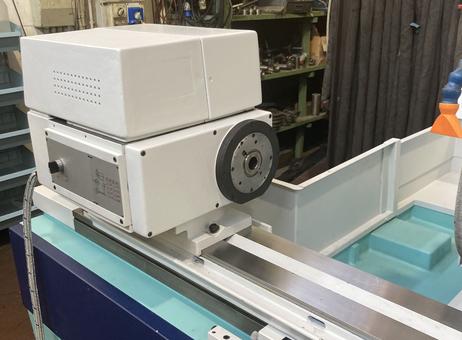

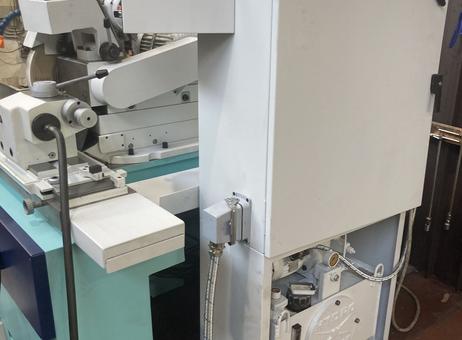

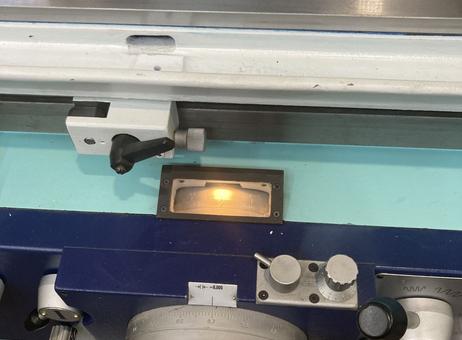

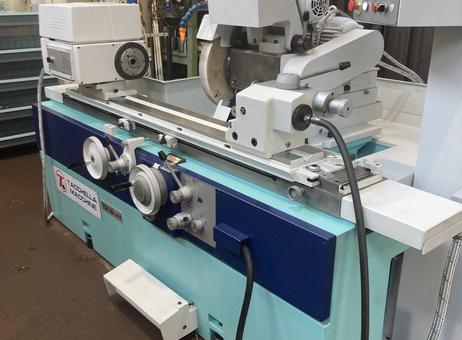

From the images, the machine is painted in light blue and white with a blue front panel. It is equipped with hand wheels and adjustment knobs for manual control, a control panel with buttons and switches for operation, and a workpiece holding fixture or chuck located on the left side of the machine bed. These components contribute to the machine's usability and operational control.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Distance between tips 1000 mm
Tip height 180 mm
Max grinding diameter 360 mm
TABLE
Translation speed 0.1-5 mm/min
Max piece weight 250 kg
Inclination 0/7 °
INCREASES
Transversal automatic with automatic return plunger mm/min
WHEEL HOLDER HEAD
External spindle power 5.5 kW
External grinding wheel rotation speed 1275-1450 RPM
LEFT WHEEL
Grinding wheel band thickness 120 mm
Maximum grinding wheel diameter 450 mm
Hole diameter 127 mm
WORKHOLDER HEAD
Rotation speed 28/550 RPM
Inclination 90 °
Cone cm5
TAILSTOCK
Drive manual/hydraulic
EXTRA
Use and maintenance books Yes
Electrical diagrams Yes
Availability Ready
Visible in stock Yes
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2007 |
| Offers online | 181 |
| Last activity | Oct. 30, 2026 |
GAMBA GIOVANNI S.R.L., known by its brand Gamba Macchine, is a trusted Italian company with over 70 years of experience in the machine tool industry. Based in Gardone Val Trompia in the heart of Italy’s industrial region, the company specializes in the sale of high-quality new and used metalworking machinery for chip removal processes.
Founded in 1950 by Giovanni Gamba, the company has grown into a reference point for precision and reliability in the European industrial market. Today, it is managed by the second and third generations of the Gamba family who continue to uphold a strong tradition of technical expertise and customer-oriented service.
Gamba Macchine operates from two strategic locations in the province of Brescia, offering a wide range of machinery from leading international manufacturers. Their deep knowledge of production processes allows them to assist clients in finding the most suitable and efficient solutions for their machining needs.
With a strong focus on quality, performance, and after-sales support, Gamba Macchine is the ideal partner for companies looking to invest in reliable and cost-effective metalworking solutions. Whether you need a single machine or a complete production line, Gamba Macchine delivers value, expertise, and confidence.
Distance between tips 1000 mm
Tip height 180 mm
Max grinding diameter 360 mm
TABLE
Translation speed 0.1-5 mm/min
Max piece weight 250 kg
Inclination 0/7 °
INCREASES
Transversal automatic with automatic return plunger mm/min
WHEEL HOLDER HEAD
External spindle power 5.5 kW
External grinding wheel rotation speed 1275-1450 RPM
LEFT WHEEL
Grinding wheel band thickness 120 mm
Maximum grinding wheel diameter 450 mm
Hole diameter 127 mm
WORKHOLDER HEAD
Rotation speed 28/550 RPM
Inclination 90 °
Cone cm5
TAILSTOCK
Drive manual/hydraulic
EXTRA
Use and maintenance books Yes
Electrical diagrams Yes
Availability Ready
Visible in stock Yes
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
This Tacchella 1018 UA cylindrical grinding machine is designed for external and internal grinding tasks with a maximum grinding length of 1000 mm and a grinding diameter capacity of up to 360 mm. The machine features a spindle motor power of 5.5 kW, enabling efficient grinding operations, and a maximum wheel speed of 1450 rpm. The grinding wheel band thickness is 120 mm, with a maximum grinding wheel diameter of 450 mm and a hole diameter of 127 mm, accommodating various wheel sizes.
The machine's table offers a translation speed range from 0.1 to 5 mm/min, supporting precise control during grinding. It can handle workpieces up to 250 kg in weight, with an inclination range of 0 to 7 degrees to facilitate different grinding angles. The transversal automatic feed includes an automatic return plunger, enhancing operational efficiency.
The workholder head rotates at speeds between 28 and 550 rpm and can be inclined up to 90 degrees, providing versatility for different grinding requirements. The tailstock drive can be operated manually or hydraulically, allowing adaptability depending on the operator's preference or task demands.
Additional features include the availability of use and maintenance manuals as well as electrical diagrams, supporting ease of operation and servicing. The machine is currently available and visible in stock.
From the images, the machine is painted in light blue and white with a blue front panel. It is equipped with hand wheels and adjustment knobs for manual control, a control panel with buttons and switches for operation, and a workpiece holding fixture or chuck located on the left side of the machine bed. These components contribute to the machine's usability and operational control.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
