Contact us to receive an offer.
| Manufacturer | SUNNEN |
|---|---|
| Model | MBC-1800 |
| Year | |
| Location | Switzerland
|
| Category | Finishing - lapping / honing / vibratory deburring machines |
| Capacity - Diameter | 165 mm |
| Length | 406 mm |
| Engine power | 0.73 kW |
| Length x width x height | 1400.0 × 1200.0 × 1600.0 |
| Weight | 600 kg |
| worked hours | |
| hours under power | |
| state | as-is, where-is |
| At local norms | --------- |
| status | |
| Last availability date | 24/10/2026 |
| Product id | P260215004 |
| Language |
SUNNEN MBC-1800 Машина за шлифоване
SUNNEN MBC-1800 Honovací stroj
SUNNEN MBC-1800 Honing maskine
SUNNEN MBC-1800 Honingmaschine
SUNNEN MBC-1800 Μηχανή μελιού
SUNNEN MBC-1800 Honing machine
SUNNEN MBC-1800 Máquina para miel
SUNNEN MBC-1800 Machine à roder
SUNNEN MBC-1800 Honey stroj
SUNNEN MBC-1800 Méz gép
SUNNEN MBC-1800 Macchina per la lucidatura
SUNNEN MBC-1800 Medaus mašina
SUNNEN MBC-1800 Honing machine
SUNNEN MBC-1800 Maszyna do honowania
SUNNEN MBC-1800 Máquina de mel
SUNNEN MBC-1800 Mașină de frezat
SUNNEN MBC-1800 Медовая машина
SUNNEN MBC-1800 Honey mašina
SUNNEN MBC-1800 Honungsmaskin
SUNNEN MBC-1800 Bal makinesi
|
The SUNNEN MBC-1800 is a honing machine designed for precision finishing of cylindrical components. It accommodates workpieces with diameters ranging from 2 mm up to a maximum of 165 mm, and it supports honing lengths up to 406 mm. The machine features a spindle motor with a power rating of 0.73 kW, capable of operating at 12 different speed steps, ranging from 200 to 2500 revolutions per minute. It operates on a 3-phase 380 Volt power supply at 50 Hz.
In terms of physical dimensions, the MBC-1800 measures 1400 mm in length, 1200 mm in width, and 1600 mm in height, with a total weight of approximately 600 kg. The machine comes equipped with various accessories, including a coolant system and an automatic workpiece honing unit, enhancing its operational efficiency and precision.

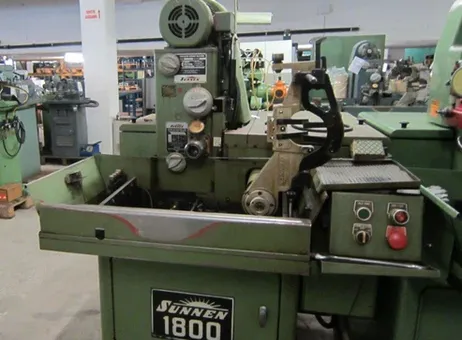

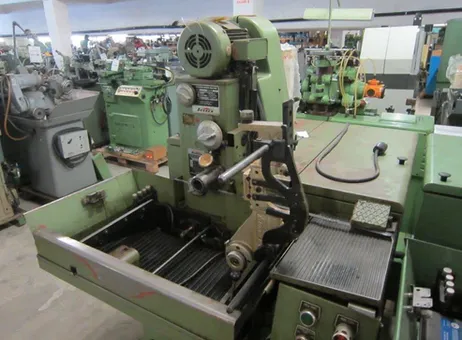

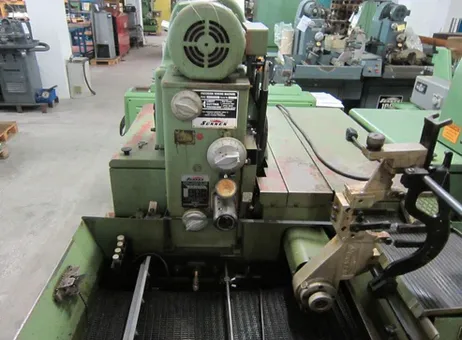

The machine's exterior is green and features a control panel located on the right side, which includes multiple buttons, knobs, dials, and switches for operational control. A motor with a ventilation fan is mounted on top of the machine, aiding in cooling during operation. The workpiece holding fixture is also situated on the right side, designed to secure components during the honing process.
Visible signs of wear are present on the machine, including surface scratches, paint wear, some dirt, and minor rust on metal surfaces, indicating previous use. A power cable is attached to the machine. Overall, the SUNNEN MBC-1800 is a robust industrial honing machine suitable for various finishing applications requiring precise diameter and length specifications.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Type: MBC-1800
Manufacturer: SUNNEN
Group: Honing machine
Subgroup: Honing machine
Min. diameter 2 mm
Max. diameter 165 mm
Max. honing length 406 mm
Spindle speeds:
number (steps) 12
from 200 t/min
up to 2500 t/min
Voltage 50 Hz 3x 380 Volt
Spindle motor 0.73 kW
Machine's weight about 600 kg
Overall dimensions machine:
Length 1400 mm
Width 1200 mm
Height 1600 mm
Various accessories:
Coolant system
Automatic workpiece honing unit
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
