Contact us to receive an offer.
| Manufacturer | STUDER |
|---|---|
| Model | S 30-12 F |
| Year | |
| Location | Switzerland
|

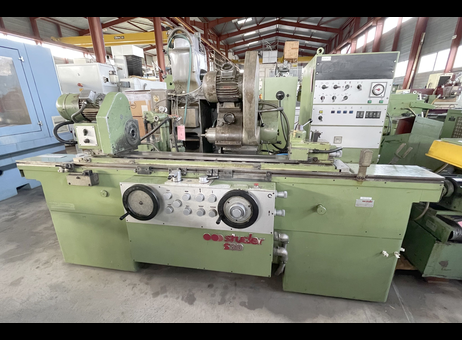

Offer Title: STUDER S 30-12 F Cylindrical Centreless Grinding Machine
Manufacturer: STUDER
Model: S 30-12 F
Technical Condition: As-is, where-is
Dimensions:
Length: 2700 mm
Width: 1400 mm
Height: 1600 mm
Weight: 2500 kg
Capacities:
Centre Height: 125 mm
Distance Between Centres: 1025 mm
Max Longitudinal Travel: 800 mm
Max Transversal Travel: 150 mm
Max Workpiece Weight on Centres: 80 kg
Grinding Wheel Specifications:
Diameter: 450 mm
Width: 50 mm
Bore: 127 mm
Grinding Wheel Speed: 6 Steps (1350 - 2220 t/min)
Workpiece Spindle Head:
Speeds: Stepless (30 - 675 t/min)
Rotatable: 90°
Spindle Taper: 5 CM
Taper in Tailstock: 3 CM
Table Specifications:
Angular Displacement: 10°
Speed: Stepless (up to 6 m/min)
Hydraulic Cross Travel: 40 mm
Electrical Specifications:
Voltage: 3x 380 V, 50 Hz
External Grinding Wheel Motor: 6.25 kW
Internal Grinding Wheel Motor: 1 kW
Accessories Included:
Measuring Instrument

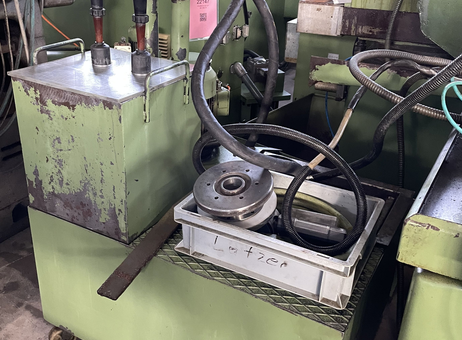

Coolant System
Flange for Outer Pane
Tool Cabinet
Typical Sectors:
Automotive
Aerospace
Machine Tools
Medical
Watchmaking
Please note that technical specifications are subject to change without notice.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2014 |
| Offers online | 260 |
| Last activity | Oct. 30, 2026 |
