Contact us to receive an offer.
| Manufacturer | Steel pipe PVC Coating production line |
|---|---|
| Model | SJ55/25 |
| Year | 2015 |
| Location | Poland
|
This Steel Pipe PVC Coating Production Line, model SJ55/25, manufactured in 2015, is designed for plastic coating of metal profiles, including steel pipes and closed steel profiles. It features heads for plasticizing closed steel profiles with mouthpieces sized 40mm x 60mm and 60mm x 60mm. The mouthpieces can be customized to cover profiles of various shapes, including D100mm pipes and 80x100mm profiles, allowing versatile application across different profile types.
The line includes a SJ55/25 single screw extruder with a screw diameter of 55mm and an L/D ratio of 25:1. The extruder screw is made from 38CrMoAl steel with nitride surface treatment and polishing, designed for durability and efficiency. The barrel is also constructed from 38CrMoAlA steel with nitride processing and features four heating zones with a combined heating power of 14 kW, utilizing cast aluminum and stainless steel coverings. Cooling is managed by air blow with a total cooling power of 1 kW. The extruder is driven by a 22 kW AC motor and equipped with a temperature controller (RKC), Schneider low-voltage circuit breaker, and self-protective systems including overcurrent and overpressure protection.
The production line includes a single coating mould made of 40Cr steel with a polished inner surface, suitable for diameters of 40mm x 60mm. A 6-meter steel straighter pipe feeder constructed from carbon steel with nylon rollers ensures smooth feeding of profiles. The cooling water tank is made of stainless steel with nylon roll wheels inside, measuring 5600mm in length.
For product handling, the line is equipped with a haul-off unit featuring two pneumatic pressure claws with a width of 80mm and length of 1800mm. It offers a maximum traction force of 2000N and a maximum traction speed of 2 m/min, driven by two 0.75 kW motors with chain drive and includes a meter counter. A 6-meter stacker made of carbon steel with nylon rollers completes the line.
The machine appears clean and well-maintained with no visible damage. The extruder features a hopper for feeding raw plastic material and a control panel with multiple switches and indicators. The cooling section includes a long metal trough with adjustable blue coolant nozzles. Conveyor belts are enclosed in protective covers and driven by mounted electric motors. Overall, this production line is suitable for efficient and versatile PVC coating of steel pipes and profiles, with a maximum plastic output capacity of 45 kg per hour.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Line for plastic coating of metal profiles.
It has HEADS FOR PLASTICING closed steel profiles with mouthpieces of dimensions 40mm x 60mm and 60mm x 60mm. Mouthpieces can be of any shape for D100mm pipes and 80x100mm profiles
But you can cover any profiles.
Capacity 45 kg of plastic per hour.
Feed rate depends on the profiles, max 45 kg/h.
year of construction 2015.
Unused, still packed.

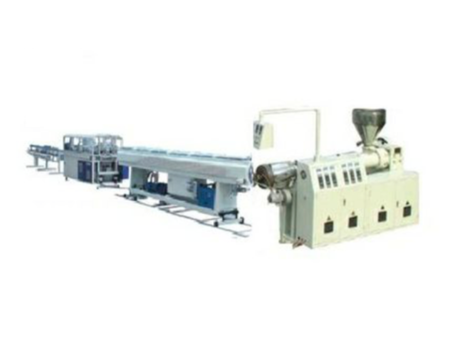

Steel pipe PVC Coating production line
1 SJ55/25 single screw extruder
2 Coating Mould
3 Steel straighter pipe feeder
4 Water tank
5 Haul-off (2 claws)
6 stacker

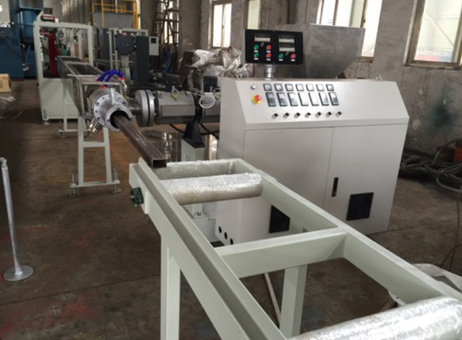

SJ55/25 single screw extruder
Output capacity: max. 45kg/h
Screw :
Diameter of screw: Ф55mm
L/D: 25/1
Material of screw: 38CrMoAl
Surface treatment: Nitride processing, thickness: 0.6 ~
0,8mm,
Polishing
Max. rotating speed: 50rpm
Barrel:
Material of Barrel: 38CrMoAlA
Inner processing: Nitride with thickness: 0.6 ~ 0.8mm
Heating zones: 4 zones
Heating mode: Cast aluminum + stainless steel covering
Heating power: 3.5KW×4pcs.=14kw
Method of cooling: air blow
Cooling power: 0.25KW×4pcs.=1kw
Driving motor:
Motor power: AC 22Kw
Main electric part:
Temperature controller: RKC
Low-voltage circuit breaker: Schneider
Self protective system:
Over current protective of motor Over pressure protective
of screw

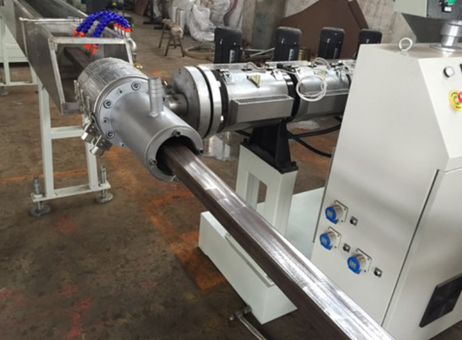

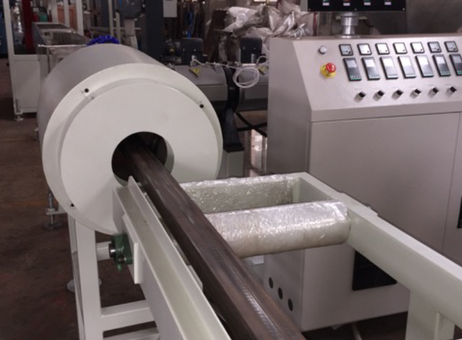

Coating Mould Mould type: single Mould: 1 set
Diameter range: 40*60mm
Material:
Made by 40Cr.
Inner surface polished
Diameter spec:
40*60mm
Steel straighter pipe feeder
6 meters
Material : carbon steel
Roller material : nylon

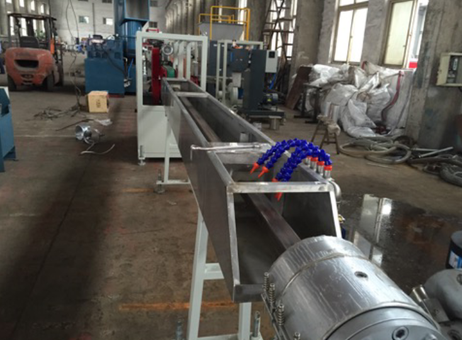

Cooling tank Water tank
Dimensions:
Length: 5600mm
Tank Material :
Stainless steel
Inside under prop
Nylon roll wheel

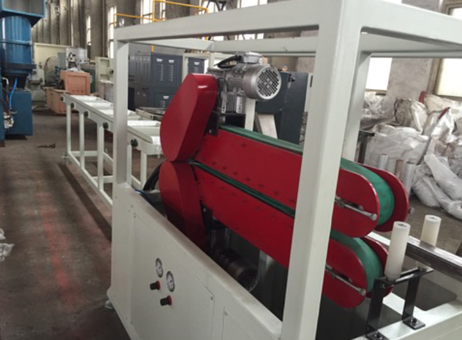

Haul-off (2 claws) Pneumatic pressure
Frequency inverter control
Claw width: 80mm
Claw length: 1800mm
Max traction force: 2000N Max traction speed: 2m/min
Draw motor power: 2*0.75KW Chain drive
Meter counter : 1set
Stacker 6 meters
Material : carbon steel
Roller material : nylon
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2021 |
| Offers online | 2 |
| Last activity | Sept. 24, 2026 |
Line for plastic coating of metal profiles.
It has HEADS FOR PLASTICING closed steel profiles with mouthpieces of dimensions 40mm x 60mm and 60mm x 60mm. Mouthpieces can be of any shape for D100mm pipes and 80x100mm profiles
But you can cover any profiles.
Capacity 45 kg of plastic per hour.
Feed rate depends on the profiles, max 45 kg/h.
year of construction 2015.
Unused, still packed.
Steel pipe PVC Coating production line
1 SJ55/25 single screw extruder
2 Coating Mould
3 Steel straighter pipe feeder
4 Water tank
5 Haul-off (2 claws)
6 stacker
SJ55/25 single screw extruder
Output capacity: max. 45kg/h
Screw :
Diameter of screw: Ф55mm
L/D: 25/1
Material of screw: 38CrMoAl
Surface treatment: Nitride processing, thickness: 0.6 ~
0,8mm,
Polishing
Max. rotating speed: 50rpm
Barrel:
Material of Barrel: 38CrMoAlA
Inner processing: Nitride with thickness: 0.6 ~ 0.8mm
Heating zones: 4 zones
Heating mode: Cast aluminum + stainless steel covering
Heating power: 3.5KW×4pcs.=14kw
Method of cooling: air blow
Cooling power: 0.25KW×4pcs.=1kw
Driving motor:
Motor power: AC 22Kw
Main electric part:
Temperature controller: RKC
Low-voltage circuit breaker: Schneider
Self protective system:
Over current protective of motor Over pressure protective
of screw
Coating Mould Mould type: single Mould: 1 set
Diameter range: 40*60mm
Material:
Made by 40Cr.
Inner surface polished
Diameter spec:
40*60mm
Steel straighter pipe feeder
6 meters
Material : carbon steel
Roller material : nylon
Cooling tank Water tank
Dimensions:
Length: 5600mm
Tank Material :
Stainless steel
Inside under prop
Nylon roll wheel
Haul-off (2 claws) Pneumatic pressure
Frequency inverter control
Claw width: 80mm
Claw length: 1800mm
Max traction force: 2000N Max traction speed: 2m/min
Draw motor power: 2*0.75KW Chain drive
Meter counter : 1set
Stacker 6 meters
Material : carbon steel
Roller material : nylon
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
This Steel Pipe PVC Coating Production Line, model SJ55/25, manufactured in 2015, is designed for plastic coating of metal profiles, including steel pipes and closed steel profiles. It features heads for plasticizing closed steel profiles with mouthpieces sized 40mm x 60mm and 60mm x 60mm. The mouthpieces can be customized to cover profiles of various shapes, including D100mm pipes and 80x100mm profiles, allowing versatile application across different profile types.
The line includes a SJ55/25 single screw extruder with a screw diameter of 55mm and an L/D ratio of 25:1. The extruder screw is made from 38CrMoAl steel with nitride surface treatment and polishing, designed for durability and efficiency. The barrel is also constructed from 38CrMoAlA steel with nitride processing and features four heating zones with a combined heating power of 14 kW, utilizing cast aluminum and stainless steel coverings. Cooling is managed by air blow with a total cooling power of 1 kW. The extruder is driven by a 22 kW AC motor and equipped with a temperature controller (RKC), Schneider low-voltage circuit breaker, and self-protective systems including overcurrent and overpressure protection.
The production line includes a single coating mould made of 40Cr steel with a polished inner surface, suitable for diameters of 40mm x 60mm. A 6-meter steel straighter pipe feeder constructed from carbon steel with nylon rollers ensures smooth feeding of profiles. The cooling water tank is made of stainless steel with nylon roll wheels inside, measuring 5600mm in length.
For product handling, the line is equipped with a haul-off unit featuring two pneumatic pressure claws with a width of 80mm and length of 1800mm. It offers a maximum traction force of 2000N and a maximum traction speed of 2 m/min, driven by two 0.75 kW motors with chain drive and includes a meter counter. A 6-meter stacker made of carbon steel with nylon rollers completes the line.
The machine appears clean and well-maintained with no visible damage. The extruder features a hopper for feeding raw plastic material and a control panel with multiple switches and indicators. The cooling section includes a long metal trough with adjustable blue coolant nozzles. Conveyor belts are enclosed in protective covers and driven by mounted electric motors. Overall, this production line is suitable for efficient and versatile PVC coating of steel pipes and profiles, with a maximum plastic output capacity of 45 kg per hour.
