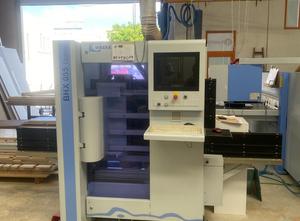

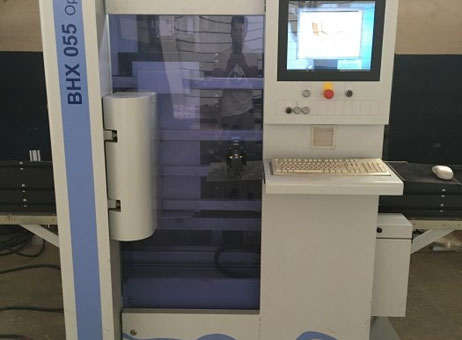

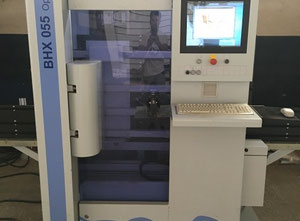

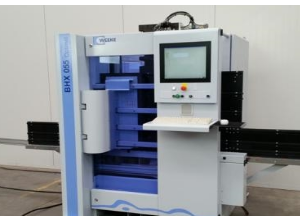

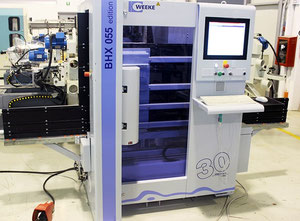

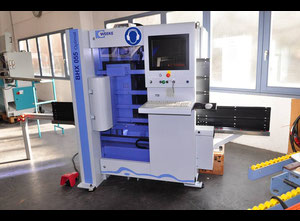

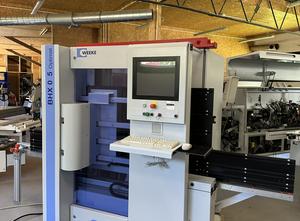

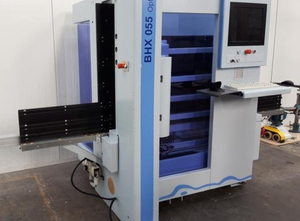

Weeke BHX 055

WORKING CENTER FOR BORING ROUTING GENERAL SPECIFICATIONS * Working area axes "X", "Y": 3050 x 850 mm * Maximum panel thickness 12-60 mm BORING UNITS * Nr. 8 independent spindles for vertical boring in higher "X" direction * Nr. 3 independent spindles for vertical boring higher in "Y" direction * Nr. 4 spindles for horizontal boring higher in "X" direction * Nr. 2 spindles for horizontal boring higher in "Y" direction ROUTING UNITS * Nr. 1 electro-spindle in vertical position - motor power 5 KW 6000/18000 (rev / min) OTHER UNITS * Group blade integrated top - tool diameter 100 mm cONTROL OF THE MACHINE aND ACCESSORIES * control and program system pOWER CONTROL PC 85 + WOODWOP SOFTWARE with the following features: - pc - screen color - CD-ROM - keyboard * control of axes "X" - "Y" - "Z" * command board installed on a separated electrical cabinet to control the machine NORM AND OPTIONAL sECURITY * Security norm CE mark * Protection and sound-proof the working units

Weeke BHX 055 Vertical CNC Machining Center X-Axis Max. Working Length: 120.08” Y-Axis Max. Working Width: 33.46” Maximum Part Thickness: 60mm 13 Vertical Drilling Spindles Four Horizontal Drilling Spindles in X Two Horizontal Drilling Spindles in Y One Grooving Saw in X 10 HP Router Spindle Four-Position Automatic Tool Changer Router Spindle Accepts HSK-63 Tool Holders Year: 2012 208v, 3ph
