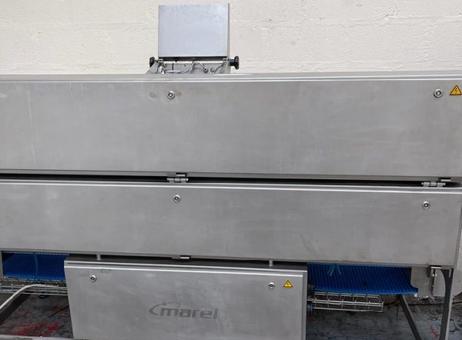

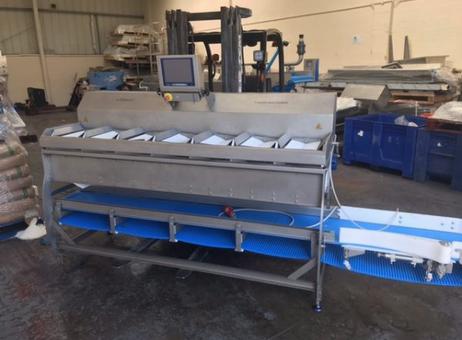

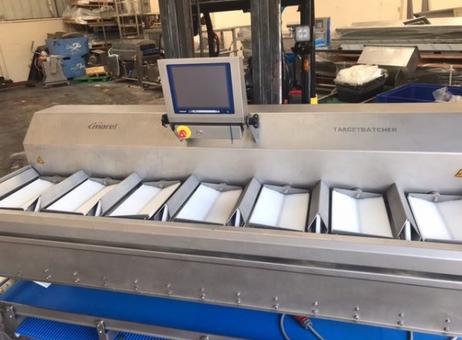

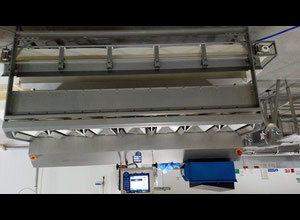

Marel TBL 3000

Grader Make: Marel Model: TBL3000 Target Batch Grader Built 2016

Packed into bags – using a manual bagging station Packed into bags – using vertical bagging machines Transported away on a conveyor belt for manual packing and styling in trays Transported away on a conveyor belt for thermoformer packing Automatically loaded onto trays.

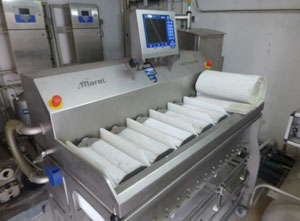

TBL 3000

Brand: Marel Model: TBL3000 Year: 2006

This is the larger version of the Target Batcher. The Target Batcher is a semi-automatic batching machine for producing batches of either fixed weight or fixed weight and count. The Target Batcher is compact, highly accurate, fast, and economical. It is very suitable for producing a wide range of batch sizes and can be used for a wide range of products. For example, the Target Batcher has been used successfully to create batches for consumer packages and batches as large as 6 kg. The Target Batcher also supports a Split-Pack feature, which combines 2 or 3 types of products into a single fixed-weight batch in a predetermined way. Product examples: Fish: whole fish, fillets, steaks, and pieces. Frozen, fresh, smoked, breaded and individually vacuum packed. Poultry: all bone-in parts and fillets. Fresh and frozen. Meat, Pork & Lamb: various cuts. See the Documents link on this page for a more detailed description of how the Target Batcher works. Note: The size of the weighing bins and holding bins is a limiting factor regarding product size. Therefore, this model, the larger Target Batcher (TBL-3000) is more suitable for larger products. Features Manpower reduction Increased throughput Increased accuracy Elimination of waste due …

2006

Fixed Weight Portion Packaging Accuracy is an essential design feature of a target dispenser. This unique machine produces constant weight packaging from fresh or frozen product with the correct target weight. The target dispenser is ideal for accurate portioning, creating individual packages of almost any size. The need for trimming is eliminated and portions are delivered ready for packaging. Designed with hygiene in mind, the Target Dispenser is easy to clean and constructed exclusively from polished stainless steel parts. Reliability is achieved thanks to the IP67 protection level and the selection of high-quality parts, which guarantees a long service life and durability of the machine. Number of operators: 1 or 2 Power: 3x110/220/400V + N + Gnd Air supply: 6 bar, 10/20 l/min Weighing accuracy: 1 g Dim. basket weight TBL3000: 315x200 mm Max. element weight: 2000 g Max. overload 20 kg Operating temperature: -10 to +40°C Construction: AISI 304, sprayed glass, K240 S.S Protection level: IP67 Motor and belt type Drum motor/Intralox S1100 Intended use Poultry, fish Efficiency 12-24 packages/min Technical condition Very good
