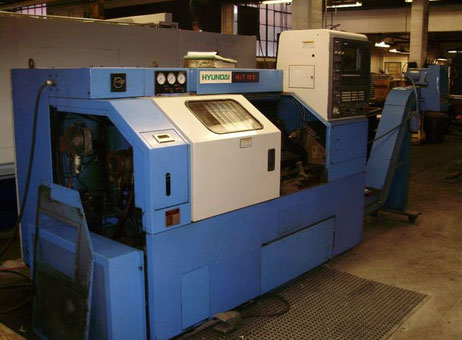

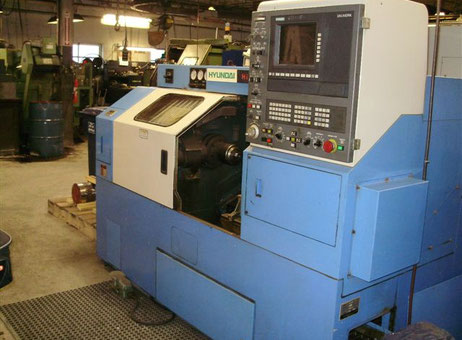

Hyundai HIT-15S

Max. Swing 22.8" Max. Turning Diameter 20.5" No of Spindles 2 (opposed) Nominal Turning Diameter 11.8" Recomended Work Size 12" x 5" X-Axis Travel 10.4" Z-Axis Travel 17.3" Turret Positions 12 Rapid Traverse 945 IPM Spindle Bore 2.6" Spindle Nose A2-8 Spindle Speed 30~3,000 RPM Spindle Motor 22 HP Approx. Machine Weight 9,900 LBS NOTES: Fanuc 0-TT CNC Model L-291-B Swing Robot with: 22 Lbs x 22 Lbs Carrying Capacity 3-Jaw Hydraulic Chuck 3150 IPM Traverse 240 degree Swing Range 10 Pallet Work Stacker (11" height) Auto Guaging

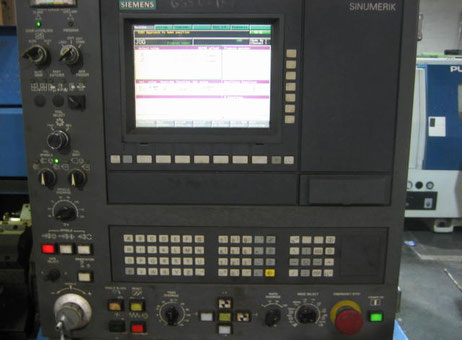

Chuck Size 8" Max Diameter Bar Capacity 2" Max Swing Over Bed 17.32" Max Turning Diameter 10" Distance Between Centers 25" Max Machining Length 19" Spindle Motor 20 / 15 HP AC Spindle Speed 45 - 4500 RPM Spindle Bore 2.44" Spindle Nose A2-6 Tools 8 Rapid Traverse Rates 1181 IPM X-Axis Travel 7.10" Z-Axis Travel 20.10" Tailstock Taper MT#4 Machine Dimensions (L x W x H) 101.1" x 60.2" x 72" Machine Weight 9261 lbs. FEATURES: SEIMENS HITROL 840C EZ CNC CONTROL 12" Color CRT Conversational Programming 8" Hydraulic Chuck Programmable Tool Eye Programmable Tailstock Body & Quill Chip Conveyor (Rear Exit)

HYUNDAI HIT 15 CNC TURNING CENTER, WITH SIEMENS MODEL 840D CNC CONTROL WITH THE FOLLOWING STANDARD EQUIPMENTS: DATE OF MANUFACTURIN: 2001 -DEPRO-PRO PROGAMMING - HIGH RESOLUTION COLOR GRAPHICS DISPLAY -AUTOMATIC TOOL SETTING SYSTEM [TOOL EYE] -SPINDLE ORIENTATION [1 DEGREE] -STANDARD WORK LIGHT -COMPLETE COOLANT SYSTEM [14 PSI/15.8 GPM]. TANK CAPICITY 52.8 GALS -CHIP AND COOLANT SPLASH GUARDING [FULLY EMCLOSED] -PROGRAMMABLE TAILSTOCK BODY AND QUILL -8 INCH DIAMETER HYDRAULIC THRU-HOLE CHUCK PACKAGE: [DRAW TUBE ID: 2.05 INCH, KITAGAWA B208A0615 WITH 1 SET OF JAWS -HYDRAULIC UNIT [1.5KW MAXIMUB 850 PSI -8 POSITION (8) DRUM TURRET -AUTOMATIC LUBRCATION SYSTEM -CHUCK FOOT SWITCH -FRONT DOOR INTERLOCK -MACHINE ELECTRIC WIRED 220V +/_ 5% VOLT OPERATION -AUTOMATIC PART CATCHER -CHIP CONVEYOR -ATS 16C COLLET CHUCK -ATC 5C COLLET CHUCK -ONE SET OF ADJUSTING TOOLS -ONE SET OF OPERATIONAL MANUAL

MANUFACTURED NEW 1995 SWING OVER BED 17.32" MAXIMUM TURNING DIAMETER 10.0" MAXIMUM TURNING LENGTH 19" X AXIS TRAVEL 7.1" Z AXIS TRAVEL 20" DISTANCE BETWEEN CENTERS 25" RAPID TRAVERSE RATE X & Z AXIS 1181 IPM SPINDLE BORE 2.44" MAXIMUM BAR CAPACITY 2" SPINDLE SPEEDS 45 - 4,500 RPM SPINDLE NOSE A2-6 SPINDLE MOTOR 20 HP TURRET CAPACITY 8 STATION TURRET TAILSTOCK QUILL DIAMETER/TAPER 3.15" / MT #4 TAILSTOCK QUILL STROKE 5.12" TAILSTOCK BODY TRAVEL 19" DIMENSIONS, APPROX. 100" x 65" x 70" MACHINE WEIGHT, APPROX. 10,000 LBS EQUIPPED WITH: HiTROL - EZ (SIEMENS) 840C CNC CONTROL W/13" COLOR LCD MONITOR, RS-232C PORT INTERFACE FOR DNC OPERATION, 8" 3-JAW HYDRAULIC CHUCK, PARTS CATCHER, HYDRAULIC TAILSTOCK QUILL & BODY TRAVEL, TOOL EYE (AUTOMATIC TOOL PRESETTER ARM), CHIP CONVEYOR (SIDE DISCHARGE), COTOUR PROGRAMMING WITH GRAPHIS SUPPORT, STANDARD COOLANT SYSTEM WITH TANK & PUMP, FULLY ENCLOSED SPLASH GUARDING & ENCLOSURES, ***VIDEO AVAILABLE UPON REQUEST***

Chuck Size 8" Max Diameter Bar Capacity 2" Max Swing Over Bed 17.32" Max Turning Diameter 10" Distance Between Centers 25" Max Machining Length 19" Spindle Motor 20 / 15 HP AC Spindle Speed 45 - 4500 RPM Spindle Bore 2.44" Spindle Nose A2-6 Tools 8 Rapid Traverse Rates 1181 IPM X-Axis Travel 7.10" Z-Axis Travel 20.10" Machine Dimensions (L x W x H) 101.1" x 60.2" x 72" Machine Weight 9261 lbs. FEATURES: SEIMENS HITROL 840C EZ CNC CONTROL 12" Color CRT Conversational Programming 8" Hydraulic Chuck Programmable Tool Eye Programmable Tailstock Body & Quill Chip Conveyor (Rear Exit) Chucker (No Tailstock)
