Hyd-Mech S-20P

SPECIFICATIONS: Capacity: Square 13" X 18" Round 13" 45 Degree round 12" Blade dimensions 1" X 13'6" X .032" Blade drive 3 HP, 240/3/60 Blade wheel diameter 16" Blade speed 75-400 SFM Hydraulic drive 2 HP Hydraulic system pressure 500 PSI Hydraulic tank capacity 10 US Gallons Table height 30" Machine work load 4,000 lbs Machine weight (approx) 1,400 lbs Machine dimensions 80" X 70" X 57" FEATURES: Swivel head mitering from 90 to 40 degrees, 5 degree past 45 The angle of cut is easily and accuratly set by releasing the cam-lock brake and swiveling the head to the desired angle as indicated on the cut scale and relocking the brake. Outfeed table w/manual stock stop Carbide insert blade guides Electro welded steel components Heavy duty blade drive box Roller infeed table Coolant system

With 45° miter cuts Capacity: 13" x 18" 12" diameter round @ 45° Blade size: 13'6" x 1" Wheel diameter: 16" Work height: 28-1/2" Blade speeds approx.: 90 - 370 SFM EQUIPPED WITH: Control console mounted on top of the head with selector switches for head up - hold - down, vise open - close, coolant off - on & pushbuttons for start - stop 6-1/2" high hydraulically operated vises Coolant & chip pan with control Outfeed table with coolant return tray & angle of cut scale Powered blade brush Hydraulic pump, driven by Approx. 2 HP motor 3 HP 1730 RPM 200/230/460/3/60 motor Weight approx. 2500# Overall dimensions approx. 78" L-R x 78" F-B x 56" H

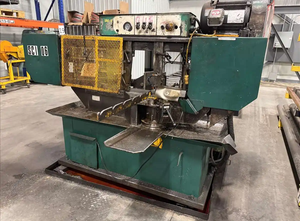

Specifications 13" x 18" Hyd-Mech S-20PE
