| Manufacturer | SORALUCE |
|---|---|
| Model | FS8000 |
| Year | 2006 |
| Location | Italy
|
This SORALUCE FS8000 travelling column milling machine, manufactured in 2006, offers substantial machining capabilities suitable for large-scale industrial applications. It features a longitudinal X-axis travel of 8000 mm, a vertical Y-axis travel of 2800 mm (extendable to 3300 mm with the head rotated), and a RAM transverse Z-axis travel of 1500 mm. The machine is equipped with linear guides on the support axes, ensuring precision and stability during operation.
The CNC system is a Heidenhain iTNC530, complemented by a Heidenhain pressurized optical scale measurement system for enhanced accuracy. Servo drives powered by Heidenhain motors provide reliable and smooth axis movements. The machine includes an HR410 Remote Electronic Flyer, facilitating advanced machining processes.
The spindle motor delivers 30 kW of power at a maximum speed of 3000 rpm, with a torque of 1240 Nm. It uses an ISO50 DIN69871 spindle cone and features a ZF range change mechanism. Rapid traverse rates are 15 m/min for X, Y, and Z axes, with working feed rates of 5 m/min across all axes.
The automatic tool changer (ATC) has 40 posts, accommodating tools with a maximum diameter of 125 mm, or up to 250 mm with free adjacent seats. The maximum tool length is 400 mm, and the maximum tool weight is 20 kg. Tool attachment is ISO50, with options for vertical or horizontal positioning.

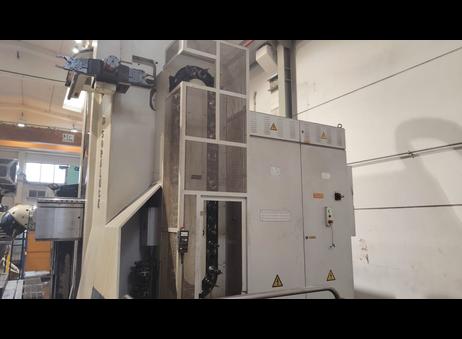

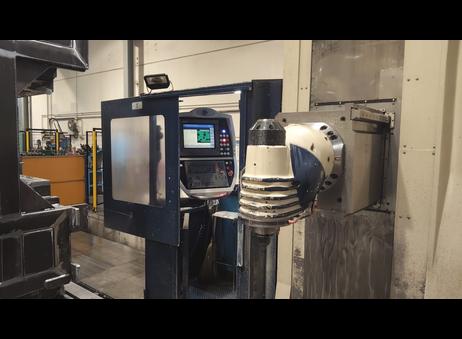

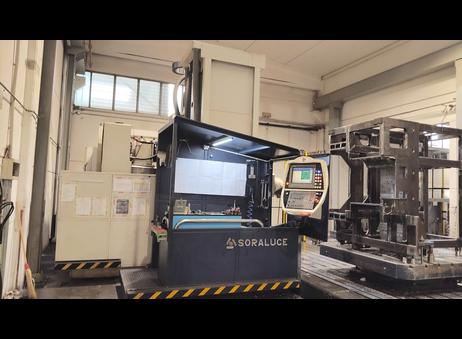

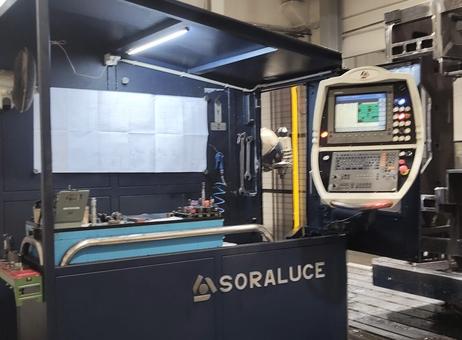

The machine is housed in an industrial workshop environment and includes an operator control cabin with illuminated interior and control buttons, providing ergonomic operation. The SORALUCE brand logo is prominently displayed on the control cabin. A large metal fixture or workpiece can be mounted on the worktable, supporting heavy-duty machining tasks. This milling machine is designed for high precision and versatility in large component manufacturing.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Longitudinal (X) 8000 mm
Vertical (Y) 2800 (3300 with head rotated) mm
RAM Transverse (Z) 1500 mm
Support axes linear guides
CNC
Measurement system Heidenhain pressurized optical scales
Drives Servo drives with Heidenhain motors
Notes HR410 Remote Electronic Flyer
CNC Heidenhain iTNC530
SPINDLE
Spindle power (S1) 30 Kw
Rotation speed 3000 RPM
Couple 1240 Nm
Cone ISO50 DIN69871
Notes ZF range change
ADVANCEMENTS
Quick X 15 m/min
Quick Y 15 m/min
Quick Z 15 m/min
X 5 m/min
Y 5 m/min
Z 5 m/min
ATC
Posts 40
Max tool diameter 125mm
Max. diam with free adjacent seats 250mm
Max. tool length 400mm
Max. tool weight 20 Kg
Tool attachment ISO50
Position vertical/horizontal
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
